Sprocket & Shaft for Ash Bucket Elevator
Sprocket & Shaft for Ash Bucket Elevator

Sprocket & Shaft for Ash Bucket Elevator

Share on (60442485647):


Price:$200.00

Quantity:


Product Overview

Description


Product Description

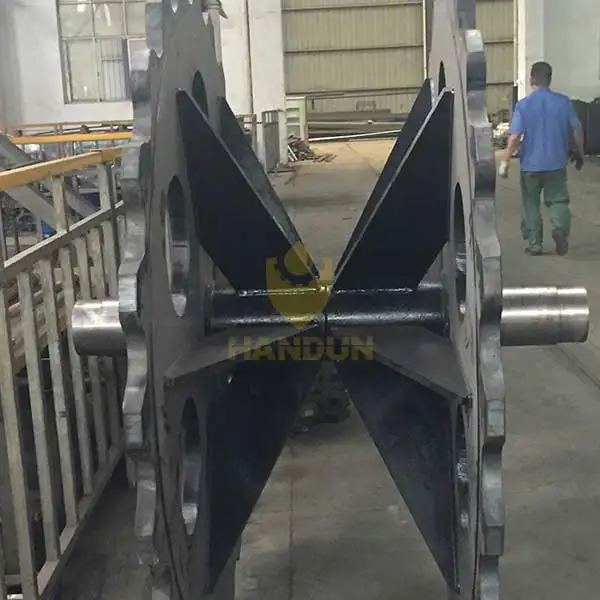

Special Sprocket for Ash Bucket Elevator with Shaft
Chain No
ZC5608
Feature
Complete Forged, without welding
Material
Carbon Steel
Finished
black oxide
Standard
NON-STANDARD
Note
In severe condition, Please contact with us for our non-standard chains designed specially.
Sprocket for Engineer Class Chain

Material: Cast Iron, Cast Steel, Forged, steel by flame or laser cutting.
Heat-Treatment: induction, flame, case hardening, etc. Effective hardness depth.
Germany Milling Machine for special machined tooth profiles.
Finishes including: paint, powder coat and black oxide.

Max Sprocket Diameter we can produce up to 3 Meter

When chains and sprockets articulate correctly, the life of the chain is extended. It is best to buying sprocket from the same chain manufacturer.
Size Information
If you can not find the same size from below form, please contact with us directly.

There are many type chain used for cane feeder & washing table for sugar mill. Please contact with us for more information.
Chain Size
Pitch
Inner Width
Roller
U.T.S

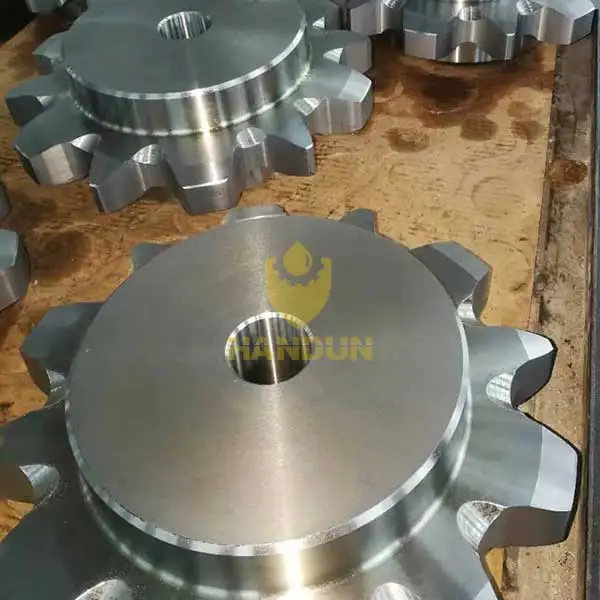

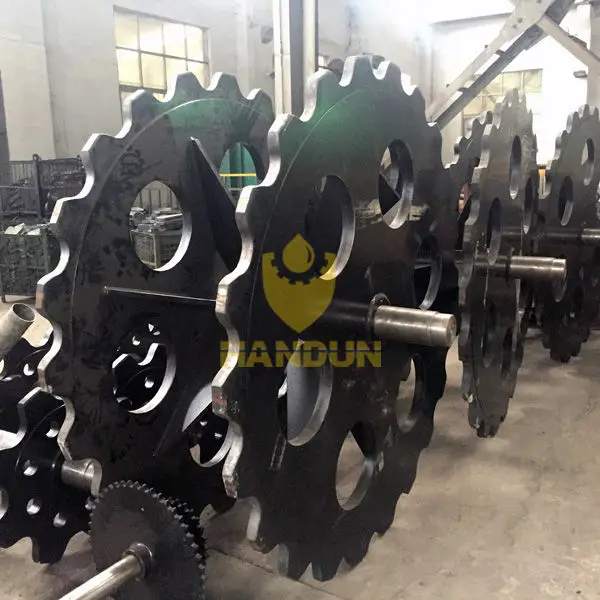

Detailed Images
Our High Quliaty Engineer chain with good apperance, perfect clearance between chain parts. Special grease is coated between joint link to protect the chains. Use special oil in surface to keep the chain clean and anti-rust.
Related Products
Packing&Shipping
The engineer chains are cut into 2 meter or special links. Outer packed in poly-wood cases, steel cases or pallects according to customers' requirement. If you need special packing way, please contact with us.
After Sales Service
Technical Support

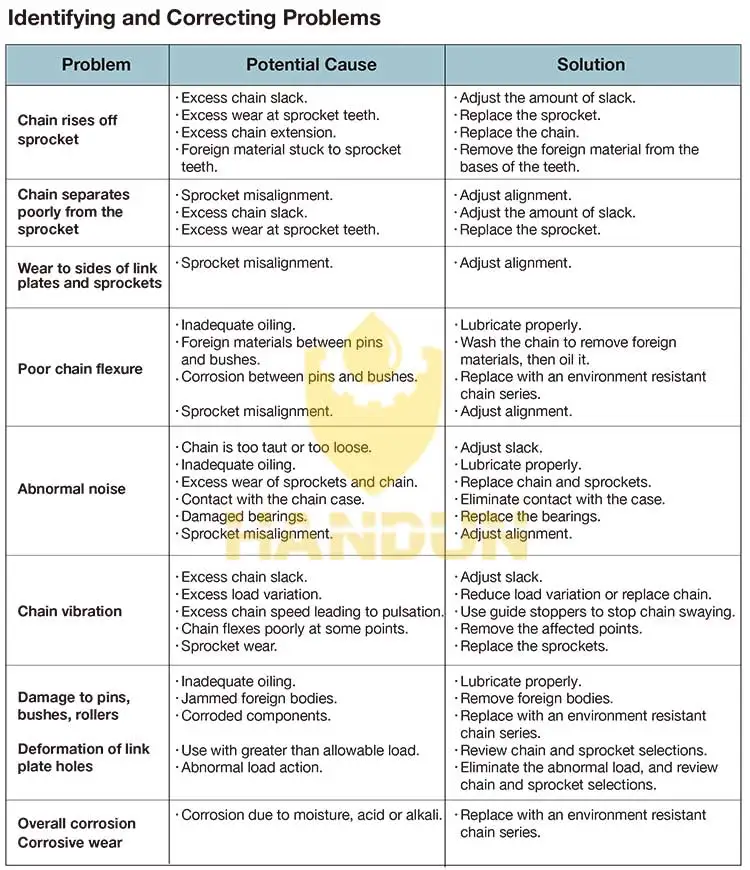

The above chart shows the most common chain failures and causes, but not the only ones.

If you face problem of chain broken, it is best to contact with us with broken parts photoes and chain application information.
Company Introduction
Hangzhou Handun Machinery Co., Ltd is the trading company of Zhuji Chain General Factory. As China engineer chain specialist, our factory has started in 1972, produced full range of industry chains. Since 2005, we started to cooperate with HITACHI, focusing on design and produce high quality engineer chains. Now, our products have been extended to industry chain, engineer sprockets, couplings and chain conveyor system.
We have 3 brands to serve our customers: HANDUN brand for roller chain and agricultural chain, TJ brand for conveyor chain. Since 2018, we start to supply JOSO brand for high precision top quality engineer chain in China.
Serving lots of industry in China and cooperating with many famous company in the world, we hope to less the cost of ender chain users, not only by quality but also by service.
CNC Machines
Engineer Chain Assembling
Ipsen Multi Purpose Furnace
Germany Optical Spectrum Anlyzer
Chain Breaking Load Tester
Microhardness Tester

Our Advantage

1. Rich Experiences in Engineer chains.
More than 45 years experiences in Engineer Chain, more than 500 handred workers, 25 engineers in conveyor chain team and chain conveyor team, we serve for handreds of industry in China. As an industry partner, we cooperated with many famous companies in China.
We are familiar with working conditions in various industries.
2. High quality with Guarrantee.
We use high precision machines from Germany, Japan and Taiwan. Under the instruction of HITACHI, our engineer chain quality has reach a high level in the world.
There are several Top Engineer Chain Brands in the world cooperated with us. We learn from them to improve the quality step by step.
3. The target of our service is less cost for user.
It is impossible to produce high quality engineer chain according to drawings and specifications. Our engineers check the chain running site and find the solution to extend the chain working life and reduce downtime. For us, quality means "VALUE FOR MONEY".
FAQ
Q: Why the prices are very different for same size chain in China chain factories.
A: There are lots of ways to less the cost in chain production.
-The prices from some steel factory are cheaper but the physical properties are poor.
-Reduce production process: Plate material annealing, twice punching plate hole, centerless grinding,
shot peening, chain pre-strength, etc.
-Use cheaper material for pin, bush and roller.
-Use thinner chain plates.
-Shorter the heat-treatment time or overload in furnace each time.
Q: Why we can say we are China engineer chain specialist.
A: We have more than 45 years experiences in engineer chain, serving lots of industry giants in China.
During analysis lots of imported conveyor chain, we are familiar with the chain design and producing
process from the world first class chain factories.
