Product Overview

Description

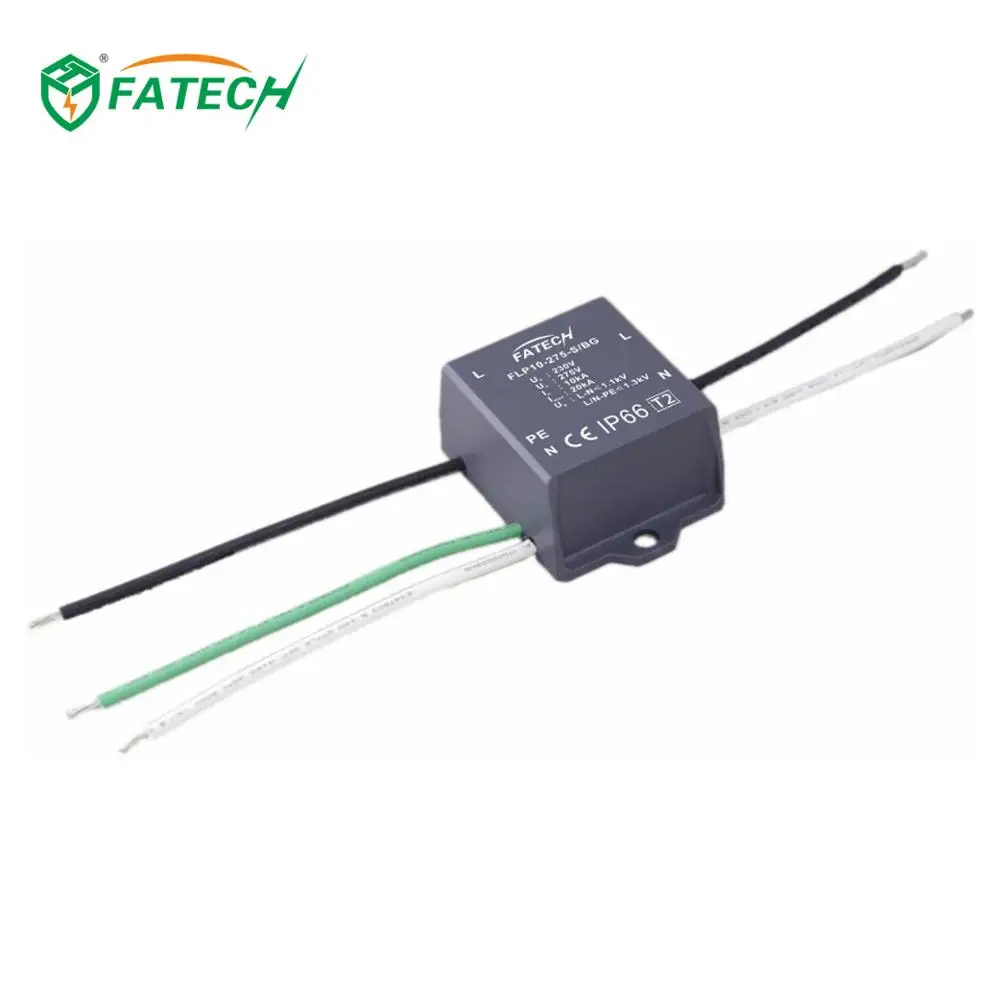

1.surge protector Characteristic for FLP10-385-P/S





- New designed LED lighting surge protection module.
- specifically for outdoor and commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting.
- 20kA lightning surge protection.
- Metal oxide varistor (MOV) thermal protection.
- Parallel connected and series connected SPD options.
- Waterproof IP66.

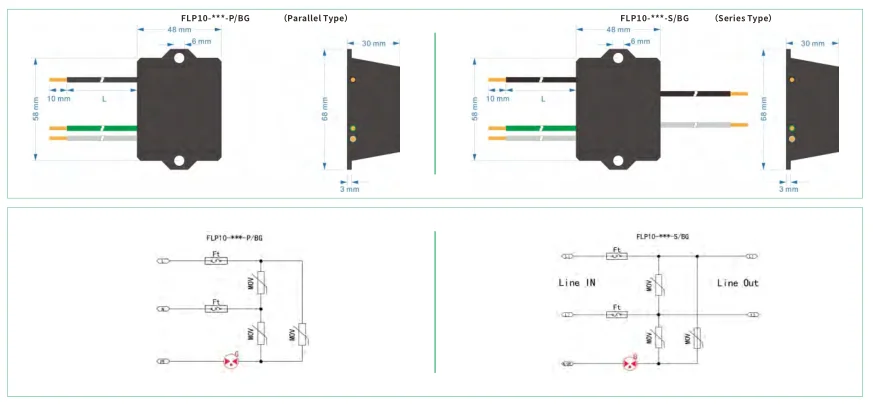

2.surge  protector Dimension and Circuit for   FLP10-385-P/S_20190821134345.png








 3. surge  protector Electrical parameters for   FLP10-385-P/S







































































Model No.  FLP10-385-P/S
Max.continuous DC voltage[(L+/L-)->PE]/ [L+->L-]Uc V385V
Thermal cut-off member  Internal
Nominal Discharge current(8/20μs)InkA10
Max. discharge current (8/20μs)ImaxkA20
Voltage protection level (at In) [(L+/L-)->PE]/ [L+->L-]UpkV≤1.7
Response timetAns<25
Operation temperature range  -40°C~+85°C
Degree of protection  IP66
Housing material  UL94V0





1



















P1P2P3P4

Surge arrester  for


  protection photovoltaic system



Surge arrester  for


  protection power supply system



Surge arrester  for


  protection signal system


Lightning Rods & Surge Counters


why us


1


Workshop


1


 QQ20210607113546.png     →         QQ20210607113631.png       →     QQ20210607113602.png





           Module assembling                               Base part producing                              Finished products tests





                                                                                                                                                                                          ↓  QQ20210607113621.png       ←         QQ20210607113614.png     ←      QQ20210607113607





                 Go to warehouse                                   Packing                                            Impulse current test















Certifications


        FATECH Electronic (FOSHAN) CO., LTD. supplies five-years warranty on surge protective devices, and supply maintenance services in lifetime.Products are certified with TUV, CE; UL pending, 90% material are UL approved.


1


 FAQ:





1. Q: Could l know which advantages do you have please?





A: Independent test center, TUV, Patent certifications; 15 years export experience in the overseas market; good technical service and support.





2. Q: Are you a lightning surge protectors factory or trading company?


A:  We area manufacturer which is ISO 9001-2008 quality system on R&D, production and sales of surge arrester.





3. Q: Warranty and return?





A:  We supply five-years warranty on surge protective devices and own the best after-sale service team, if any


problem happens, our team will do our best to solve it for you.





4. Q: What's the delievery time?





A:  It is usually about 15 days after receiving the payment and confirmed the order, but specific time should


be based on the order quantity.
