SE3C single axis slew drive for solar energy
- Category: Other Solar Energy Related Products >>>
- Supplier: Jiangyin Huafang New Energy Hi-Tech Equipment Co. Ltd.
Share on (60443575669):
Product Overview
Description

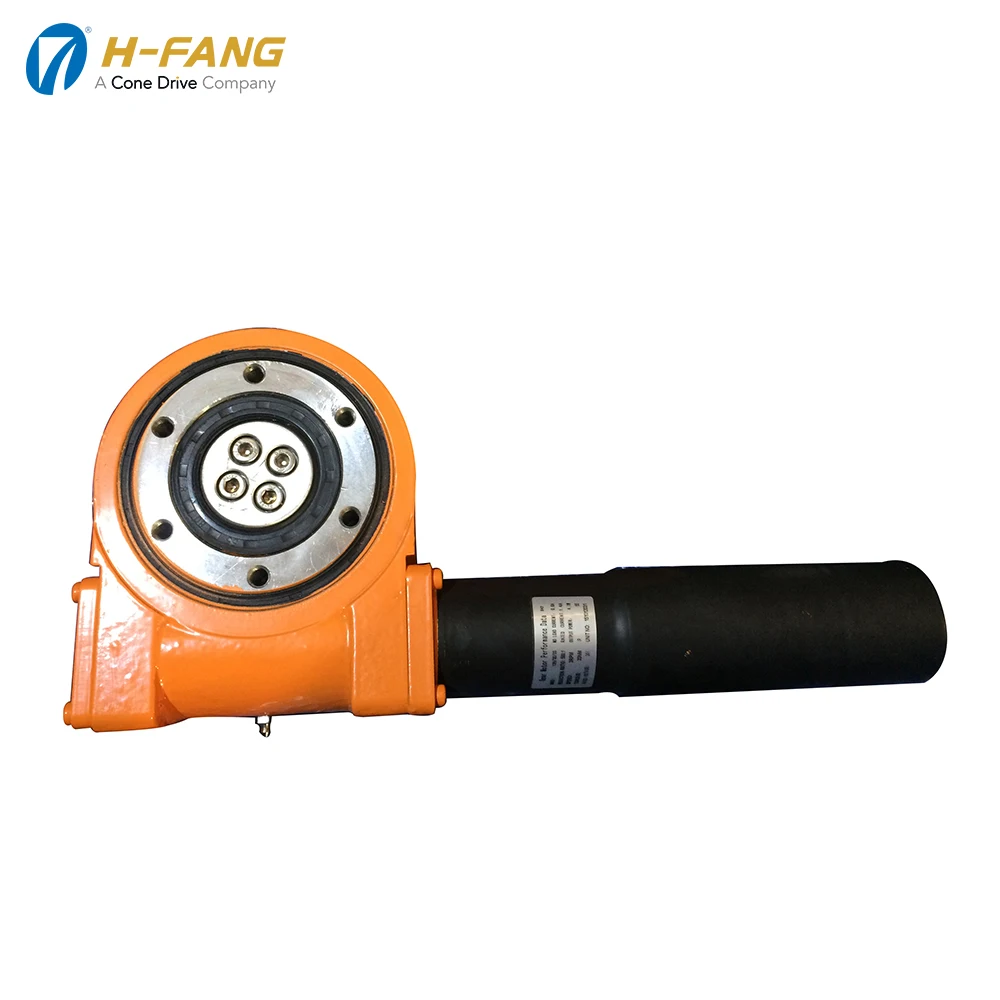

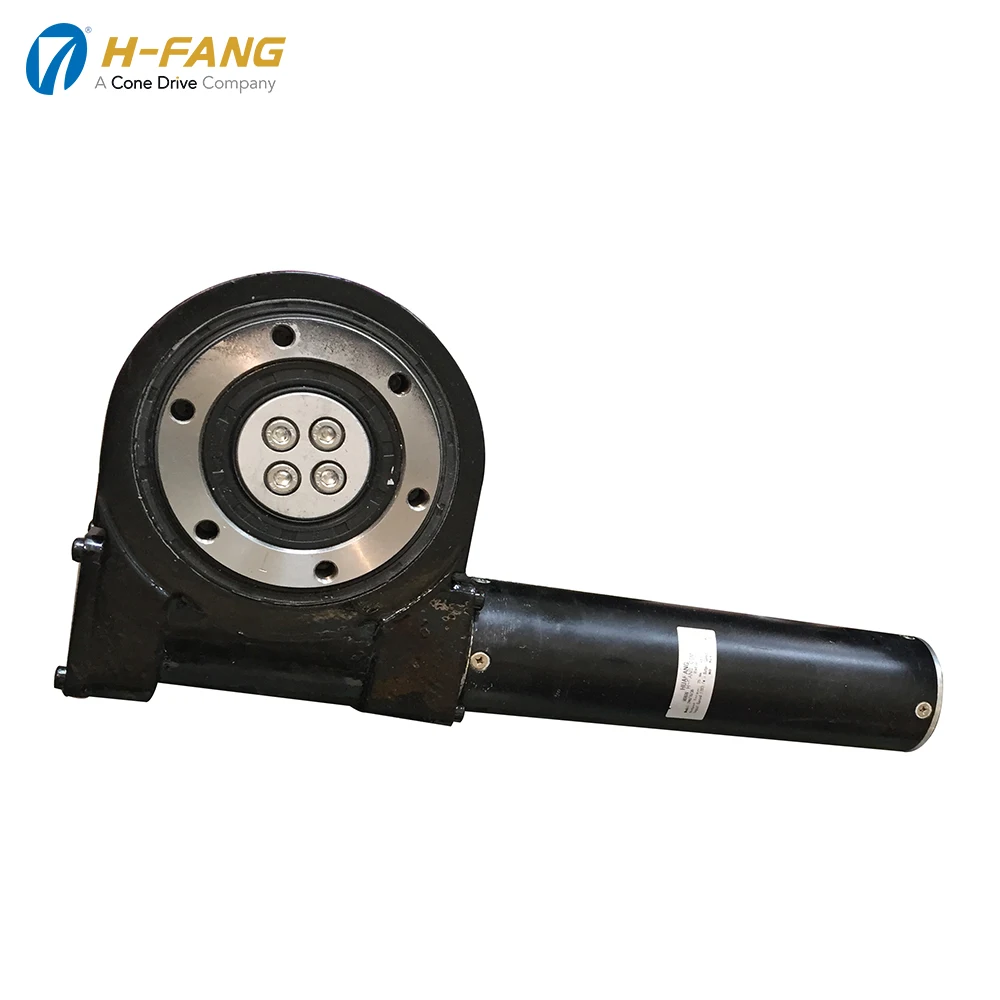

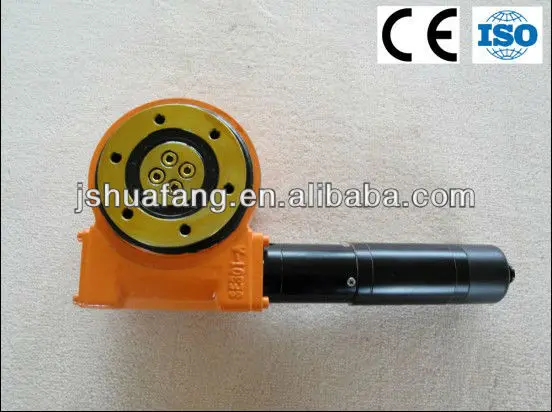

SE3C single axis slew drive for solar energy

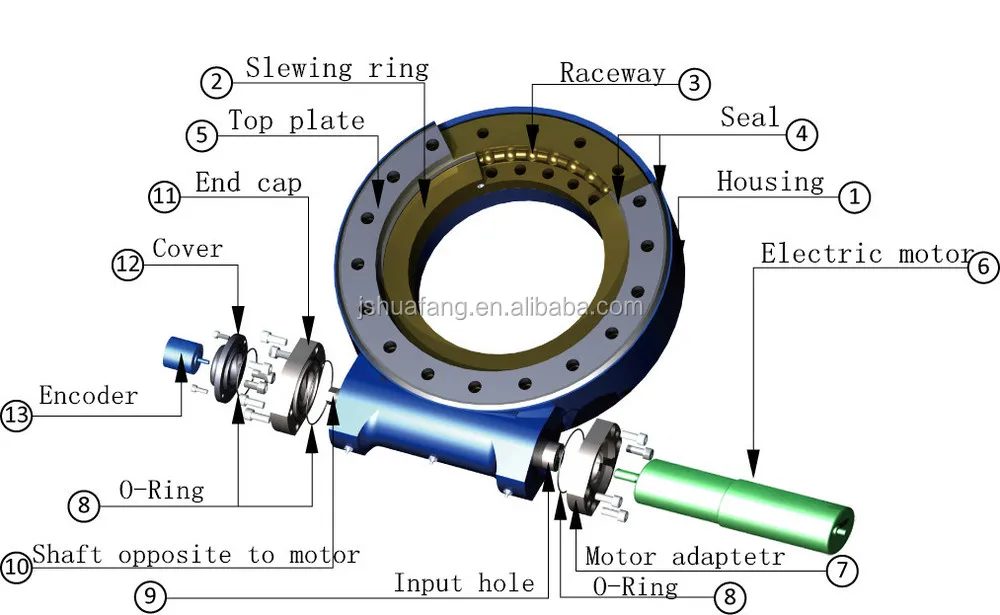

1.Product Description
The SE3 Slewing drive is use for the single or dual axis solar tracker system with solar panels from 3-5 square meters
Slew drives use for PV ,CPV .Solar dish .
Material:42CrMo , 50Mn.
Module:5
Number of worm shaf:1
ISO9001
Data Model | Output torque | Tilting torque | Holding torque | Gear Ratio | Tracking Precision | Weight |
SE3C | 400 N.m | 1100 N.m | 2000 N.m |
62:1 |
≤0.2° |
12kg |
295 lbf.ft | 811 lbf.ft | 1475 lbf.ft |

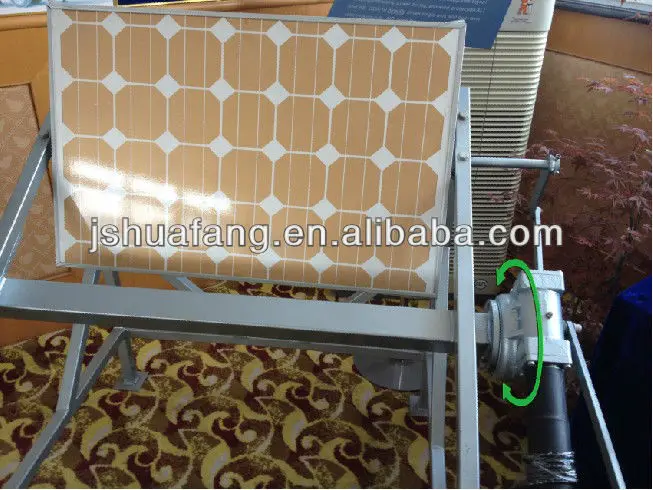

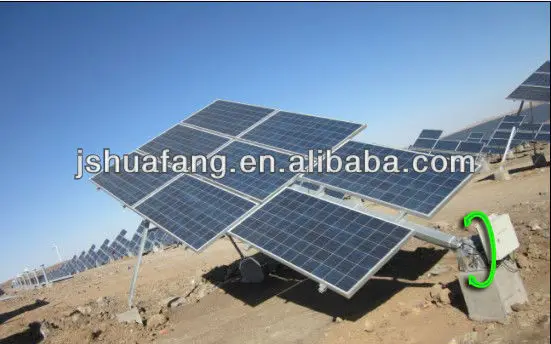

2. Application of solar tracking system

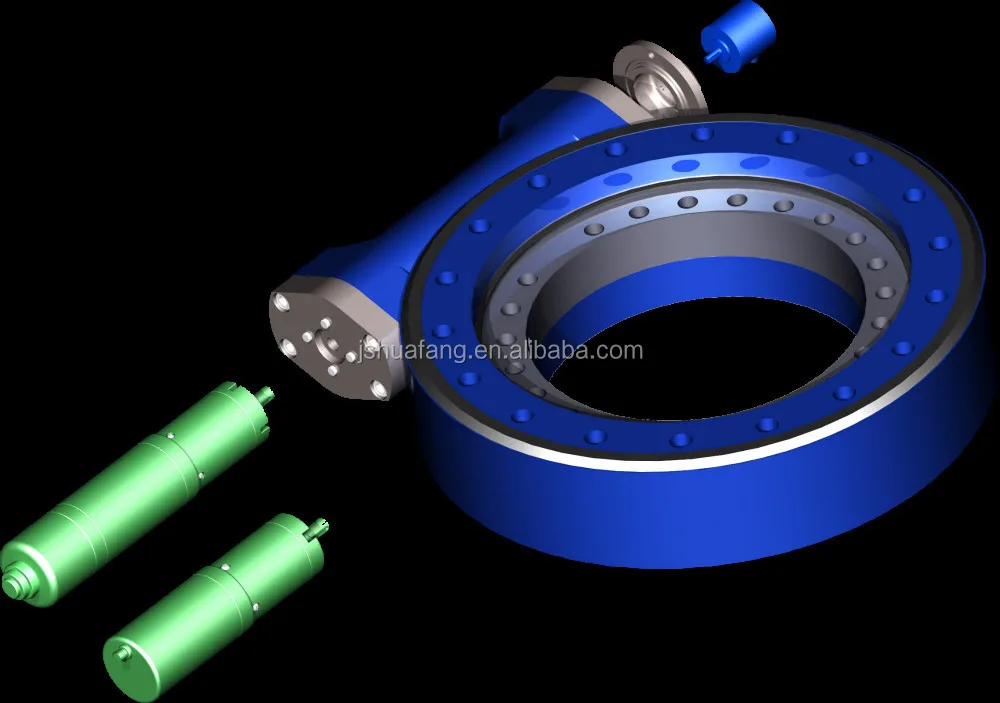

3. DC Motor & AC Motor :Optional Items 12V, 24V DC motor, 220V, 230V, 240V, 380V AC motor, Encoder.
4. Code despription
5.Packaging
