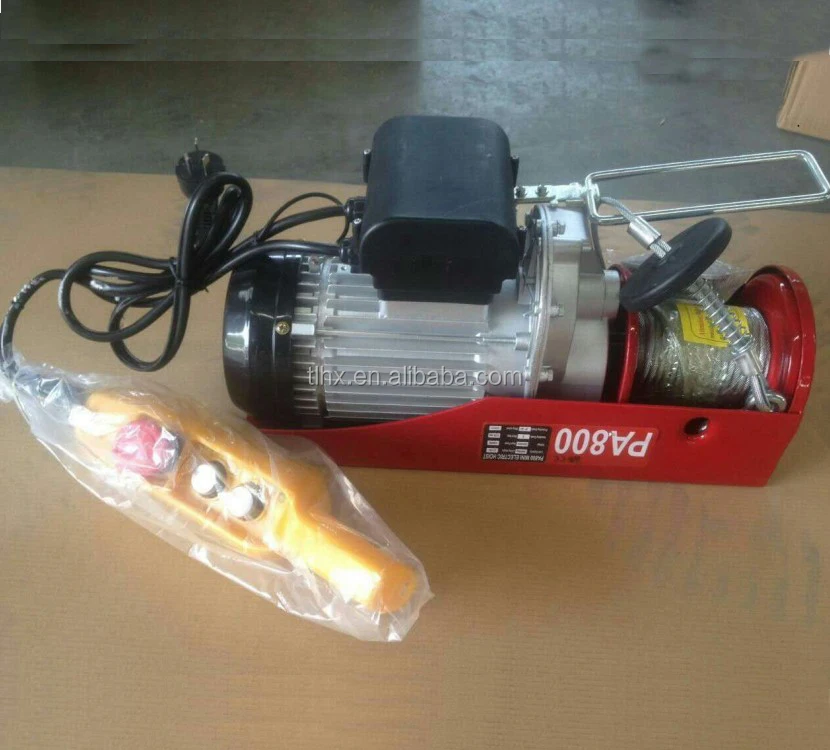

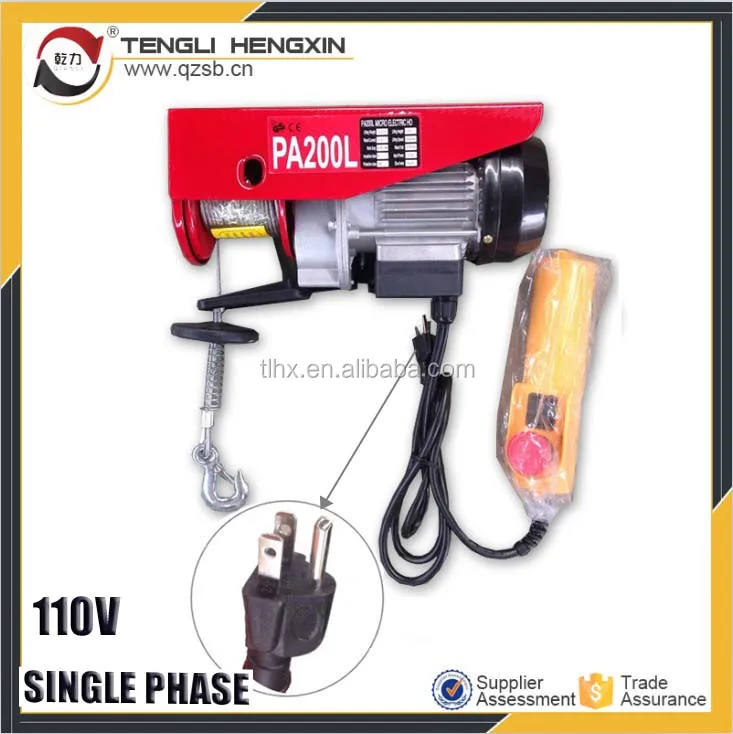

100kg/200kg single phase PA200 micro electric hoist
- Category: >>>
- Supplier: Beijing Tengli Hengxin Crane Machinery Co. Ltd.
Share on (60444259019):
Product Overview
Description
Product Description
PA200 100kg/200kg monophasic micro electric hoist
PA micro electric rope hoist can be used in factories, mines, agriculture, electric power. Construction building
site, dock and warehouse for installation of the machines, lifting the cargoes Loading and unloading the trucks
This micro rope hoist can be used at home. Perfect for general maintenance lifting or engine repair applications.

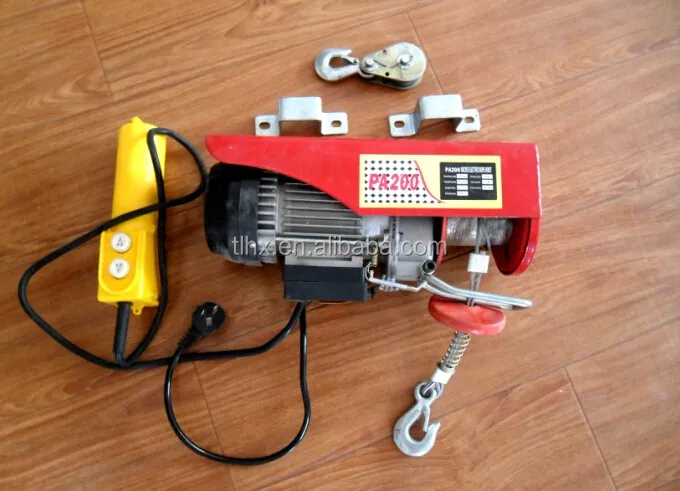

What's Included
- (1) Electric hoist
- (1) Switch handle
- (2) Hook(two hooks)
- (1) Mounting kit
- remote controller(optional)
Features of PA200 micro electric hoist
A.Steel body cover.
B.High Quality wire rope.
C.Most tensile safety hooks without break
D.Compact and high efficient motor with heat protection device
E.Use Copper motor,big power and different voltage are available
F.Push button is with 24V low voltage to guarantee safety and limit switch system
G.Sensitive break system .Friction disk without asbestos
H.Choose presice process of high tensile helix gear working system to keep lower noise
Versatility to Handle Tough Jobs
Handy at Home or in the Field
From hanging deer or small game for processing to lifting bikes, snowblowers and other equipment, this hoist is always right at home wherever you need it.
Provides an Extra Lift in the Service Shop
With its available Max.1000kg. lifting capacity, this powerful hoist is ideal for raising lawn mowers for servicing, pulling small engines, moving light equipment and a variety of other tasks that take the lifting burden off the operator's back.
Masterful at Material Handling
Big or bulky loads? No worries! This compact electric hoist can be configured in a variety of different ways to get the job done. From transporting freight from point A to point B to hoisting firewood up a story or two in your home or completing other small projects, this unit is ready to help out.
PA mini electric wire rope hoist parameters:
Model | Usage Method | Voltage (V) | Input power (w) | Capacity (kg) | Lifting speed (m/min) | Lifting Height(m) | Qty/Carton (pcs) | Packing dimension(cm) | GW/NW. (kg) |
PA200 | Single line | 220/110 | 510 | 100 | 10 | 12 | 2 | 44×38×20
| 24/22 |
Double line | 200 | 5 | 6 | ||||||
PA250 | Single line | 220/110 | 550 | 125 | 10 | 12 | 2 | 44×37×25 | 25/23 |
Double line | 250 | 5 | 6 | ||||||
PA300 | Single line | 220/110 | 600 | 150 | 10 | 12 | 2 | 47×37×16 | 26/24 |
Double line | 300 | 5 | 6 | ||||||
PA400 | Single line | 220/110 | 980 | 200 | 10 | 12 | 2 | 52×45×17.5 | 35/33 |
Double line | 400 | 5 | 6 | ||||||
PA500 | Single line | 220/110 | 1020 | 250 | 10 | 12 | 2 | 52×45×17.5 | 36/34 |
Double line | 500 | 5 | 6 | ||||||
PA600 | Single line | 220/110 | 1200 | 300 | 10 | 12 | 2 | 53×45×19 | 38/36 |
Double line | 600 | 5 | 6 | ||||||
PA800 | Single hook | 220/110 | 1300 | 400kg | 10 | 12 | 2 | 53×28×35 | 40/38 |
Double hook | 800kg | 5 | 6 | ||||||
PA1000 | Single hook | 220/110 | 1600 | 500 | 8 | 12 | 1 | 53×28×35 | 32/30 |
Double hook | 1000 | 4 | 6 |

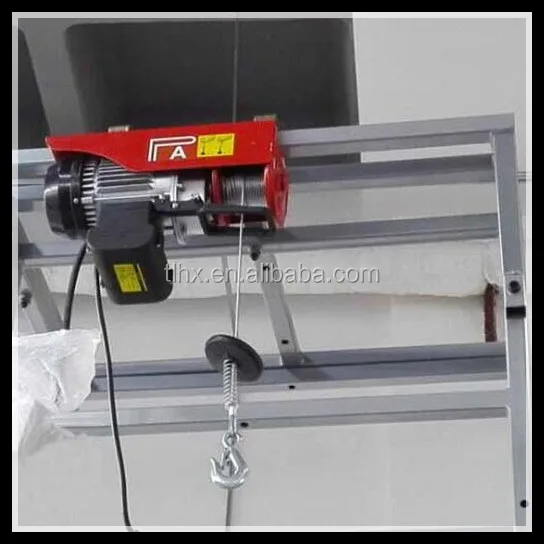

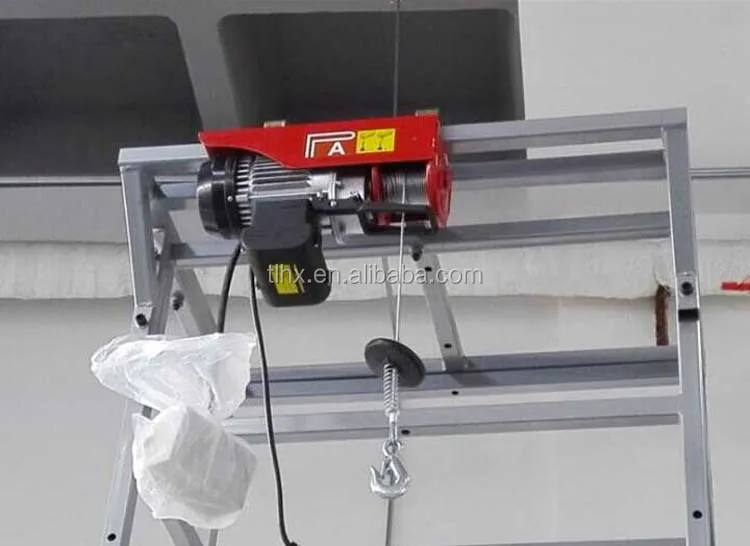

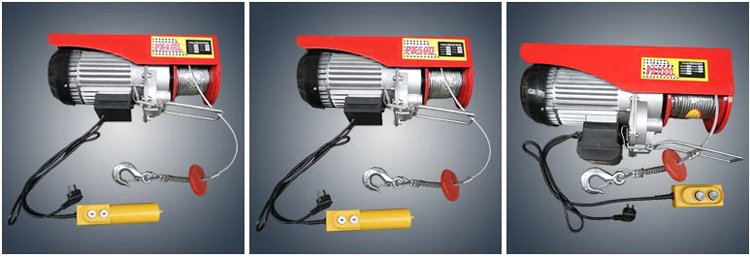

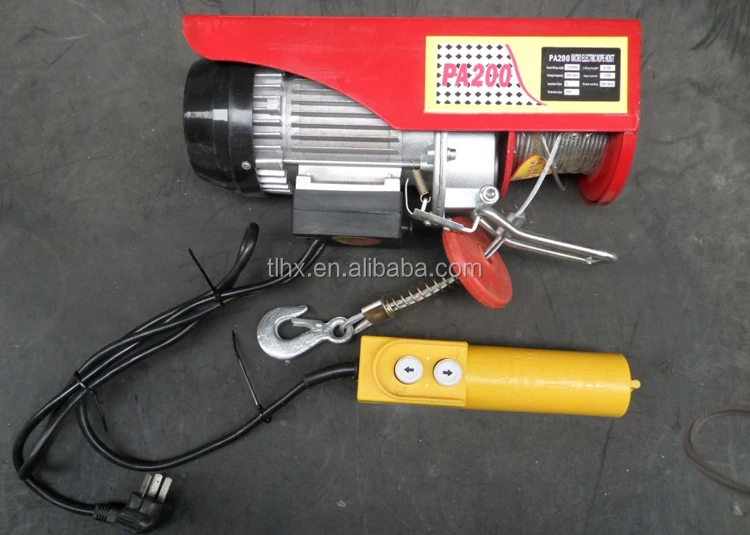

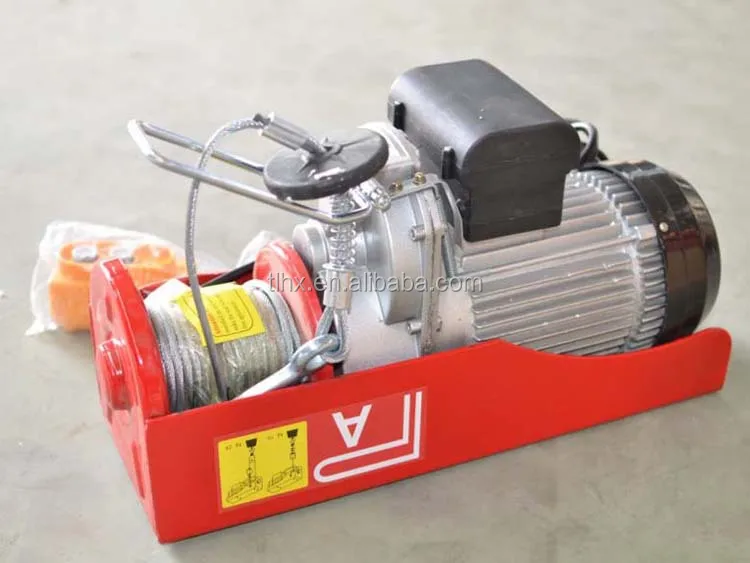

Pictures Details:
If you need the travelling type of micro electric rope hoist,pls click the following picture:
How to use the PA model electric hoist?

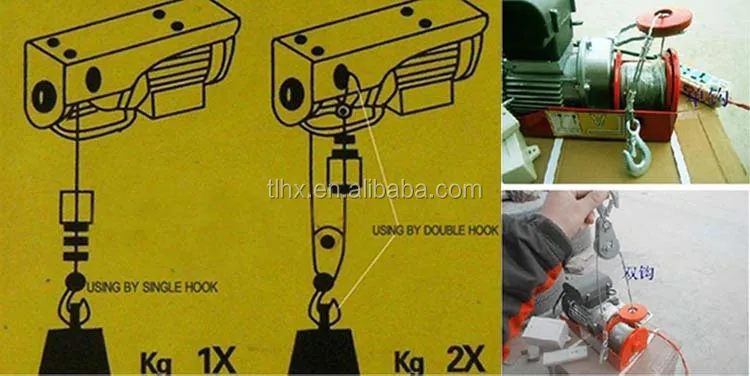

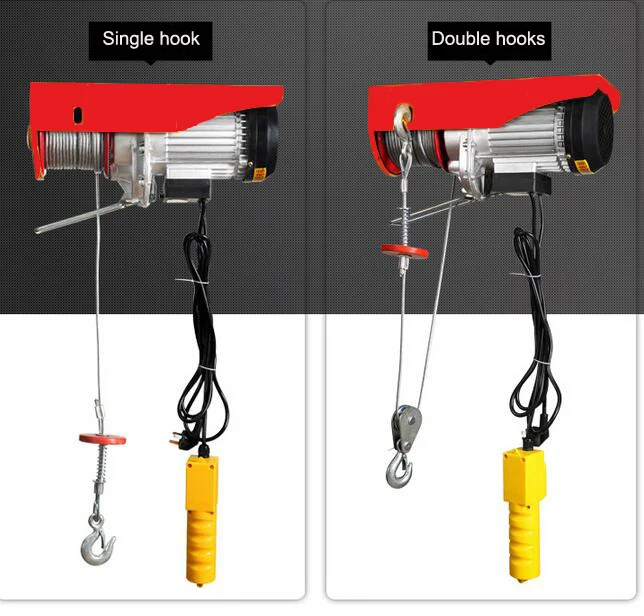

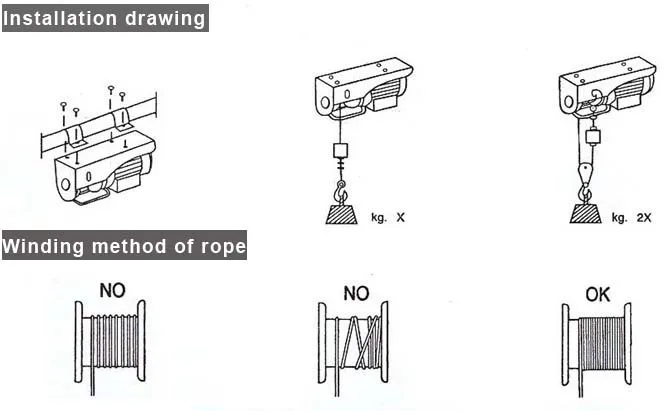

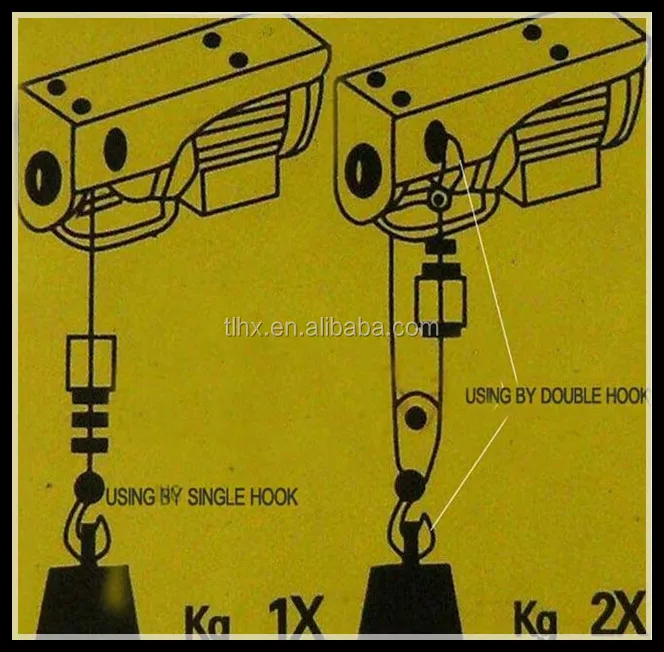

It is very easy to operate,there are two hooks for the PA micro hoist,you can use by single hook or double hook,when you lift the goods by double hooks,it can lift 200kg with 6M high,and single hook can lift 100kg with 12M high.The following picture usage is for your reference

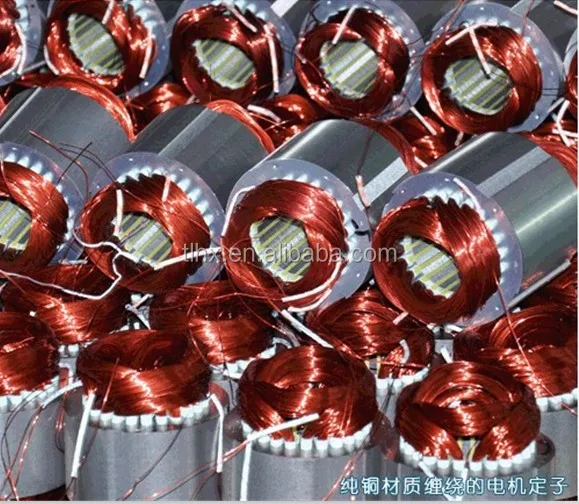

We produce the PA model mini lifting hoist by copper wire motor,resistance to high temperature of 180 degree centigrade, which is more durable,not burnt out easily
Packaging & Shipping

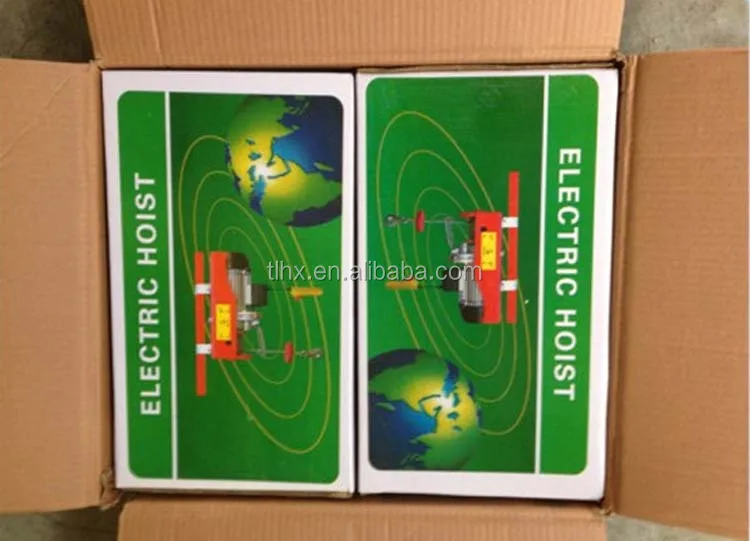

For PA200 micro electric hoist ,we pack by using cartons,2pcs in one carton
