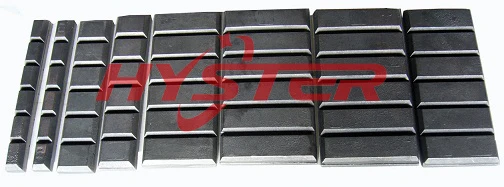

Bimetallic White Iron 700bhn Chocky Bars for hopper wear resistant

Product Overview

Description

1. product name: Chocky Bars

2. introduction:   The unique formable design of Hyster - wear blocks are available in various                         lengths,grades and sizes and can also be customized as per the clients specific need.

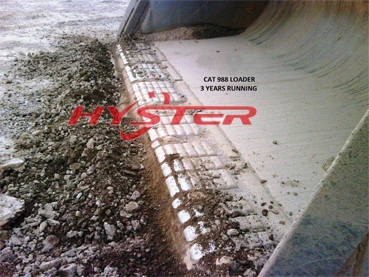

3. application:  wide and varous, ranging from wear protection on buckets excavators and draglines                    machines,  or for weldon hammer tips for re-cycling industry,or chute linings and rock box edges.

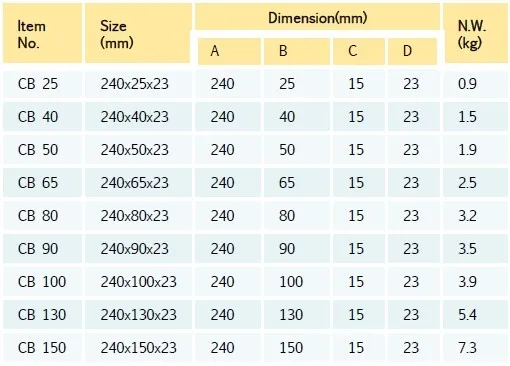

4.specification:   The standard is 23mm, length is 240mm, width could be from 25mm from 150mm. We                                     also produce according to your special requests

5. others:     Hyster Chocky Bars are easy to use and install. They can be bent, cut and formed to suit different surfaces.

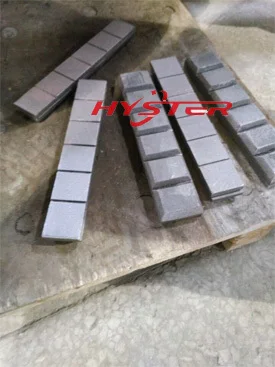

6.pictures: for Chocky bars









A. Chemical
C	Cr	Mn	Mo	Cu	P	Si	S	B.V.Nb
2.5-3.5	15-18	0.5-1.0	0.5-2.5	0.5-1.0	0.02max	0.5-1.0	0.02max	0.1-0.5
B. Mechanical Property
1) Tensile Strength :			630Mpa Min.
2) Shearing Strength :			250Mpa Min.
3) Hardness :			63 HRC
C. Micro-structure
Carbide + Martensite + Retained Austenite
