Product Overview

Description

 Solar panel making machine, Install Training Raw Material 2016 HOT SALE !

---TURNKEY SOLUTION---



Install/Training/Raw Material BOM/Solar Panel Layout Drawing/Factory layout



1MW 5MW 10MW 20MW 50MW 100MW



Semiautomatic Fullautomatic Solar panel Production Line

                   -Semiautomatic Full Automatic Laminator

          -Solar Cell Laser Scribing Machine

                -Solar Cell Tester & Solar Panel tester

                    -Electroluminescence EL Defect Tester

                                                                     -Solar Panel Framming Machine



START HERE



LEARN MORE OOITECH



 SOLAR PANEL MANUFACTUREING MACHINES





- Main Equipment for Solar Panel Manufacturing

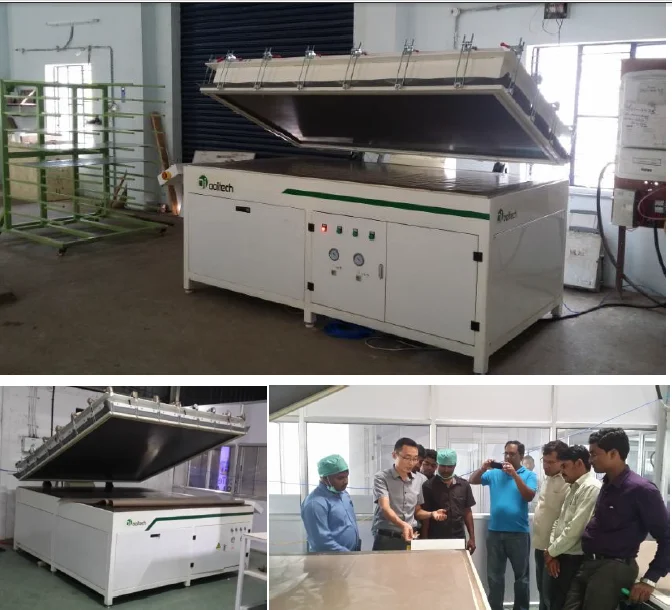

1)Solar Panel Laminator

-Machine Function: use to bond multiple layers of materials (EVA, Glass, Backsheet, Solar cell) together



 by heating vacuum in laminator chamber.

- Machine Picture







2)Solar Cell Tester & Soar Panel Tester

 - Machine Function: Use to test the electric performance of Mono-Si or Poly-Si solar cell , solar Panels and record the results in files.

  - Machine Picture





3)Solar Cell Laser Cutting Machine



  - Machine Function: Use to Cutting or Scribing crystalline solar cell into small piece.

  - Machine Picture





5) Electroluminescence EL Defect Tester



  - Machine Function: Identifying micro-cracks,broken finger wires and other invisible



defects in solar modules



   - Machine Picture

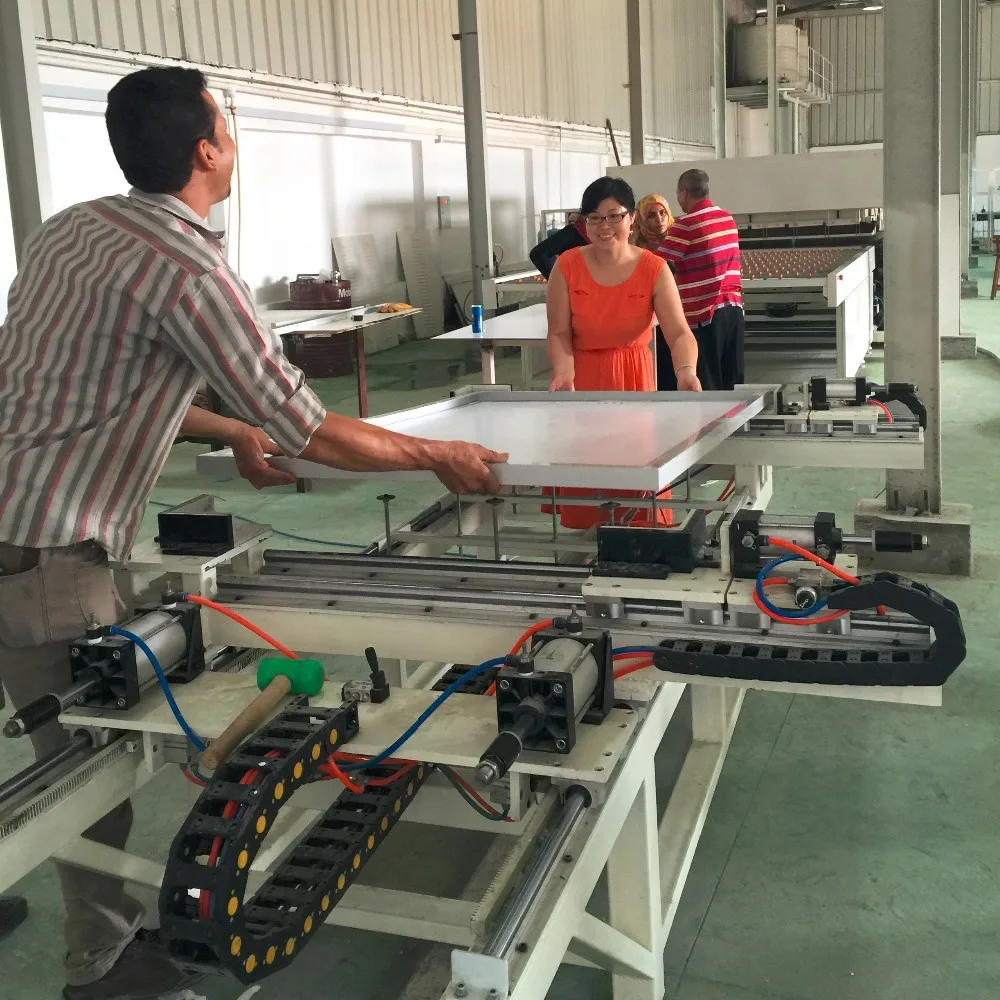

6) Solar Panel Framming Machine

   - Machine Function: Complete component frame

   - Machine Picture

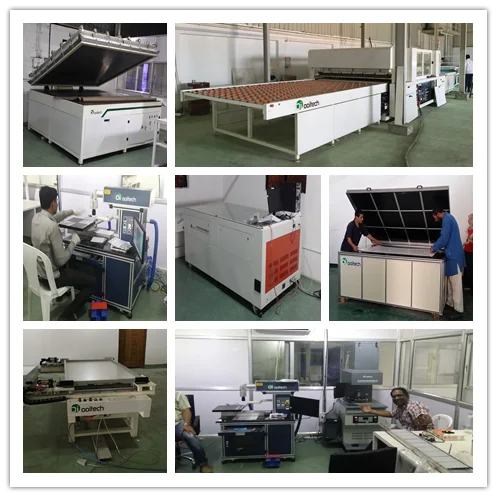

-Machine Real Picture







-Accessary Needed In Solar Panel Production Line



1) Manual Welding Station



2) Inspection Station



3) Lay UP Station



4) EVA/TPT Cutting Station





-Transport Carrier used in Solar Panel Production Line



1.Solar Module Carrier



2.Ready material Carrier



3.String Cell Carrier



4.EVATPT Carrier





-Main Raw Material in Solar Panel Production Line



-Patterned Tempered glass



-Solar Cell



-EVA



-TPT



-Aluminum Frame



-Sealant



-Interconnected Solder Strip



-Bus-bar Solder Strip



-Soldering Flux



-Junction box



-High temperature tape





-Solar Panel Produciton Flow Chart-  OOITECH









-Factory Layout---OOITECH









-Delivery Time



5~20 working days after receiving buyer’s payment.





-Service Included

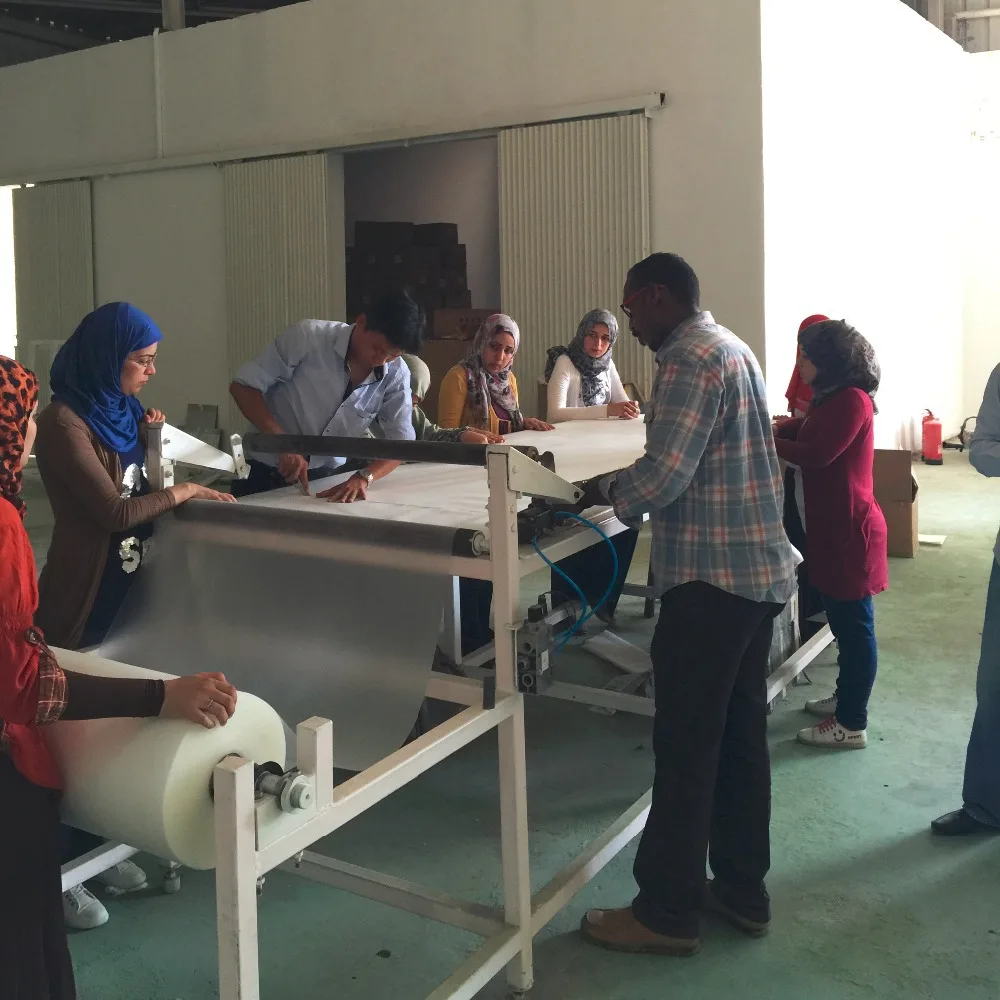

-Process training: Before the delivery, we could arrange customer visit some china local solar panel production line.
-Preparation of the lay-out;
-Support for purchasing the raw material;



-Support for the solar module layout drawing.
-Free installation for 5~7 Days overseas, but all cost for transportation and hotel bored by customer ;
-Continuous life time technical support of the machine.





-OOITECH Solar panel production line
