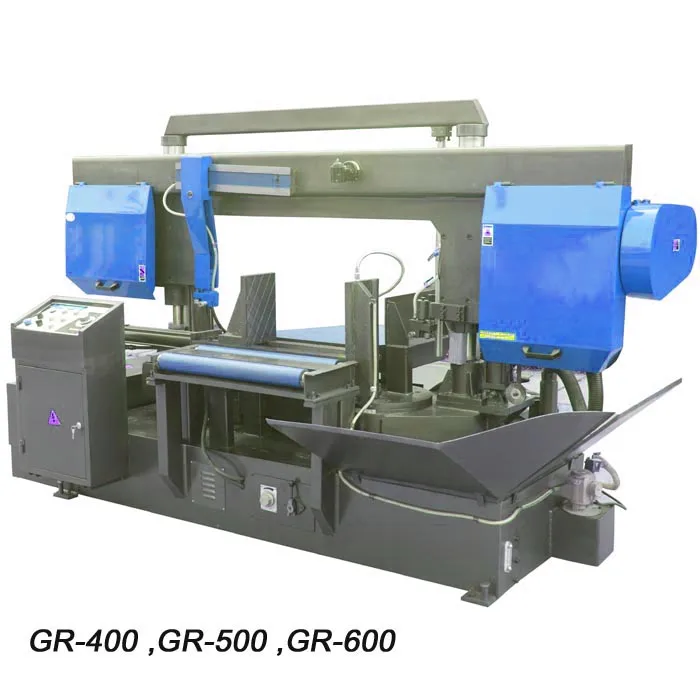

GR 500 angle cutting 45 degree horizontal metal cut band saw
GR-500 angle cutting 45 degree horizontal metal cut band saw
GR-500 angle cutting 45 degree horizontal metal cut band saw
GR-500 angle cutting 45 degree horizontal metal cut band saw
GR-500 angle cutting 45 degree horizontal metal cut band saw
GR-500 angle cutting 45 degree horizontal metal cut band saw
GR-500 angle cutting 45 degree horizontal metal cut band saw

GR 500 angle cutting 45 degree horizontal metal cut band saw

Share on (60449633844):


Price:$3,800.00 - $4,000.00

Quantity:


Product Overview

Description


angle cutting 45 degree  horizontal metal cut band saw


 Main features:




  1. 1.      Unique sealing Maintenance reduction system with worm gear, insurance forever lubrication, enlarge the use life of saw blade

  2. 2.      Hydraulic lifting oil and high stable spring, variable, work smoothy

  3. 3.      Blade cover protection, ignore the breakage of saw blade

  4. 4.      Adjustable blade guide system

  5. 5.      Many kinds of electric protection function and with open sotp

  6. 6.      Different swivel cutting, for section steel, round steel pipe, square steel pipe

  7. 7.      Vice can be movable, benefit for clamping workpiece




Specifications of      angle cutting 45 degree  horizontal metal cut band saw

















































































































ModelGR330GR400GR500GR600
Cutting capacity at 0°320/250X400400/500X400500/700X500600/750X600
Cutting capacity at 45°250/250X300400/400X400500/500X500600/600X600
Cutting capacity at 60°180/250X180
Cutting degree (°)45/600/450/450/45
Blade size (mm)4115X27X0.94800X34X1.15800X41X1.36800X41X1.3
Blade cutting speed (m/min)40/60/8040/60/8040/60/8040/60/80
Main motor power (KW)2.245.57.5
Oil pump motor power (KW)0.750.7 51.52.2
Coolant pump motor power (KW)0.010.090.120.12
Clamping typeHydraulicHydraulicHydraulicHydraulic
Main drive structureWorm gearWorm gearWorm gearWorm gear
Worktable height (mm)750650650650
Net weight (KG)950150022003000
Overall dimension (mm)1800X900X14502000X1200X15002600X1600X16503000X1600X1750

 24D0FD383E6ED3F687B67598B461D251.jpg001 back view.jpg001 back view_conew1.jpg001 back view_conew2.jpg







 Packaging & Shipping




 Full closed wooden case and with plastic cover in it.


Packing size:
GH4235:2000X1100X1500mm, 05sets/20' container
GH4240:2500X1300X1600mm, 02sets/20' container
