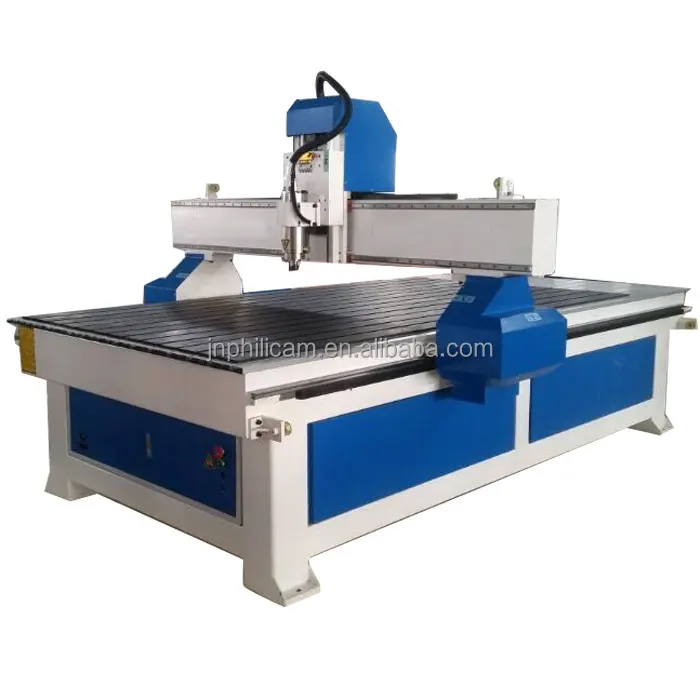

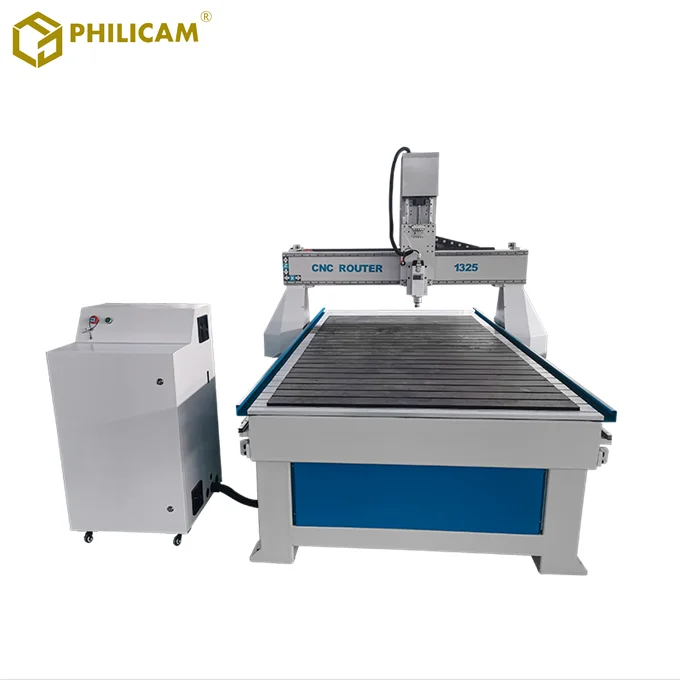

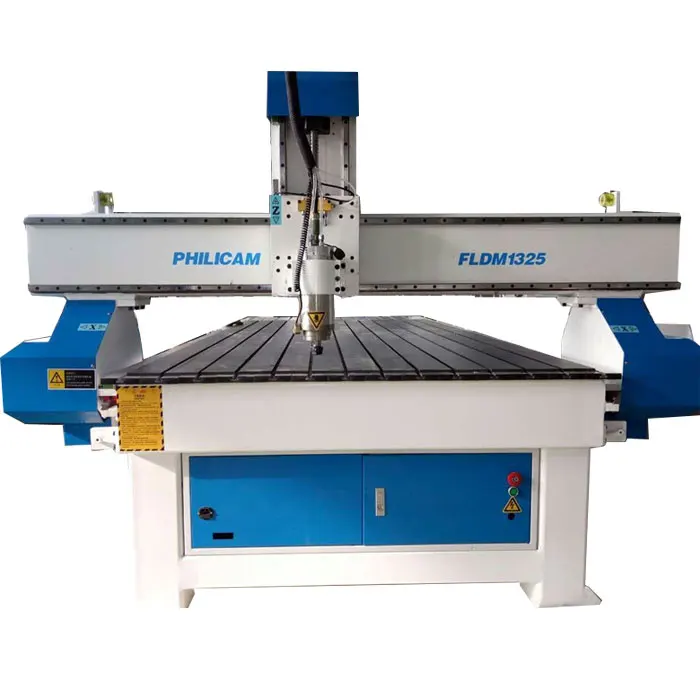

cnc wood router / 1325 furniture engraving cutting machine / wood carving cnc router
- Category: Wood Router >>>
- Supplier: Jinan Lifan Machinery Co. Ltd.
Share on (60450840992):
Product Overview
Description
cnc wood router / 1325 furniture engraving cutting machine / wood carving cnc router
Applicable Industry of our wood cnc router
1.Mould: wood,wax, wood, gypsum,foams,wax
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.
Parameter of wood cnc router:
Parameter for wood cnc router | |
X,Y,Z Working Area | 1300x2500x200mm (Any other working size can be customized) |
X,Y,Z Traveling Positioning Accuracy | ±0.03/200mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | T-solt table |
Frame | Welded Structure |
X, Y Structure | helical/Oblick rack gear, Taiwan Hiwin linear guide block |
Z Structure | Taiwan Hiwin Rail Linear Bearings and Taiwan TBI Ball Screw |
Max. Power Consumption | (Without Spindle) 3kw~6Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 3.2kw china water cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Leadshine steeper motor and drivers |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | DSP control System (Options: Mach3/Ncstudio/Taiwan SYNTEC) |
Computer Interface | USB |
Flash Memory | 512M(U Disk) |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/Artcam Software(option: Ucancam) |
Running Environment Temperature | 0 - 45 Centigrad |

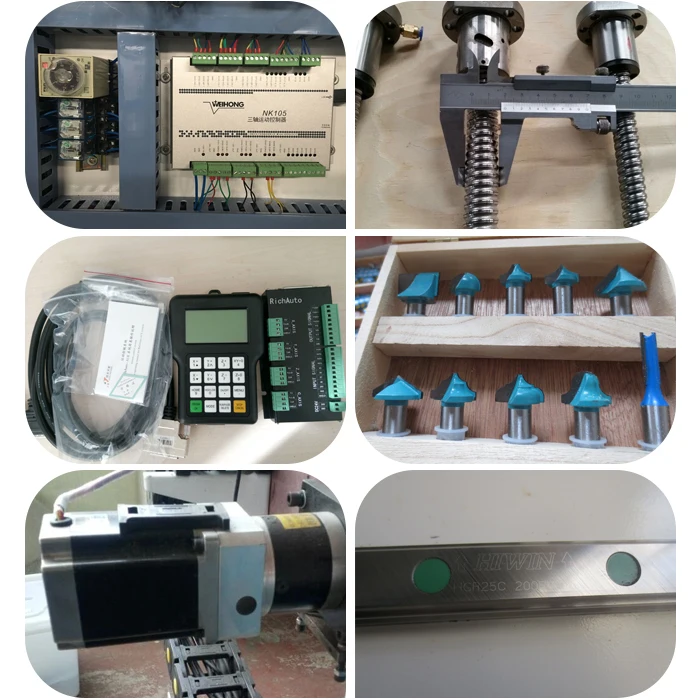

Main parts of wood cnc router

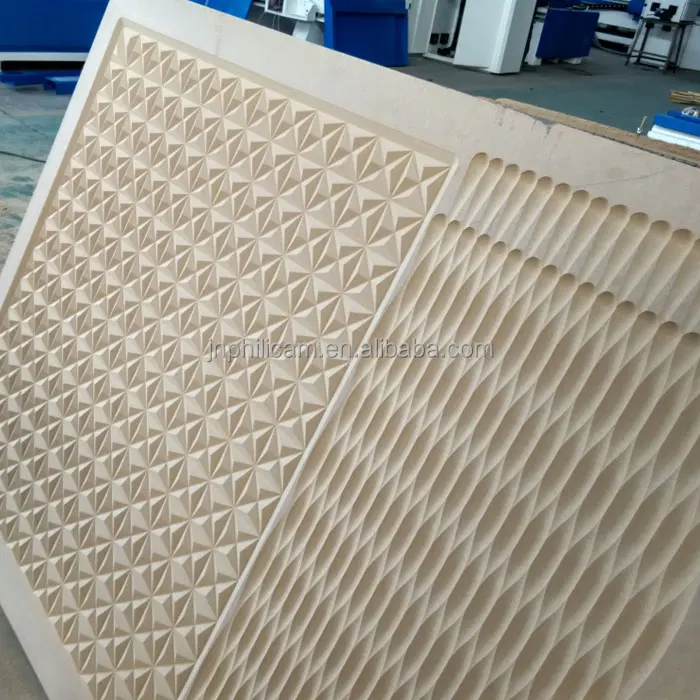

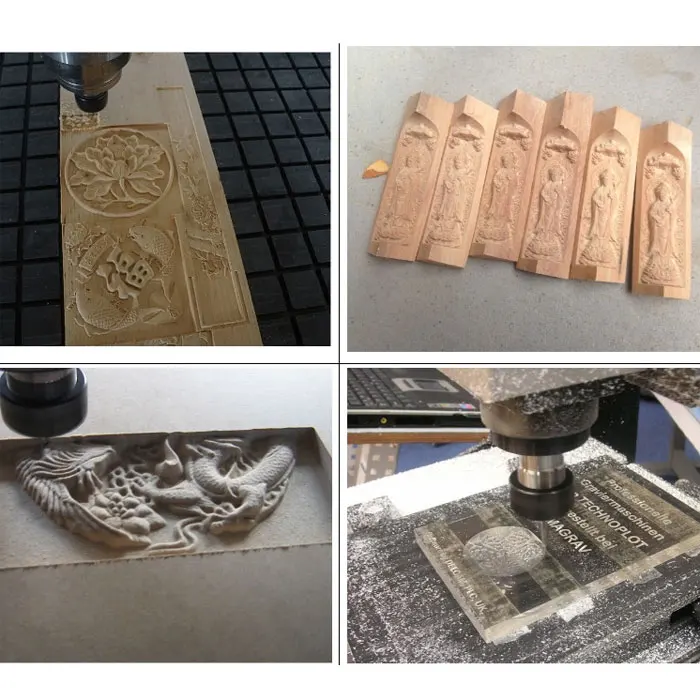

Samples of our of wood cnc router
Advantages
1.3.0KW water cooling Spindle, be famous brand and has a longer working life.

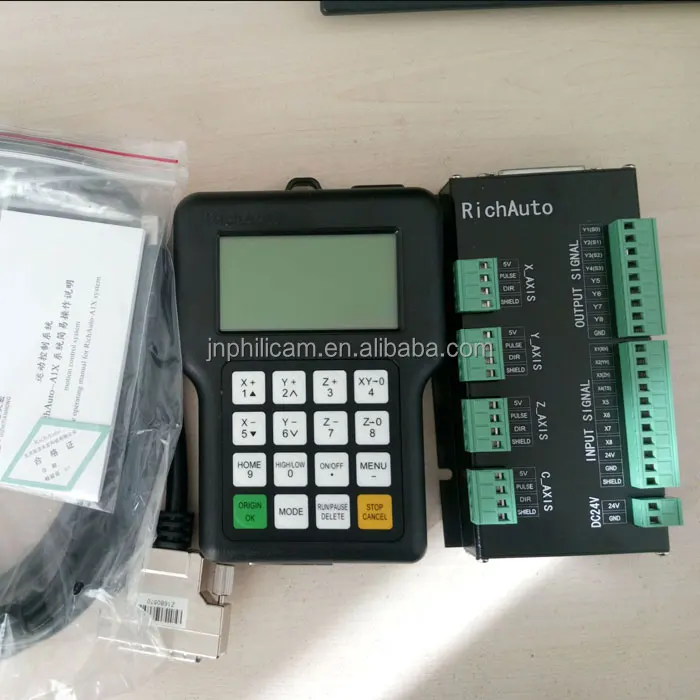

2. DSP Control System, not need connect to PC,be easily operate and learned
3.Transmission, X Y gear and rack transmission, Z Taiwan TBI ball screw transmisson.

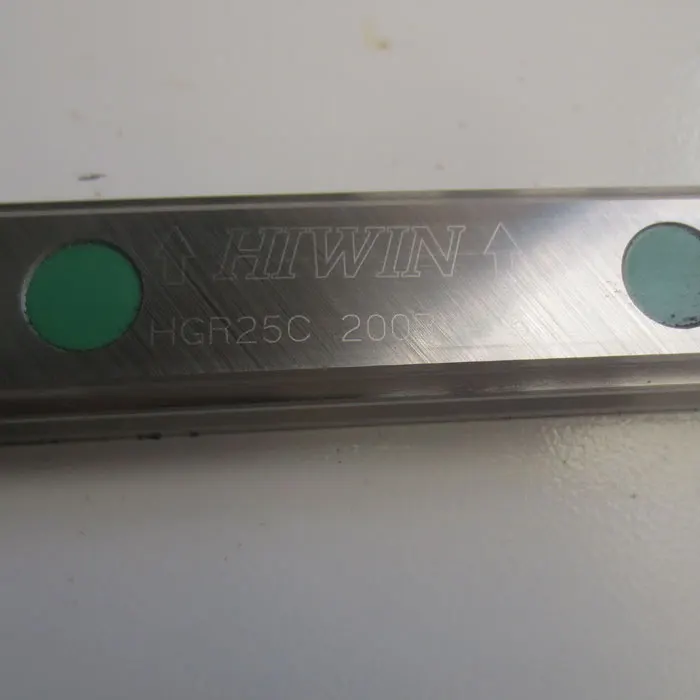

4.Guide Rail for X Y Z,TAIWAN HIWIN Square Rail
5.Stepper motor and Leadshine drivers, high positioning accuracy;good reliability;save power consumption
Our Philicam company
Jinan lifan machinery co., LTD is a professional engaged in the development of engraving machine, laser machine, development, production, sale and service of high-tech enterprises, products in strict accordance with ISO9001 and CE standardization production, sells in distant markets southeast Asia, the Middle East, Africa, Europe and the United States and other places.The company has strong economic and technical strength, we are equipped with a powerful technical team to provide clients with pre-sale, sale, after-sales service and technical support to meet the needs of customers.
Why customer choose Philicam cnc wood router?

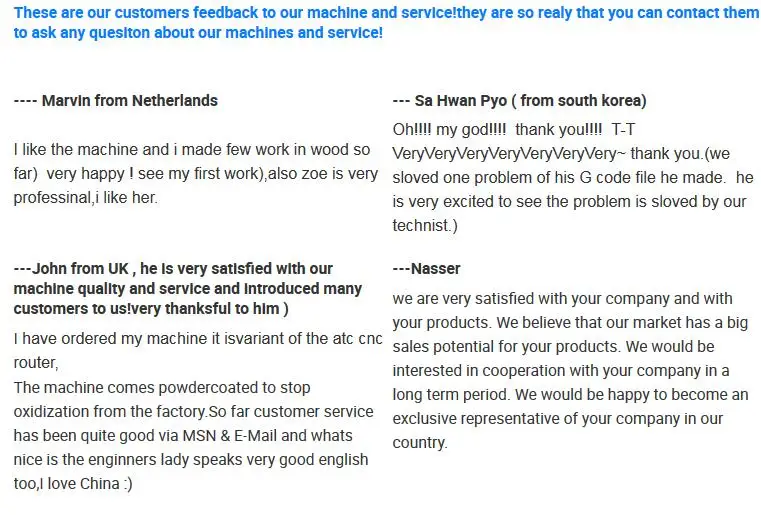

Good customer feedback
After sales service for cnc wood router
1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary.

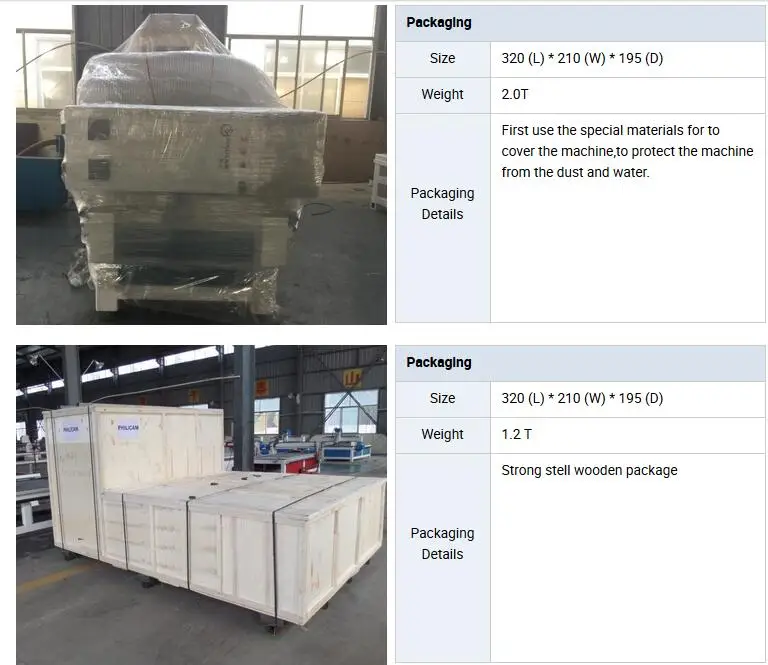

Shipping and packaging
