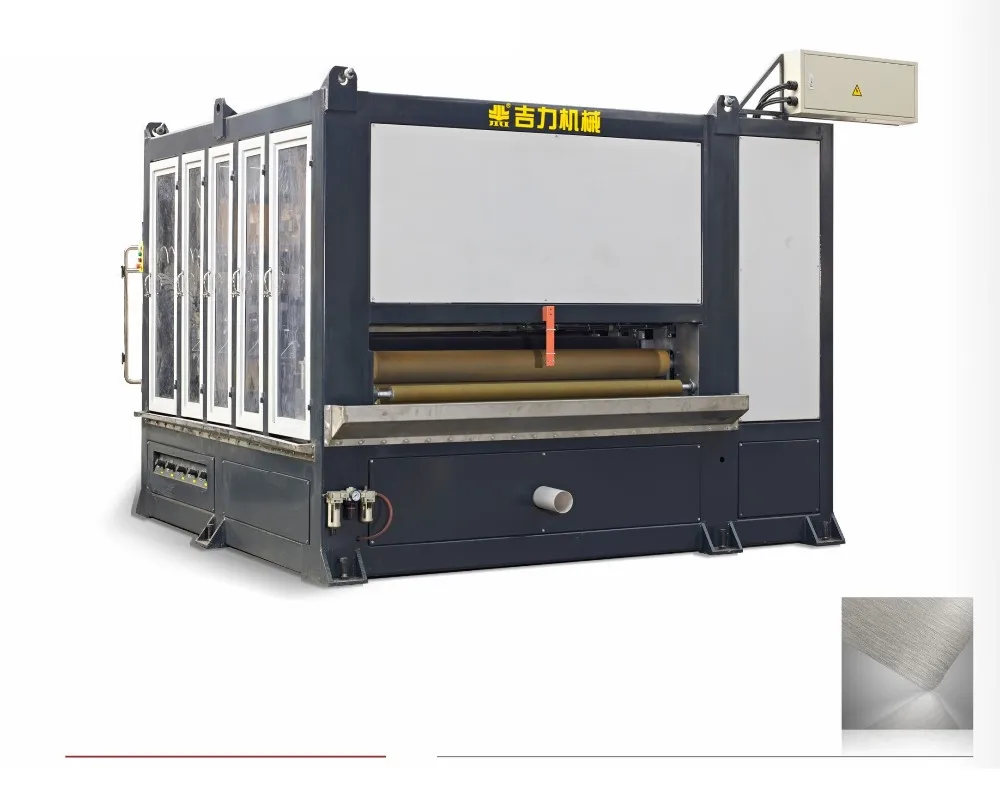

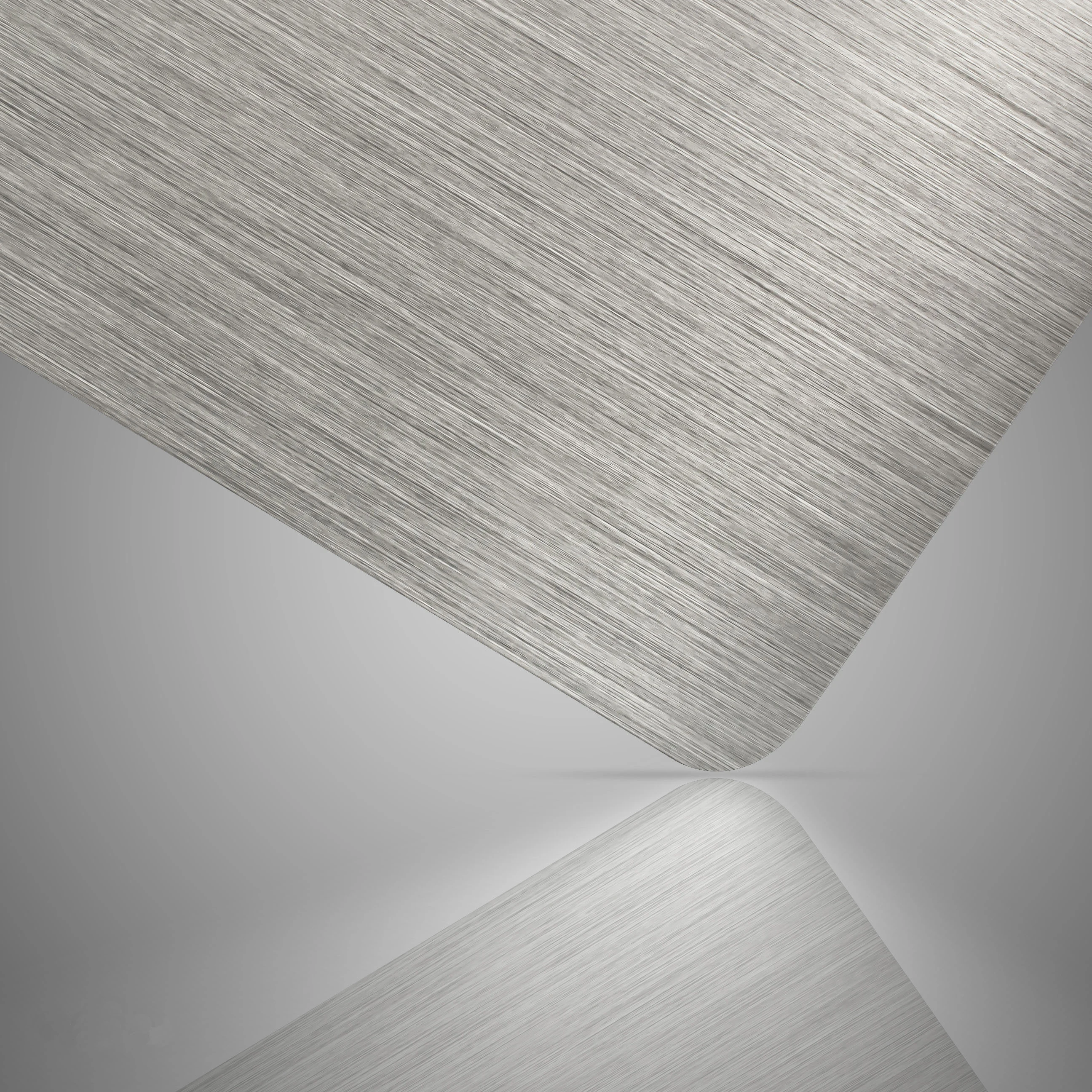

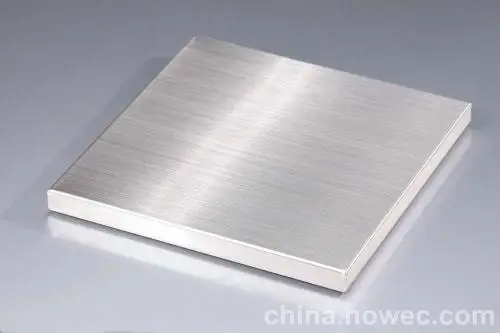

JMHL series provides a Hair-Line(HL) polishing service for the metal coil or sheet, which has a stable frame structure and the pressure adjustable contact rollers. Through the low speed and adjustable downward pressure of the contact roller, the circular abrasive belt who is covered outside the contact roller draws Hair-Line(HL) mark on the surface. The finishing Hair-Line(HL) is parallel, very long line, low roughness and high glosses, the declination of one Hair-Line(HL) mark is less than 2mm within 2m surface’s length.
Model
JMHL3
JMHL5
3H3P
Number of contact roller
3
5
3 Hair-Line module + 3 Easy-Polishing module
Processing type
Dry or wet polishing available for sheets and coils
Useful width
700 - 800 - 1050 - 1300 - 1600 - 2100mm
Min. length
600mm
Thickness range
0.3-3.0mm (standard), maximum 12.0mm (optional)
Feeding speed
8-30m/min (adjustable)
Feeding motor
7.5kw
Main motor
1.1kw
7.5kw for Hair-Line module
7.5kw for Easy-Polishing module
Contact roller diameter
Φ135mm
Φ135mm for Hair-Line module
Φ300 for Easy-Polishing module
Abrasive belt linear speed
2-3m/min
Abrasive belt perimeter
2800mm
Exhaust dust capacity (dry polishing)
3000m3/h
5000m3/h
8000m3/h
Filter flow (wet polishing)
200L/min
350L/min
500L/min
Machine pass line
960mm (standard)
Single module weight
4000kg
5400kg
6200kg
Company Information

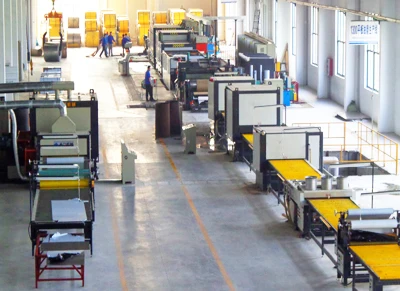

Foshan Ji Li Jia Machinery Co., Ltd. is a hightech company specialized in the R&D, production, and marketing kinds of surface treatment machine and related products. We start in this field in1995, and already install machines more than 20 countries.
Our company currently has 70 employee, including 10 expects, technician, and 2 programmer engineers. We have a high quality raw materials and manufacturing accuracy control, in order to represent the highest standard of the surface treatment machine.

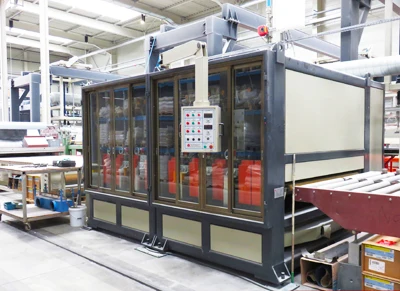

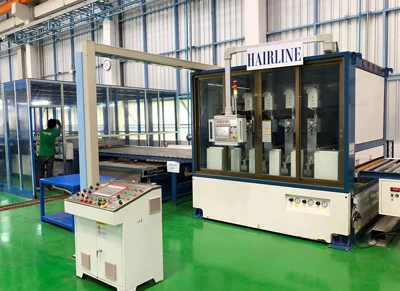

Successful Case
We have more than 20 years experience on surface processing machinery, our team provide a
\
