Product Overview

Description

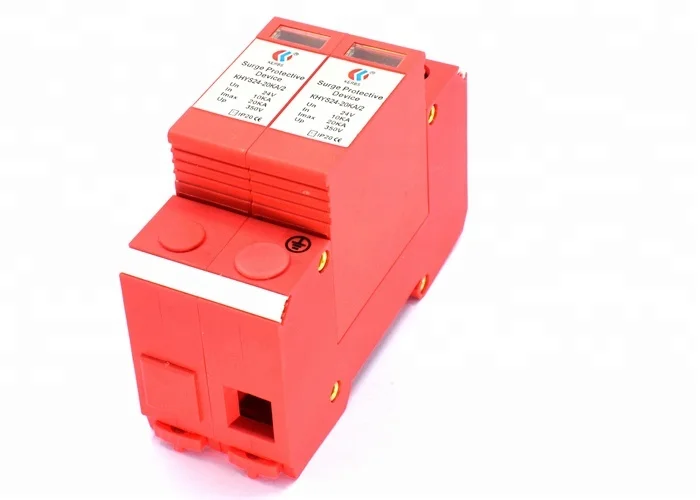

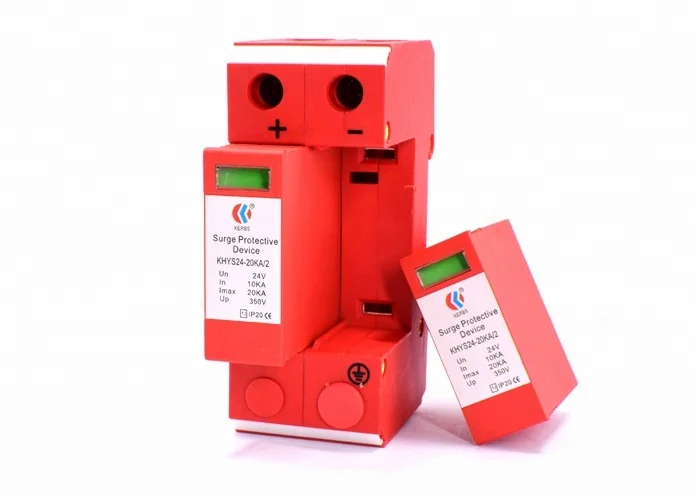

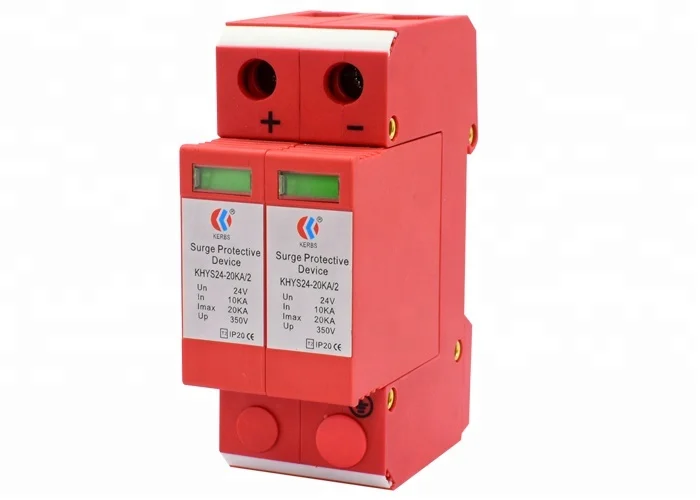

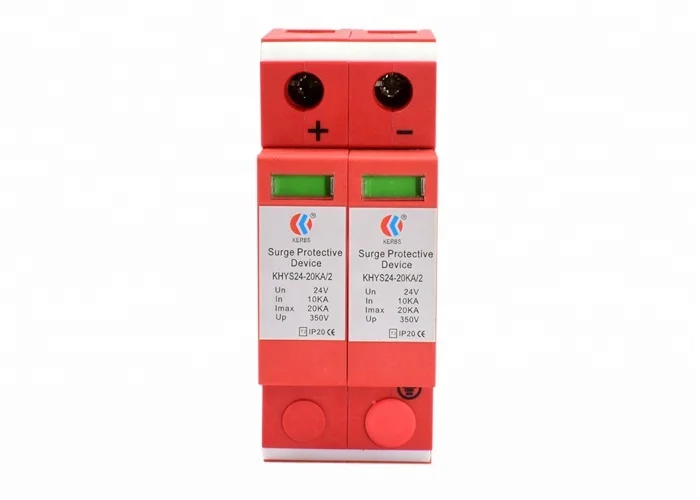

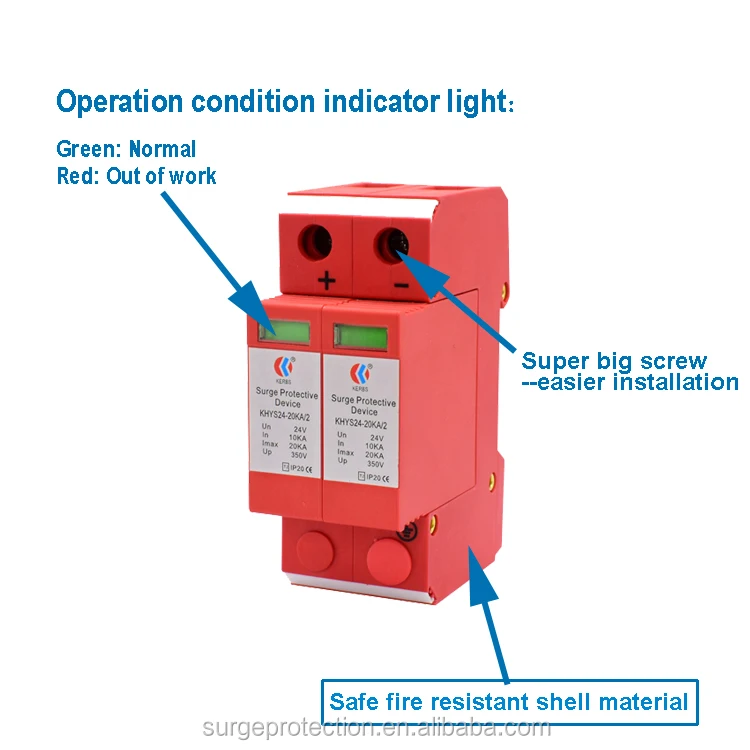

48V DC Power SPD/Low Voltage Surge Protection













































Low Voltage Surge Protection Type



KHYS48-20KA/2



KHYS12-20KA/2



Protection Class



D



D



Working Voltage Un(DC)



48V



12V


Max. Continuous Operating Voltage Uc(DC)65V20V

Nominal Discharge Current(8/20μs)(In)



10KA



10KA



Max. Discharge Current(8/20μs)(Imax)



20KA



20KA



Voltage Protection Level( Up)



≤380V



≤320V



































Response Time



<25ns



Leakage current



≤20µA



Protection Mode



+/PE,-/PE



Working Environment



Temperature -40°C~+80°C;Relative humidity<95%

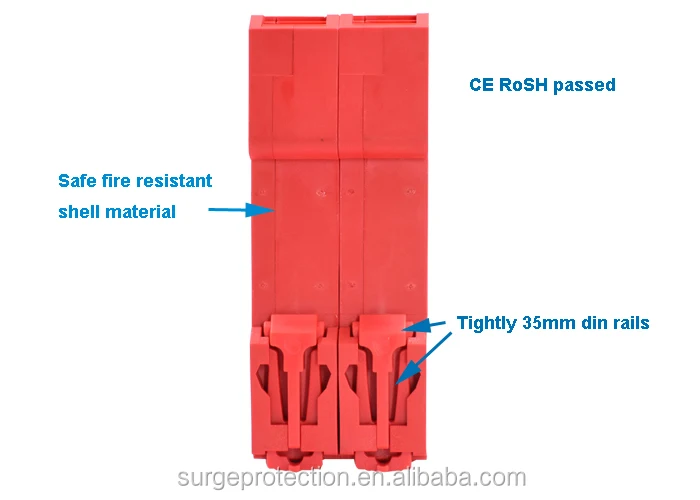

Material of Outer Shell



Flame retardant materials

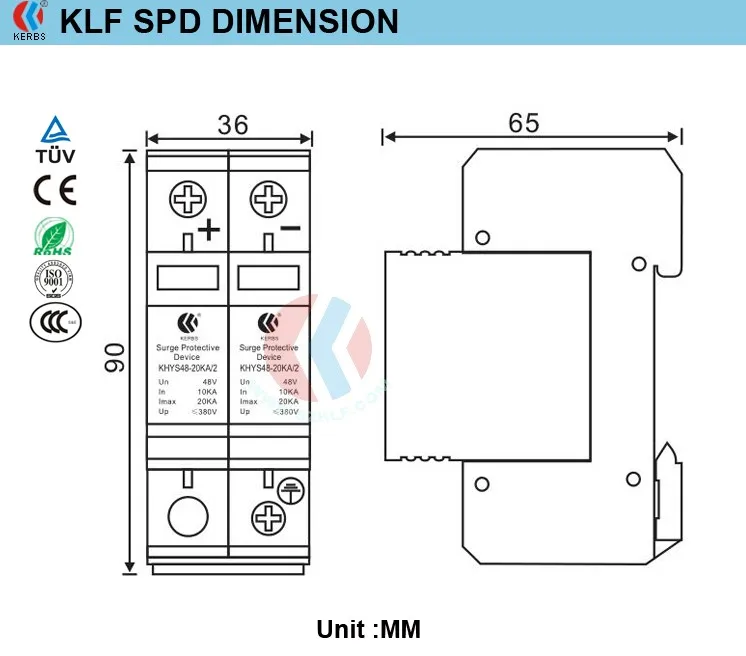

Voltage Surge Protection Dimension



90×36×62mm



Low Voltage Surge Protection Weight



0.21kg








Packaging & Shipping







Company Information








FAQ


 1.What kind of damage caused by lightning?





Lightning strikes the ground over 25 million times each year. It exceeds one hundred million volts and brings catastrophic damage to whatever it hits. Thousands of houses burn down, and millions of machines break down every year due to lightning strikes, which cased loss more than billions of dollars, even life lost.


If we get use of surge protector, we could keep lightning away, life and dollars save.





2.Does low voltage surge protection attract lightning?


Lightning protection does not attract or repel lightning. Like water in a pipe, it provides it a safe path to ground and away from your home, family and expensive electronics.





3. Can I get a sample before the order because I really don't know your low voltage surge protection quality?


Of course!


We also think sample order is the best way to build the trust.





4. I am not familiar with low voltage surge protection, so I need your technical service and best quote which could help me to finish my project.


NO PROBLEM!


Our R&D team is experienced, we have helped many customers to finish their projects.


So just tell us your requirements, then everything we will solve perfectly for you.





5. How about delivery time of low voltage surge protection?


 For sample order 1-2days, and for batch order of standard SPD we promise delivery in 7- 15days.





6. How's the warranty time of low voltage surge protection?


We provide 5years warranty for our SPDs.


What’s more, in the first year, any failed products caused by quality problem will be replaced by us freely, also cost on us.


And in the warrany time, we provide maintenance-free service.
