rubber three roll calender machine fabric calendering equipment
US $1000-$20000
Three roll rubber calender machine
- Category: Rubber Calenders >>>
- Supplier: Qingdao Guangyue Rubber Machinery Manufacturing Co. Ltd.
Share on (60453090292):
Product Overview
Description
Product Description
Product Description

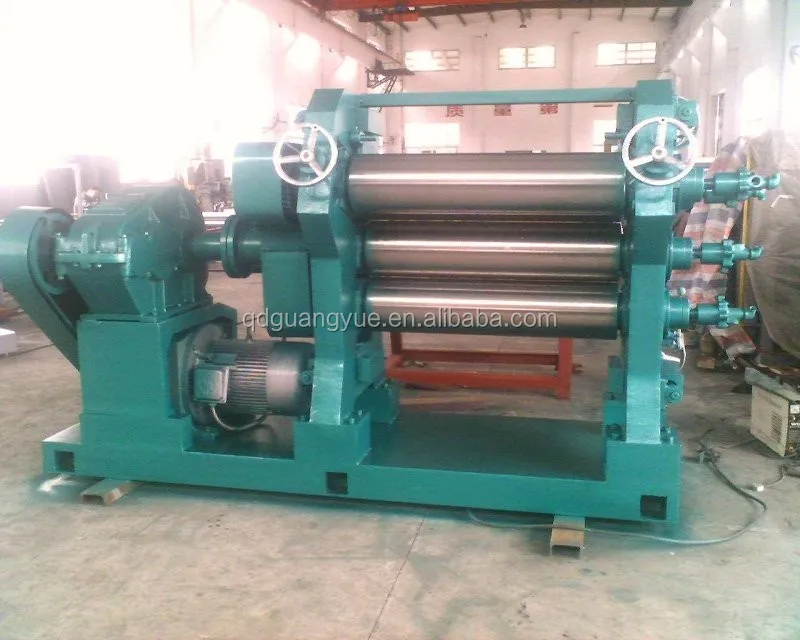

Three roll rubber calender machine
Advantage:

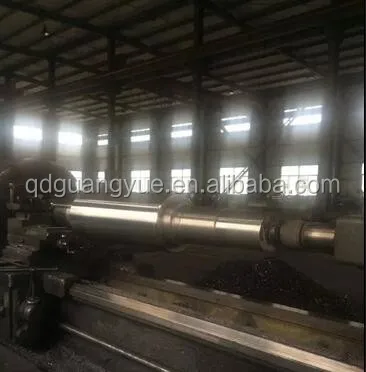

Rollers Made of NiCrMo alloy steel through centrifugal casting, hardness is around HS76 |
Driving System

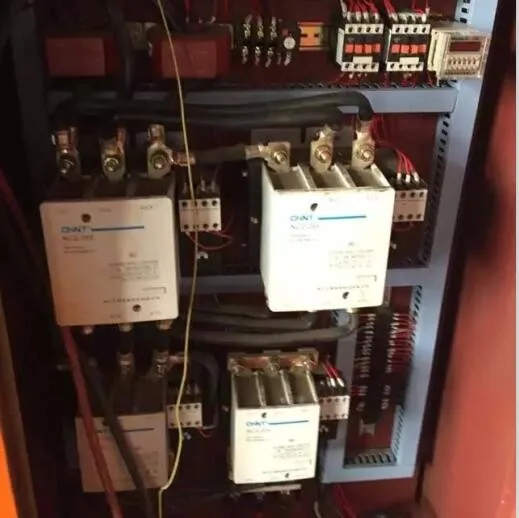

| Electric-Control System Imported PLC Device Full-Automatic Control |
 |  |
|
Application:
The machine is driven by DC motor with a wide range of speed adjustment. Working linear speeds can be steplessly regulated within the fixed range for different applications. The rolls are equipped with lubrication failure alarm device, as well as nip display and speed display.
Structure:
1.roller, 2. rack, 3.backplane, 4.adjustment, 5.device, 6.transmission system, 7.roller temperature control device, 8.security device, 9.lubricating device, etc.
Parameters/Version:
Type | Dia.x Length of roll (mm) | Linear speed of mid.roll (m/min) | Min thickness of calendered product (mm) | Width of calendered product(mm) | Motor Power(KW) | LxWxH(mm) | Weight (t) |
XY-3I1120 | 360x1120 | 7.5-22.5 | ≥0.20 | 900 | 13.3/40 | 6050x1500x2240 | 11.6 |
XY-3I1400 | 400x1400 | 8.8-26.39 | ≥0.20 | 1200 | 18.3/55 | 5600x1410x2385 | 15 |
XY-4F1120 | 360x1120 | 7-21 | ≥0.20 | 900 | 18.3/55 | 6100x1660x2330 | 13 |
XY-4F1400 | 400x1400 | 8.8-26.39 | ≥0.20 | 1200 | 25/75 | 6350x1850x2490 | 18 |
XY-3L1120 | 360x1120 | 2-20 | ≥0.20 | 900 | 37 | 5500x1700x2300 | 11.7 |
XY-5T635 | 240x635 | 9 | ≥0.50 | 550 | 7.5 | 1400x1000x1870 | 2 |
XY-5T700 | 230x700 | 1.5-13 | ≥0.50 | 600 | 7.5 | 3600x1620x1030 | 3.5 |
XY-4r1730 | 610x1730 | 5.4-54 | ≥0.15 | 1500 | 180 | 7050x4110x3750 | 64 |
XY-4r1830 | 610x1830 | 6-60 | ≥0.10 | 1600 | 67x4 | 8250x3860x4640 | 68 |
Features:
A-Roller is made of Chilled Cast Iron alloys, whose work surface has high hardness,wear-resistance and durable life.
B-Rollers' gap adjustment: manual or electric mode
C-Roller bearings' lubrication: dry oil or thin oil by manual or electric mode
D-Bearing bush: nylon sleeve,copper sleeve or double row spherical roller bearing
E-Motor: ordinary or frequency motor

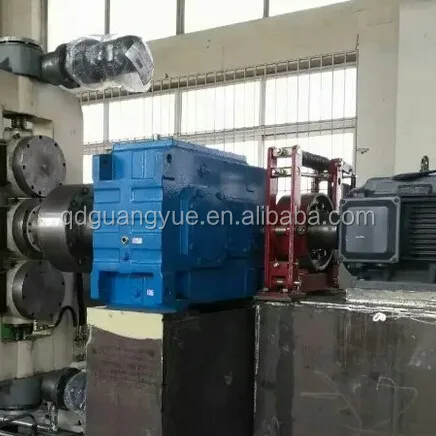

F-Reducer: hard tooth surface reducer
Product Detail:
Exibition&Customers
Exibition & Customers
Three roll rubber calender machine
Related Products
Related Products
Three roll rubber calender machine
Certifications
Three roll rubber calender machine
All the product are CE,ISO,SGS Approved.
Packaging & Shipping
Three roll rubber calender machine
Packaging Details: Wood Pallet & Film Wrap
Delivery Detail: 60 Working Days Since Down Payment
Company Information
Company Information
Our Services
1.pre-sale services
Act as a good adviser and assistant of client enable them to get rich and generous returns on their investments.
1)select equipment model
2)design and manufacture products according to clients' special request
3)train technical personnel for clents.
2.services during the sale
1)Recheck and accept products ahead of delivery
2)Help clients to draft solving plans
3.after-sale services
1)provide considerate services to minimize client's worries.
2)Help client to solve the assembly question
3)take responsibility if any technical problem
FAQ
Q:Are you factory or trading company?
A:We are a manufacturer with over than 15years of experience in Rubber Machine.

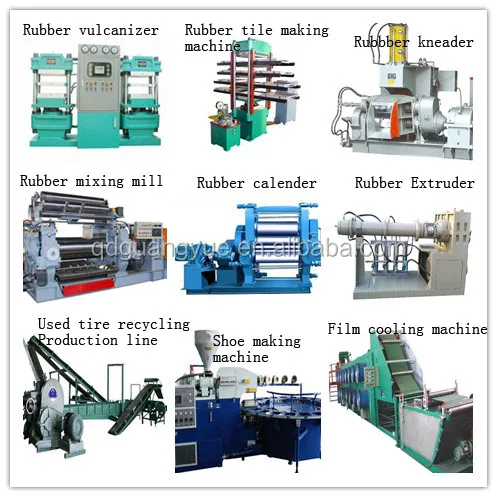

which include: plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber machinery, textile machinery,shot blast cleaning machine, foundry machinery, woodworking machinery, wheel barrow and tire etc
Factory Add: Huang Shan Economic Zone, Jiaonan, Qingdao, Shandong, China (Mainland)
Welcome your visiting and we can arrange our driver to pick up you.
Q:What advantages do you have?
We have15 years trust of our customers. Guarantee Quality and timely Delivery !
Skilled QC staff and do the best quality control,Fast shipment as per customers requirement.
Q: What are your delivery times?
The delivery time is 20-45 days after order be confirmed. For the exact date,please check with our sales team.
Q:What kind of surface treatment do you provide for your goods?
Galvanized ,chrome coating or powder coating are available. We can also make it according to our customer’s requirement.
Q:I’m not sure about your product, can you send me sample for reference?
Our standard product samples are free of charge except for the freight fee.
For customized products, sample fee as well as the freight fee are charged.
