Chemical Fiber Two For One Twisting Machine
- Category: Spinning Machines >>>
- Supplier: Wuxi Huawen Machinery & Electronics Co. Ltd.
Share on (60453976470):
Product Overview
Description

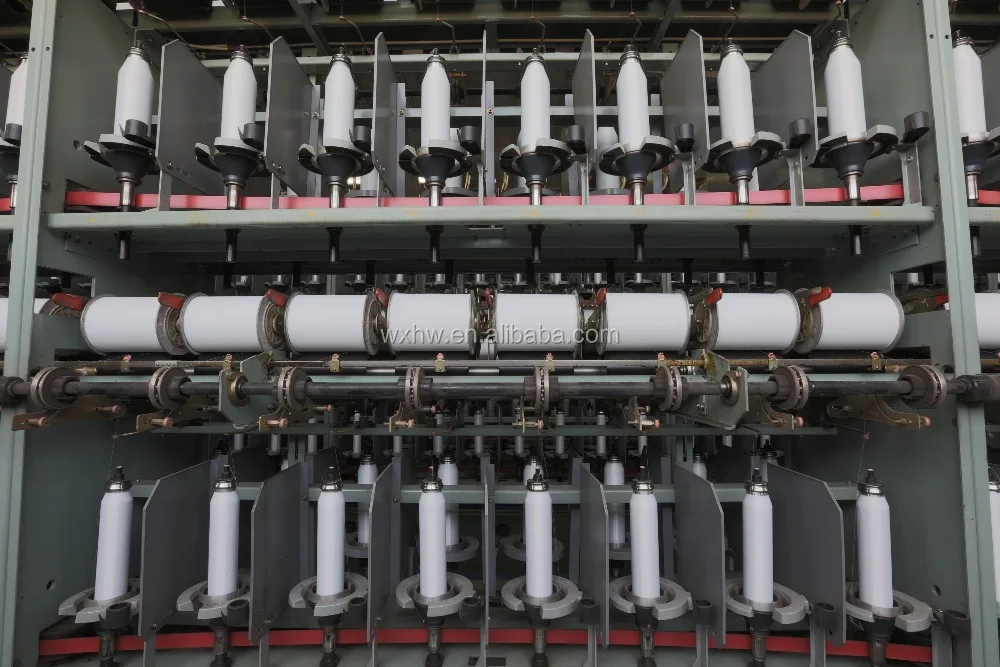

Chemical Fiber Two For One Twisting Machine
Product Description
Product Description:
HW310G high speed chemical fiber two for one twisting machine is a Hi-Tech product in our company. It features high spindle speed, wide twisting range and low energy consumption, etc. It may twist 20D ultra fine chemical fiber yarns, which meets developing requirements of textile industry.
HW310G Specification
HW310G Main Specifications:
1 | Spindle Number | 256 spindles (32- spindle Multiplication) |
2 | Spindle Type | Φ90 Conical Spindle |
3 | Spindle Distance | 255mm |
4 | Spindle Speed | 8000-13000r/min |
5 | Twist Range | 350-3898T/M |
6 | Twist Direction | s or z way |
7 | Unwinding Bobbin Speciation | Φ100×Φ42×L240-270 |
8 | Winding Capacity | (Raw Yarn) 750g-1000g (Manufactured yarn) 500g-750g |
9 | Winding Method | Edged Bobbin Parallel Winding |
10 | Spindle Transmission Method | Tangential Belt transmits in cycles |
11 | Spindle Fixing Method | Magnetic Force |
12 | Starting Method | Y-Δ Slow starting |
13 | Tensioner: | Elastic Tensioner and Cushion Tensioner are put into use together |
14 | Winding-Up Tension | Overfeed Rate-Regulating and Tensioner Device |
15 | Winding Angle | standard 3°42′ blinks (9.0 time/single stroke) 2°51′ blinks (11.7 time/single stroke) 6°42′ blinks (5.0 time/single stroke) |
16 | Applicable Range | 25D-500D chemical fiber yarns |
17 | Operating Method | Two Sides, Two Layers Low Machine Body |
18 | Transmission Motor | 2×7.5KW (3 Phase Asynchronous Motor) |
19 | Working Environment Condition | Relative Humidity ≤ 90% Temperature ≤ 50°C |
20 | Packing | To be packed with that suitable for export shipment |
21 | Payment | 30% T/T deposit, 70% balance paid before shipment |
22 | Delivery time | 30 working days after receiving 30% T/T deposit |
FAQ
FAQ:
Are you the manufacturer or the trading company?
We are the experienced manufacturer of textile machines, especially for the two-for-one twisting machines, doubling winder machines, yarn covering machines and etc. We have got the self-support imports and exports right.
What is your advantage compared with other textile manufacturers?
We are expert at making yarn machines for almost 20 years and we have a professional technical team who can provide special customer requirements. Our machines have been exported to a lot of countries such as Vietnam, South Korea, Uzbekistan, the Philippines, Tunisia, Morocco and so on.
What kind of service can you offer?
Design with your requirements by professional team.
ISO 9001:2008 certificates and letters patent.
Engineers go overseas for training.
How to check my order at last?
We warmly welcome you to visit our company in Wuxi, which is close to Shanghai, for checking your machines. If you don’t come here, we can also take photos and videos for your confirmation.
Customer Visiting
Customer Visiting:
Packaging & Shipping
Packaging & Shipping:
We mostly use the nude cargo with waterproof plastic bags. We will separate the whole machine into sections after adjustment, and then put each section one by one into the container.
Certifications
Certifications:
Company Information
Company Information:
