Steel Drag Chain For CNC Machines

Product Overview

Description

Steel Drag Chain For CNC Machines

Drag Chain Description



Drag chain is suitable for the nc machine tools, machining centers, automated machinery and production lines and other kinds of machine tools, robots, transport machinery, measuring instruments, handling device and other liquid drive control as a wire, cable, gas hose protection device, can take on machine tools, machinery and equipment moving parts run harmoniously, can play a safety protection and the ability to guide, can prolong protected wire, cable, liquid, gas hose service life and reduce consumption, can greatly improve the machine tools, machinery and equipment of wire, cable, liquid, gas hose to confirm the unorderly situation existing in distribution, make it tidy and rules is arranged together, can enhance the overall artistic effect of machine tools.

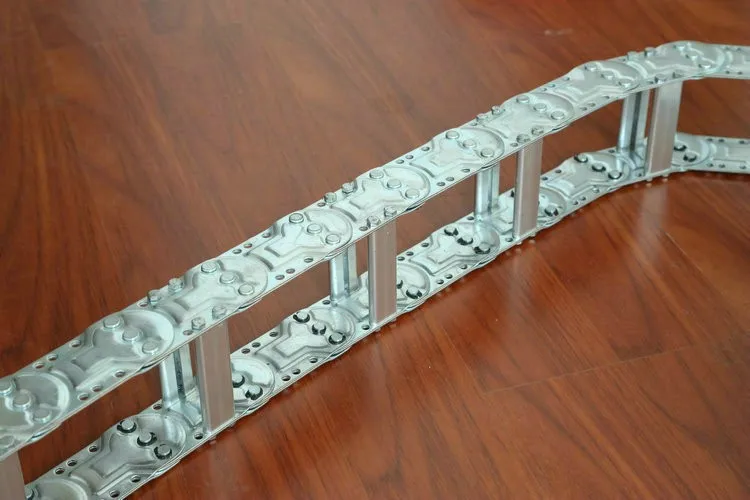

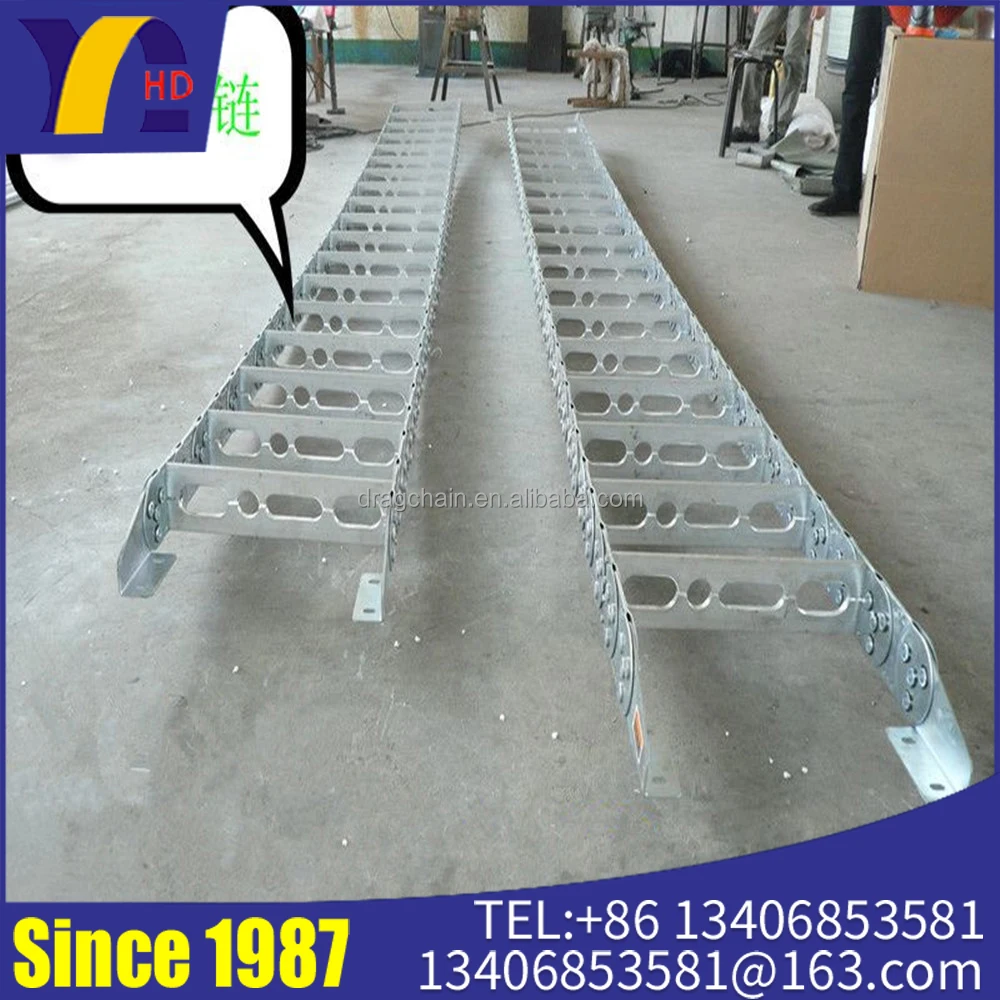

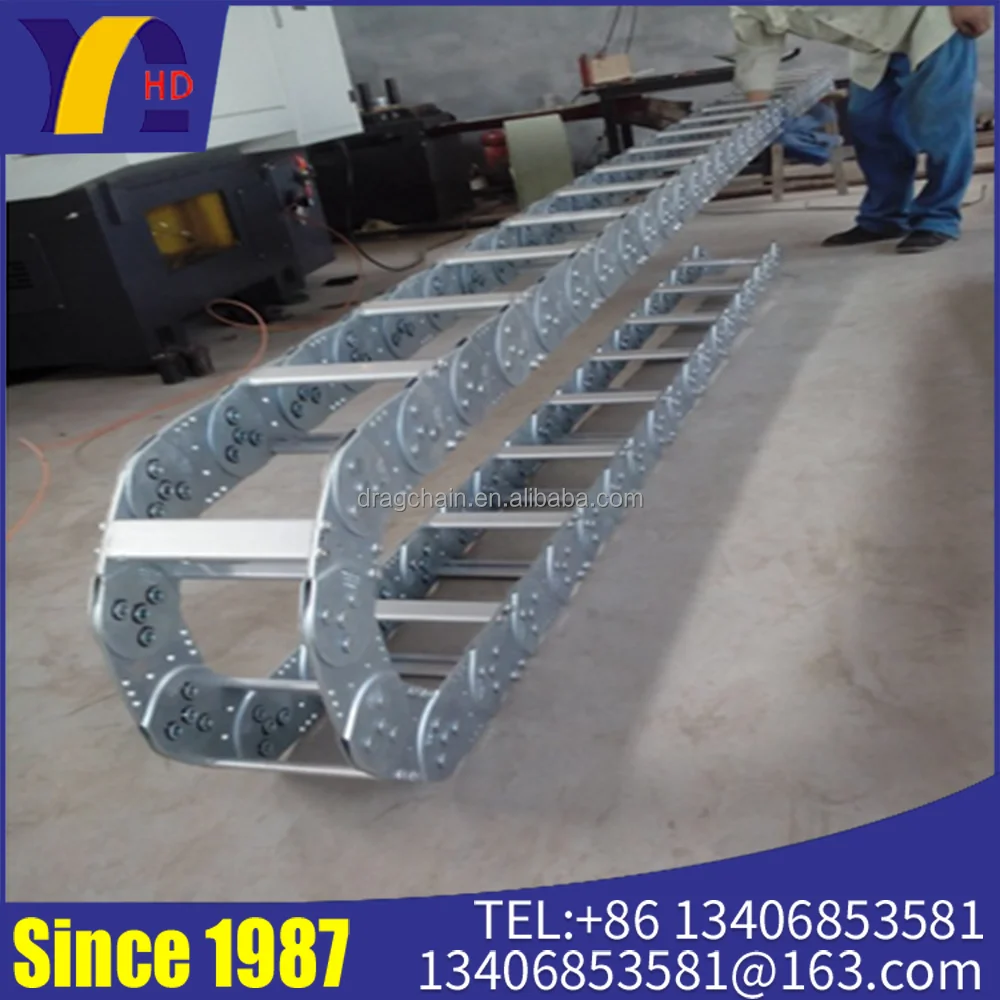

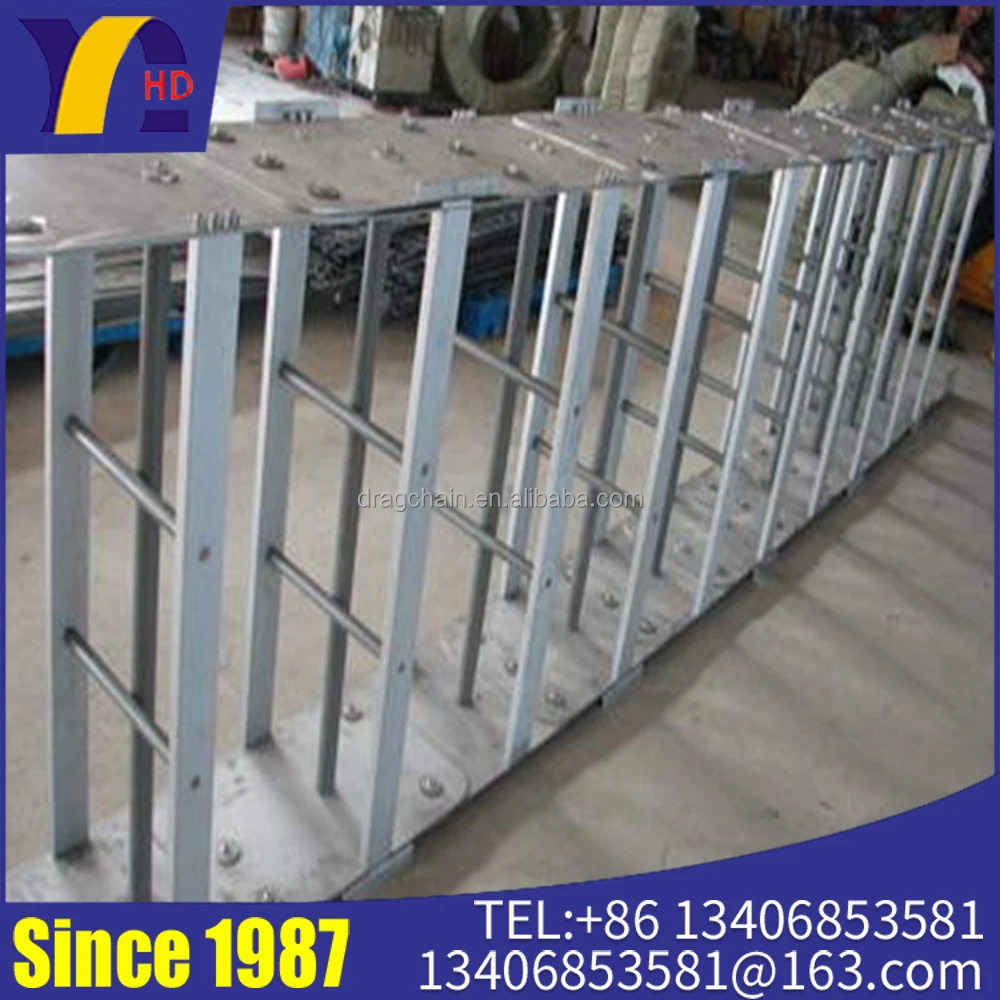

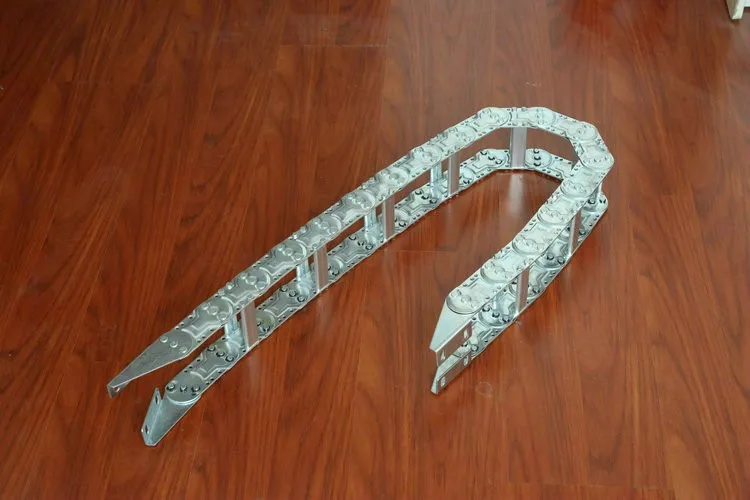

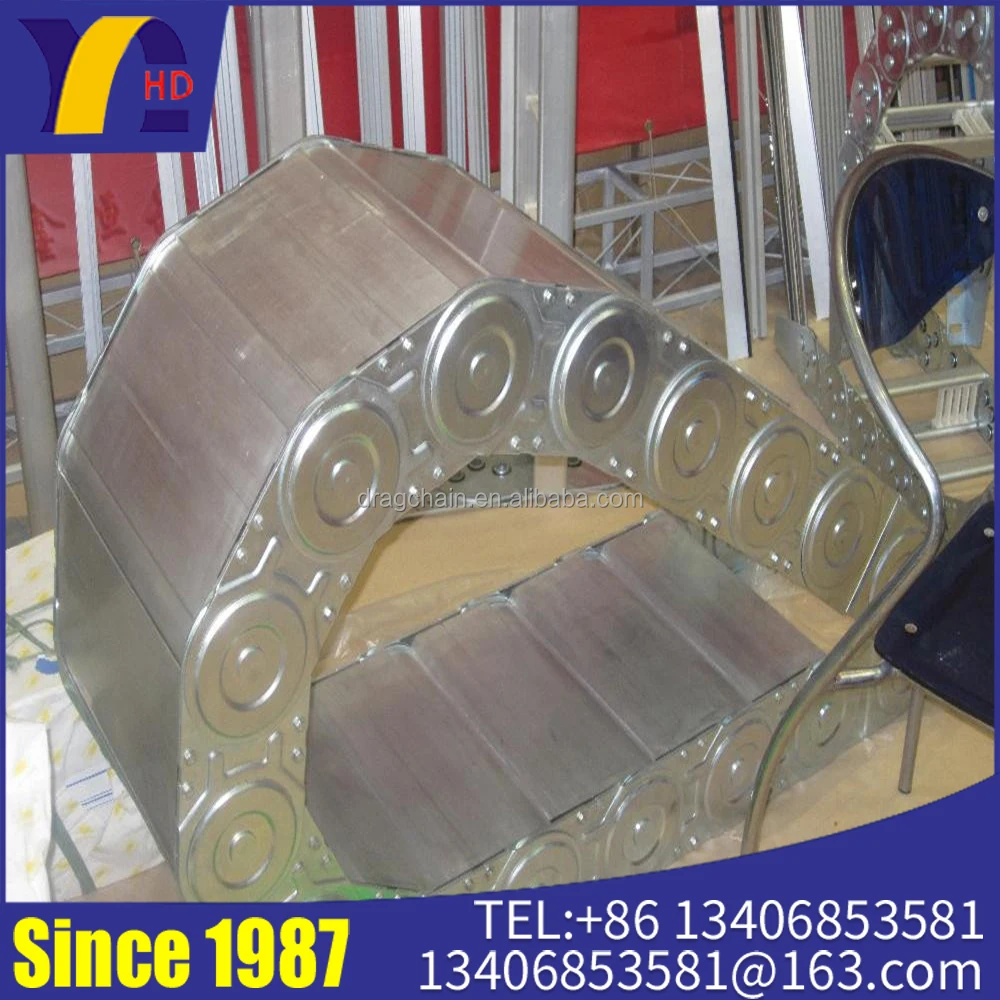

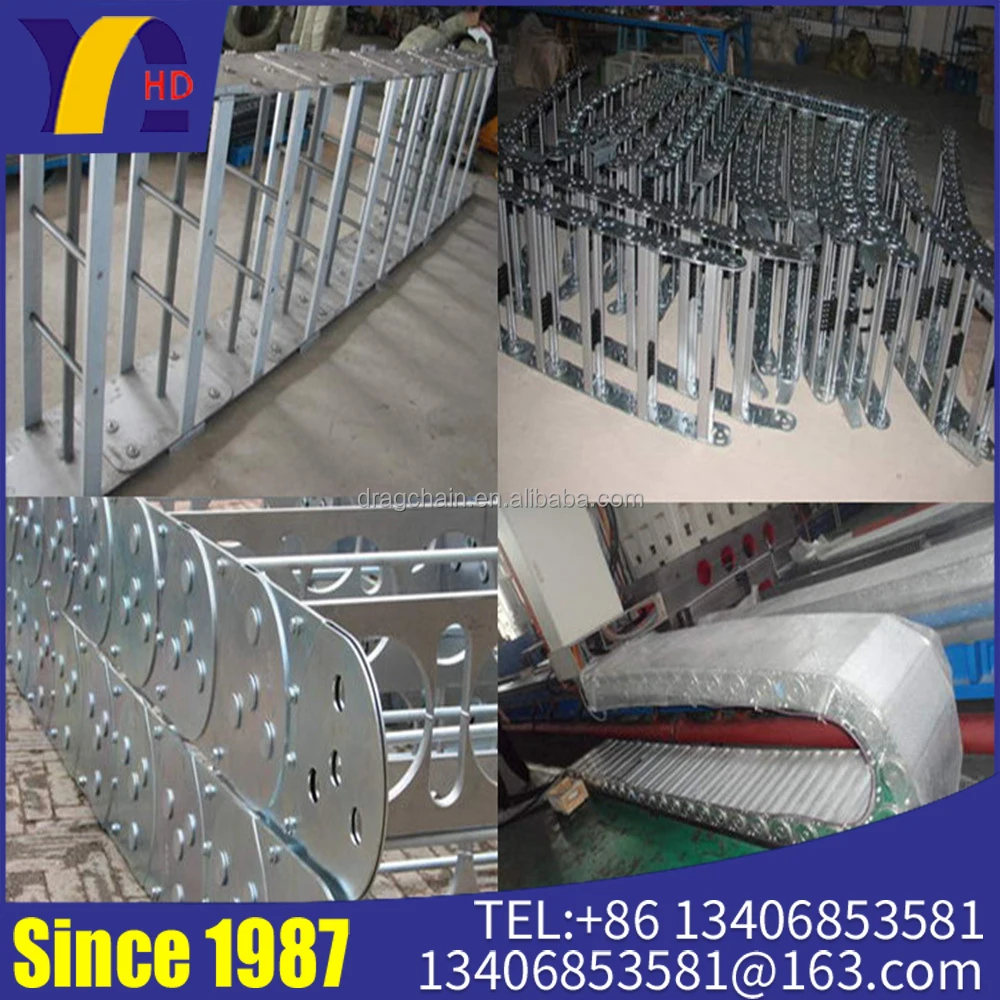

Drag Chain Show



Drag Chain Feature



Structure

Drag Chain looks like the tank chain drag chain, consists of a lot of link. Link is composed of the up and down or so four sections, each section can open, convenient installation, open the cover plate after put in the cable, tubing, the trachea, etc.



Material and Performance

Material: Reinforced nylon, good toughness and wear resistance, acid and alkali resistant ability.
Operating Life: Under normal use, up to 5 million reciprocating motion.



Drag Chain Selection

High: Select the built-in cable, tubing, the trachea and conduit maximum height for reference, the height of the drag chain at least 10% of the remaining space.

Wide: Choose the built-in cable, tubing, trachea, the sum of its outer diameter for reference, the width of the drag chain at least 10% of the remaining space.

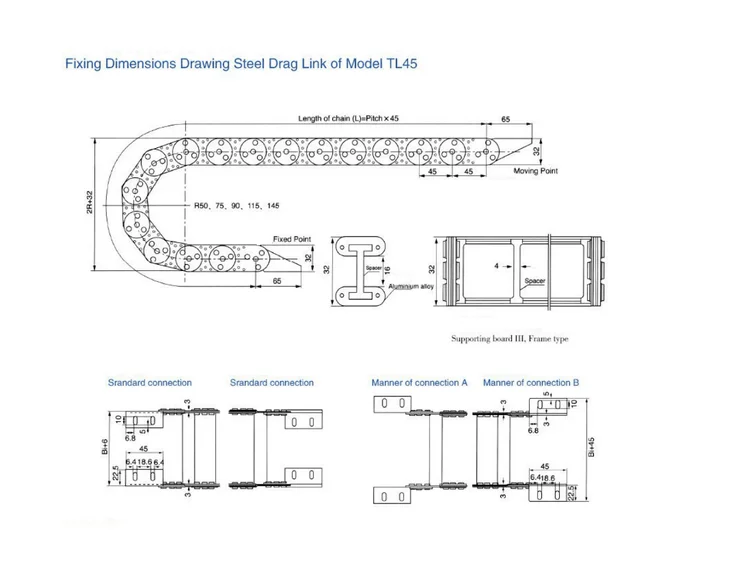

Drag Chain Size



	TL 30	TL 45	TL65	TL80	TL95	TL115	TL125	TL155	TL180	TL225	TL250
Pitch	30	45	65	80	95	115	125	155	180	225	250
Bending Radius	40	50 75 90 114 145	75 90 115 125 145 185	100 115 125 145 185 200 250 300	115 145 200 250 300 350	145 200 225 250 300 350	200 250 300 350 470 500 575 700 750	200 250 300 350 450 500 600	250 300 350 450 490 600 650	400 450 600 750 800 850 1000	400 450 500 600 750 800 1000
Minimum Width O Drag Chain	40	35	50	55	60	70	80	90	100	160	190
Hight of Drag Chain	25	32	44	56	70	86	100	120	144	200	220
Length of Drag Chain	By User
Max Hole Diameter of Support Plate	10	-	30	35	48	63	68	97	110	146	166
Non-Support Range	3	4	5	8	9	10	10	10	10	12	14



Trade



MOQ: 10 meters

Payment: L/C, D/A, D/P, T/T, Western Union, MoneyGram;  30% deposits; 70% balance before delivery or against copy of BL

Delivery Time: 3-7 days for samples; Within 10 days for batch goods.

Packaging: Carton or wooden cases

Shipping: By Air or by Sea for batch goods, for FCL OR LCL; Airport/ Port receiving;

Service



Professional & Passion Sales team 24 hours at your service
Participating in the various exhibitions help you to know us more completely sample could be sent in 1-2 days
OEM of customized products / logo / brand / packing is accepted small qty accepted & quick delivery

Can send you samples for free



Company Information



Qingyun Huade Machine Tool Accessories Producing Co., Ltd. is a set of machine tool accessories, development, application and research for the integration of professional enterprise.
Our products are:Machine tool drag chain, machine shield, Chip conveyor, machine tools mat iron, working lamp, Cable drag chain, Plastic drag chain, Nylon drag chain, Steel drag chain, Engineering drag chain, Guideway cover, Screw shield, Chain plate chip removal machine, Shock pad iron, adjustable mounts.
