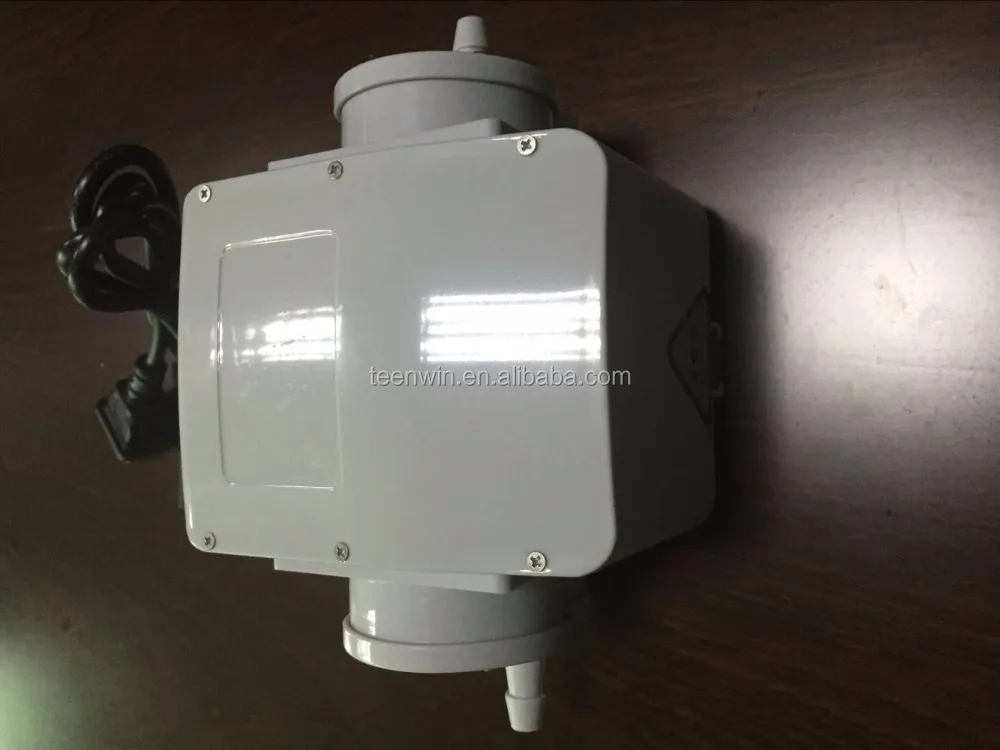

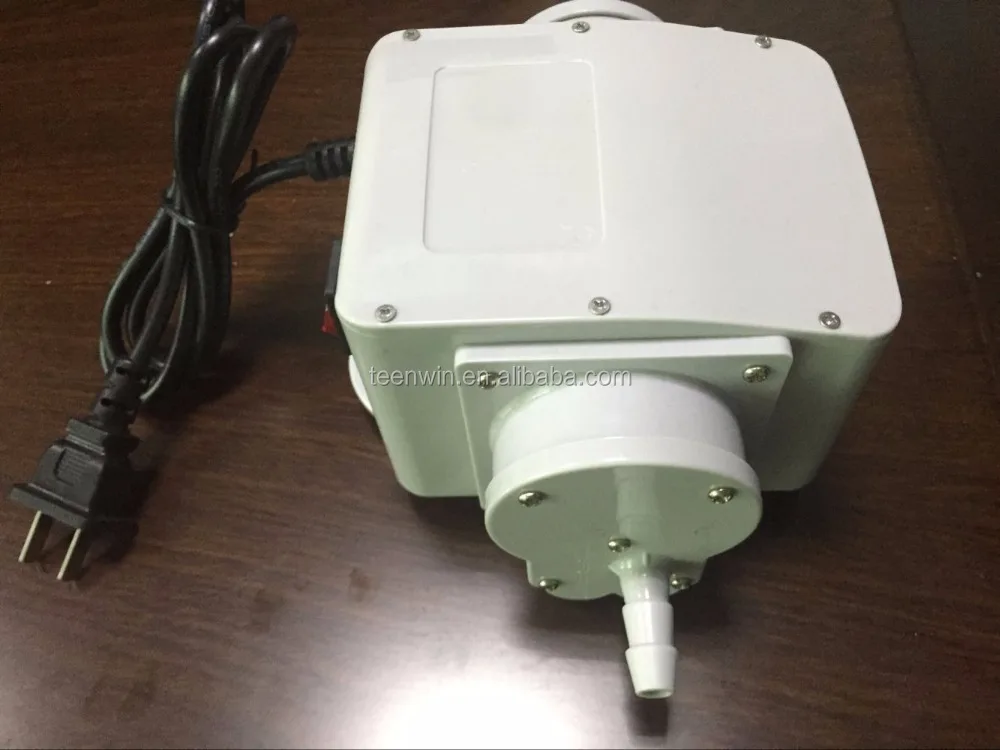

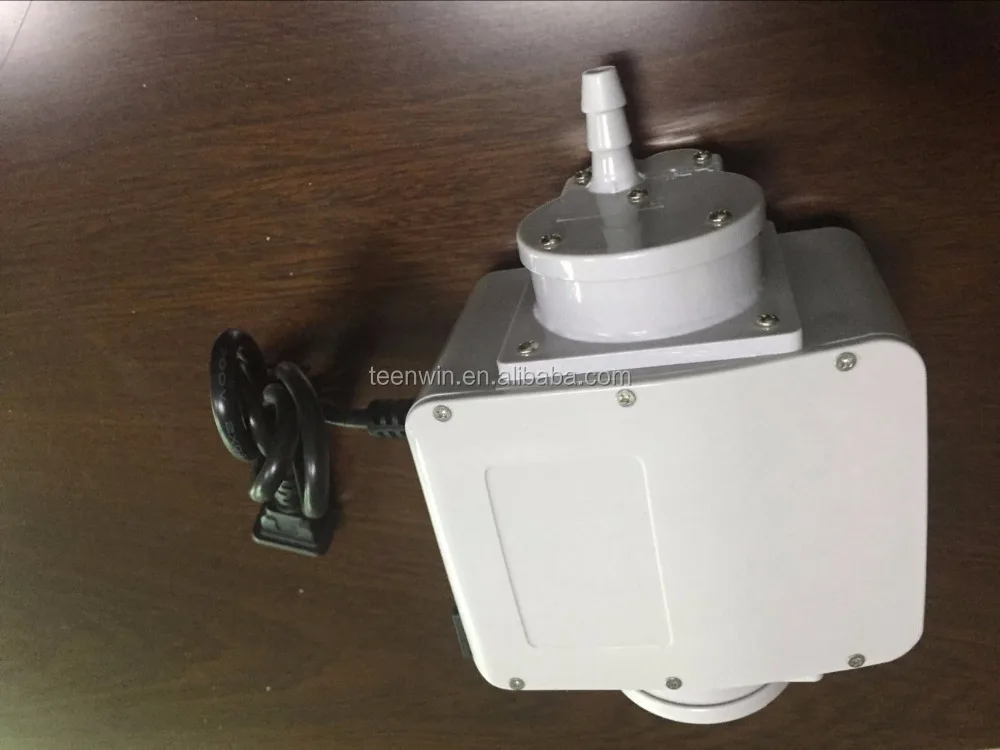

Teenwin высококачественный небольшой биогазовый насос 10 Вт до 20 Вт

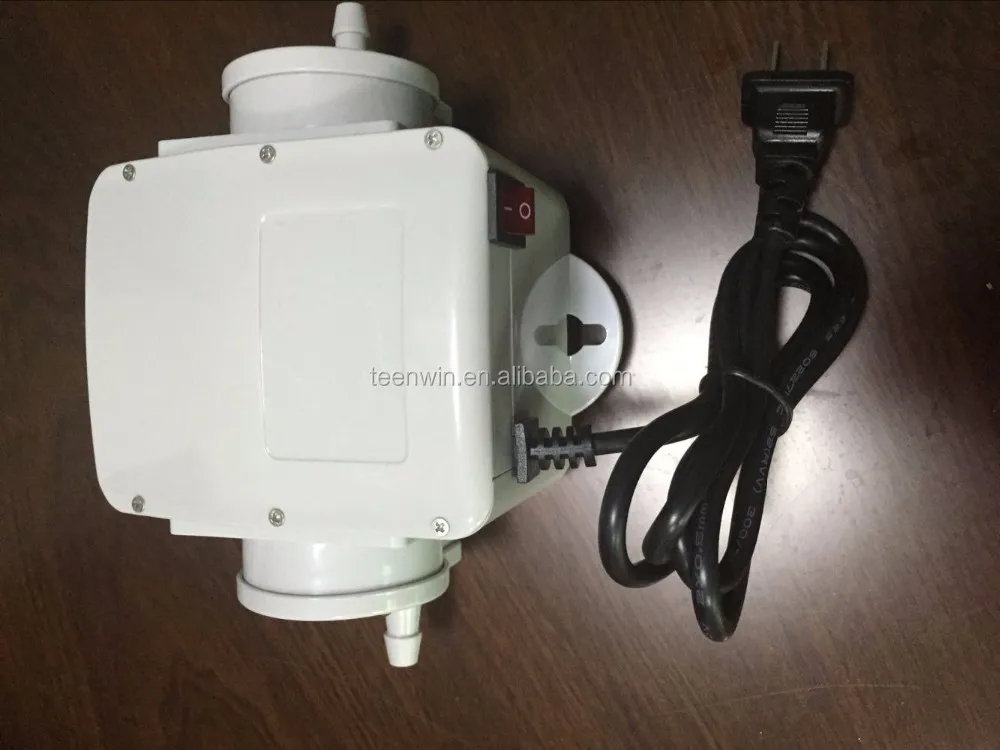

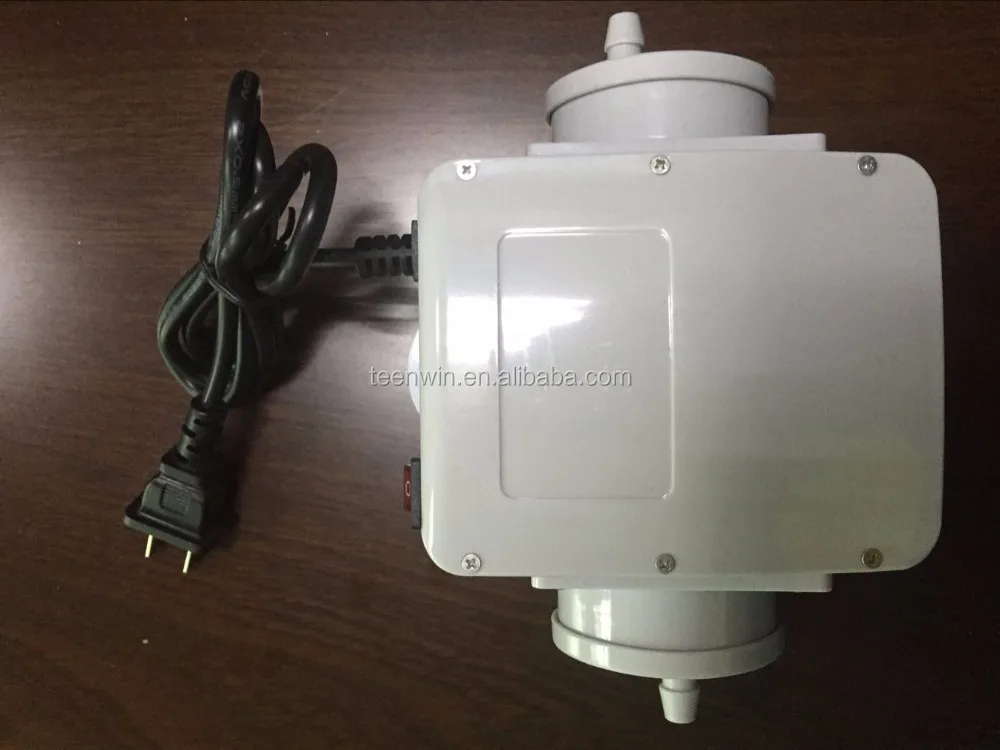

                 Teenwin High quality small size  Biogas pump 10w to 20w

	TY-GP-10W	Power: 10 W, Flow: 20L/min
	TY-GP-15W	Power: 15 W, Flow: 30/min
	TY-GP-30W	Power: 20 W, Flow: 40L/min

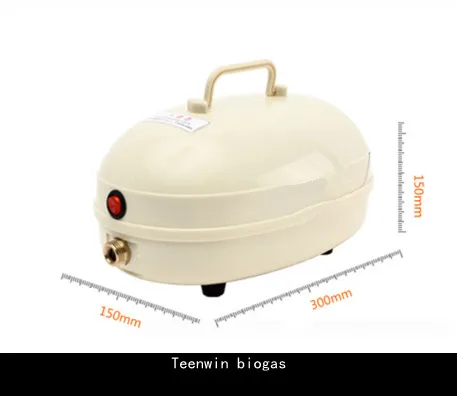

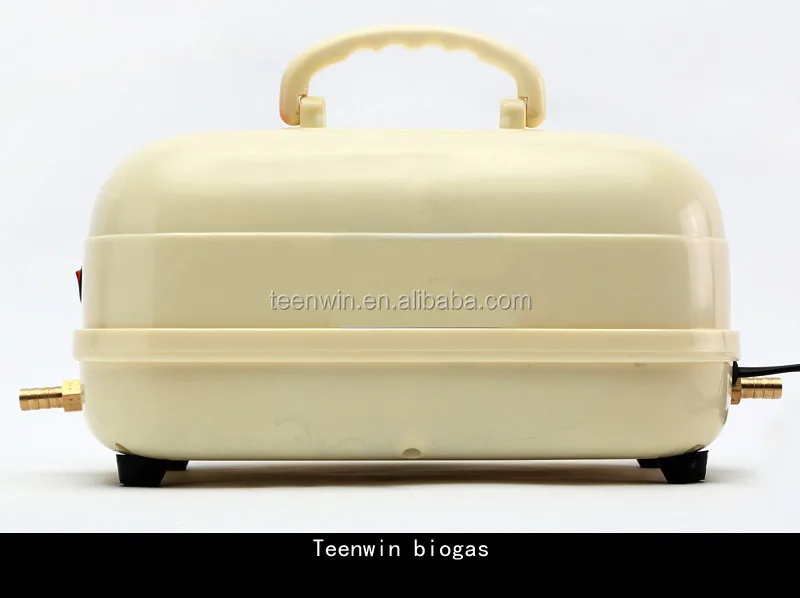

Teenwin High quality and durable Biogas pump 40w

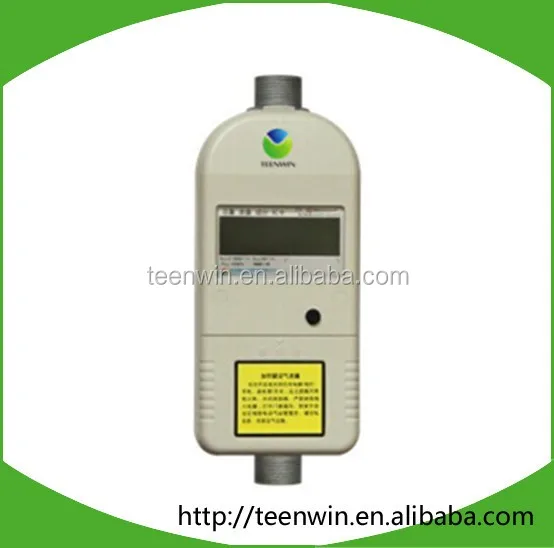

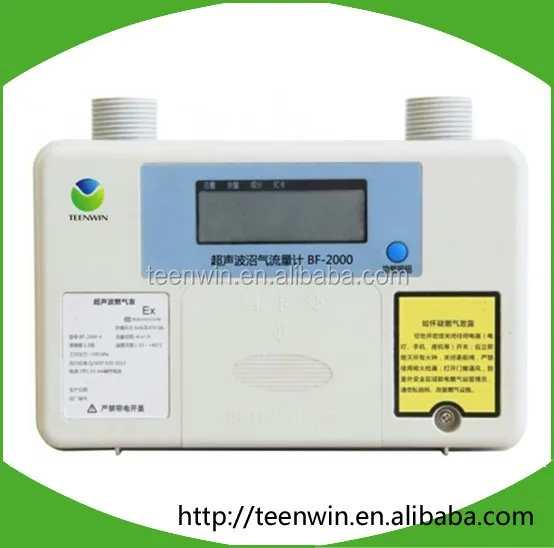

Teenwin High pressure biogas flowmeter BF-2000

The only international gas flow can be measured simultaneously,ingredients domestic gas meter
Technical parameters
Flow measurement range :0-4 .0 m3 / h
Flow measurement accuracy: 1.5
CH4 measurement range :30-100%
CH4 measurement error: <5%
Working pressure: less than 100KPA
Power supply: 3 AA batteries (1.5V)
Explosion-proof grade: Ex ibIIAT4 Gb
Mounting interface: M30 * 2.0
Features
1. Basic functions: gas flow measurement and calculate the cumulative flow
2. Corrosion resistance: the traditional film form at high H2S and moisture conditions
susceptible to corrosion damage, ultrasonic gas flow meter without coating, ceramic
ultrasonic probe using a special probe, superior corrosion resistance
3. Anti-pressure shocks: the traditional film table bearing capacity is poor, and easily
damaged when the pressure fluctuations, ultrasonic gas flow meter without coating,
can withstand high pressure shocks
4. Temperature compensation function: the traditional film form without temperature
measurement function, the winter (0 degrees), summer (37 degrees) measurement
error of 15%, ultrasonic gas flow meter built-in temperature sensor
5. CH4 concentration measurement functions
6. Safety features: the use of ultrasonic can be low flow measurement, bi-directional
measurement advantages, you can determine biogas leakage and tempering, the
threshold is reached automatically shut off the gas valve to ensure safety

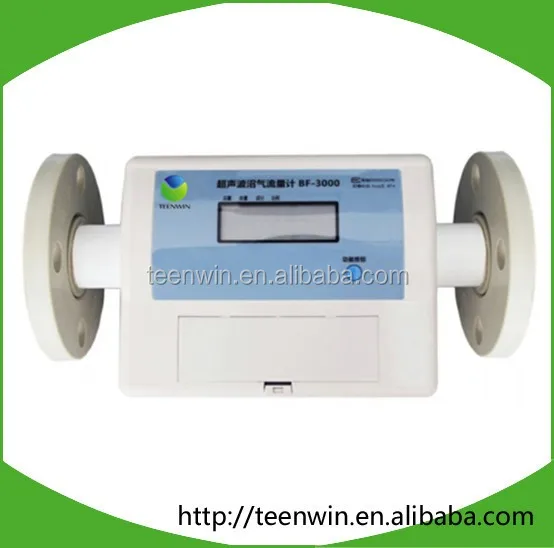

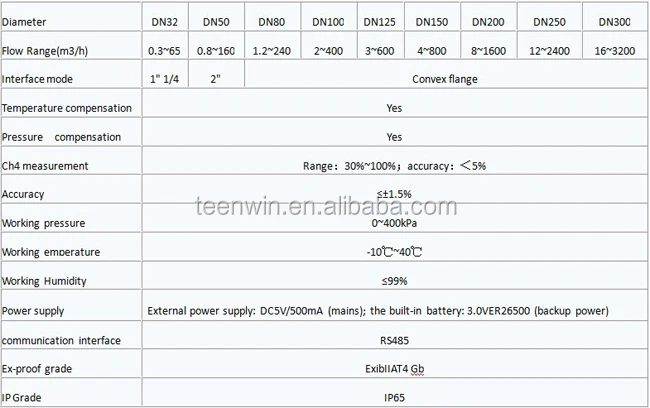

Teenwin High pressure biogas flow meter BF-3000A

The Teenwin BF-3000 flowmeter is developed for the measurement  of total biogas  output from small anaerobic digesters, it is designed to stand up to the wet and corrosive condition, unique composition reading function provide the measurement of methane (CH4) content and flow rate at real time.

Technical parameters:
Flow measurement range: 0-65m3/h (DN32)
Flow measurement accuracy: 1.5 grade
CH4 measurement range: 30-100%
CH4measurement error: <5%
Temperature measurement range: -20- 60°C
Temperature measurement error: +-1°C
Pressure measurement range: 0-100Kpa
Pressure measurement error: 50pa
Working pressure: less than 100KPA
Power supply: external solar power supply and inner 4 AA batteries
Explosion-proof grade: Ex ibIIAT4 Gb
Mounting interface: DN32 pipe flange

Features

1,No moving parts, little pressure loss.

2,Unique methane content measurement function.

3,Ease-to-install, routine maintenance free.

4,IC card prepaid and meter reading features are available.

5,Built in GPRS function module supports remote meter reading and control.

6,Remote biogas SCADA system support is available.

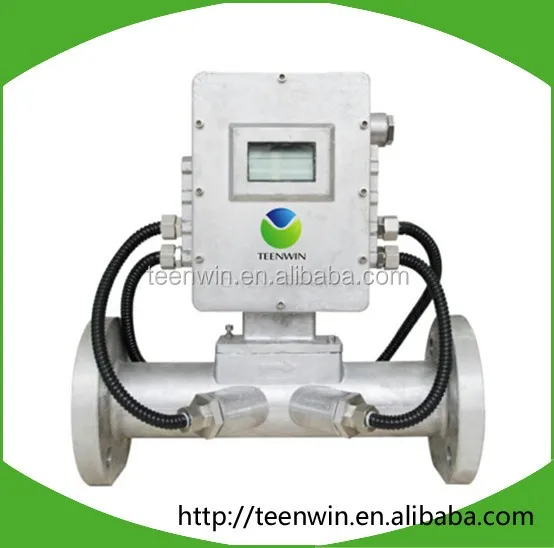

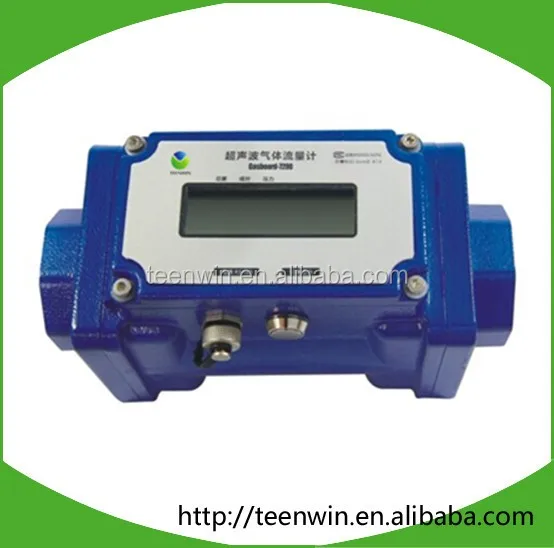

 Teenwin High pressure biogas flowmeter BF-7200A

Teenwin 7200 gas flowmeter using latest ultrasonic transit-time technology to measure flow.

With advantages of no moving parts, no pressure loss, wide range ability/turn down ratio, corrosion resistance, the meters are capable of providing reliable long-term  accuracy  and require  no  routine maintenance. The meters are widely applied in industries of petroleum, chemical, electricity, metallurgy, urban gas supply etc.

Optimal flow measurement solutions within large biogas flow metering stations, intelligent running.
The only international gas flow can be measured simultaneously, composition and wireless remote pipeline flow meter solutions.Large biogas acceptance and supervision "gold standard"

Technical parameters:
Flow measurement range: 0-160m3/h (DN50)
Flow measurement accuracy: 1.5 grade
CH4 measurement range: 30-100%
CH4measurement error: <5%
Temperature measurement range: -20- 60°C
Temperature measurement error: +-1°C
Pressure measurement range: 0-100Kpa
Pressure measurement error: 50pa
Working pressure: less than 1.6MPA
Power supply: external solar power supply and inner 4 AA batteries
Explosion-proof grade: Ex ibIIAT4 Gb
Mounting interface: DN50 pipe flange

Features

1. Basic features: large biogas flow measurement and calculate the cumulative flow
2. Corrosion resistance: the traditional vortex, turbine flowmeter susceptible to
corrosion and other damage at high H2S and moisture conditions, ultrasonic gas
flowmeter probe ultrasound probe using a special ceramic, super corrosion resistance
3. Temperature, pressure measurement: Built-corrosion type of temperature, pressure
sensors, flow measurement standard biogas
4. CH4 concentration measurement functions: implementation of biogas product
subsidies, methane CH4 concentration measurement is key, otherwise gas and city
gas Pirates contrary, the use of biogas in rural areas will be a way to get air drums
risk more subsidies. Various traditional gas meter were unable to complete this
important function, ultrasonic gas flow meter can be achieved without increasing the
cost of accurate measurement of methane CH4
5. Operation and management functions: remote control via mobile phone booster fan
switch; gas flow through the day, composition, pressure data to determine the
operating status of biogas projects, decisions feeding and mucking.

Biogas flow meter for protable assemble bioreactor digester
