Плата контроллера VGA Audio LCD ЖК панель 21,5 дюйма с кабелем 1920*1080 кабель LVDS инвертор клавиатура OSD пульт дистанционного управления
- Category: LCD Boards & Accessories >>>
- Supplier: Shenzhen Caison Technology Co. Ltd.
Share on (60457038464):
Product Overview
Description
Product Description

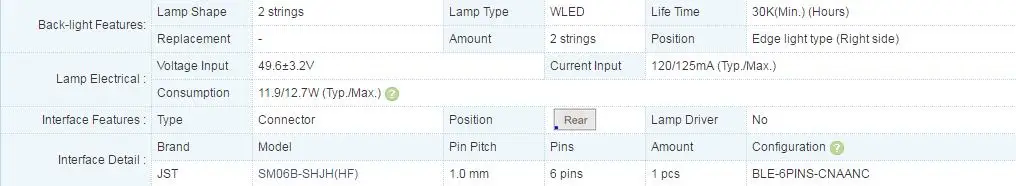

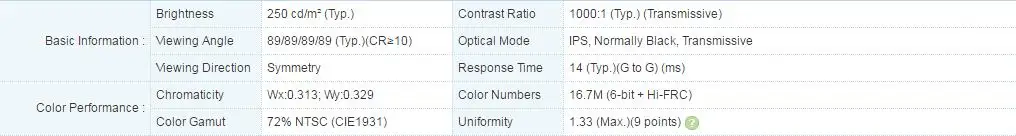

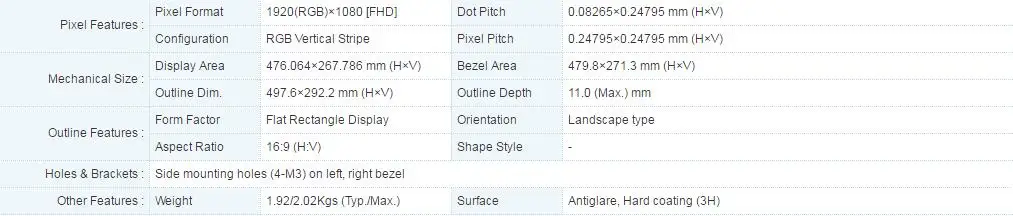

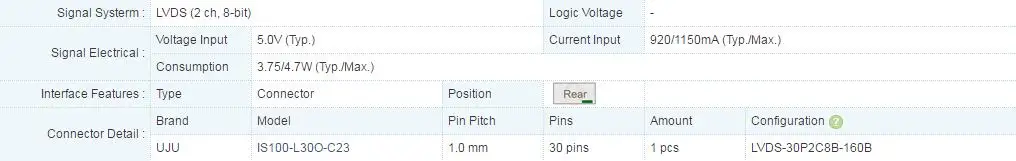

1.Specification of the 21.5 inch LCD panel
2.Specification of the LCD controller board
CHIPSET | RTD2668 | ||||
OSD LANGUAGE | Chinese,English(French,Spanish, Portuguese,Korean, Italian,German, Dutch)(Option) | ||||
VIDEO INPUT | PC-RGB | Format | Up to 1900*1200 60HZ | ||
Color | 16bit, 24bit, 32bit | ||||
I2C | DDC, EDID | ||||
POWER | Power Requirement | 12V | |||
To panel | 3.3V,5V,12V | ||||
Manage | Low power consumable mode: standby≤3w | ||||
KEY FUNCTIONS | EXIT/SELECT,MENU,AUTO,LEFT,RIGHT,ON/OFF | ||||
AUDIO OUTPUT | 2*2W 8 | ||||
TERMINALS | Input | TV Input | 1 IEC 75 | ||
PC-RGB Input | 1D-SUB 15PIN terminal blue color | ||||
PC-RGB Audio Input | 1 earphone terminal black color | ||||
Output | To Panel | 30PIN/2.0 jack(Option) | |||
Dimension(mm) :107(L)*66(W)*17(H)
Package content
1*21.5 inch LCD panel |
1* VGA AUDIO LCD controller board |
1*OSD keypad with cable |
1*LVDS cable |
1*LED driver board with cable |
