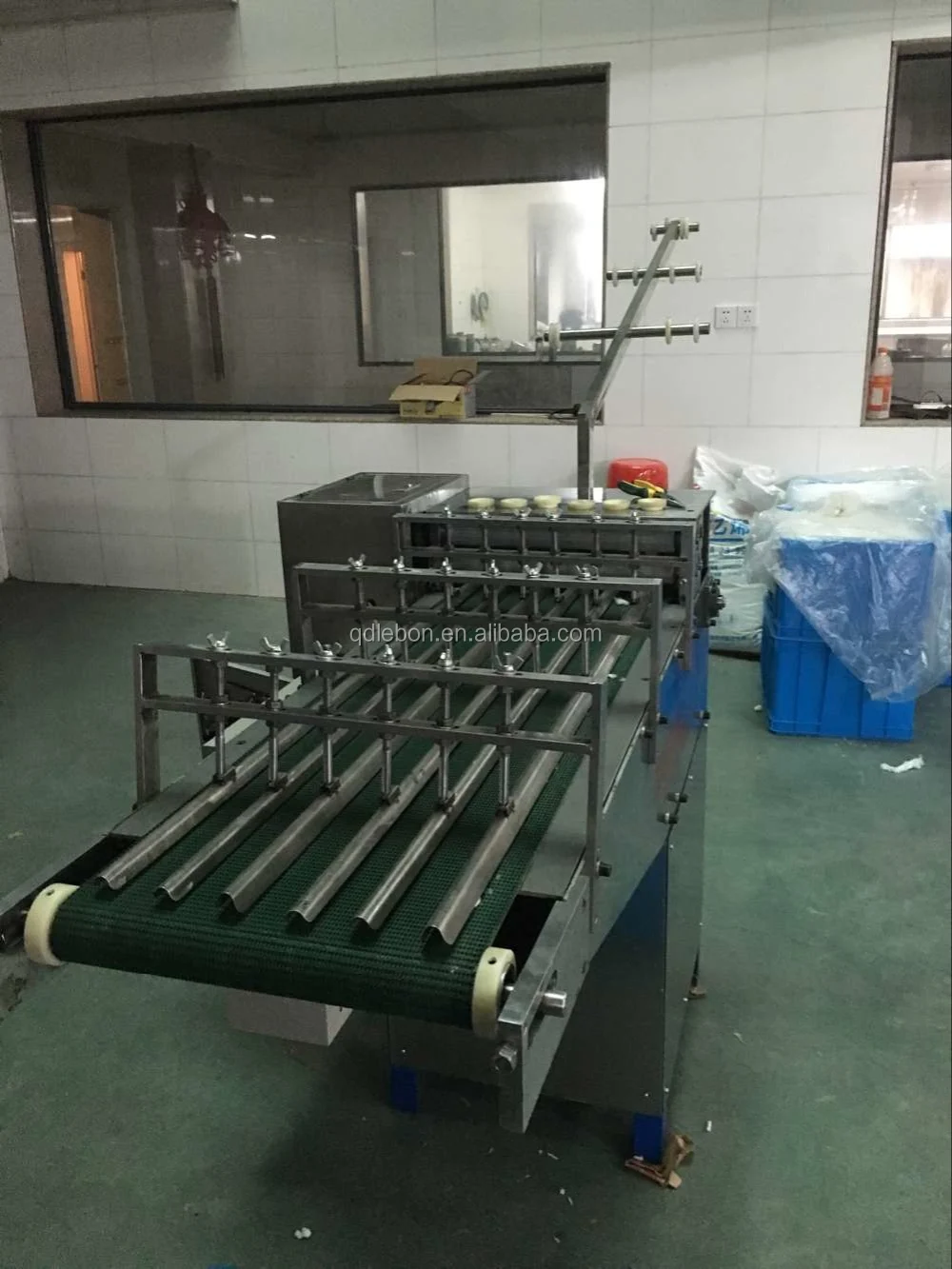

LBTZ 006 Cotton Pellet making machine line

This production is special for producing dental cotton roll automatically, production process is: cotton strip rolling – coating glue – drying – cutting – output.

It can produce dental roll with different specification on request.
The production line adopts alloy steel, with exquisite appearance and simple construction, easy for operating and maintenance, the finished product - dental rolls are burnished, smooth and no burr.

Main technic parameter
1. Power supply: 380V, 50Hz
2. Power total: 8.6kw
3. Forming speed: 30-50 kg/h
4. Glue coating speed: 50-80 kg/h
5. Cutting speed: 60-80 shaft/min
6. Approximate weight: 2700kg
7. Dental roll diameter: 8-25 mm
8. Packing qty: 15/20/30/40/50 pcs/roll

Detailed Images

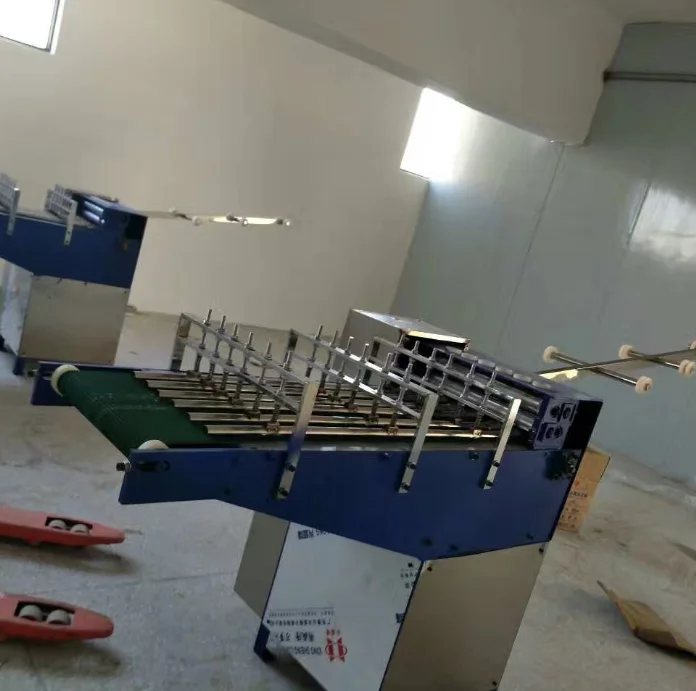

Special Drying machine for dental cotton

The machine is suitable for coating glue drying steps automatically.
It can be ordered as per demands if that need the semi-automatic drying line.
The cost of the machine line will be different with the automation, effect, and energy consumption, etc of the customer demands.
Extra Attachments: 40 pcs stainless steel boult and shelf

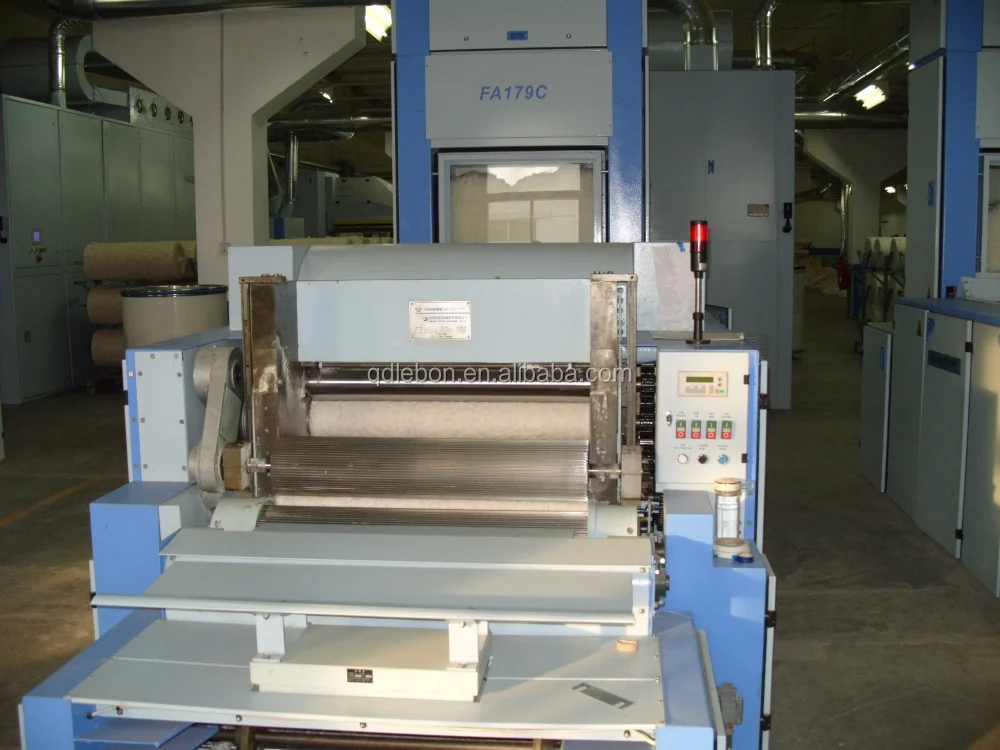

Dental cotton roll machine

It is mainly used for cotton strip rolling.
New technology,
High speed, easy to operate.

Dental rolls

The finished product - dental rolls are burnished, smooth and no burr.

Packing & Delivery

Export standard packing  & Fast delivery
