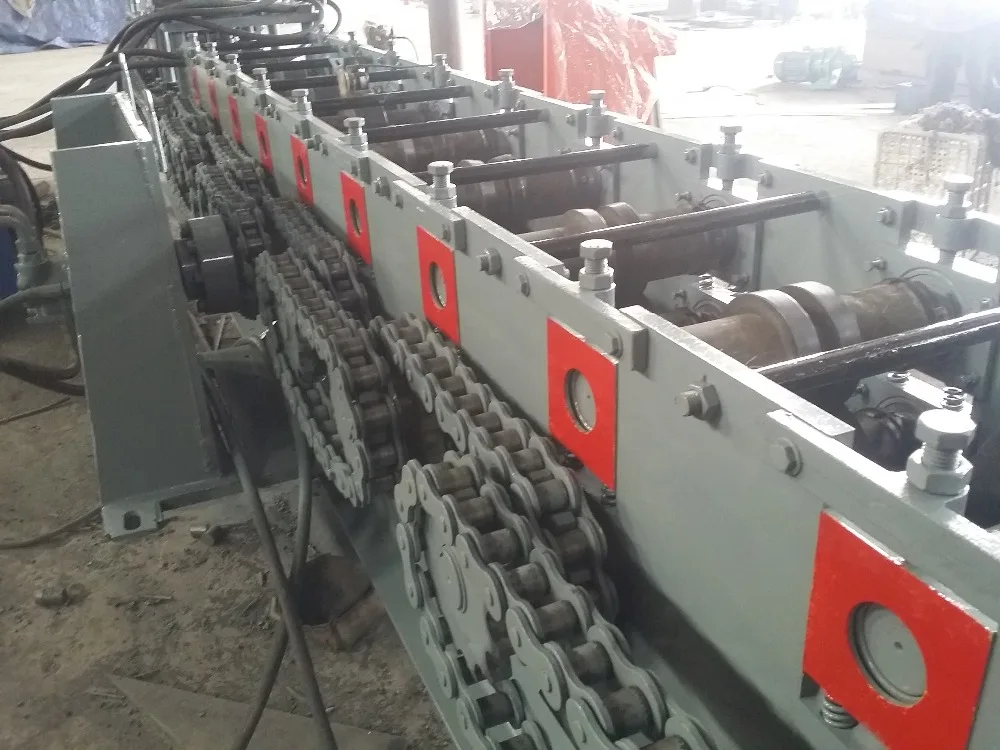

galvanized steel Scaffolding Plank walk board roll forming machine

Share on (60459319177):


Price:$20,000.00

Quantity:


Product Overview

Description


galvanized steel Scaffolding Plank walk board roll forming machine








1






































































Machine Sizes



9500mm*1700mm*1500mm



Main motor power



11 KW



Hydraulic station power



5.5 KW



Thickness



1.5-3mm



Material expand width



300mm



Material of roller



CGr15



Diameter of principal axis



80mm



Processing speed



0-15/min



Material of cutting



Cr12



Roller station



13-15 Rows

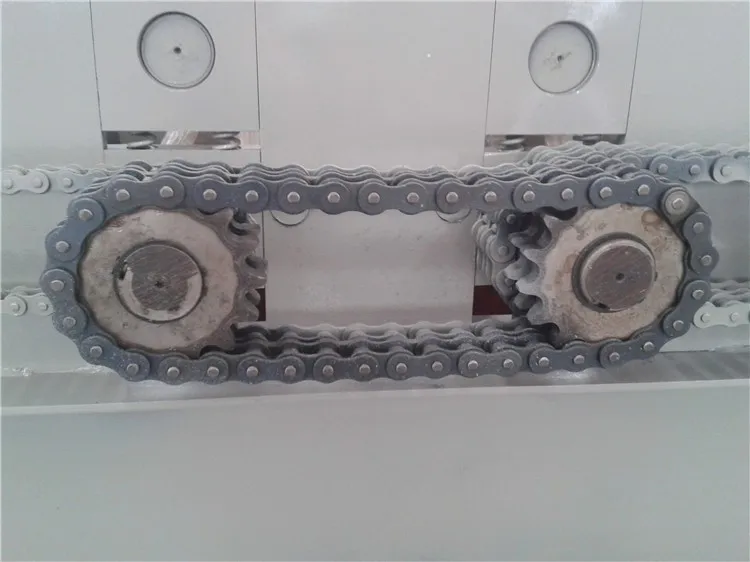

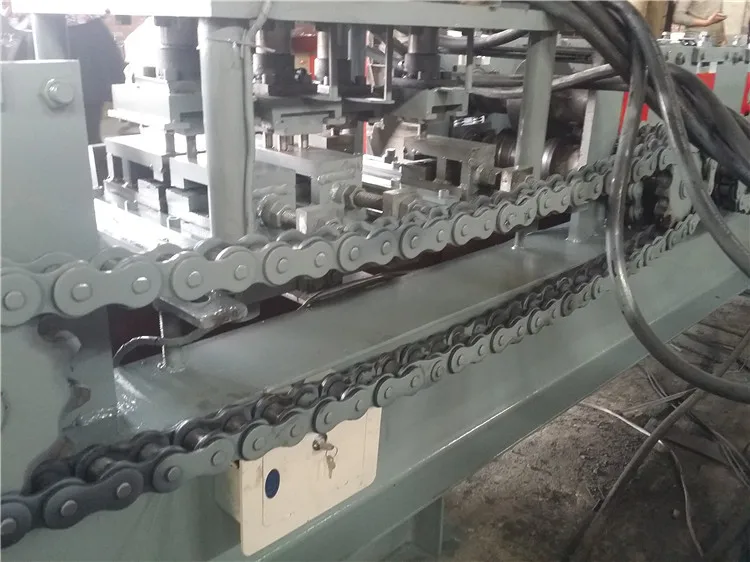

Kind of drive



Chain Wheel, Chain

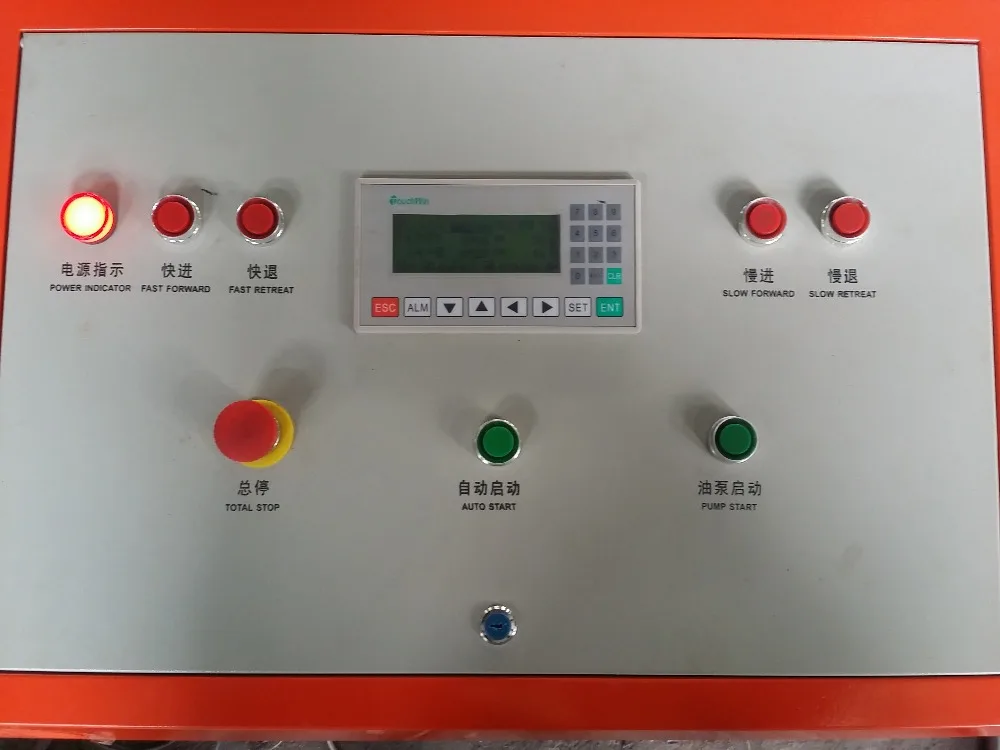

Automatic



Computer: Mitsubishi PLC System



Transducer: SAJ



Switch: CHNT



Warranty Period



12 Months



Our company have the series of coloured steel forming machine, including molding machine, concealed roof sheet machine, flat sheet bending machine and so on.




















2

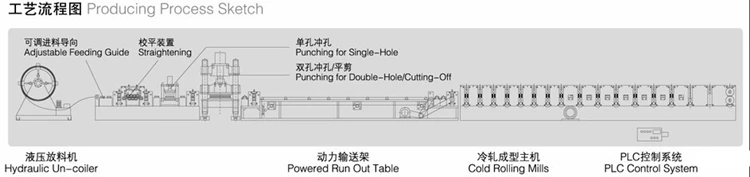

                                                           Flow Chart


.jpg




















6






2






FAQ:


Q1. What's your delivery time?


A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.





Q2. Do you have after-sales support?


A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.





Q3. Do you sell only standard machines?


A3:No, most of our machines are built according to customers specifications,using top brand components.





Q4. What will you do if the machine is broken?


A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.





Q5. Can you be responsible for transport?


A5:Yes,please tell me the destination port or address.we have rich experience in transporting.





Q6. How to visit your company?


A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).


2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
