IECEX approved IP65 Exe Exd IIB IIC flameproof Junction Box anti explosion proof enclosure
- Category: Power Distribution Equipment >>>
- Supplier: Feipu Explosion Proof Electric Co. Ltd.
Share on (60459513250):
Product Overview
Description

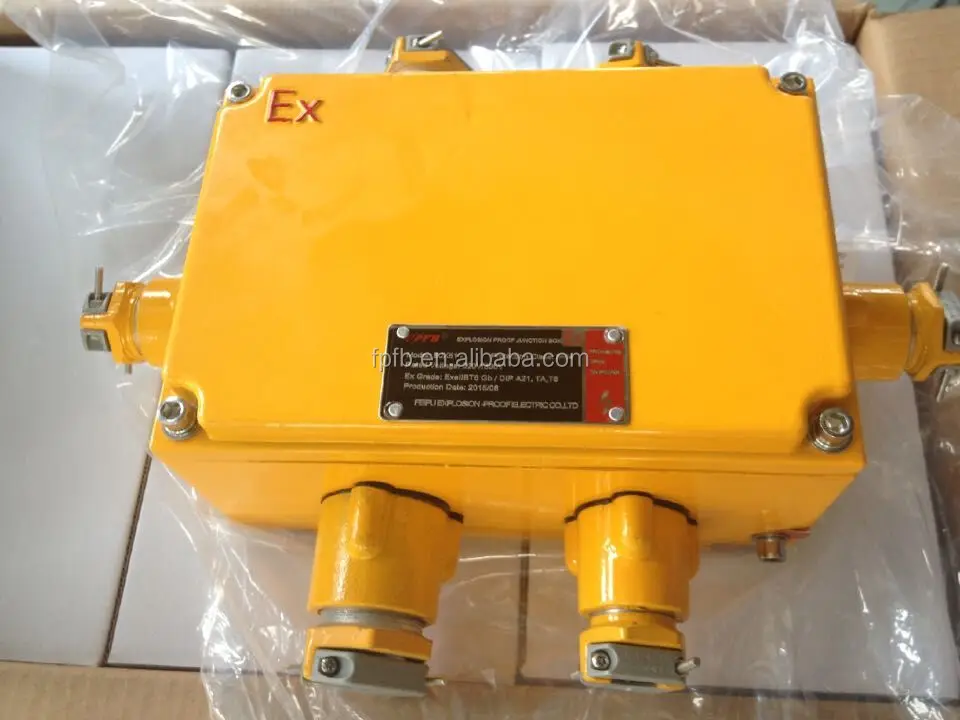

BJX51 Ex Junction Box safe explosion proof junction box
Product Description
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category IIA, II B and II C where the temperature classification is T1-T6.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
Rated Voltage | Dust-mark | Inlet thread | enclosure material | Ex-mark | Degree of protection | Erosionproofclass | cableouterline (mm) |
AC380v | DIP A21 TA,T6 | G1/2"~G3" | aluminum alloy | Exd II BT6/CT6 GB Exe II T6 Gb | IP65 | WF1,WF2 | from below details |
Product Details
APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB,IIC explosive gas environment.
- Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
- Can be used in the environment of temperature group for T1~T6.
- Various types terminals for options.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
Techinical parameters:
- Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1,IEC60079-0, IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1, EN60079-7, EN61241-1
- Ex-proof Mark:Exd II BT6 Gb, Exd II CT6 Gb, Exe II T6 Gb, DIP A21 TA, T6.
- Rated voltage: AC380V
- Protection grade: IP54,IP65
- Corrosion-proof grade:WF1
- Inlet Thread: G1/2"~G3"

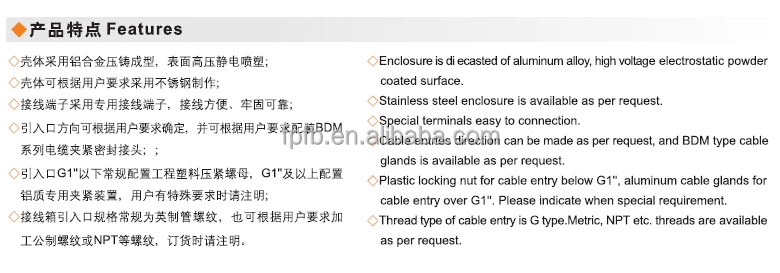

Product Features:
- Steel Enclosure,high-pressure electrostatic powder coated after shot plastic.
- Stainless steel enclosure can be available on clients' request.
- Exclusive terminals, easy to connection.
- Cable entries direction can be made as per request, BDM type cable glands are available on request.
- Plastic locking nut for cable entry below G1", aluminum cable glands for cable entry over G1". Please indicate If special requirements.
- G type Cable entry thread, also Metric, NPT etc. threads are available If request.

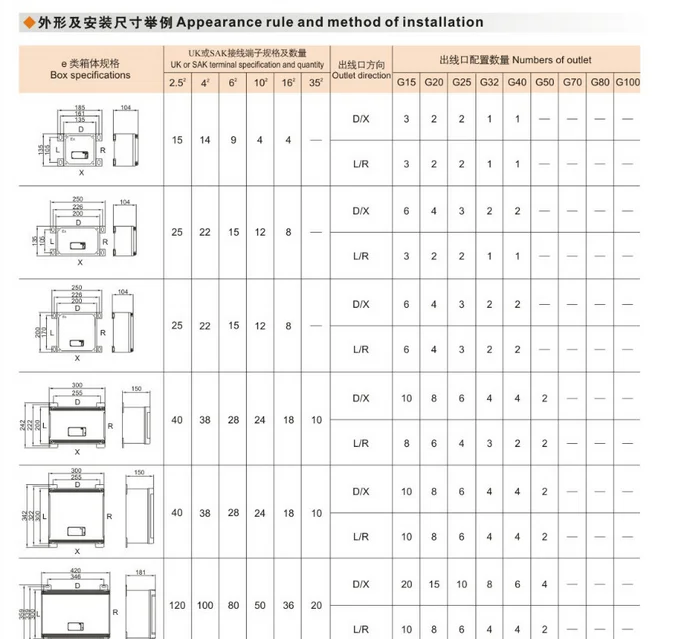

- Dimensions of Boxes can be customized.

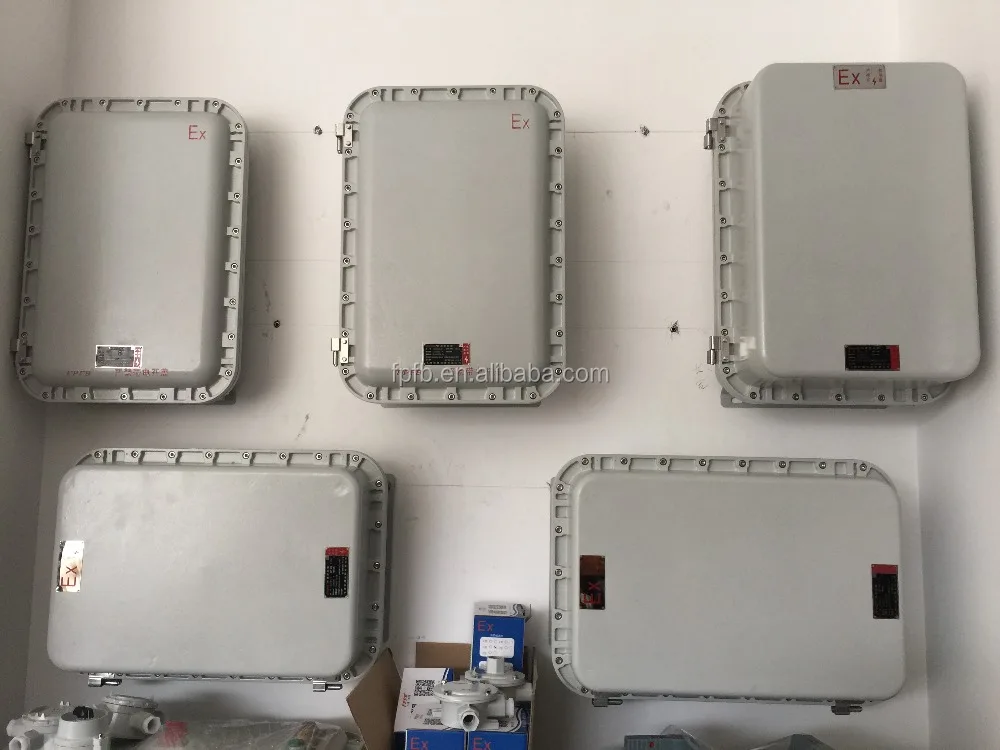

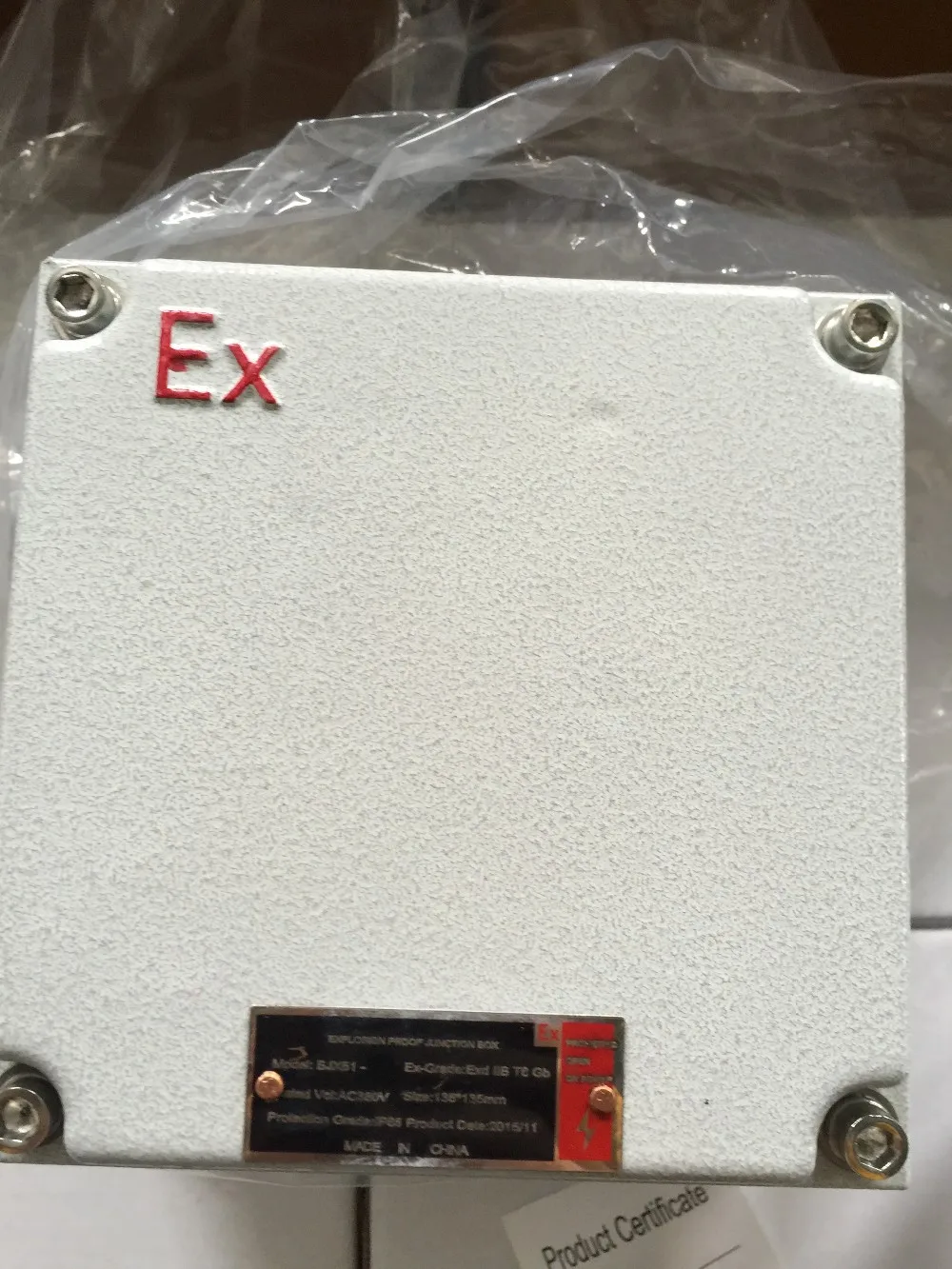

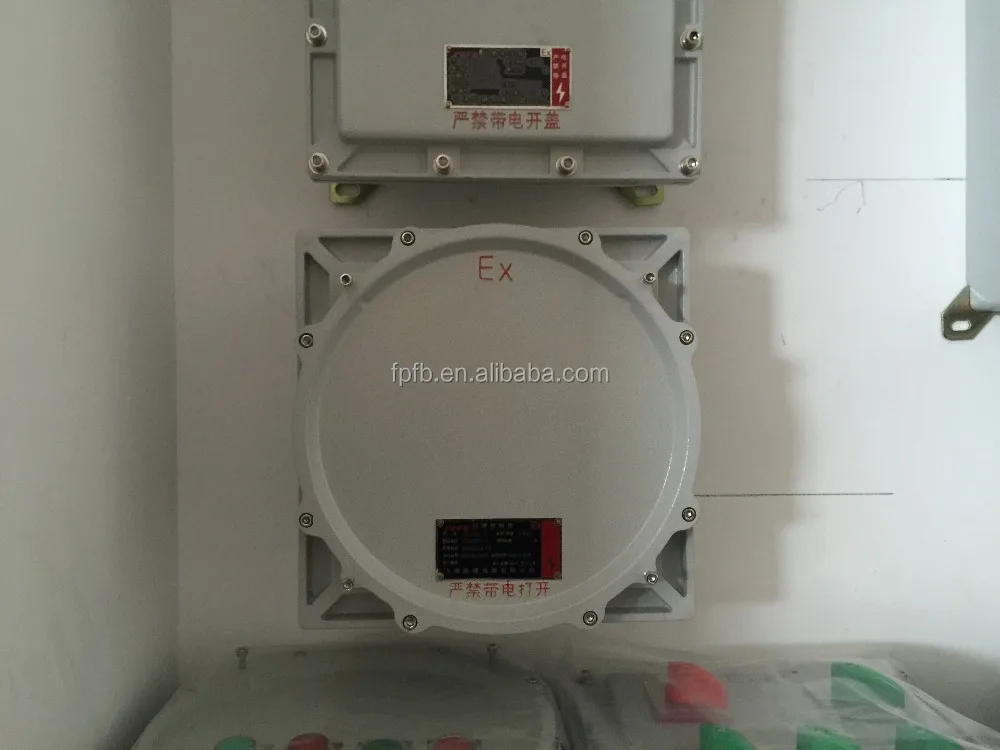

Display of samples:
