rubber three roll calender machine fabric calendering equipment
US $1000-$20000

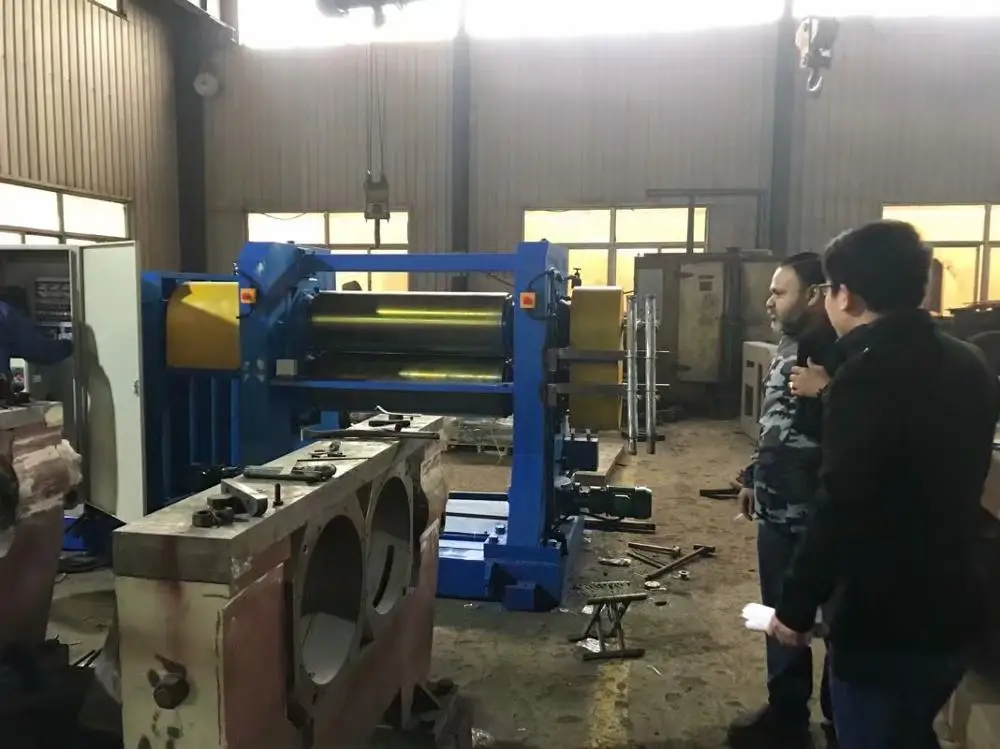

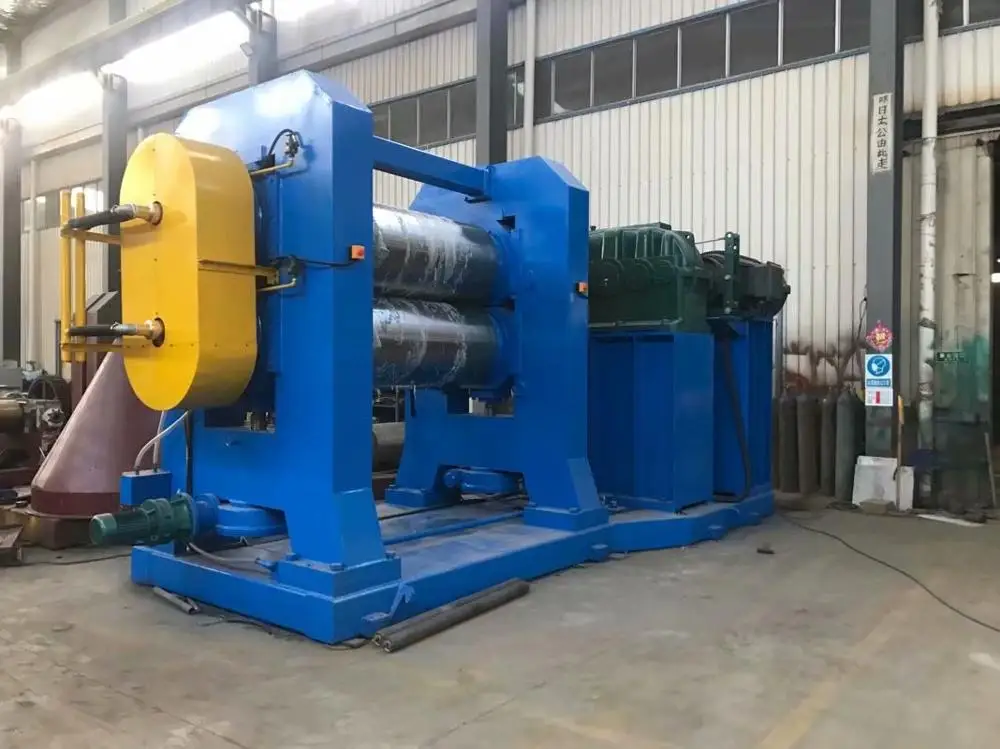

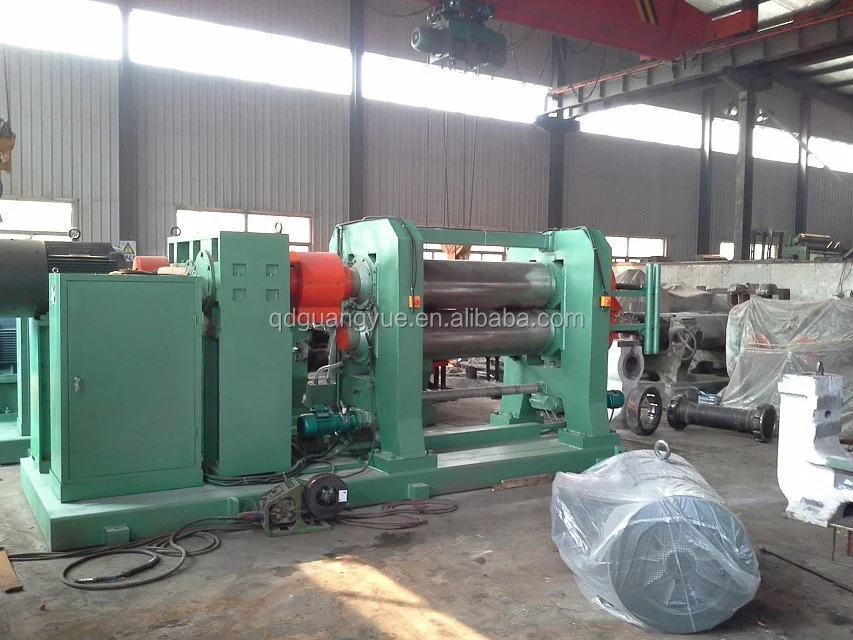

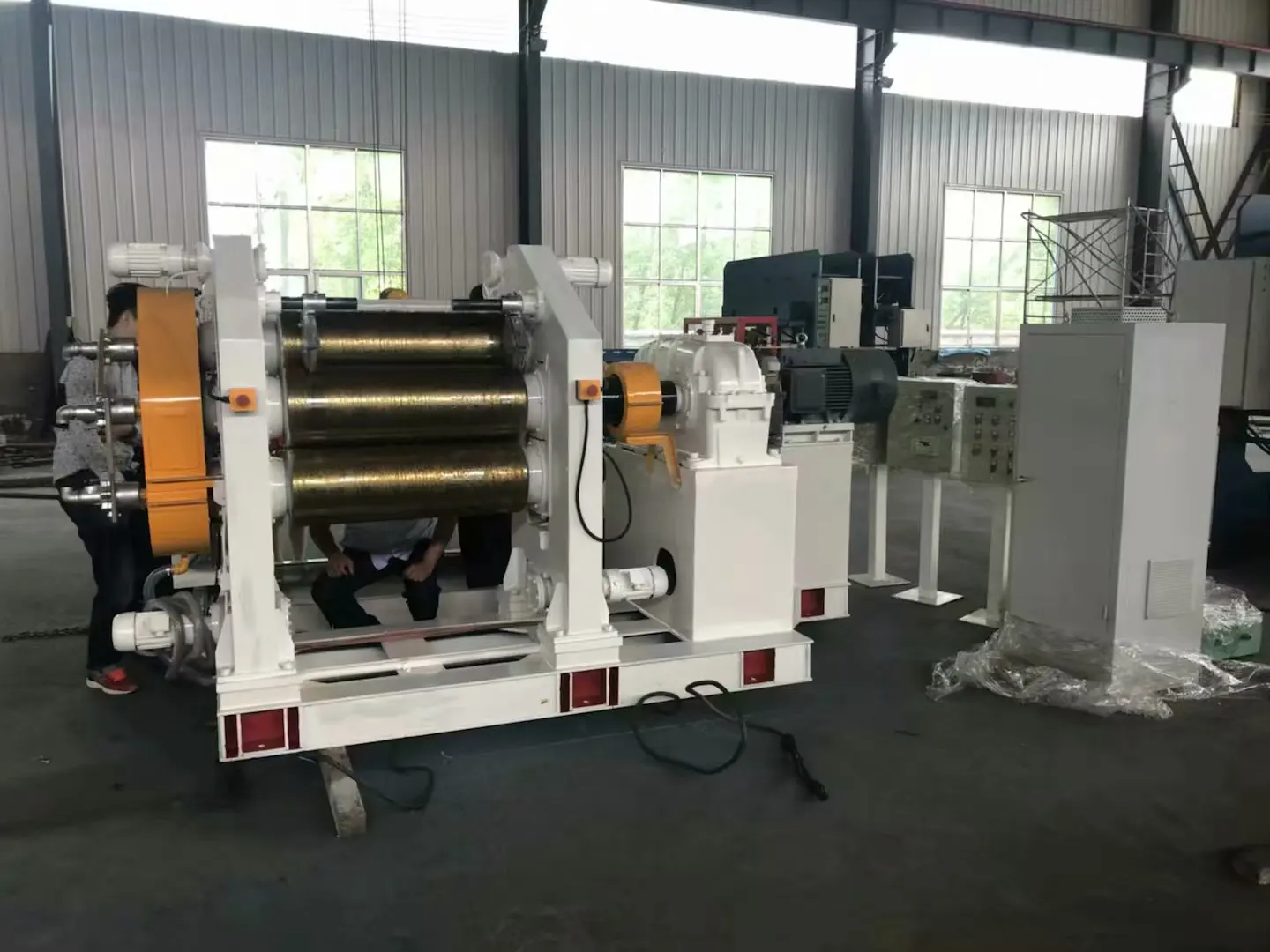

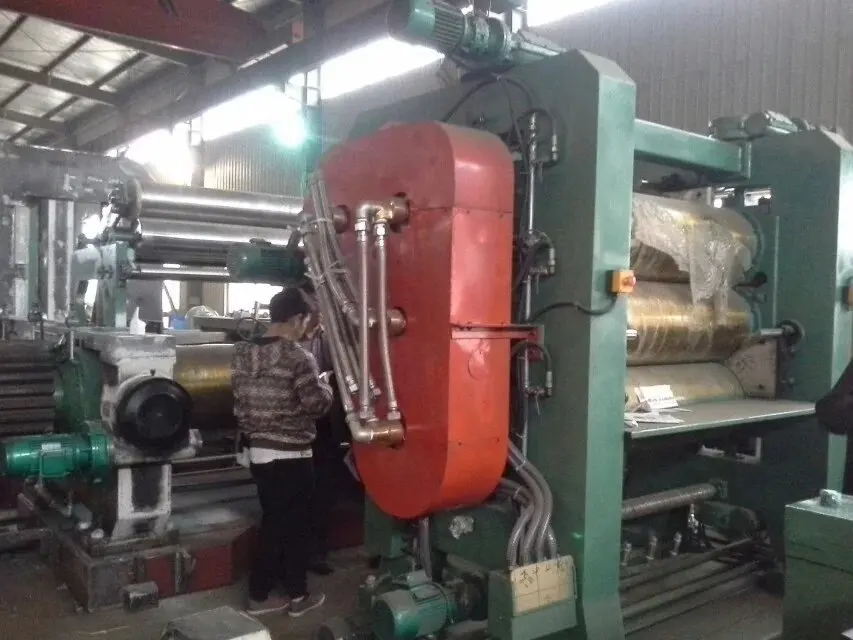

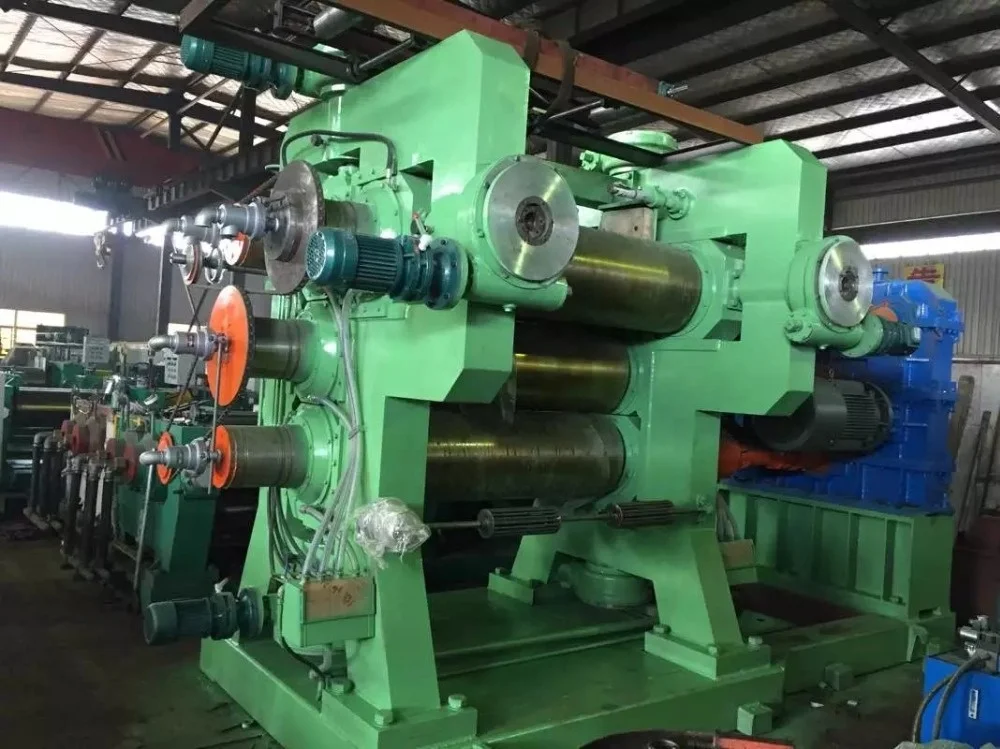

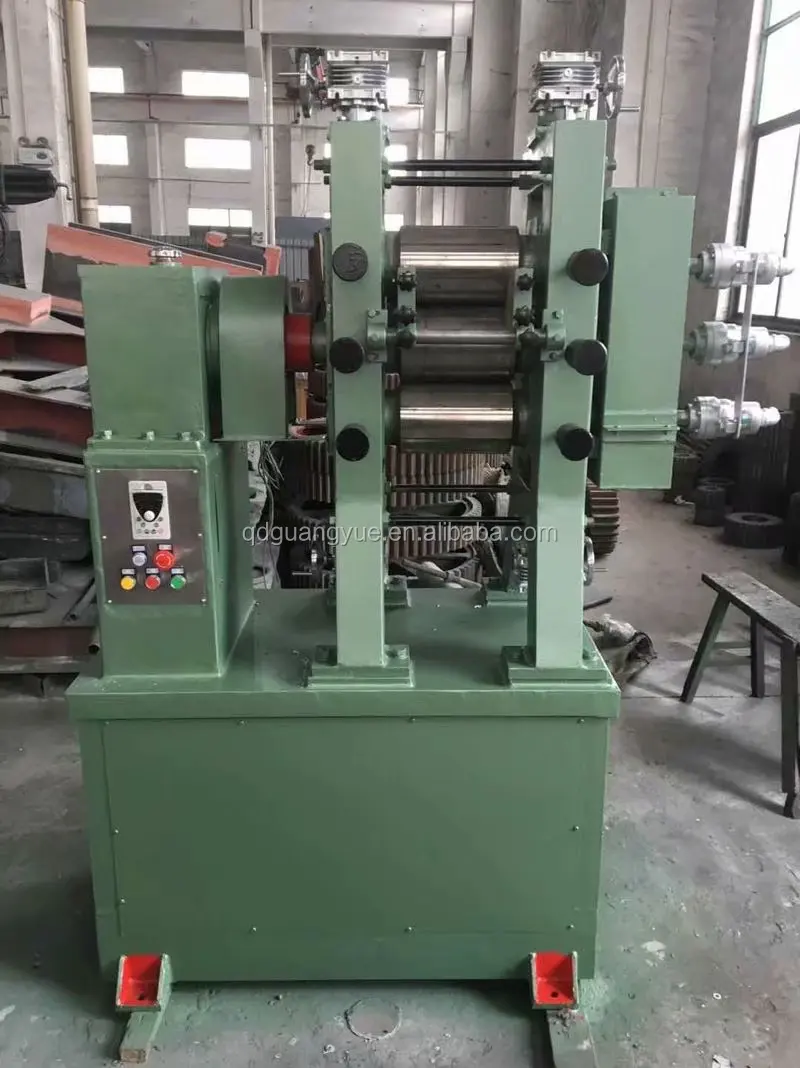

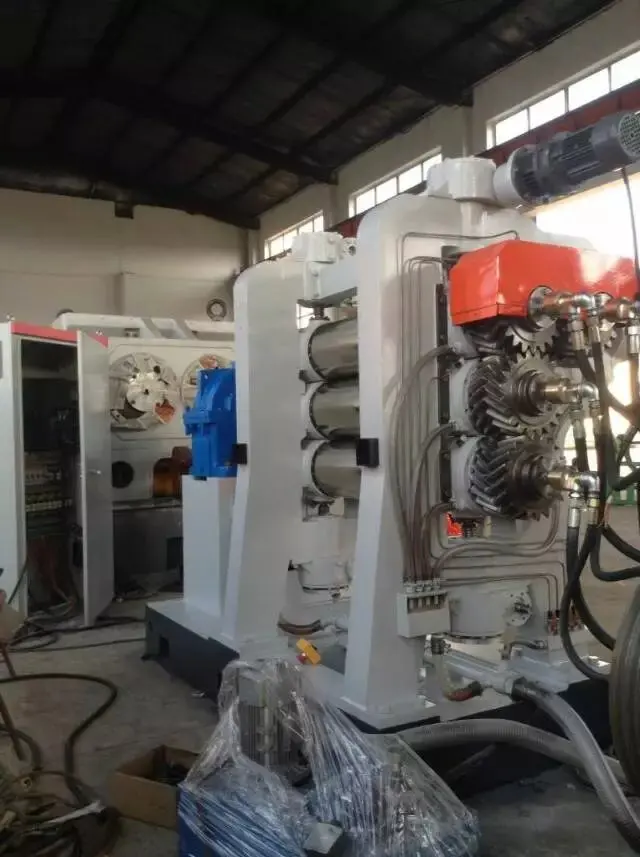

XY 360*1120 three roll rubber sheet calender machine mills price
- Category: Rubber Calenders >>>
- Supplier: Qingdao Guangyue Rubber Machinery Manufacturing Co. Ltd.
Share on (60459649168):
Product Overview
Description
Four-roll rubber Calender
XY 360*1120 three roll rubber calender machine mills
1.Structure
The machine is consisted of frame, roll, adjusting spacing device, speed ratio gear, the adjusting temperature device of roll, reducer, adjusting speed motor, bed plate ,coupling ,etc.
2.Uses
It is used for calendering of rubber or plastics, fabric fractioning and coating, sheeting and composite of rubber or plastics
3.Feature
1.Tailored structure, easy to operate and install.
2. There are many speeds and speed ratios available, which can satisfy most customers formula and technique requirements.
3. Frame and base., looking very nice, are welded and treated by annealing for stress relieving.
4. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
5. Perfect emergency stop device can ensure the safety of person and equipment
6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil
Parameter of Four-roll rubber calender
Number of rolls | 4 | 4 |
Working Diameter of Rolls (mm) | 230 | 230 |
Working Length of Rolls (mm) | 635 | 720 |
Main roller wire-speed (m/min) | 2 to 9.79 | 2 to 9.79 |
roller speed ratio | 1:1:1 | 1:1:1 |
speed ratio | 1:5 | 1:59 |
Decelerator model | BW7-59 | BW7-59 |
Main Motor Power (kw) | 22 | 22 |
speed (r/min) | 132 to 1320 | 132 to 1320 |
Dimention (L/W/H) mm | 2650X1200X1700 | 2750X1200X1700 |
Weight (t) | 3.5 | 3.5 |
