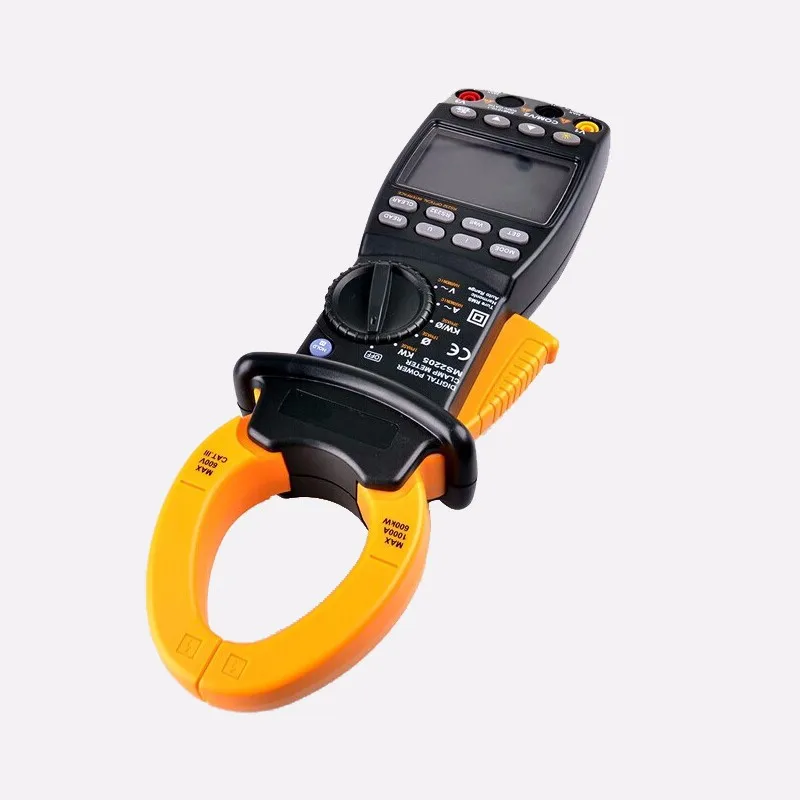

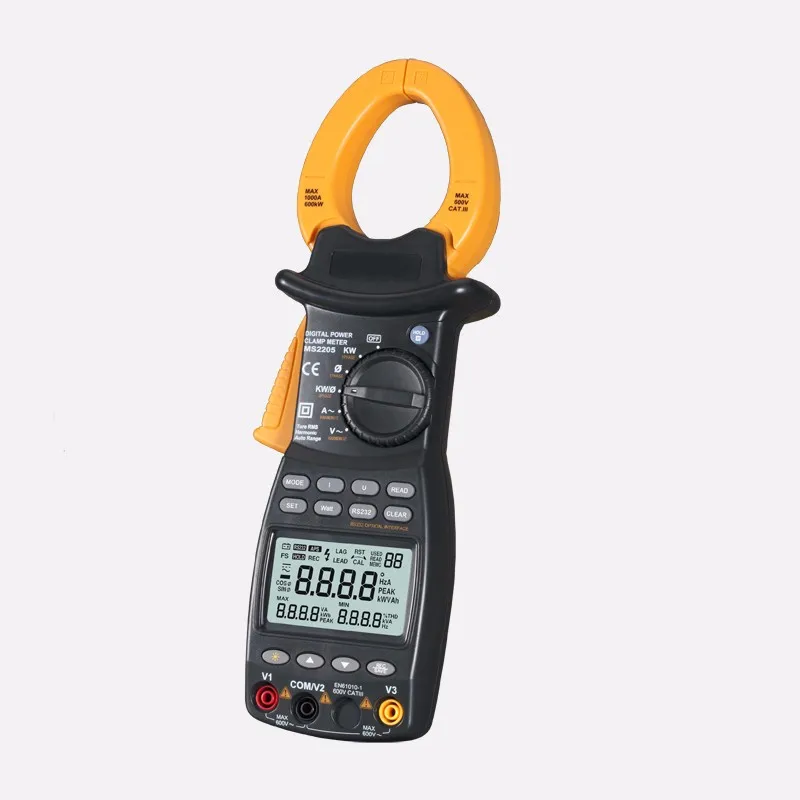

MS2205 6000 Counts Digital Power Clamp Meter 600 KW True RMS

Features(Digital Power Clamp Meter)

Display

6000 counts

Jaw Opening

Φ50mm/2.0”

Auto Ranging

√

Data Logging

100 groups

True RMS

True root mean square measurement

Data Hold

√

Display Backlight

√

Auto Power Off

√

Low Battery Indication

√

RS232 Interface

Windows OS

Power Supply

√

Size

300mm x103mm x51mm(11.8" x4.1" x2.0")

Weight

640g(1.4Ib)

Category

CE CAT .III 600V RoHS

Specifications

Functions

Range

Accuracy

AC Voltage(V)

0.1V ~ 600V

±(1.2% +5)

AC Current(A)

0.1A ~ 1000A

±(2.0%+5)

Active Power(kW)

0.1kW ~ 600kW

±(3.0%+5)

Apparent Power (kVA)

0.1kVA ~   600kVA

±(3.0%+5)

Reactive Power (kVAr)

0.1kVAr ~   600kVAr

±(3.0%+5)

Power Factor

0.3 ~ 1

±(2.0%+2)

Harmonic

measurement

45hz~65Hz

(fundamental frequency)

Harmonic number   1

±(3.0%+10)

Harmonic number   2-6

±(3.5%+10)

Harmonic number   7-8

±(4.5%+10)

Harmonic number   9-10

±(5.0%+10)

Harmonic number   11-15

±(7.0%+10)

Harmonic number   16-20

±(10%+10)

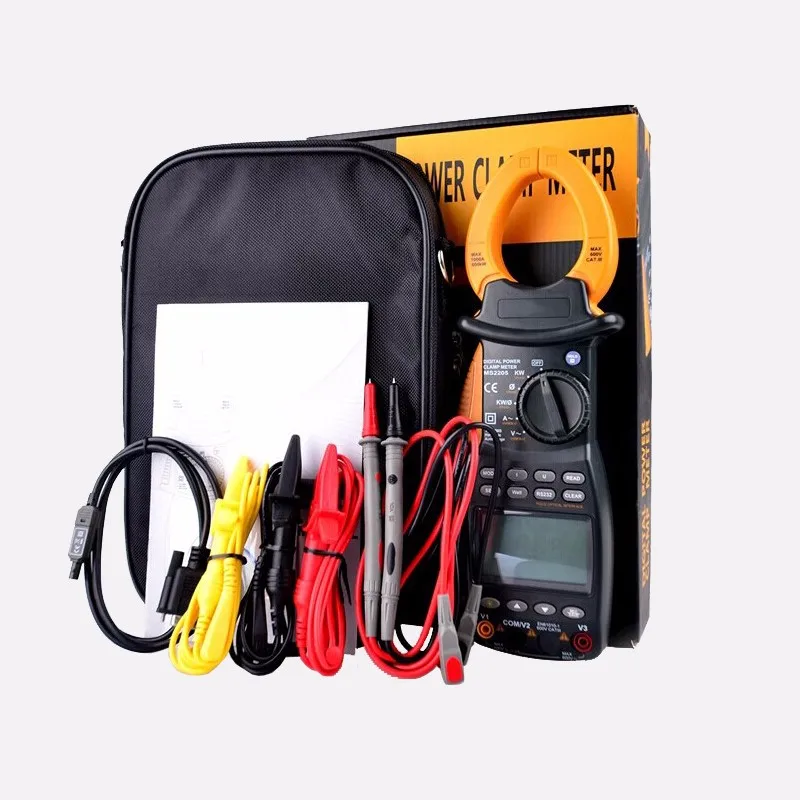

User’s manual

One piece

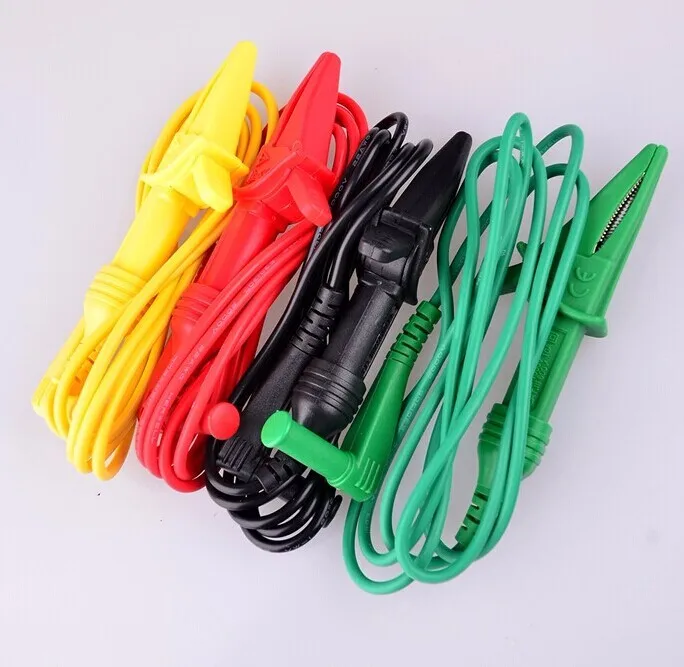

Test lead

One set

Connect test clamp

One piece

 RS232C interface cable

One piece

 PC data record graph software

One piece

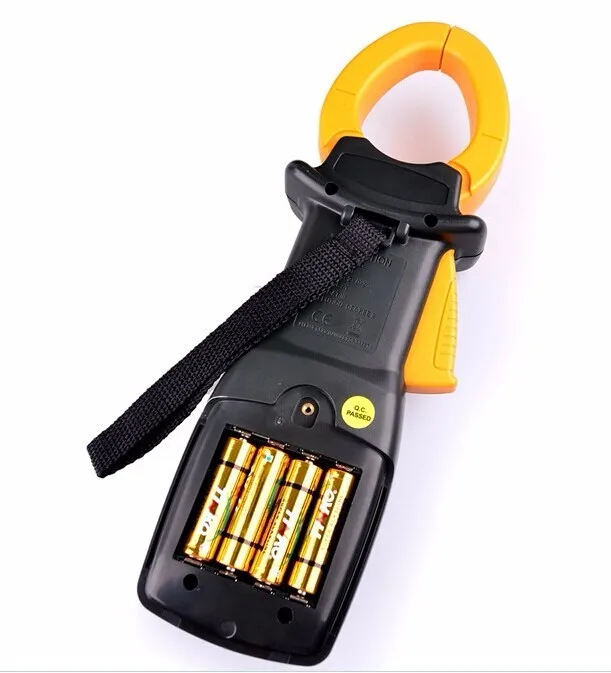

 1.5V AA battery

Four pieces

 Carry case

One piece

 Gift box

One piece
