Industrial Animal Feed Pellet Machine, Pelletizer Machine for Animal

Product Overview

Description

Industrial Animal Feed Pellet Machine, Pelletizer Machine

for Animal

TCZL sereis (120,150,200,250,280,300,350,450,550)



Many models of feed pellet making machine as your optional

Animal feed pellet machine

Power:3kw

Capacity:70-100kg/h

Weight:90kg

Pellet diameter:2-6mm or adjusted as your request



1.This series animal feed pellet production line that can process a variety of different diameter feed pellets is mainly designed for Rural breeding specialized households,
Small and medium-sized feed factory and livestock farm.
2.This series can adopt to different materials, ensure suppression effect. Sawdust, corn straw, compression molding takes a lot of pressure in the similar granulating equipment,
then roller components is the center of the whole equipment, and adopt high quality alloy steel parts, improve the service live if the roller..



 >Main features of flat die animal feed pellet machinery

1) With wide range of the raw materials, such as the sawdust, leaf, straw and many other agricultural waste
2) Stable performance, high output, and low consumption. Easy for maintance, low failure rate, and easy operation.
3) The whole body with strong structure,the flat die and rollers is Wear-resisting, heat-resistant
4) High molding rate, high density
5) The diameter is from 2-8mm, can make according to customers’ need.
6) The machine is made up of the speed changing box, the flat die, the rollers, lubricating system; the flat die can be the alloy steel and the stainless steel.



>Technical Parameter of animal pelletizer machine



Model	Power (kw)	Capacity (kg/h)	Weight (kg)	Dimension (mm)	Pellet diameter (mm)
TCZL120	3	70-100	90	1150*300*550	2-6
TCZL150	7.5	100-300	210	1280*480*820
TCZL200	11	300-500	350	1300*500*850
TCZL250	15	400-700	550	1400*600*1000
TCZL280	22	500-800	700	1720*600*1200	2-8
TCZL300	30	600-1000	760	1800*670*1600
TCZL350	37	700-1200	2200	1900*850*1750	4-10
TCZL450	55	1000-2000	4300	2300*1100*1900
TCZL550	90	2000-3000	5500	2350*1000*2050



Widely used in family and small scale farm,the compressed feed pellet is good fooder for poultry and livestock,such as chicken,pig,cattle,sheep,rabbit etc.

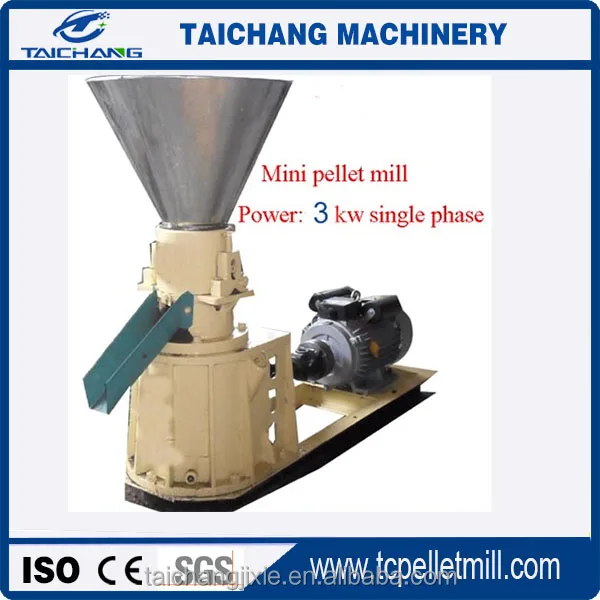

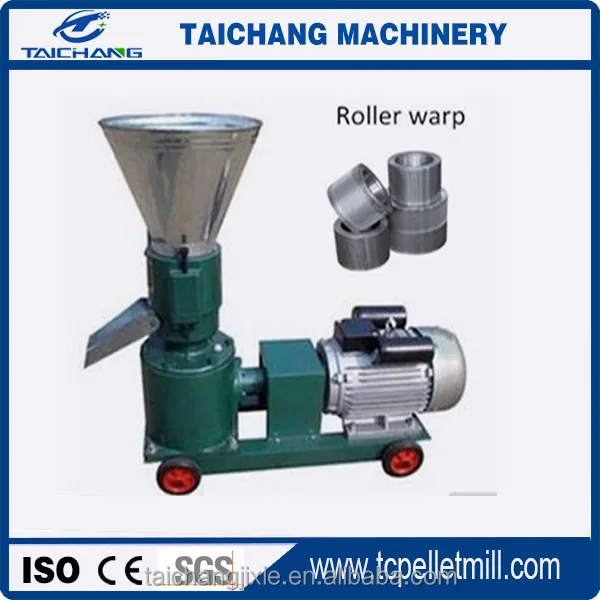

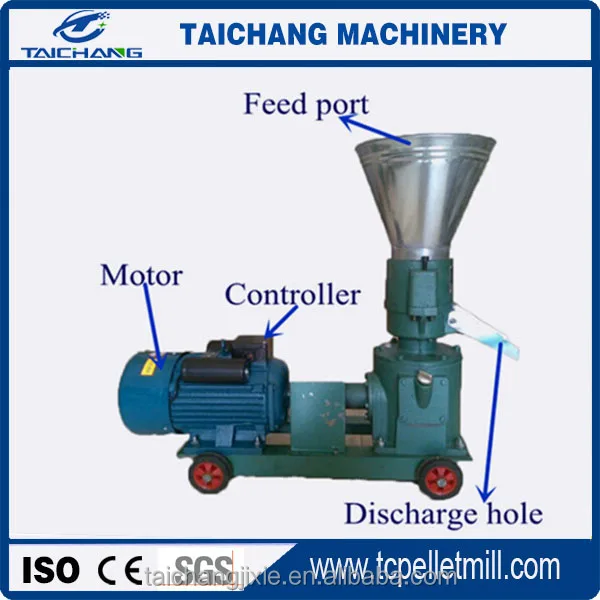

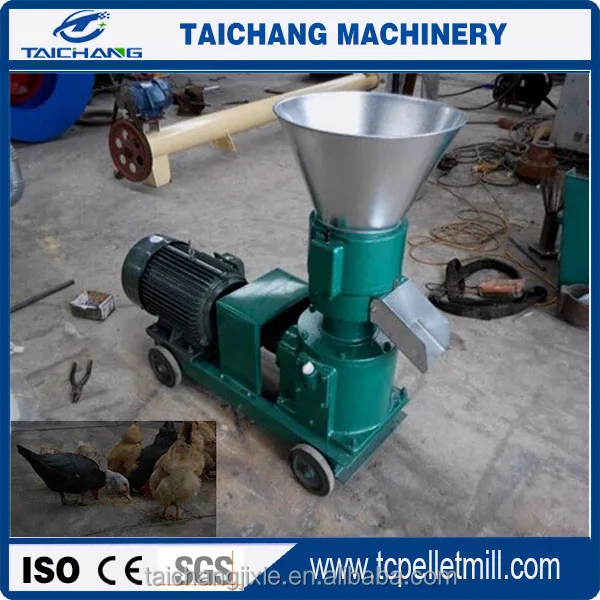

>Pictures show about animal pelletizer machine
