High Frequency Heating Press Machine For Veneer Wood Curving(80ton)

Product Overview

Description

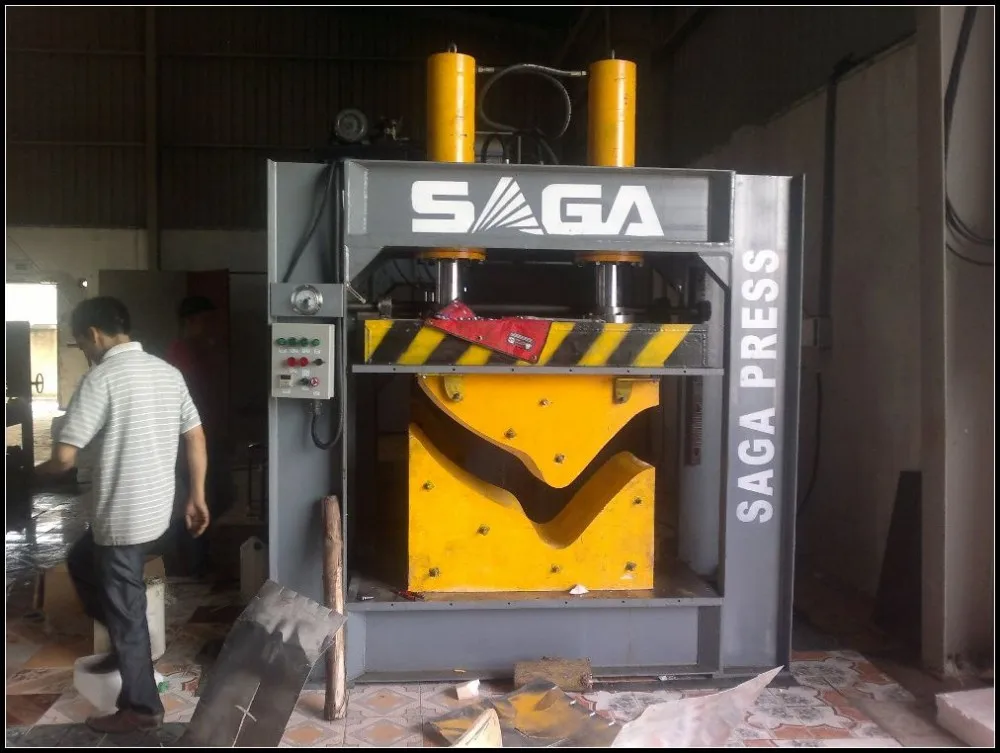

High frequency heating press machine for veneer wood curving(80ton)



1.High frequency wood bending press applies high frequency generator to hydraulic press, by mould and electrode.

2.It transfers the high frequency power to the work piece to achieve the function of fast gluing and forming.

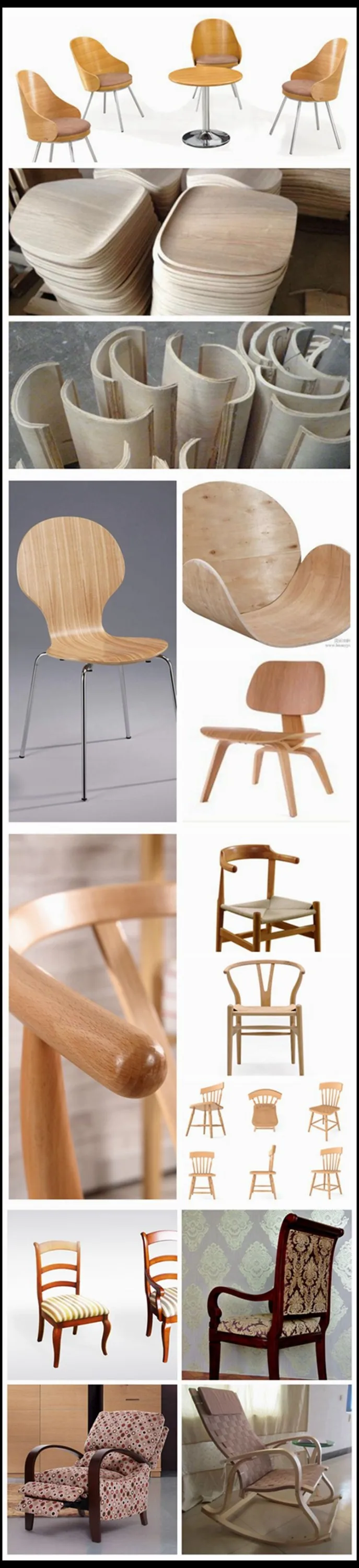

3.Be suitable for: bent plywood chair, bent or arc plywood for the furniture or bed or other bent plywood products like cloth hanger or surface of musical instrument.

................................................................................................................................................................................................................

Character of   Radio frequency plywood hot press woodwork machine

1. Fast and uniformly heating.

2. Bending shape is stable, not easy to change delamination.

3. High frequency power is a selectively heating power, it concentrates only on water or glue, wood not consume High Frequency power, so HF heating is effective and power saving.

4. Wooden or MDF mould used, much ecnomic than metal mould if shape is frequently changed.



Basic Parameter



Mode	YX80-SA	YX150-SA
HF Generator	20kW, 2 Output	30kW, 2 Output
Press Working Size	1600*800mm	2500*1300mm
Cylinder	80T(2PCS)	150T(2PCS)
Stroke of cylinder	600mm	600mm
Control	Automatic	Automatic
Power of Hydraulic	7.5kW	7.5kW
Opening of Plate	1200mm	1200mm
Over size	2300*800*2200mm	2900*1300*2200mm



Detail information please contact Saga Machinery

...............................................................................................................................................................................................................

ABOUT SAGA:



Saga Machinery Co,. Ltd specializes in developing, designing and producing High Frequency Machineries. We are a



professional HF Machinery supplier in China. Our products cover with High Frequency Hot Press, High Frequency Generator,



High Frequency Curved Plywood Press, High Frequency Vacuum Wood Dryer, High Frequency Guitar Machine, Wood Kiln, High



Frequency Belt Conveyor, etc

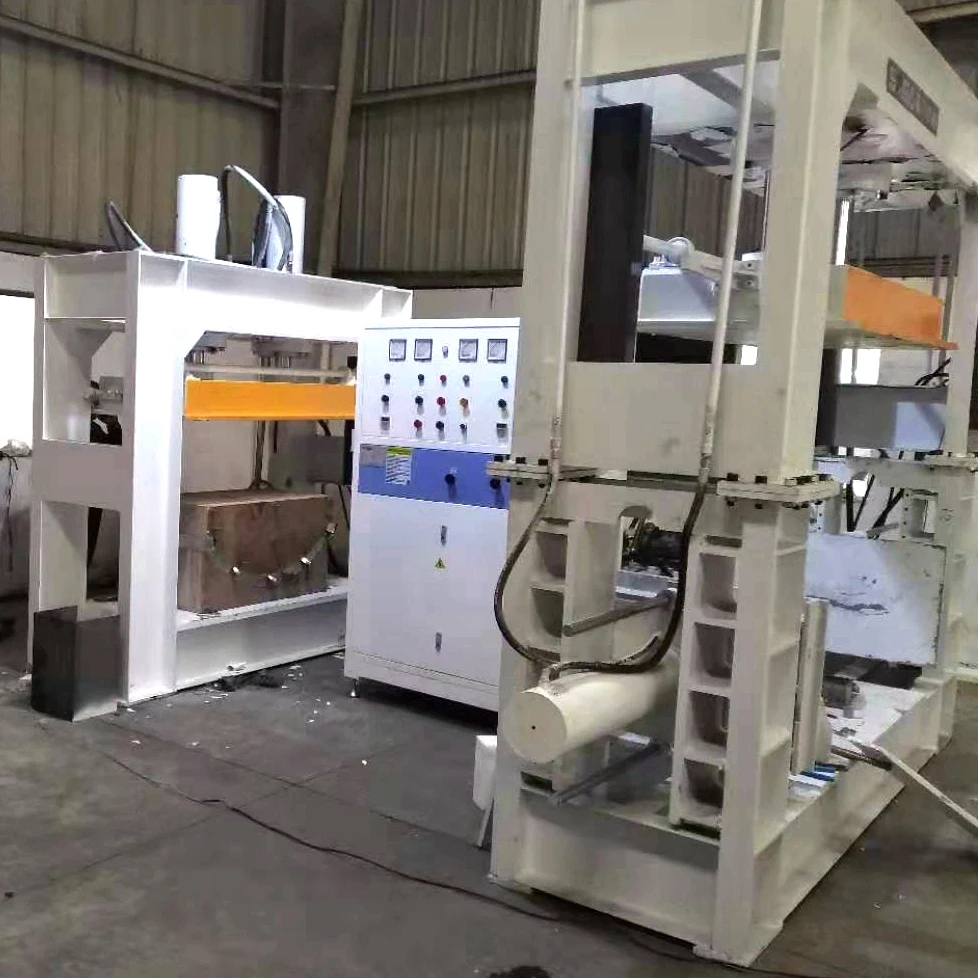

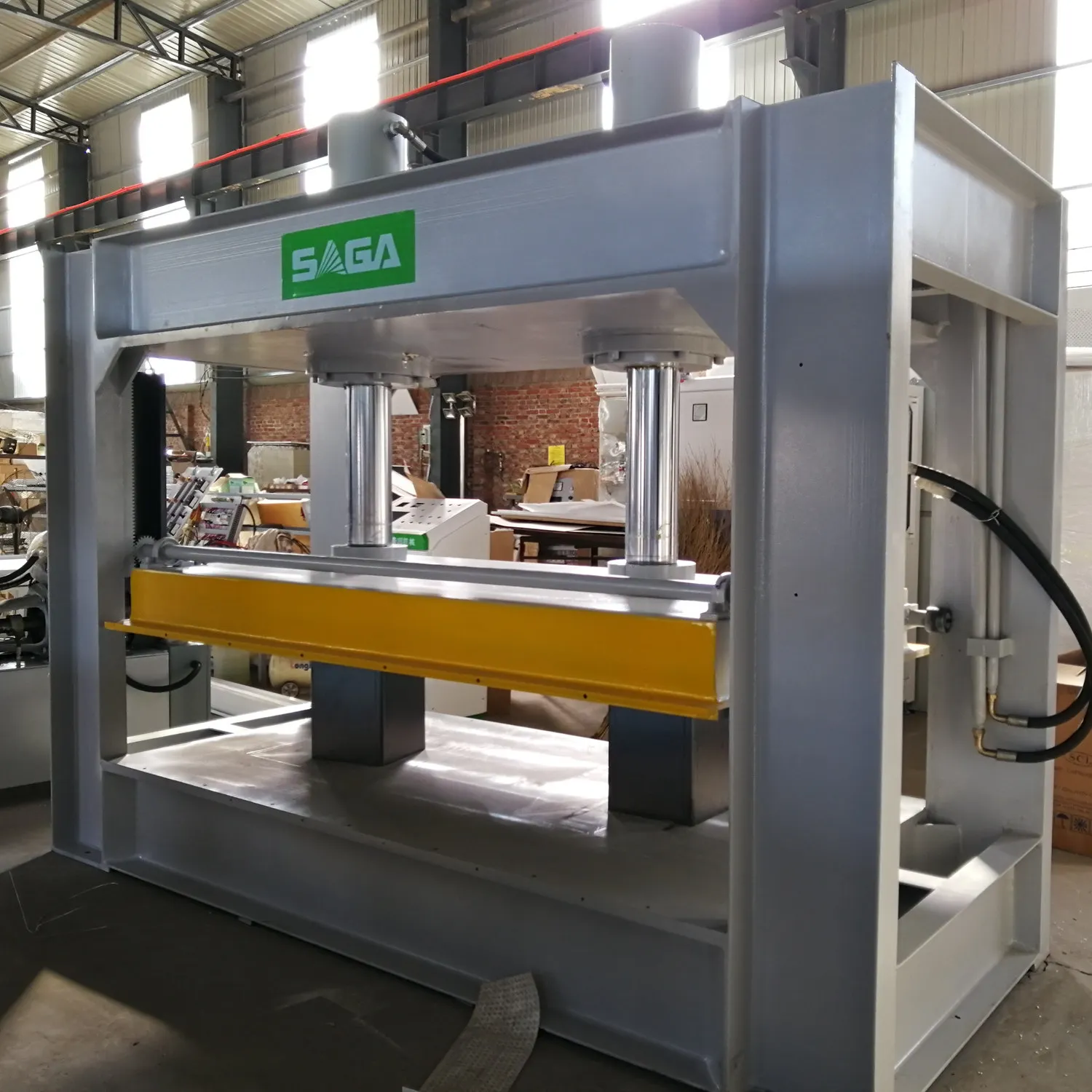

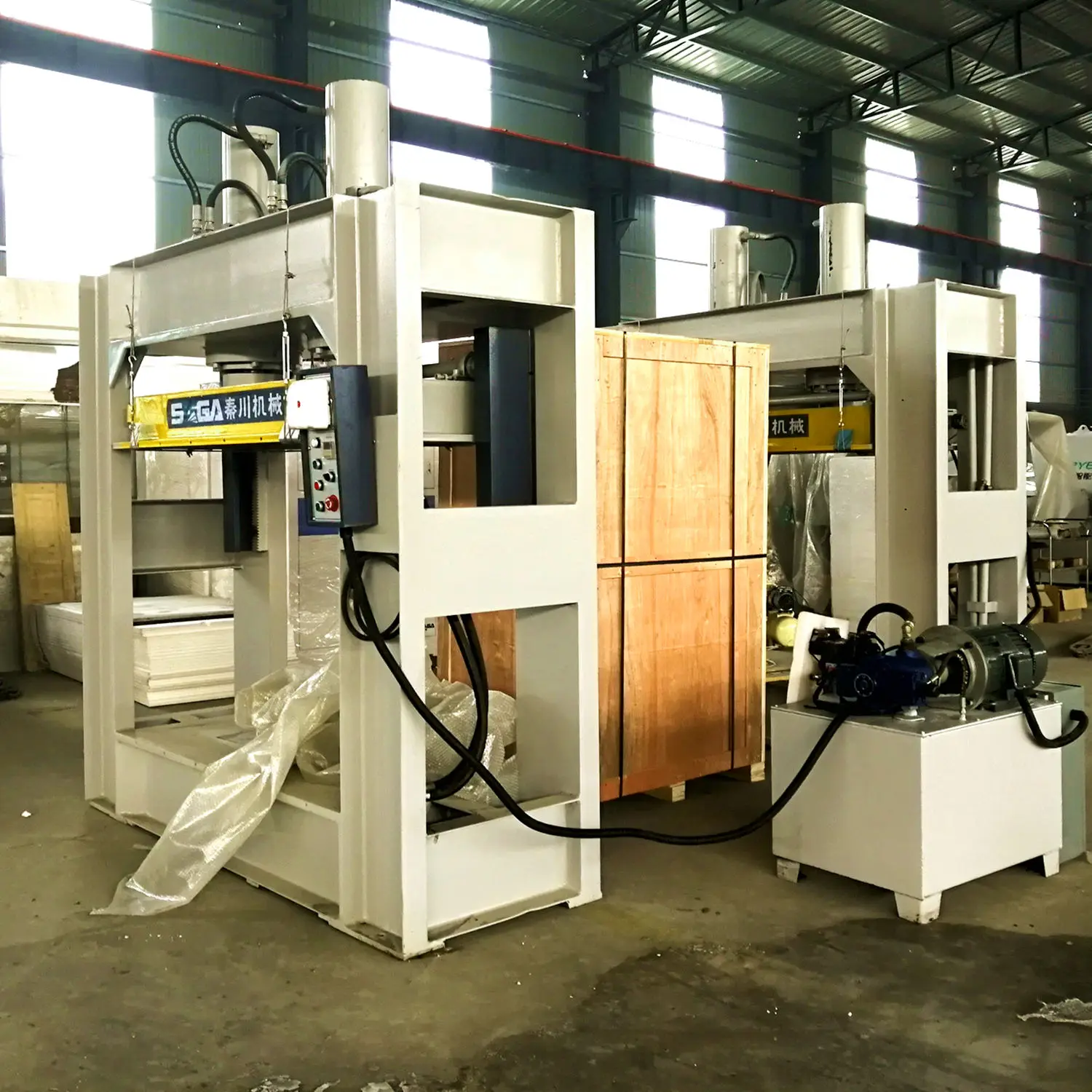

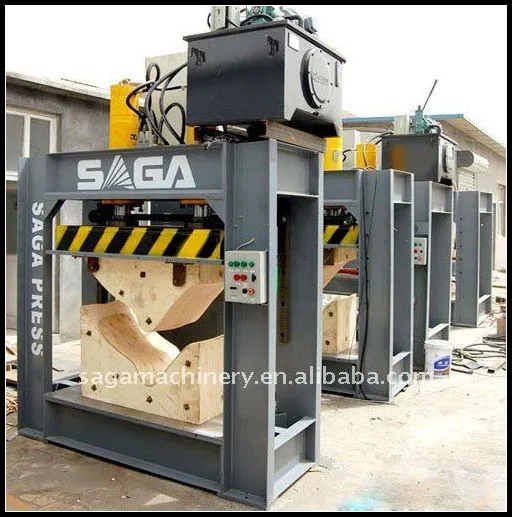

Detail pictures

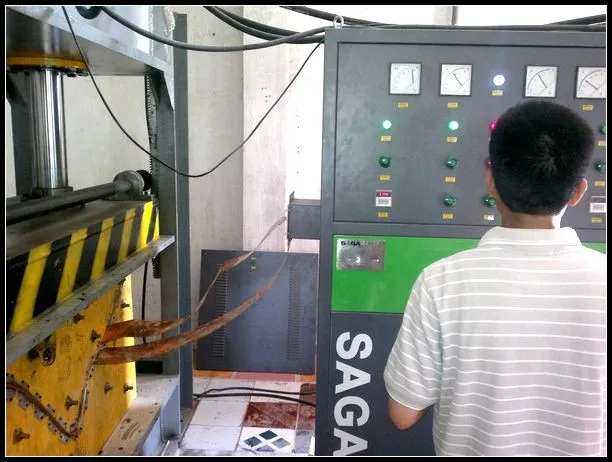

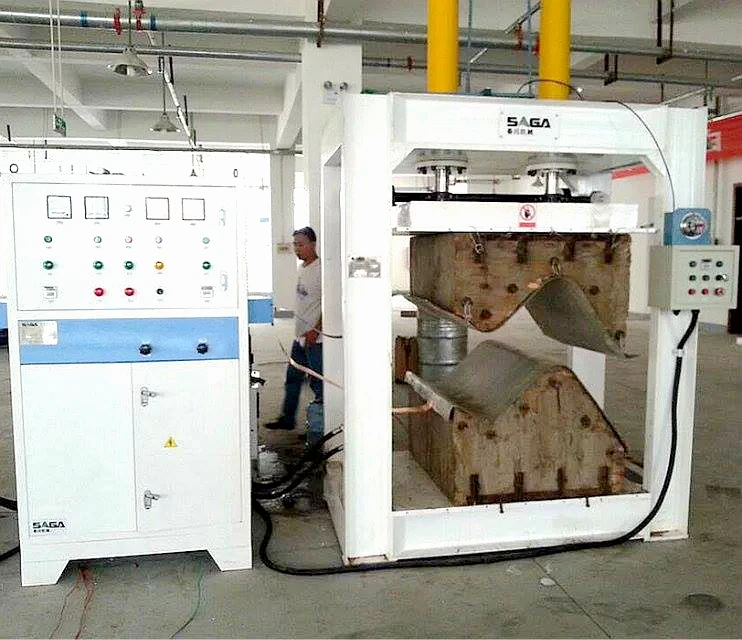

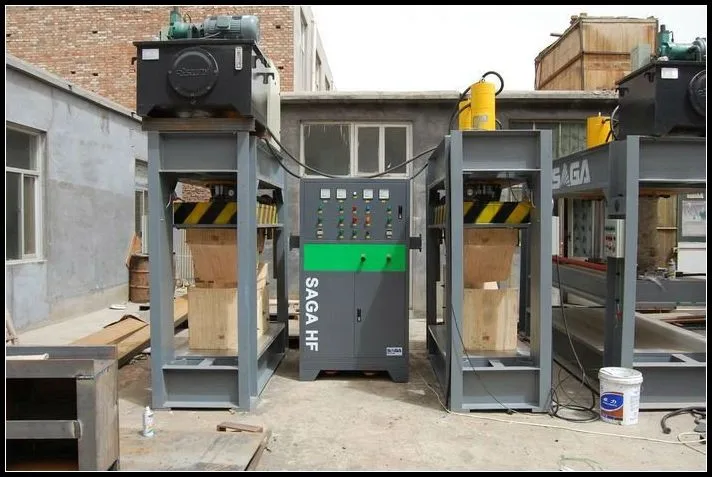

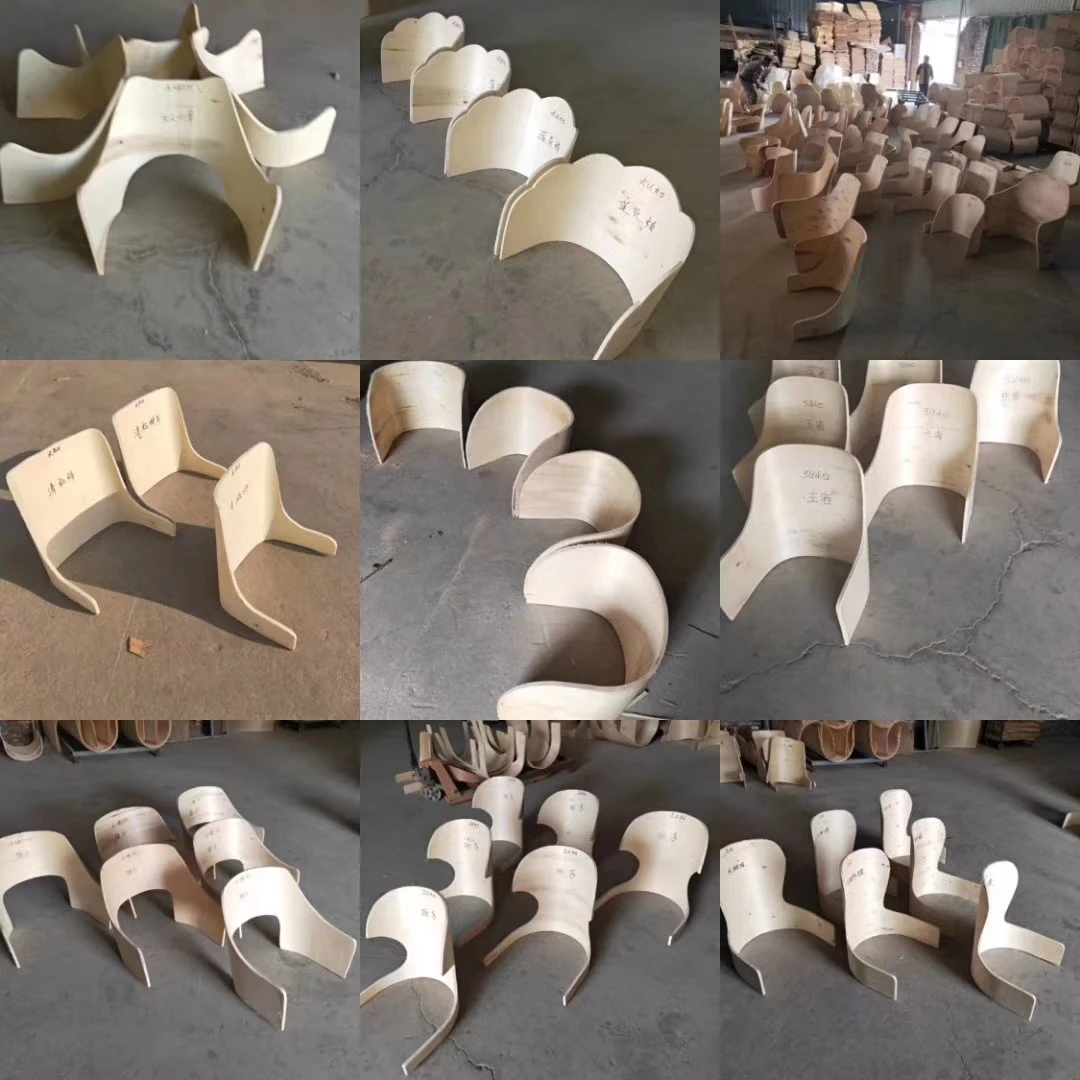

Our application



Exhibition

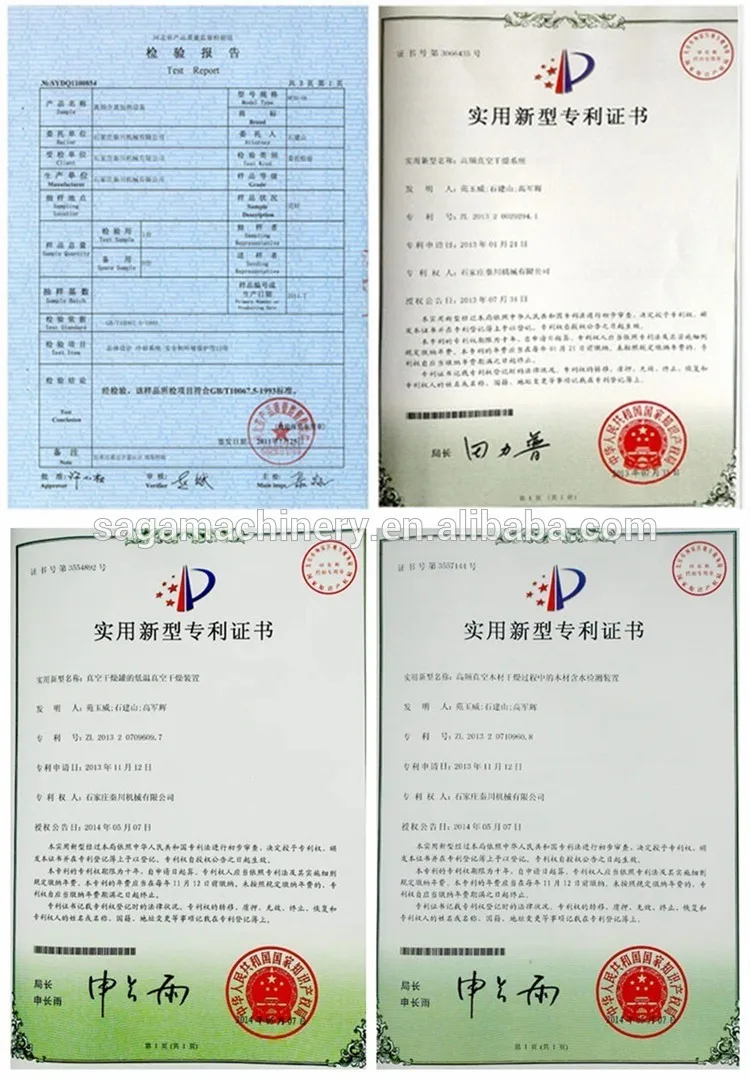

Certification
