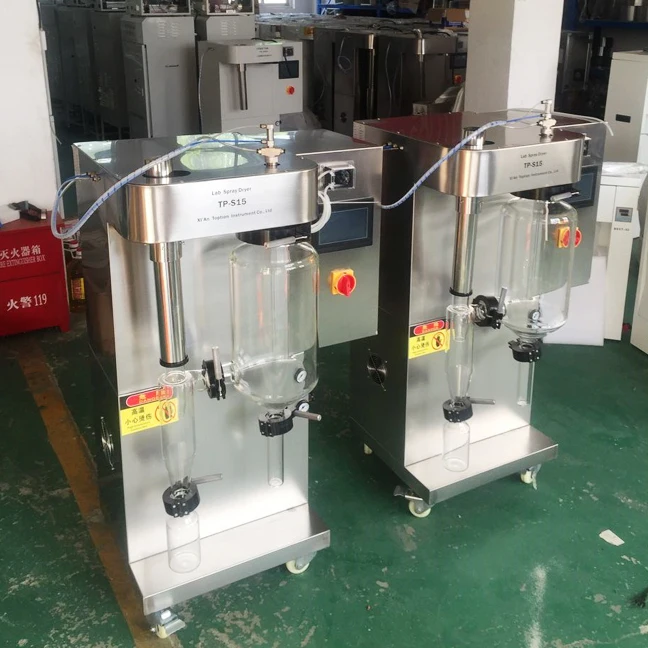

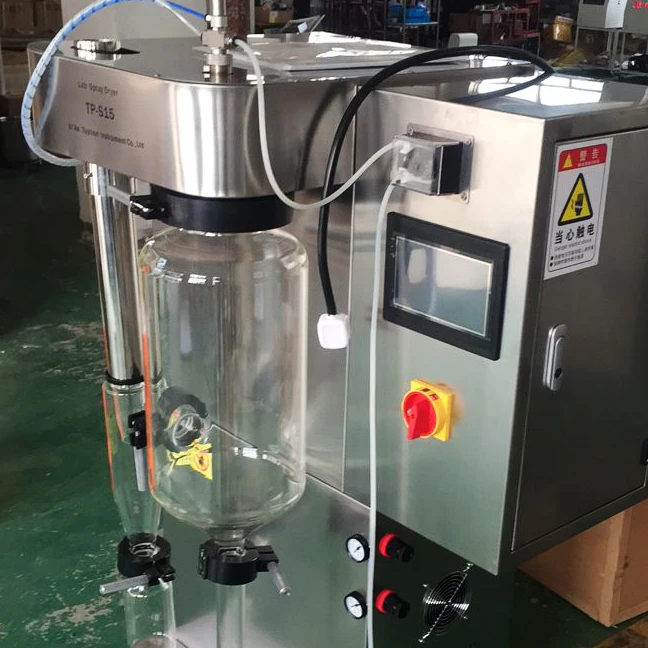

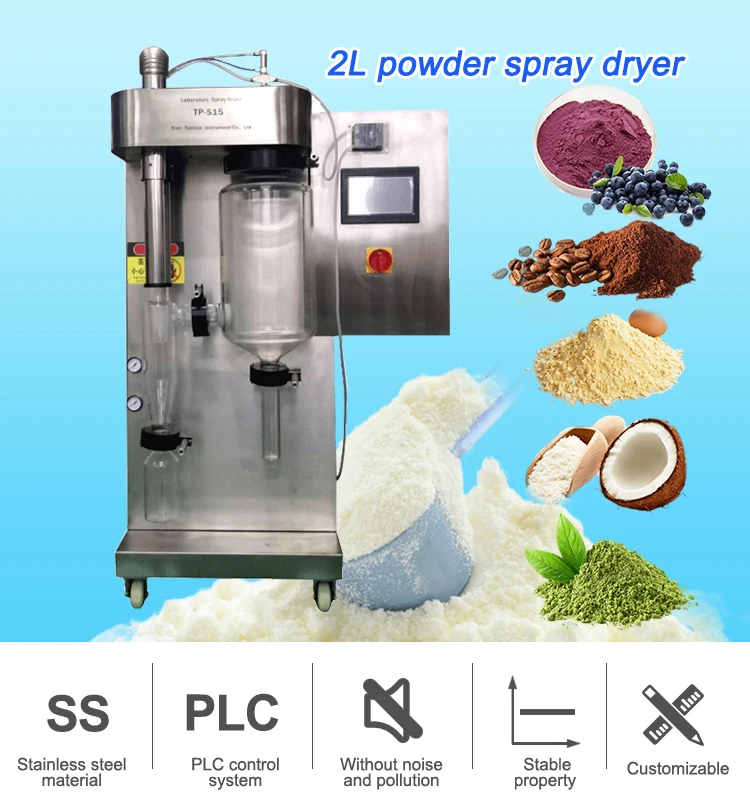

Лабораторная распылительная сушильная машина лабораторная мини распылительная сушилка для яичного порошка
- Category: Spray Drying Equipment >>>
- Supplier: Xian Toption Instrument Co. Ltd.
Share on (60465282559):
Product Overview
Description

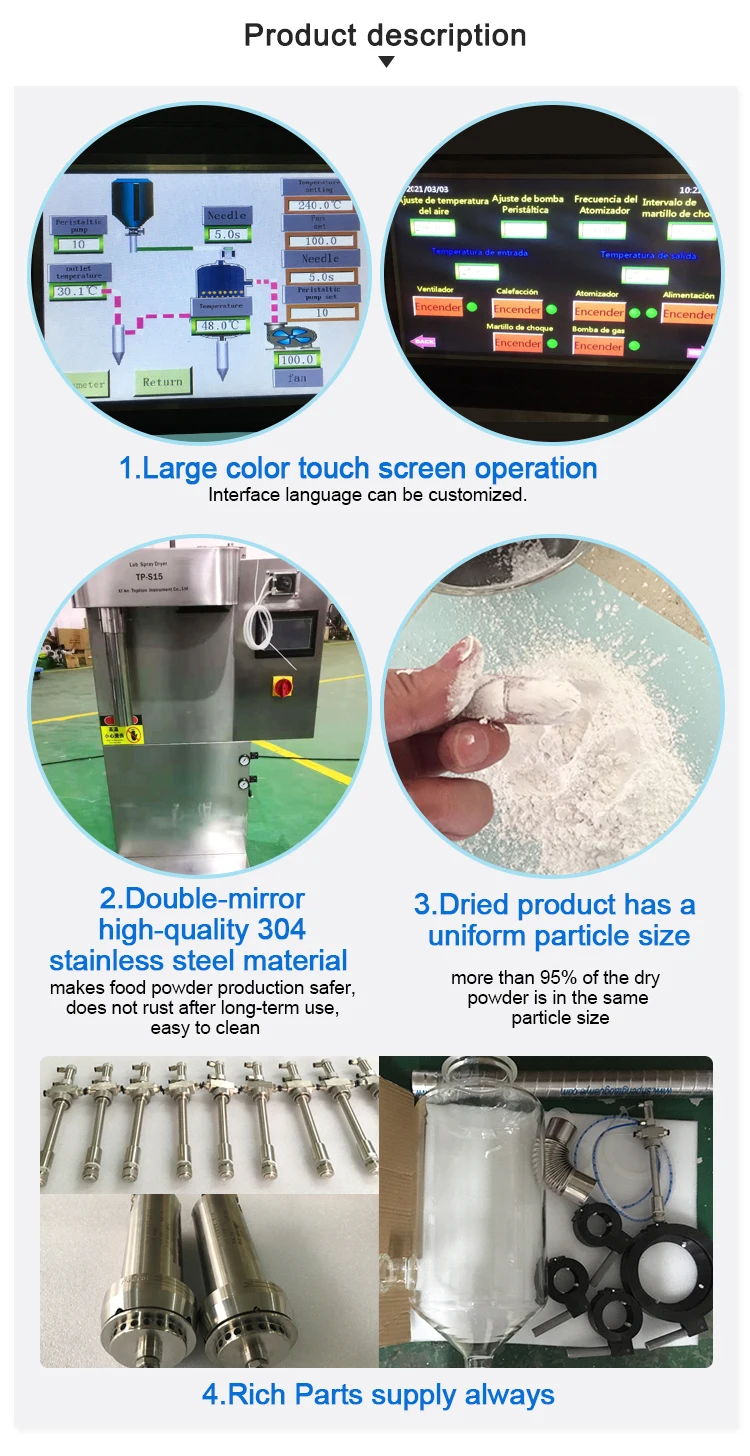

Products Description

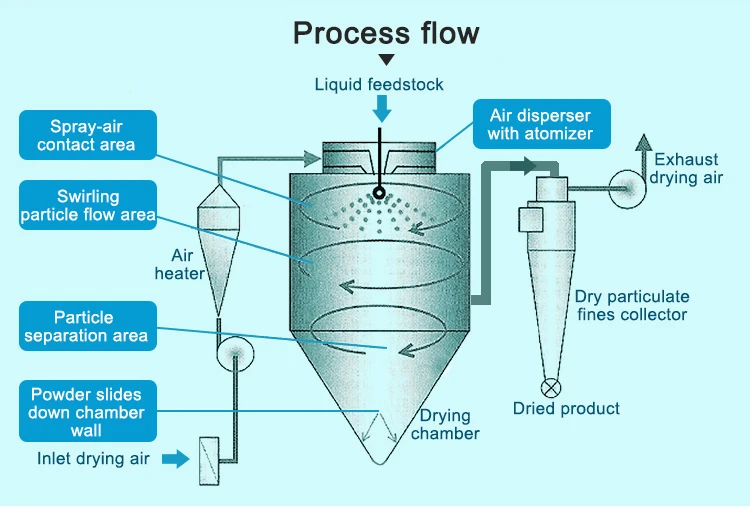

spray dryer is a kind of continuous atmospheric dryer.Use pneumatic or electric atomization device to make liquid high-speed centrifugal spray as fog droplet, make these fog droplet contact with the hot air in the drying chamber and instantaneous drying.
Model | TP-S15 | TP-S30 | TP-S50 | TP-S100 | |||
Max capacity | 1500-2000 ml/h | 3000 ml/h | 5000 ml/h | 10000 ml/h | |||
Temperature range of inlet air | 40℃ ~ 300℃ | 30℃ ~ 300℃ | 140°C ~ 300°C | 50°C ~ 300°C | |||
Temperature range of outlet air | 40℃ ~ 140℃ | 30℃ ~ 140℃ | 80°C ~ 90°C | 30°C ~ 150°C | |||

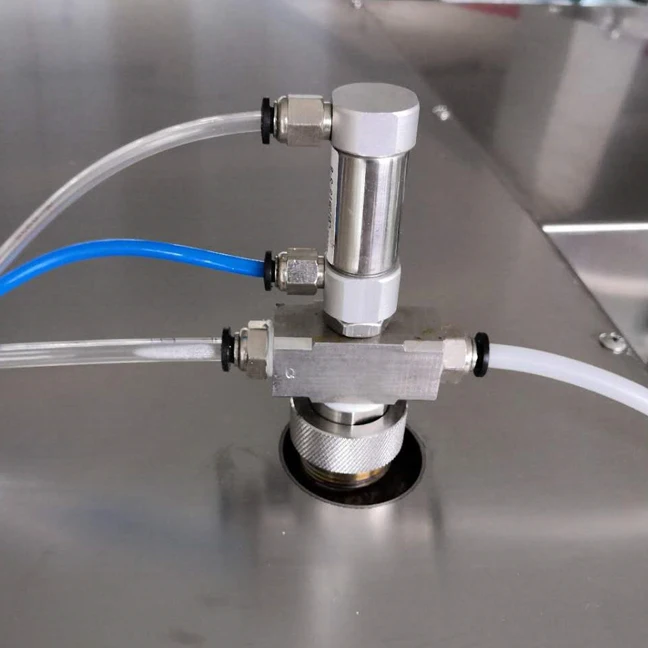

Spray system | Two-fluid nozzle | Centrifugal nozzle | Centrifugal nozzle | Centrifugal nozzle | |||
Precision of temp | ±1 ℃ | ||||||
Dryer time | 1.0 ~ 1.5 S | ||||||
Speed of squirt pump | 50 ~ 2000 | 3000 | 5000 | 10000 | |||
Nozzle size | 0.5/0.7/0.75/1.0/1.5/2.0mm | \\ | \\ | \\ | |||
Spray direction | Downwards co-current | ||||||
Heater Power | 3KW 220V | ||||||
Total power | 10KW 380V | ||||||
Heat source | Electric | ||||||
Function
Application
Certificate

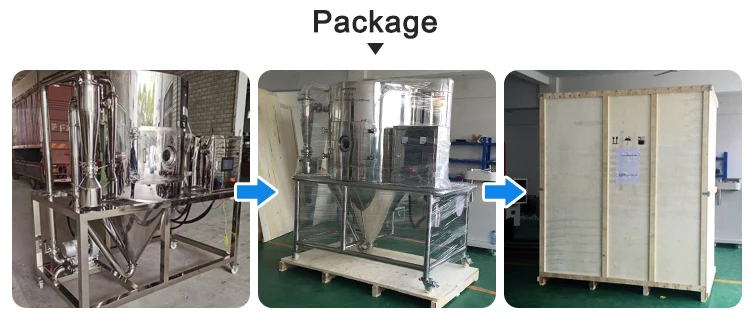

Package

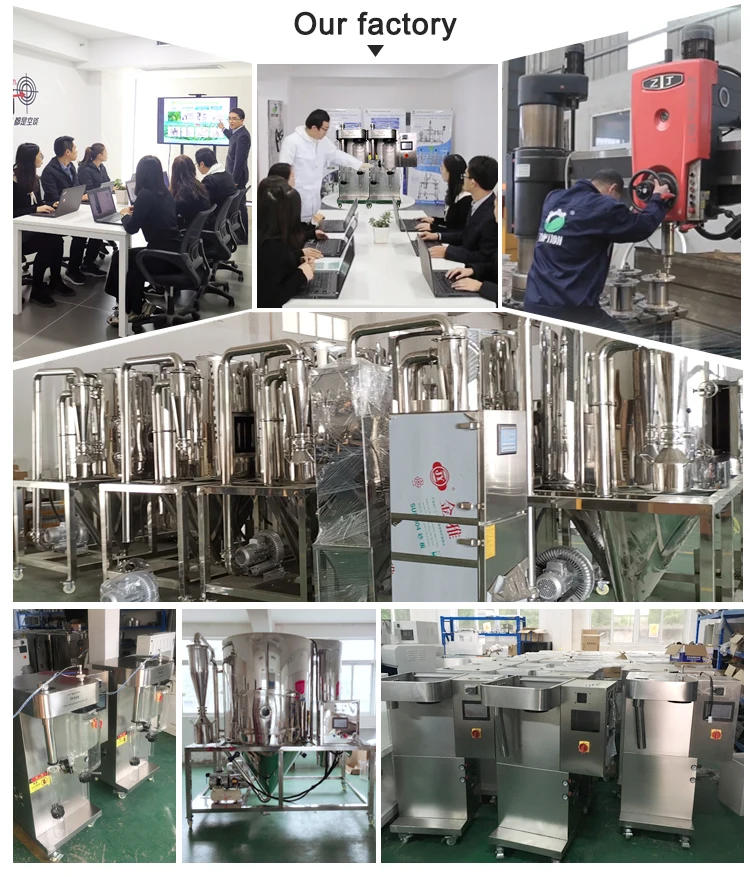

Our factory
