FM 5200 Mobile Digital X Ray System
- Category: Other Radiology Equipment & Accessories >>>
- Supplier: Full Medical Co. Ltd. [Anhui China]Full
Share on (60469767571):
Product Overview
Description

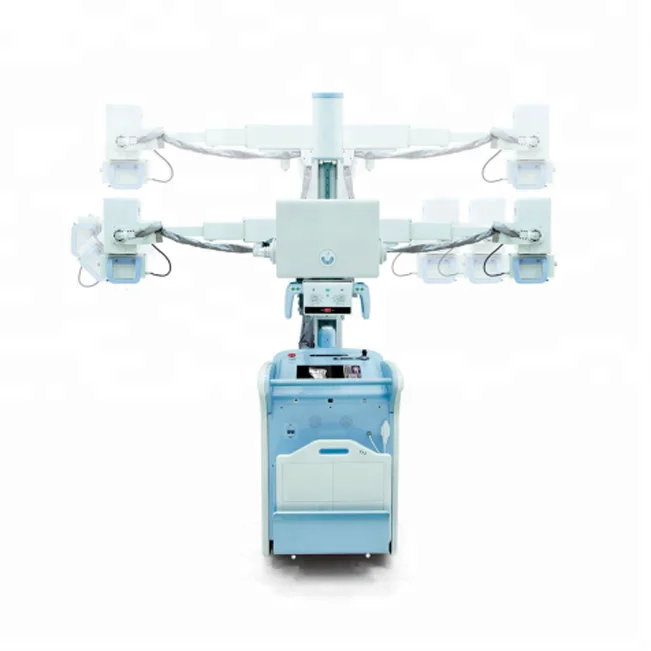

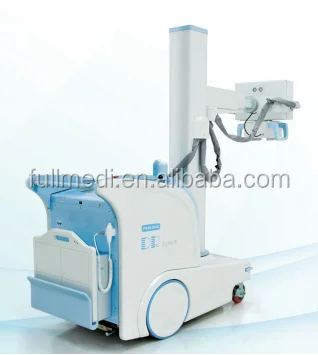

FM-5200 Mobile Digtial X Ray System
Usage
This unit is high frequency combined digital X-ray radiography medical diagnostic equipment, it is used in radiography department, orthopedics, wards, emergency room, operation room, ICU, etc. It can satisfy the requirement of parts of body such as head, limbs, chest, spine, lunmer, stomach.
Basic configuration:
- High quality combined high frequency high voltage generator
- Symmetric adjustable,wireless ranging rotatable collimator with lamp
- Color Human graphical interface touch LCD control system,
- Large size medical LCD display
- Imported THALES panel detector with free movement
- High quality IPC
- New type mobile column rack
8. Electric assistance drive system
9. Cable exposure hand brake
10. Wireless remote control exposure device
X-ray source
- 25KW compact x-ray generator with rotary anode X-ray Tube;
- High frequency of 60Khz;
- With high technology to reduce the radiation;
Unique Power supply way
- 1. Supers capacitor to supply power in photography and durable life;
- 2. Li-Battery to supply power in mechanical movement;

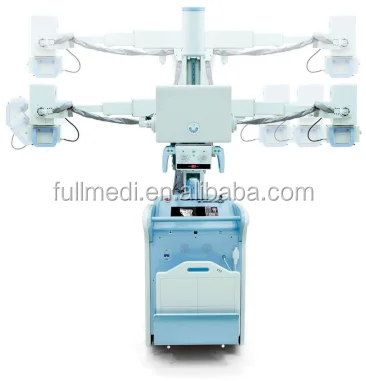

Mechanical movement
- The horizontal arm can be contracted freely;
- The pillar has the electronic up and down movement; and it can be rotated 360 degree;
- X-ray tube is rotary and moves left and right with 90 degree;
- Collimator can be rotated left and right with 90 degree;
- Comprehensive integration control drive
Software

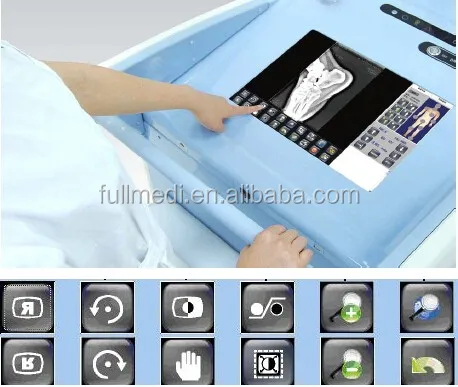

LCD touch screen operation panel to control the machine conveniently;
Technical parameters
Type | Item | Spec | |
Hige frequency X-ray | Max output power | 25kW | |
Main Inverter Frequency | 60kHz | ||
X-ray tube | Focus | Small focus:0.6; Large focus:1.3 | |
Rotation anode speed | 3000rpm | ||
Heat capacity | 900kJ (1200kHU) | ||
Tube current | 200mA | ||
Tube voltage | 40-125kV | ||
MAS | 0.4-360mAs | ||
Digital image system | Digital detector | Detector | Amorphous silicon detector |
scintillator | cesium iodide | ||
View | 14″×17″ | ||
Pixel | 3000×2400 | ||
Max spatial resolution | 3.5Lp/mm | ||
Pixel size | 144μm | ||
Output gray-scale | 16bits | ||
DQE | 75% | ||
Workstation | Acquisition module | Gigabit nets collection | |
Image processing modle
| Built-in CONTEXTVISION GOPVIEW XR2 Enhance module, parameeters choosen according to particular part | ||
Image information management | Dicom Storage Dicom Print Dicom transmission | ||
Physical construction performance | Distance from floor to focus | Max:193cm; Min:73cm | |
Distance from focus to pillar | Max:122cm; Min:72cm | ||
X-ray Tube components can rotate around the telescopic boom axis | ±90º | ||
Collimator rotate around vertical axis | ±90° | ||
Rotation range of pillar | 0°~360° | ||
Power supply | 220V±10% 50/60Hz | ||

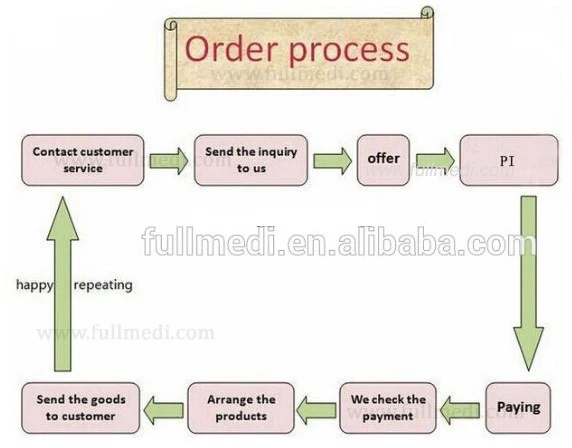

I. How to order?
