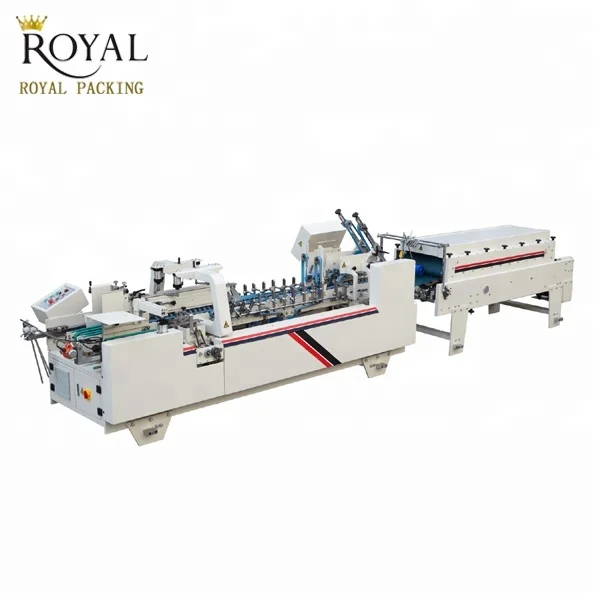

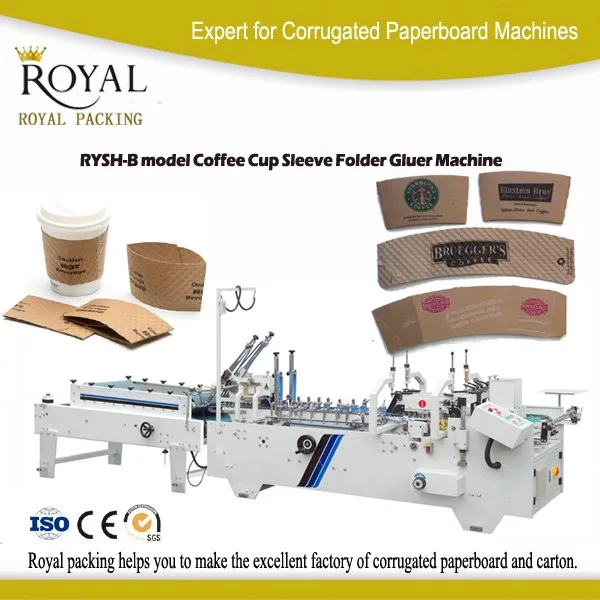

RYSH-B high speed automatic paste box machine possesses the RYSH-800 all functions, Use of imported electrical appliances, and accessories for export with a rubber roller Paper can be pressed together by the processes as well as possesses the features of beautiful modeling, high speed and can made more wide boxes etc. Which can paste and manufacture from Widely uses in paste process for medicine box, wine box, cosmetics box and electric equipment package etc., It’s essential equipment in packing printing industry.
Characteristics:
RYSH-800B
Type of box
(Amax)
(Amin)
(Bmax)
(Bmin)
(Cmin)
(Dmin)
(Fmin)
box
700mm
70mm
600mm
110mm
8mm
70mm
51mm
Characteristics:
Linear velocity
0~220m/min
Suitable paper quality
220~800g/m² carton paper and E wave corrugated paper
Paste box basic form
One-side edge pastes, two-side edge pastes.
Feeding way
Automatically and continuously feeding
Adhesive
Solute type
Needed power
AC220V 3.5KW
Weight
1800KG
Overall Size
5500×850(1300)×1300mm
The scope of Count
0~999999

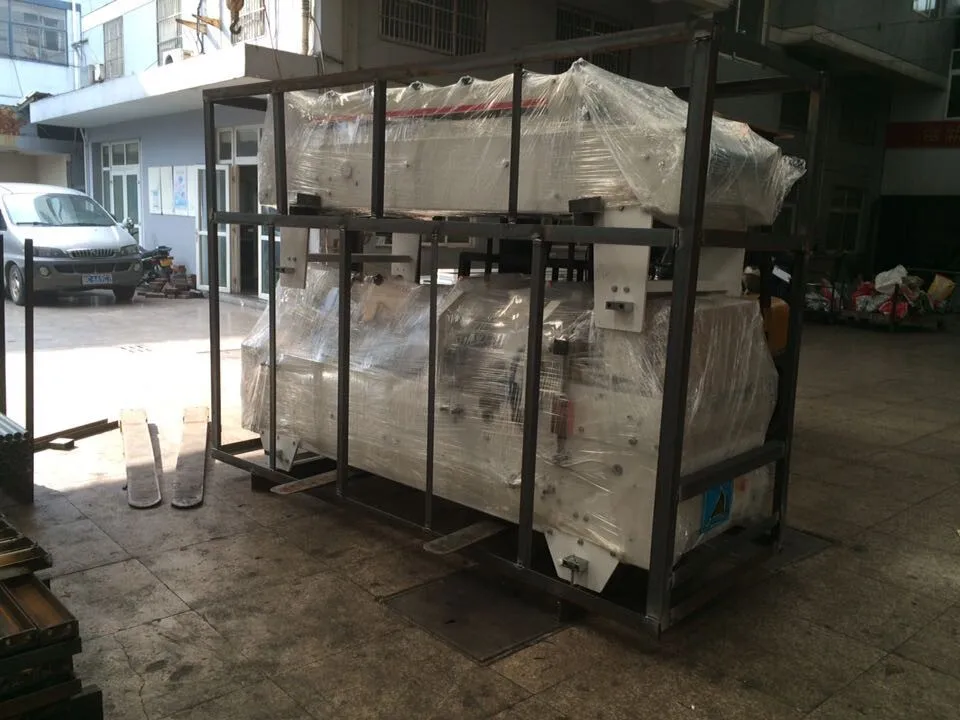

The machine package size:
Model
Size(L*W*H)(mm)
Weight(kg)
Volume
RYSH-800B
2900*1090*1250
700/630
3.95
2600*1030*1060
380/310
2.83
Our Services
We have more than 10 years's experience in manufacturing paper machinery field.
Top quality, Competitive price, Timely delivery and Heart-to-heart service.
Warrantee: One year guarantee, life-long maintenance.
