Product Overview

Description

Food flour powder dried turmeric garlic garri processing machinery

This machine has good effect for sugar flour, many clients around the world bought this kind equipment to grind sugar flour, and it has a good effect.

Specialty:

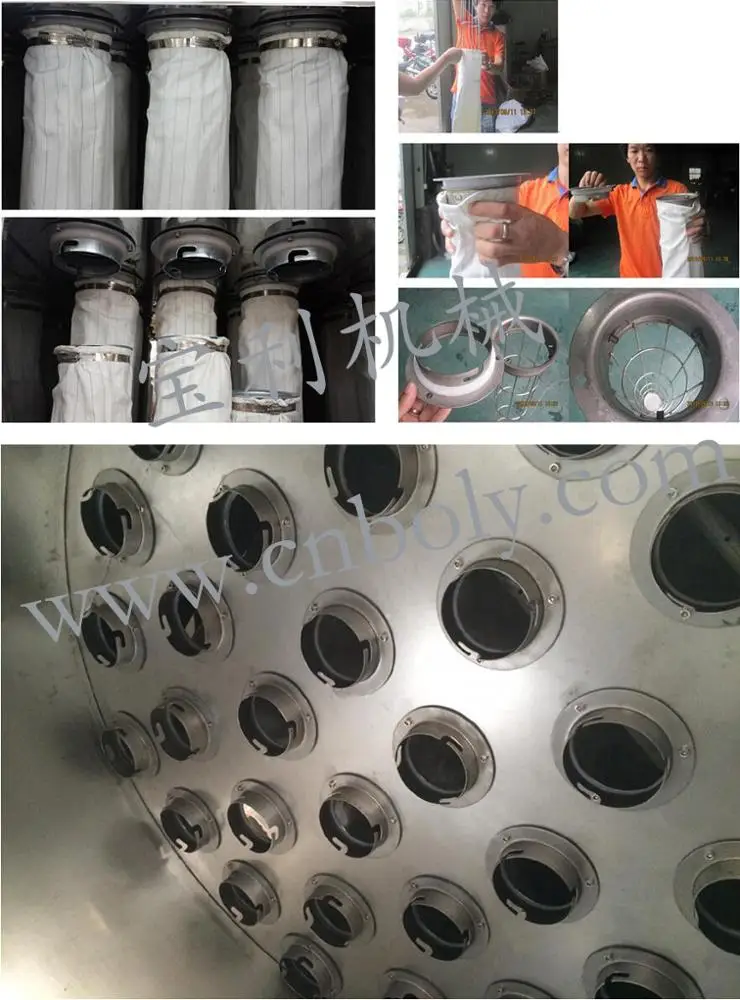

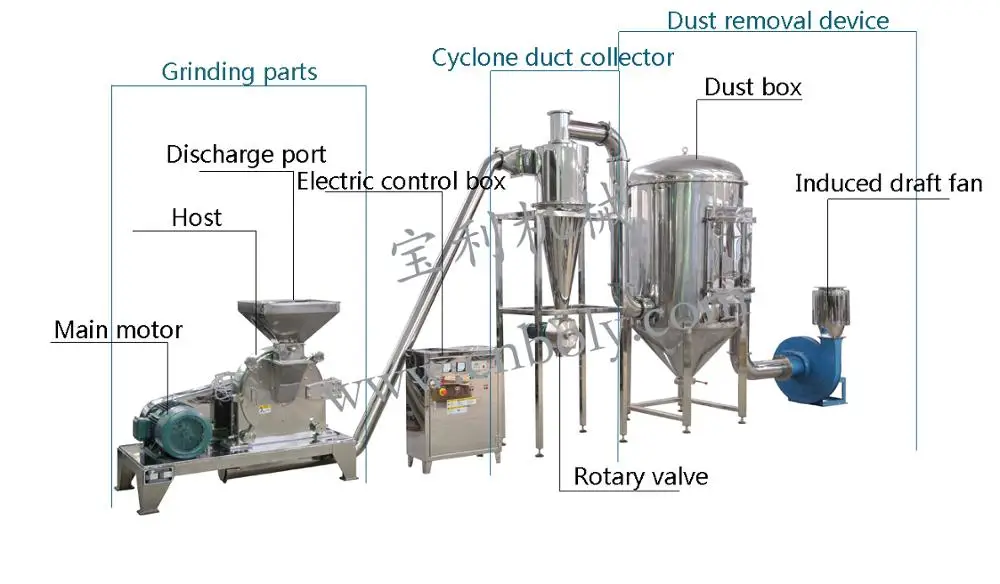

 This machine is made up of crusher, cyclone separator, pulse dust-evacuator box and blower fan etc.The crushing size can be adjusted by the screen.Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production.

Technical Data:

Model	Main Structural Dimensions(mm)							Capacity	Input Particle Size	Machine weight	Speed	Total power
	L1	L2	H1	H2	H3	H4	W1	Kg/H	mm	Kg	Rpm/min	KW
JB-30	4650	—	2540	1080	650	350	1380	100-400	<10	700	3800	11.25
JB-40	5200	—	2800	1150	650	350	1450	200-800	<12	950	3400	15.75
JB-50	5450	7050	2800	1400	650	350	1550	280-1000	<15	1200	2900	26.75
JB-60	5800	7400	3150	1460	650	350	1550	300-1200	<15	1400	2300	30.25
JB-80	6100	7900	3250	1570	650	400	1600	400-1800	<20	1700	1800	48.75
JB-100	6750	8550	3350	1800	650	400	1750	500-2000	<20	2100	1400	64.25

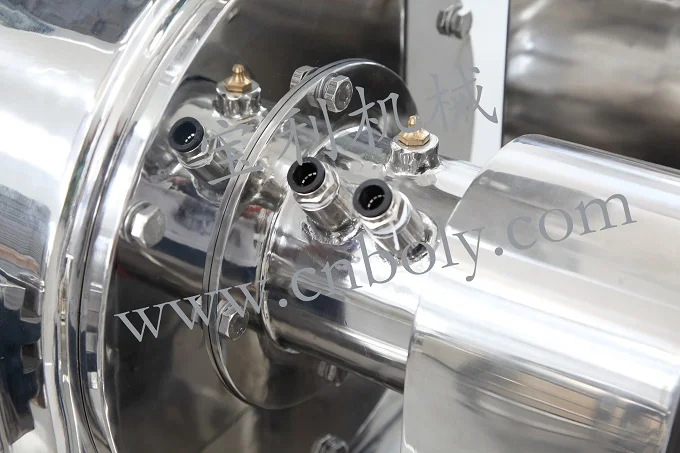

 JB  cassava flour  processing machine has a water cooling system, so that the machine won't get too hot while running. There is a jacket around the crushing part to let cold water go in and out.

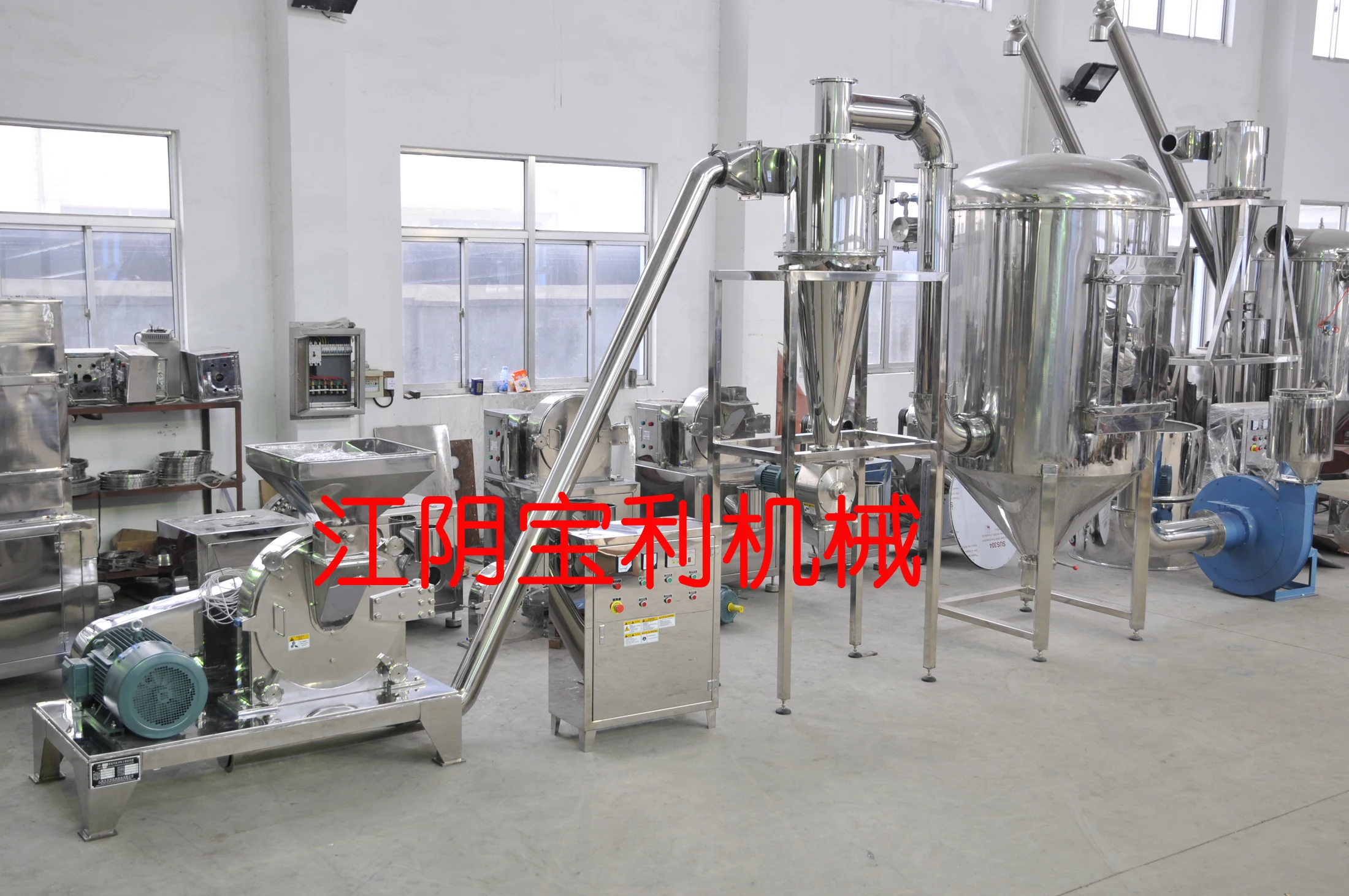

JB crusher production line
