YILIAN PE coating machine
- Category: Coating Machines >>>
- Supplier: Wenzhou Winrich Machinery Co. Ltd.
Share on (60471598271):
Product Overview
Description
Product Description
Product Application Of PE coating machine
1.Paper cups : PE coated paper
2.Non woven bags : Non woven fabric + PE
3.Release paper : Release paper + PE
4.Sugar packages : Thin paper + PE
5.Baby diaper : Thin non woven +PE
6.PP w0: sheet roll + PE
| Specification of PE coating machine | |
| Applicable coating film resin | Coating grade like LDPE ,PP ,EVA,EAA etc |
| Based material | paper (35~425g/m2 ) , textile fibre ,non-woven fabric, Knited mesh, BOPP. BOPET . |
| Max working speed | 100~150m/min |
| Max width of coating film | 1200mm |
| Thickness of coating film | 0.01–0.11mm |
| Inaccuracy thickness of coating film | ±6% |
| Setting range of Auto-tension | 10-200kg/entire width (constant tension) |
| Max extrusion | 200KGS/H |
| Compound cooling roller | Φ510×1300mm (can choose) |
| Total power: | about 110 kw |
| Max rewinding diameter | Φ1300mm |
| Inside diameter of base material | Φ76 |
| Machine total weight | about 15000kg |
| Overall dimension | 9600mm×8000×3250mm(L×W×H) |
Main Features of PE coating machine
Product features Of SJFM-B SERIES EXTRUSION COATING AND LAMINATING MACHINE :
1.EPC STSTEM
2.CORONA TREATMENT
3.CHILLING ROLLER
4.PLC TOUCH SCREEN
5.TRIMING
6. AUTOMAT HYDRAULIC FILTER SCREEN CHANG DEVICE
Certifications
Detailed Images
Machine Parts of PE coating machine
1.Strong machine frame made , stable running without shaking or movement.

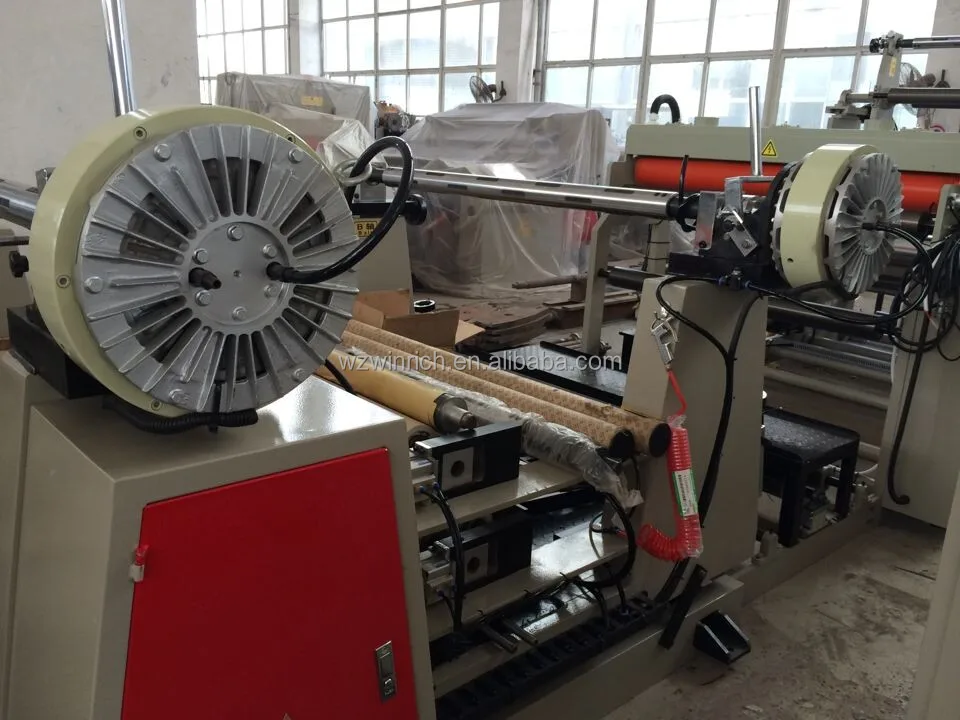

2.Magnetic powder clutch with the perfect combination of auto constant tension controller along with the roll material diameter changing, tension is decreased proportionally to achieve automatic tension control.
Machine Parts PE coating machine

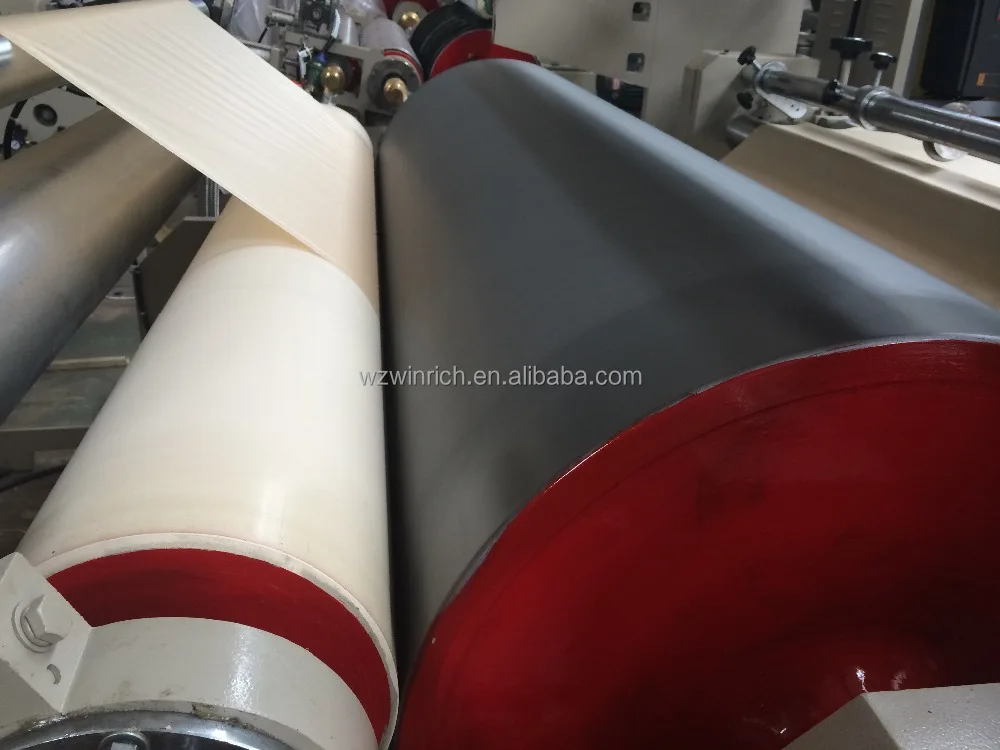

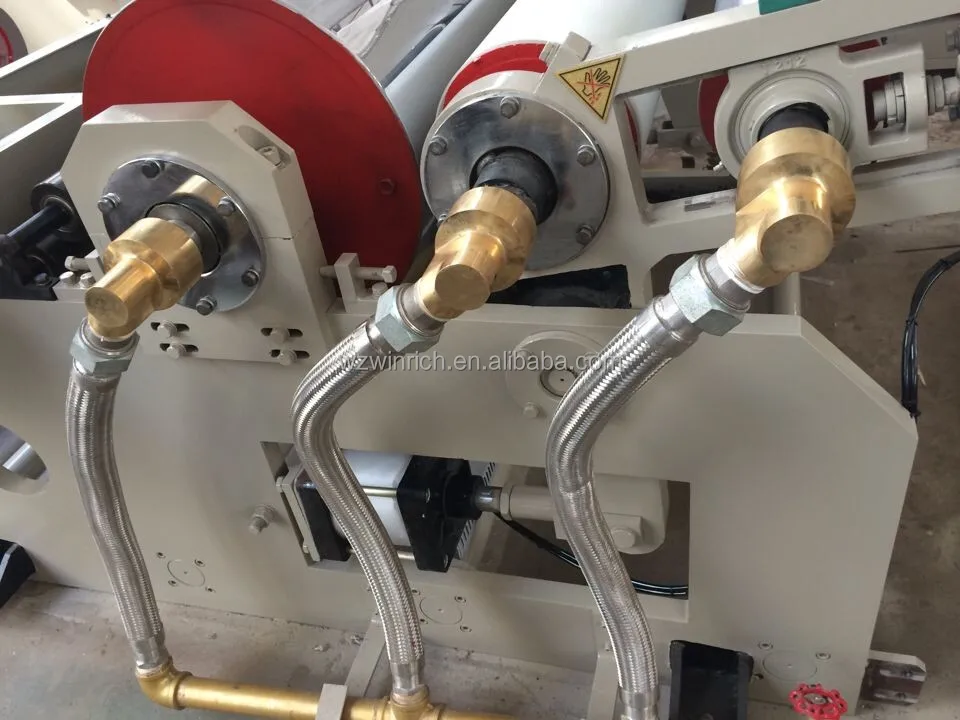

Pneumatic three chilling rollers type and inner water recycle design, makes PE coating evenly and firmly .
Main Features of PE coating machine
Automatic non stop materials changer device reduce wastage and increase production efficiency .
Our Service
1 year machine quality warranty
24 hours online technical support
Oversea technician service is available
Packing & Delivery
| Packages of PE coating machine | |
| Quantities | Total 6 packages |
| Weight | 15 T |
| Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Containers of PE coating machine | |
| Quantities | 1 *20 Ft + 1* 40HQ |
| Weight | 15T |
| Loading Details | 1300 mm width machine need 20 comtianers but still have some space rest . about 2 meters space in 20 Ft container ,customer can load other machine as well . |
