XT F02 Electrostatic Flocking Machine Screen Printing Flocking System

Product Overview

Description

Screen Printing Flocking Machine



This type of flocking equipment is used for garments chest printing ,decoration pcs,

packing products etc

I.  Main Technical Parameters

< 1. Voltage of power supply:220V/110V AC ,50-60Hz

< 2. Input power:30W.

< 3. Output voltage: 0- 90kV negative

< 4. Maximum output current: 150uA

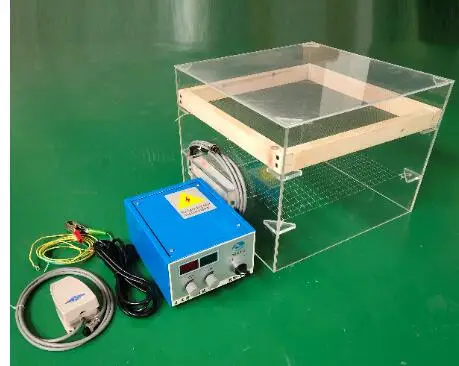

Flock Container

Standard Sizes: 40 x 40 x 25cm (other sizes can be customized according to your production requirements)

Material:Be made of plexiglass,thickness:0.8mm

Flock powder applicable:0.5mm -2mm



Product Description

 Advantages:

 1.a new style flock gun is installed in flocking machine

2. used for garments chest printing ,flock decoration pcs,flock packing products etc .

3.it works  220 volt normal electrecity.it work in the range from 6 inch .

Packaging & Shipment

 Packing Sizes:45cm x 50cm x 30cm

Gross Weight:17kg (packed by wooden case)

HOW DO IT WORKS???

Step 01: Connect the power cable, grounding line etc

Step 02: Grounding and adjust the HV and current knob to be the highest position

Step 03: Put the nylon fiber on the top of the screen in the flocking box

Step 04: Glue coating on workpiece

Step 05: Put the glued workpiece under the flocking box

Step 06: Power on

Step 07: Shut off the power

Step 08: Take out of the workpice and finish the flocking job
