Product Overview
Description

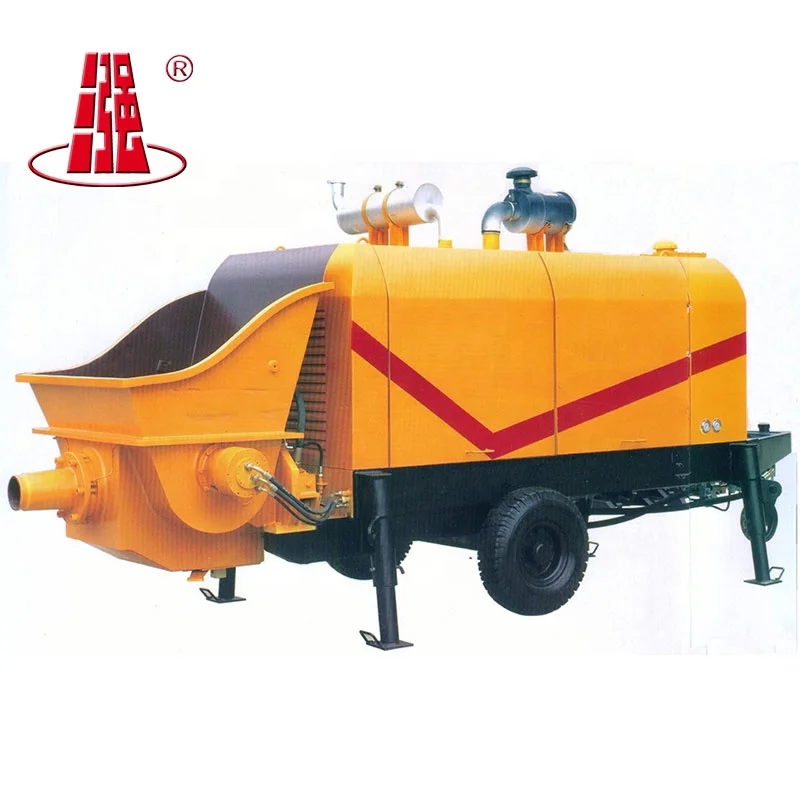

Environmentally friendly Trailer-mounted Concrete Pump Stationary Concrete Pump
Product Description
Introduction:
Concrete pumps is a concrete machine to replace the traditional way to lift the concrete by labor force but pumps the concrete through the pipeline, use as conveniently as the tap water.

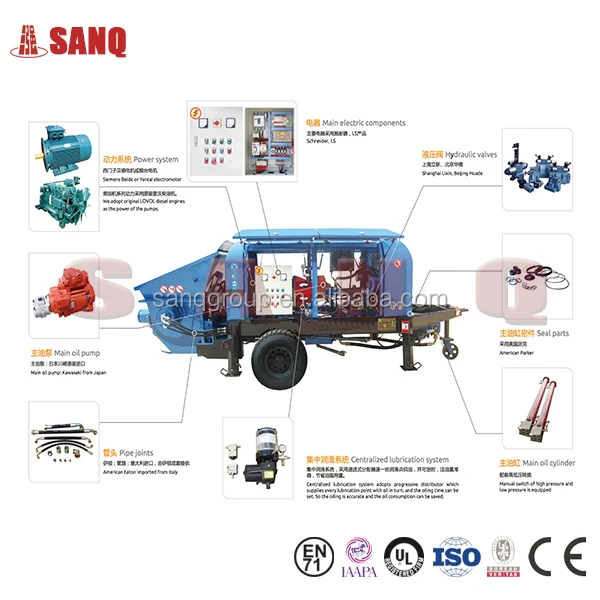

1. The main oil pump adopt Japanese Kawasaki oil pump;
2. Two ways to convey concrete: high-pressure with small volume and low-pressure with large volume;
3. Diesel trailer concrete pump adopts the air-cooled and water-cooled motor;
4. Italy MANULI high-pressure hose is used to ensure the security of hydraulic system, without leakage;
5. Pumping fuel tank with an unique waterproof structure and with the combination of discharging and blocking, so it has anti-emulsified activit
Parameter:
| MODEL | HBTS90-13-130R |
| Max. delivery capacity | 88M³/H |
| Max. delivery pressure | 13/7Mpa |
| Hydraulic system | Open type |
| Hydraulic system pressure | 32Mpa |
| Motor model | TBD266B-6 |
| Rotating speed | 2400r/min |
| Motor power | 130KW |
| Main oil pump model | A11Vl0190 |
| Main oil pump rating discharge | 456L/min |
| Hydro-cylinder cylinder diameter /Running | ø 125mm /1600mm |
| Concrete mixing cylinder diameter /Running | ø 200mm /1600mm |
| High-low pressure switch | With |
| Oil boxer capacity | 500L |
| Hopper capacity | 0.8M³ |
| Feeding height | 1430mm |
| Max.delivery distance | 270m/1200m |
| Concrete slump | 120~230mm |
| Overall dimension(L×W×H) | 6400mm*2160mm*2600mm |
| Weight | 6200kg |
Feature:
- The distribution valve adopts the advanced S pipe valve system, good sealing performance; the structure is simple and reliable, and convenient replacement of the wearing parts;
- Highabsorption optimize the hopper structure, improve teh regional structure inside of the hopper which affects the suction performance;
- Mixing blade with unique design and few deal space so it can be adapted to a wide range of concrete formula;
- The main electrical components are imported, they fully guarantee the electrical control system of high reliability;
- Perfect maintainability and dismandtling of all wearing parts are very convenient.

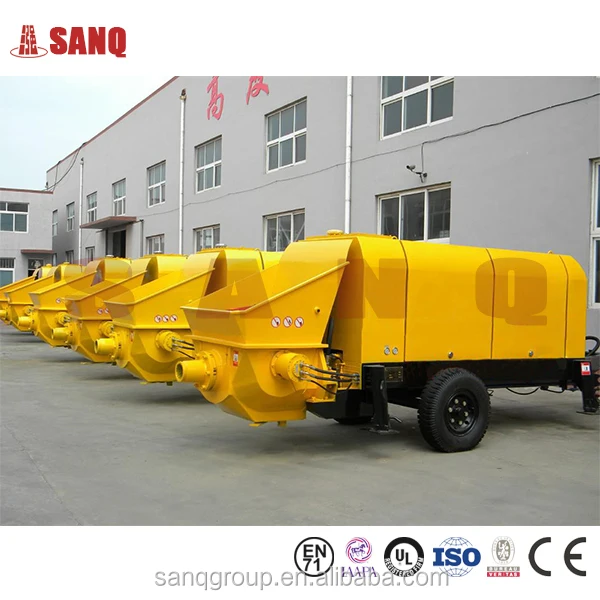

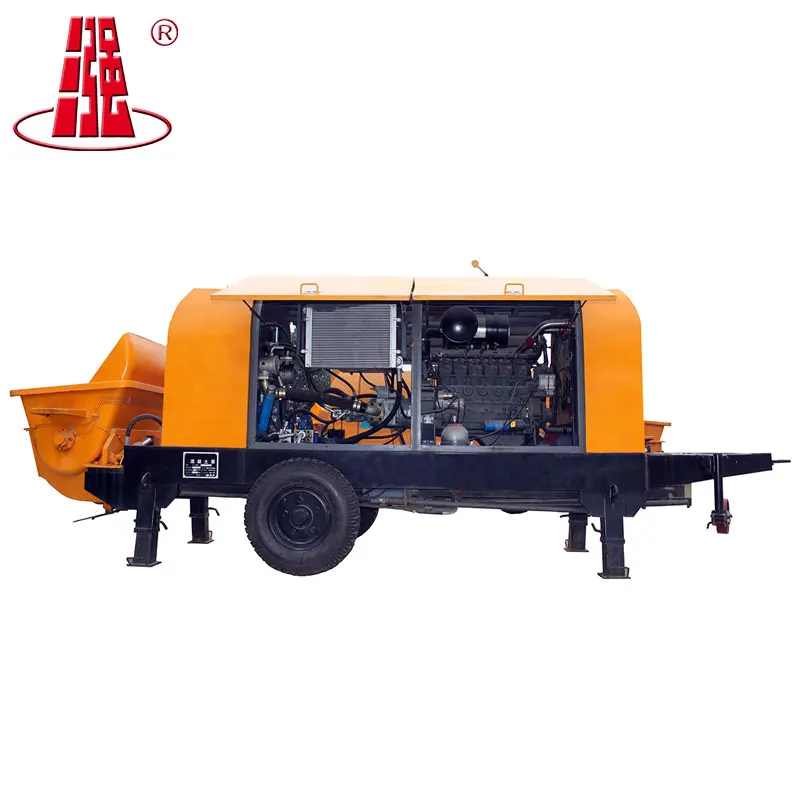

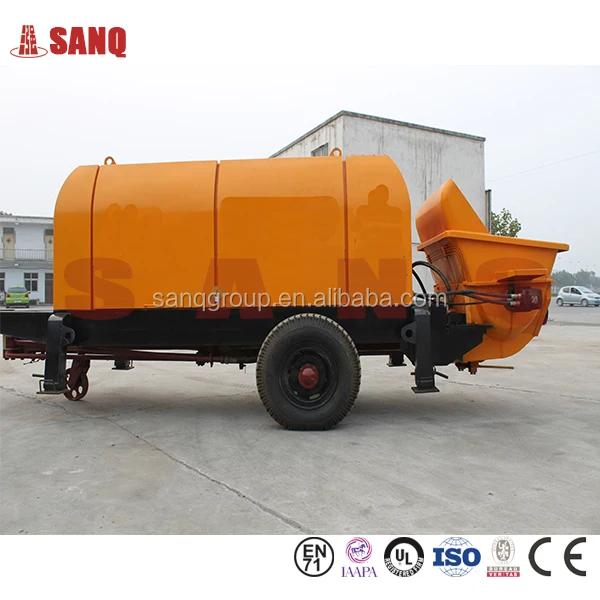

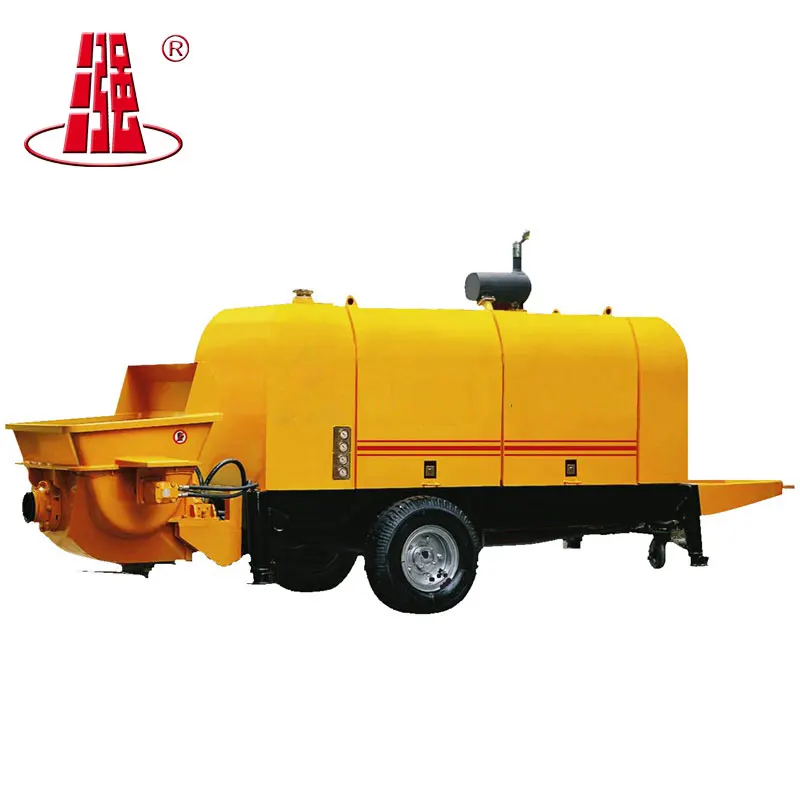

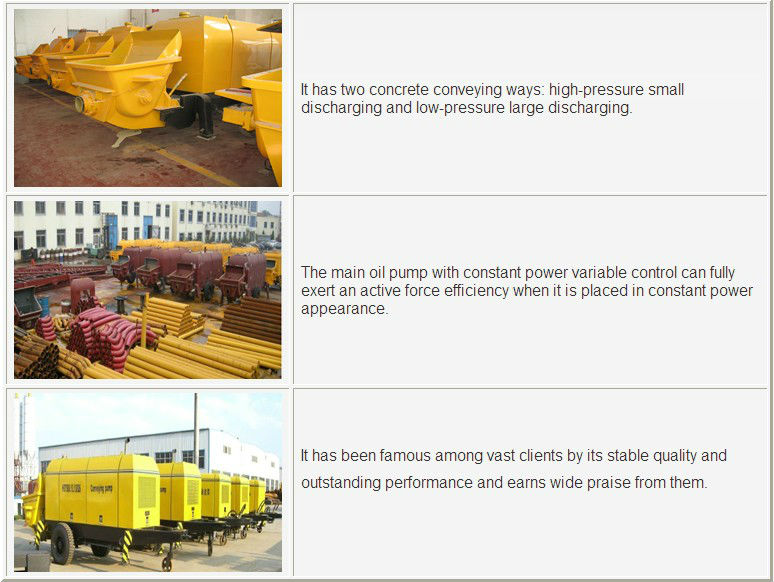

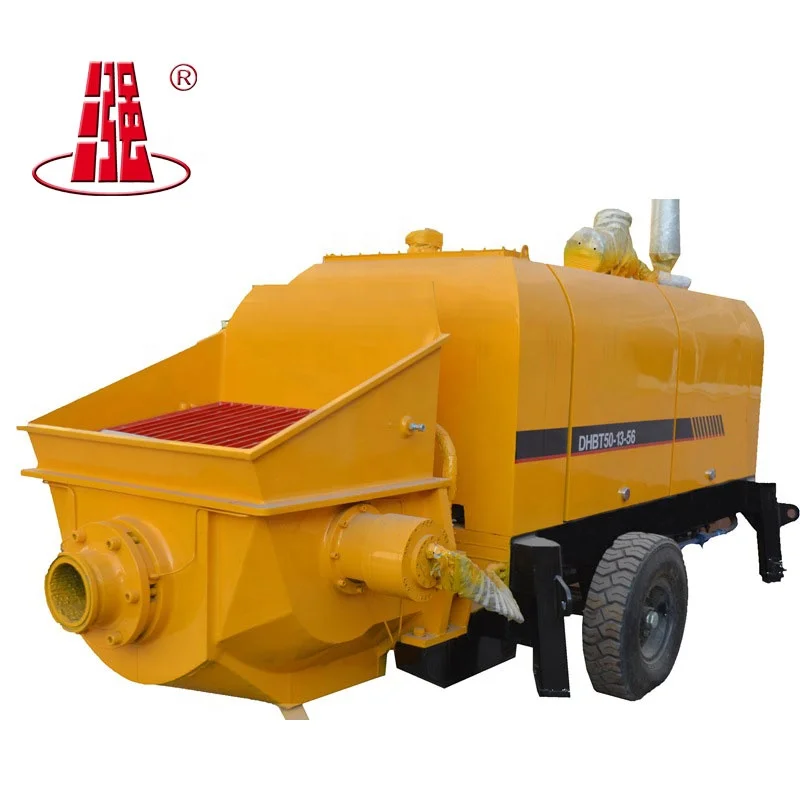

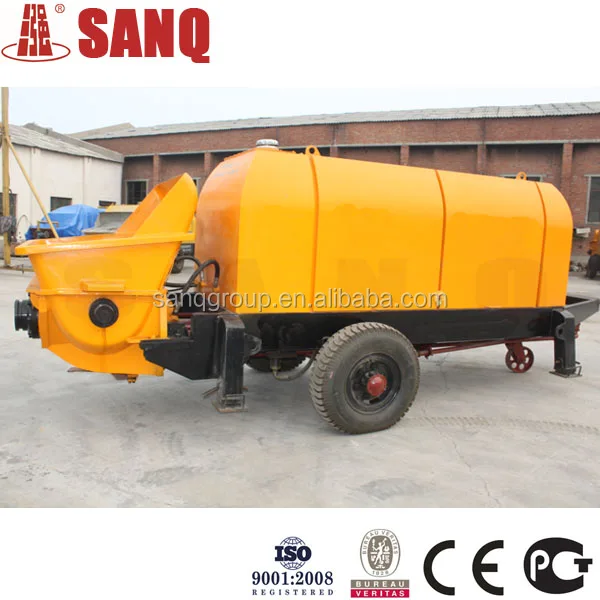

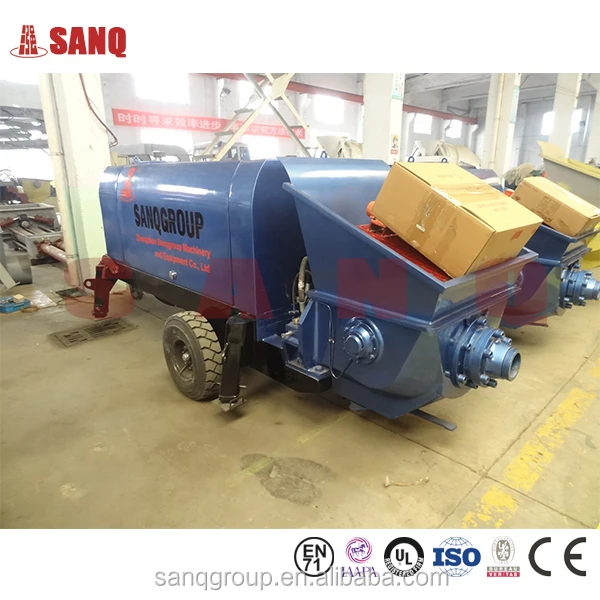

Detailed Images
Company Information
1-Indtroduction -- Mobile Pump

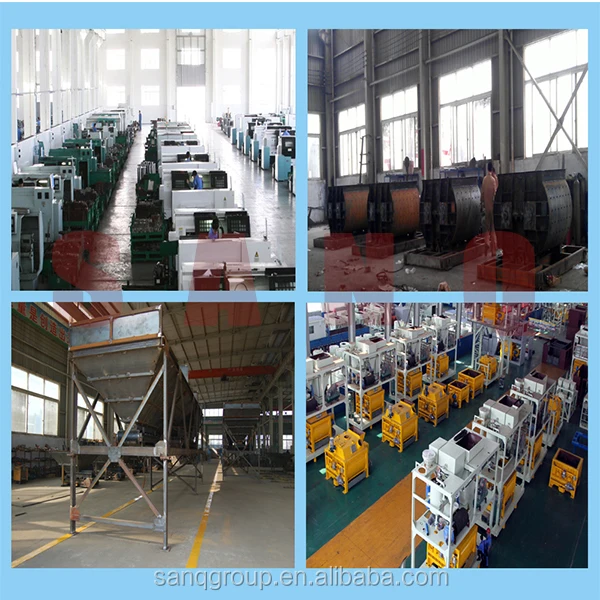

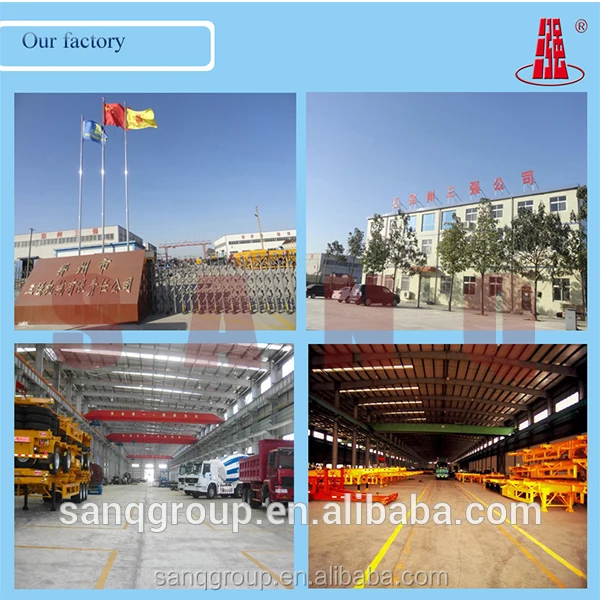

- Zhengzhou Sanqgroup Machinery and Equipment Co., Ltdare professioanl manufacturer which specialize in R&D, production, distribution and services of concrete equipment. Sanqgroup are located in west of Zhengzhou, the capatial city of Henan province,Covers an area of 45000 square meters with more than 8000 square meters of morden workshop.
- Sanqgroup has absorbed Europe, Japan, the United States and other international advanced technology, with The world's leading batching plant electrical control system we are dedicate to manufacturing high qualtiy, high efficiency and High environmental protection products.

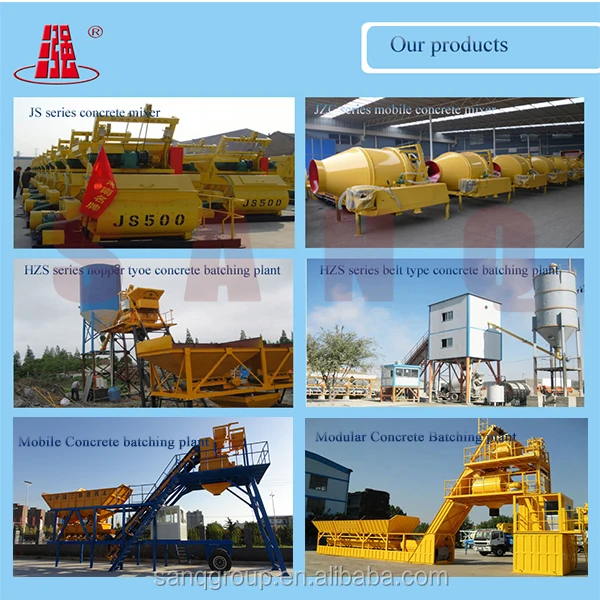

- Our main products are concrete mixing plant, JS series twin shaft mixer, concrete pump,concrete trailer pump and asphalt mixing plant. our products have been exported to Vietnam, Indonesia, Malaysia, India, UAE, Saudi Arabia, Yemen, Algeria, Nigeria, Togo, Benin, Russian, KZ, Mongolia, Chile and Peru etc.have owned favourable reputation in the international market.
2-Our Team -- Mobile Pump
Zhengzhou Sanqgroup Machinery & Equipment Co., Ltd. is a production and sales enterprise, the company's business is flourishing now, mainly due to our energetic team.
- Technology team:
Technology team is consisted of 11 persons, 3 are senior engineers, 8 are engineers. The average age is about 35 years old. 2 are doctor degree, 4 are master degree and 5 are bachelor degree
- Sales team:
Sales team is composed of 15 persons, 10 for English market, 5 for Russian market. 80% is Bachelor and 20% is junior college. The average age is 26 years old. It is a highly educated, high-quality, young and energetic team.
- Production Team:
Workers are divided into general worker and skilled worker. All skilled workers have some certificates for technical proficiency with work experience from 2 to 20 years. All general workers will be strictly trained by skilled worker after recruit according to their post for 2-3 weeks and then can operate after passing examination.
Certifications
Our Services
SANQGROUP has established an integrated marketing system consisting of "Sales,Maintenance ,Fitting ,Information and Advgertisement "based on the market-oriented policy as well as the high quality products,perfect services and good faith for market development and therefore the marketing network has covered every port of the world. We consider customers the most important element for creating the enterprise's benefit. Sanqgroup have received users' recognition for the perfect services. We will always keep our promise for customer in any ports of the word sice we do what we planced.
- 24 hours on line sercvice
- Regular after-sale visit
- All after -sale service problem will be solved in 72 hours
- Accessories gloabally supply
- Lifetime technique suport
- Enginnerserve overseas avaiable
2-Spare Parts And Service
Sanqgroup deliver solutions tailored to each customer's requirments.We set great store by advising and working with our customers right from first contact to plant commissioning.Our in-house technical deparment ensures clarification of all technical issues and thoroughly prepares all project drawings. After cpmmissoning of the plant we are happy to provide advice to ensure that the plant always fuctions in the best possible way an has long lifespan.
SANQGROUP has a complete spare parts supply system ,equipped with skilled professional and technical personnel ,to provide clients with pure spare part sand thoughtful service 7*24 hours every day.
FAQ
1.Spare parts will be delivered as you need.
2.SANQ engineers will go to clients’ site for guiding the installation and test-running;
3.Warranty period: 18 months since the installation and commisioning;
4.SANQ service team will follow every placed order regularly till warranty period finished
