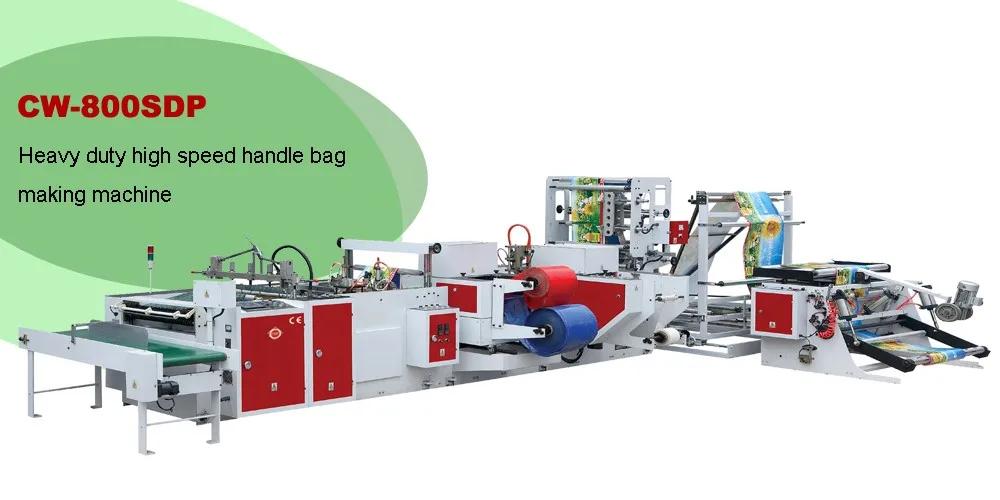

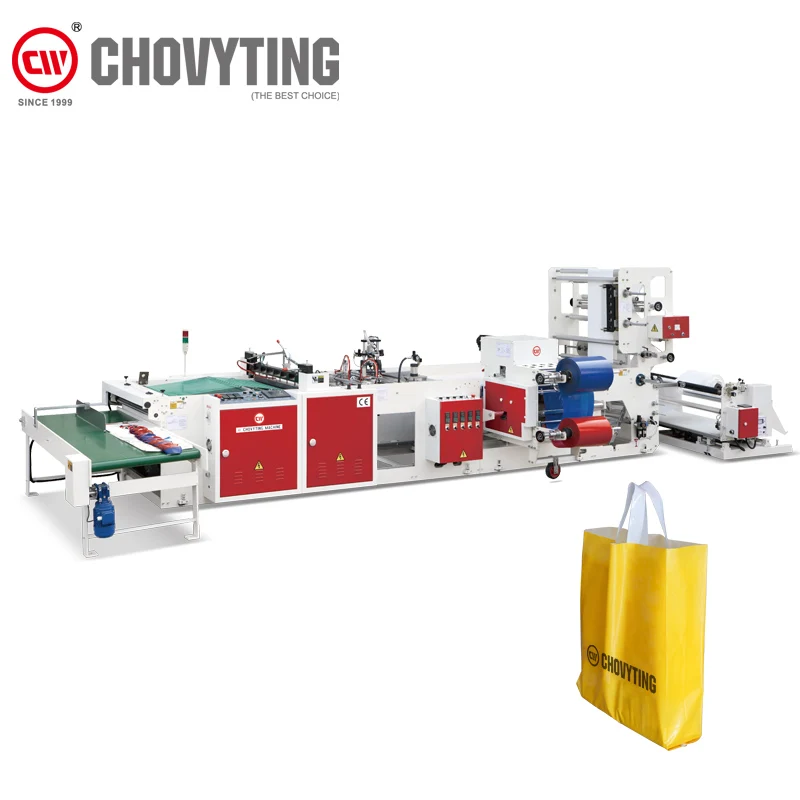

Specially design new machine,it is only used for making soft loop handle bag and patch handle bag ,die cut handle bag.
Main Features
1) The design of soft loop handle and patch handle in the same side, fast exchange the type of bag
2) Soft loop handle device with 3 pcs servo motor drive
3) The rotary device of patch handle drive by servo motor
4)Top folding continuous sealing design, the sealing length not be limited
5) The new design of bag stack and speed down conveyor system
Optional:
1.Double lines sealing knife device
2.Bottom sealing knife device

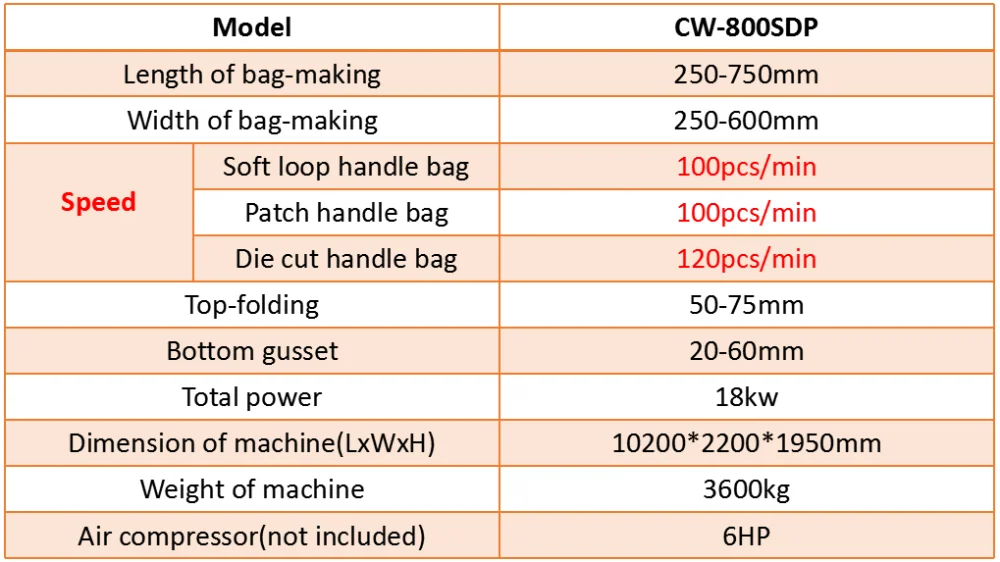

Technical Parameter

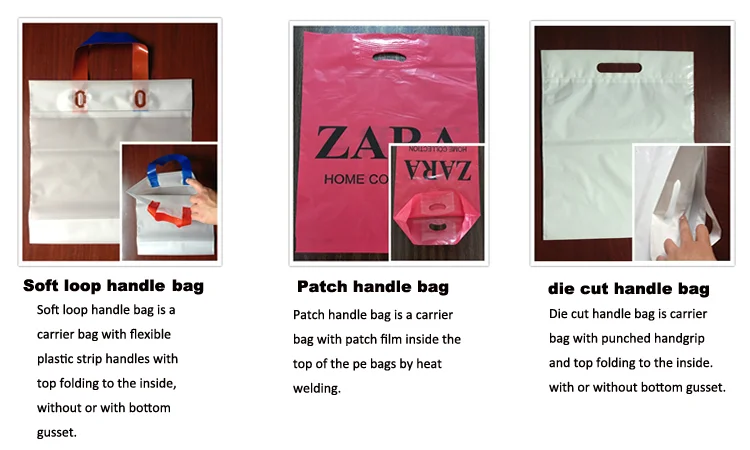

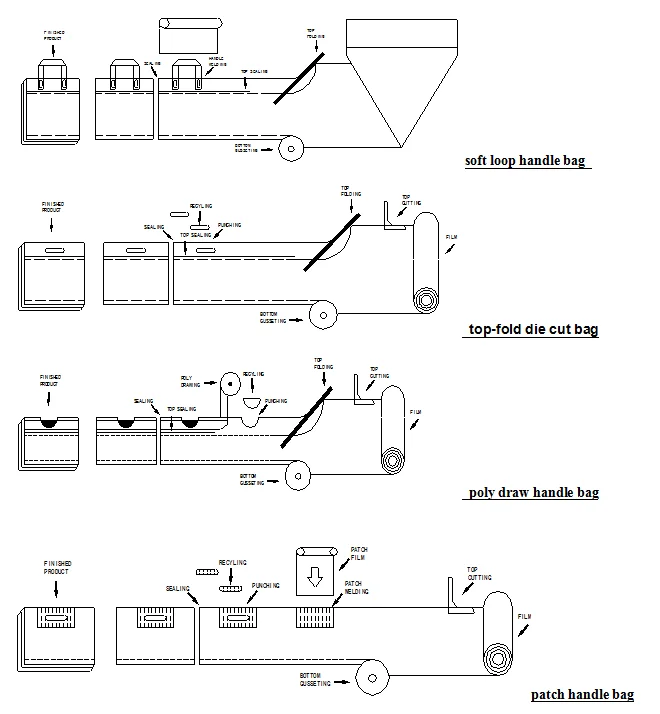

Sample Bag
Detailed Images

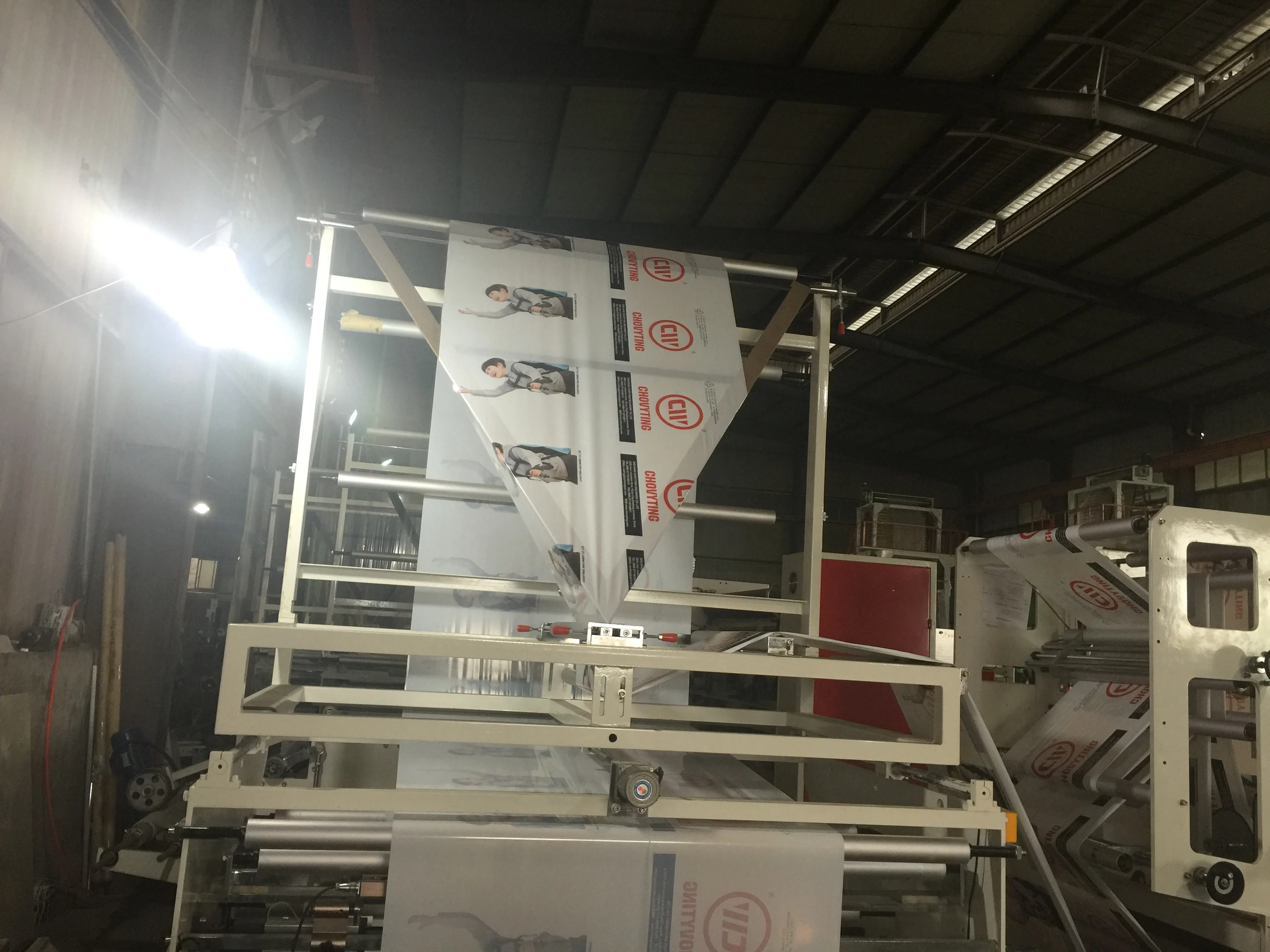

pneumatic unwind device
1)Unwinding adopt pneumatic loading , max diameter of raw rolling material is φ600mm
2)Adopt magnetic powder tension control. Manual adjust the tension.
3)Unwinding with EPC

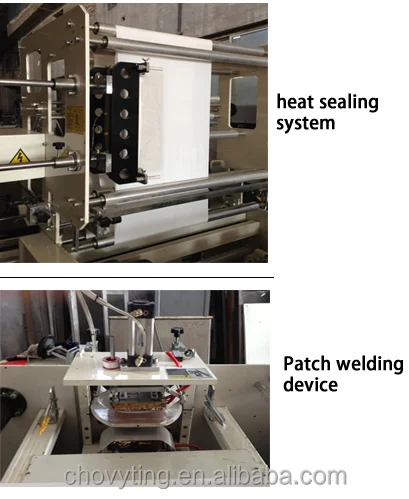

Top-folding continuously sealing device
1)The adjustable heat sealing available after top folding,seals top fold longitudinally and continuously,the width size of bag is not be limited
2) Inside heating wire sealing, which suitfor full colours of bag.

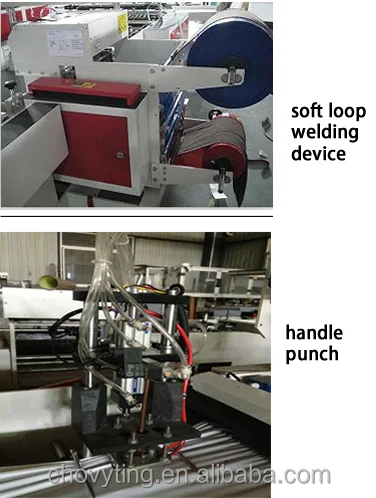

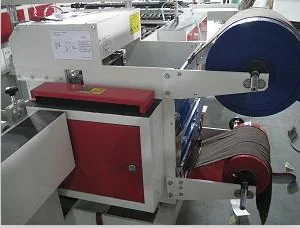

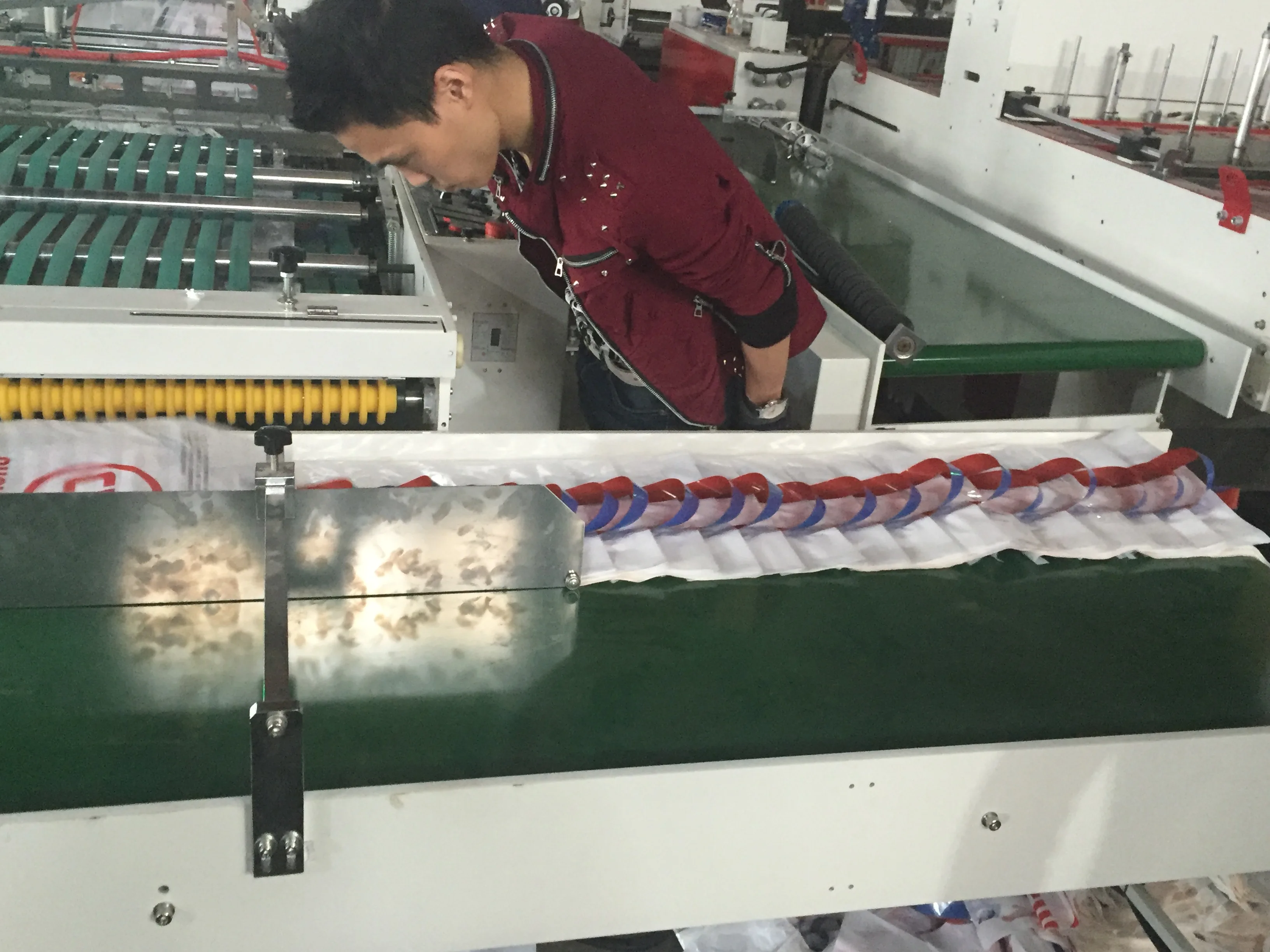

Soft loop handle bag device
1)Double layer unwinder
2)90 degree turnabout gear rotary soft loop
3)Special oblique drag style rotary soft loop
4)The whole type steel plate base, and special support bag structure.

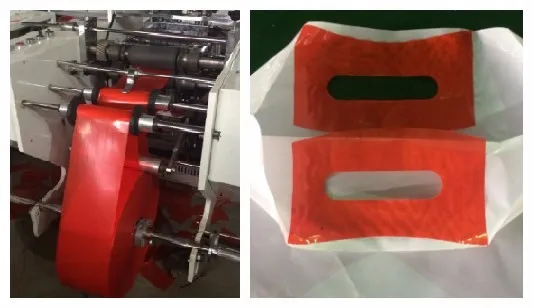

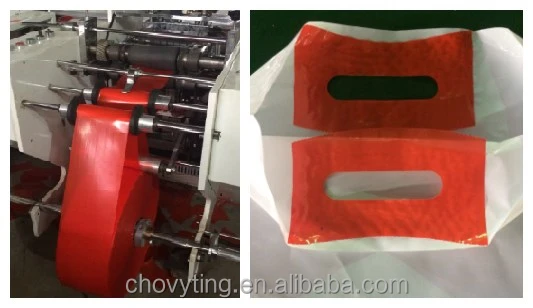

Patch handle device
1)One pcs servo motor control feeding
2)Turnabout cylinder control patch
3)With flying knife cutting fast，so the patch film is Circular arc

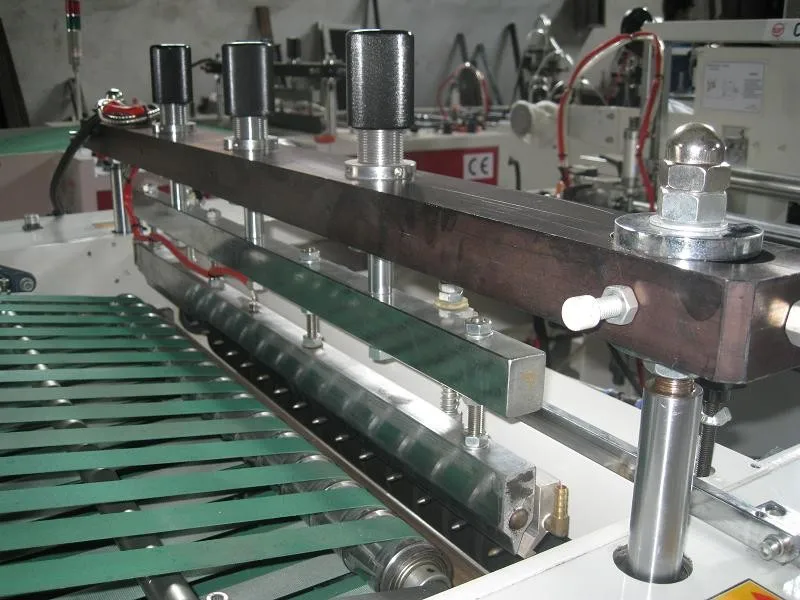

Side sealing parts
1)Side sealing knife principal axis transmission belt cylinder lifting and down.
2)Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3)Side sealing knife with concealed style heating tube, temperature steady
Convey collect device
1)Collect table adopt automatic collecting bag feeding.
2)When the bag reach to a certainty quantity, collect table will move automatically, and continue producing.

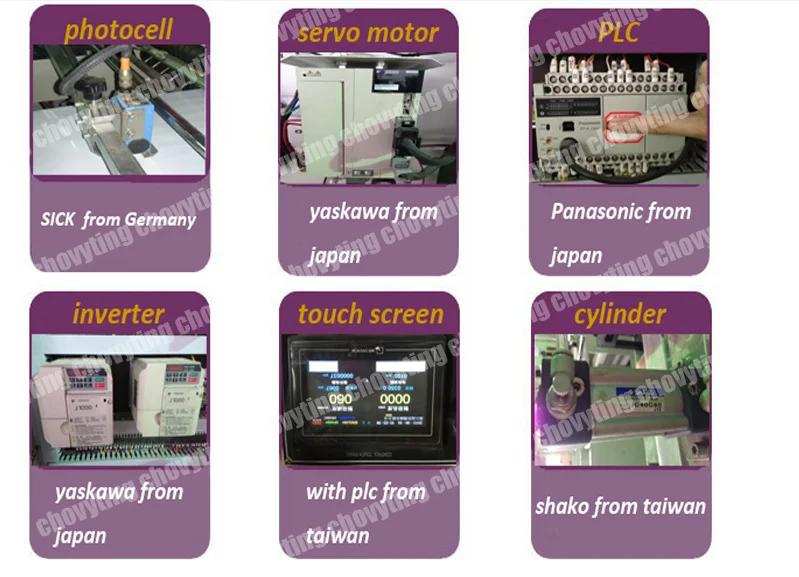

Main Parts
Packing & Delivery

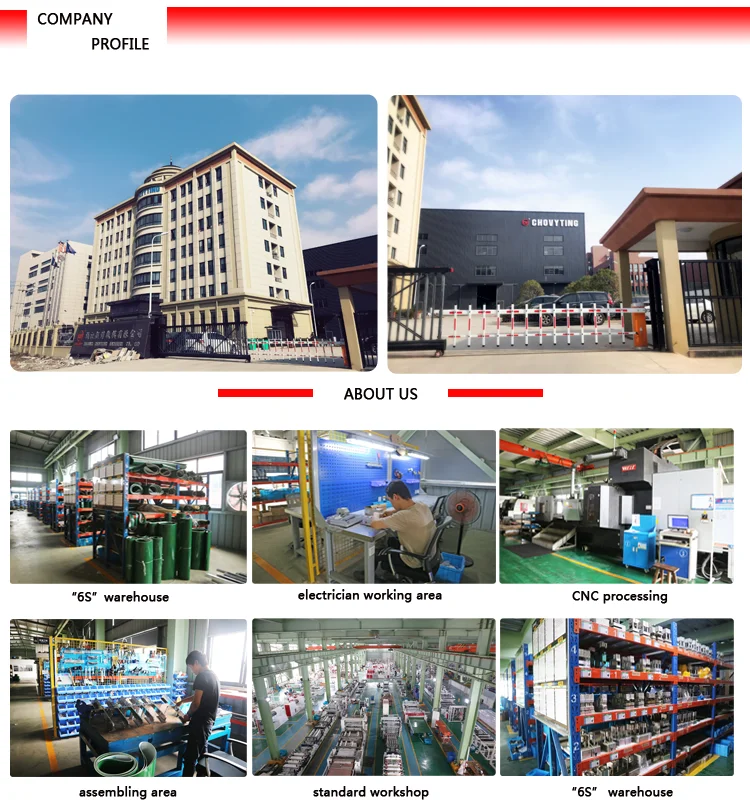

About Our Company
FAQ
Q1-Is your company a factory or a trading company?
A1- We are a factory
Q2-Where is your factory? How can I visit your ompany?
A2-Our factory is located in Ruian city,Zhejiang province,China.It is about 40 minutes from Shanghai by plane(5hours by train).All our clients from home and abroad are warmly welcome to visit us.
Q3-What’s the suitable material for your machines?
A3-PE,OPP,Composite material,etc.
Q4-What’s type machines do you have?
A4-Film blowing machine,printing machine,bag making machine,recycling machine,laminating machine,slitting machine.
Q5-How many years of your factory?
A5-Our company since 1999 till to now.
Q6-What’s certificate of machine do you have?
A6-CE,ISO2008.And more than 30 piece Patent of machine.
Q7-What about the development of your company?
A7-Titled as”National key and new products” and Pass identification of the provincial new product,and honored as”patent model enterprise”.
Q8-How many agent your company have?
A8-We have agent from Chilet,Turkey,Ukrian,South Africa,Egypt etc...
