Bestime produces the crane load testing water filled weight bags, professional storage TPU, PVC water tank, pillow bladder tanks, fuel bladder tank, chemical bladder tank used for the fluid storage, water treatment, forest fire, drinking potable water storage, oil, chemical and other application.



Product Description

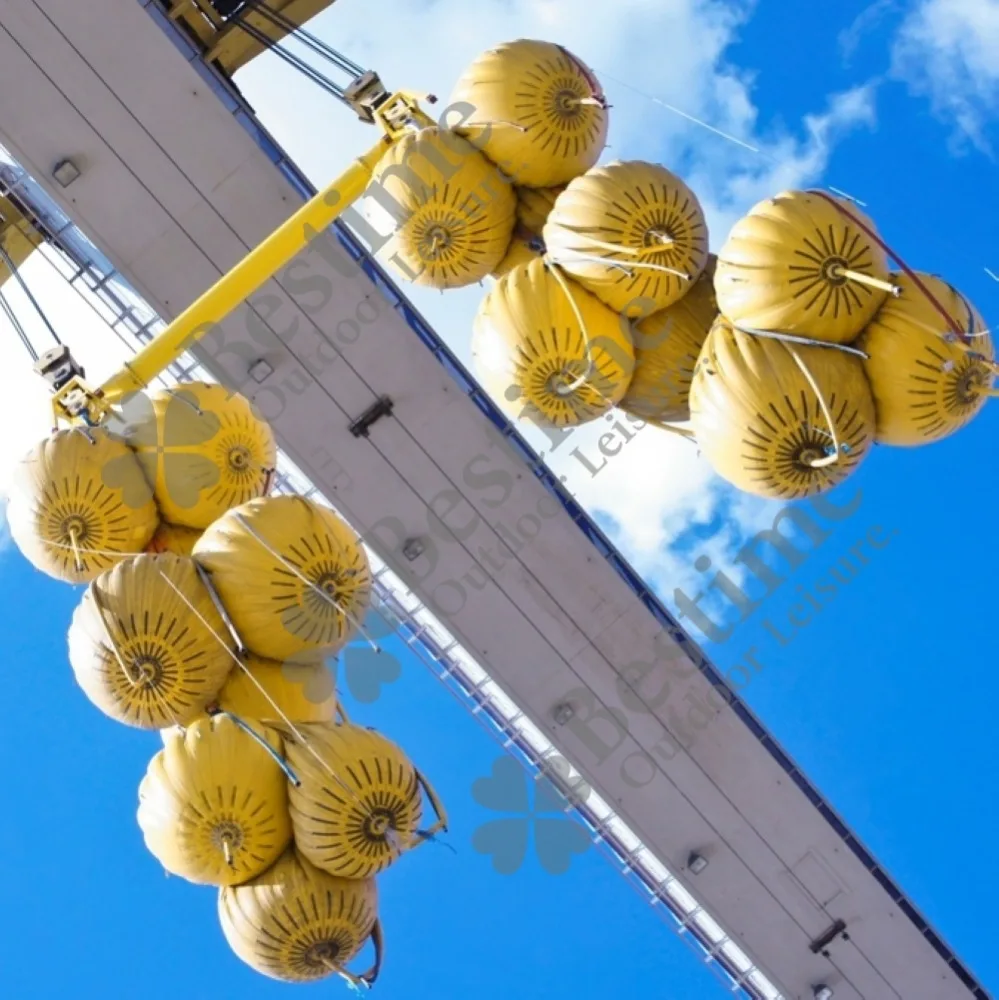

Load test water bags is designed for the proof load testing for the lifting equipment and structures that request proof load testing weight when it's newly finished, or periodic check or maintenance. Such as crane load testing, beam load testing, davit water load testing, derrick water load testing, overhead proof load testing. This water filled proof load bags offer one kind innovative water load test weight solution with the advantages of Safety, Economy, Convenience, High Efficiency.

Bestime water weight proof load test water bags are made of heavy duty coating fabrics, equipped with all necessary filling/drain hose components and valves, master links, shackles, lifting belts, and incorporating with some innovative design. All these features with the competitive price make Bestime crane test water weight bags as the first choice.



The following is the specifications for you reference:

Model(ton)	Full Load Weight(KG)	Volume(m³)	Height(m)	MAX Diameter(m)	Weight(kg)	Packing size(m)
SWL-0.25	250	0.25	1.2	0.8	8	0.6*0.6*0.5
SWL-0.5	500	0.5	1.5	1	10
SWL-1	1000	1	1.8	1.2	19
SWL-2	2000	2	2.3	1.5	22
SWL-3	3000	3	2.7	1.8	28
SWL-4	4000	4	2.9	1.9	52	0.7*0.8*0.6
SWL-5	5000	5	3.3	2.3	67
SWL-6	6000	6	3.4	2.4	84
SWL-8	8000	8	3.6	2.5	104
SWL-10	10000	10	3.9	2.7	108	1.02*1.02*0.7
SWL-13	13000	13	4.2	2.9	150
SWL-15	15000	15	4.4	3	160
SWL-20	20000	20	6	3.5	175	1.2*1.2*1
SWL-25	25000	25	6.1	3.9	198
SWL-30	30000	30	6.5	4.1	220	1.4*1.2*1
SWL-35	35000	35	6.8	4.3	260
SWL-40	40000	40	7.4	4.5	275
SWL-45	45000	45	7.5	4.7	300	1.8*1.2*1
SWL-50	50000	50	7.7	5.1	350
