The wholesale price of waterproof ultrasonic sensor and ultrasound transducer
Product Description
Parameter
Model No.
JYD-1012P
JYD-1018P
JYD-1024P
JYD-1030P
JYD-1036P
JYD-1040P
JYD-1048P
Ultrasonic power(w)
600
900
1200
1500
1800
2000
2400
Transducer quantity(pcs)
12
18
24
30
36
40
48
Ultrasonic frequency (KHz)
17/20/25/28/40/53/68/80/100/132/170/200Khz
Material
SUS304 or SUS316L 2.0-3.0mm thickness chrome coated
Power supply
AC220V±10% 50/60Hz or AC220V±10% 50/60Hz
Transducers box dimension (mm)
350*300*100
450*300*100
550*400*100
580*450*100
600*500*100
650*550*100
700*600*100
Application

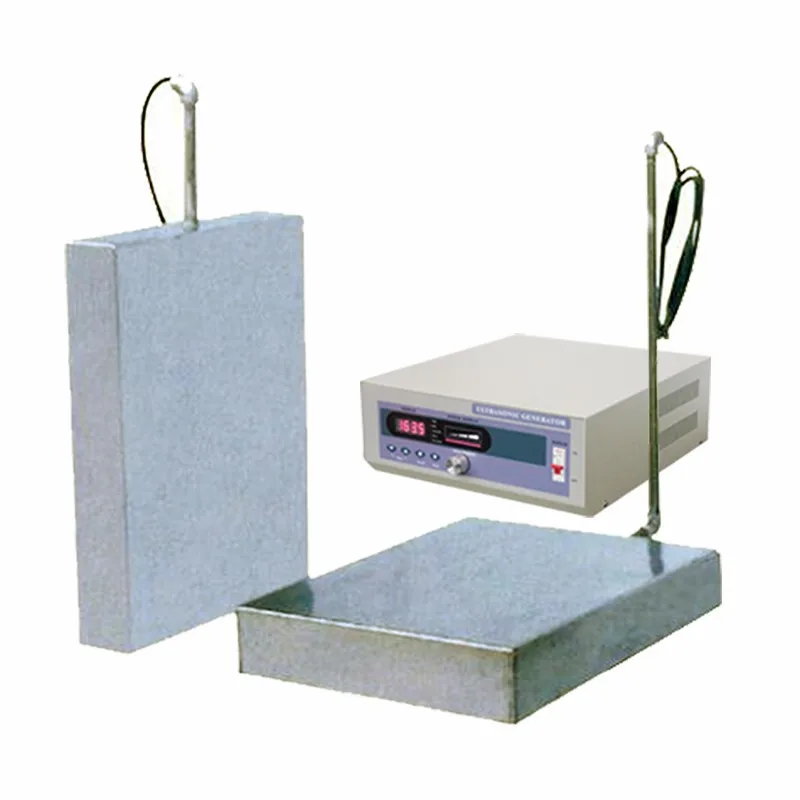

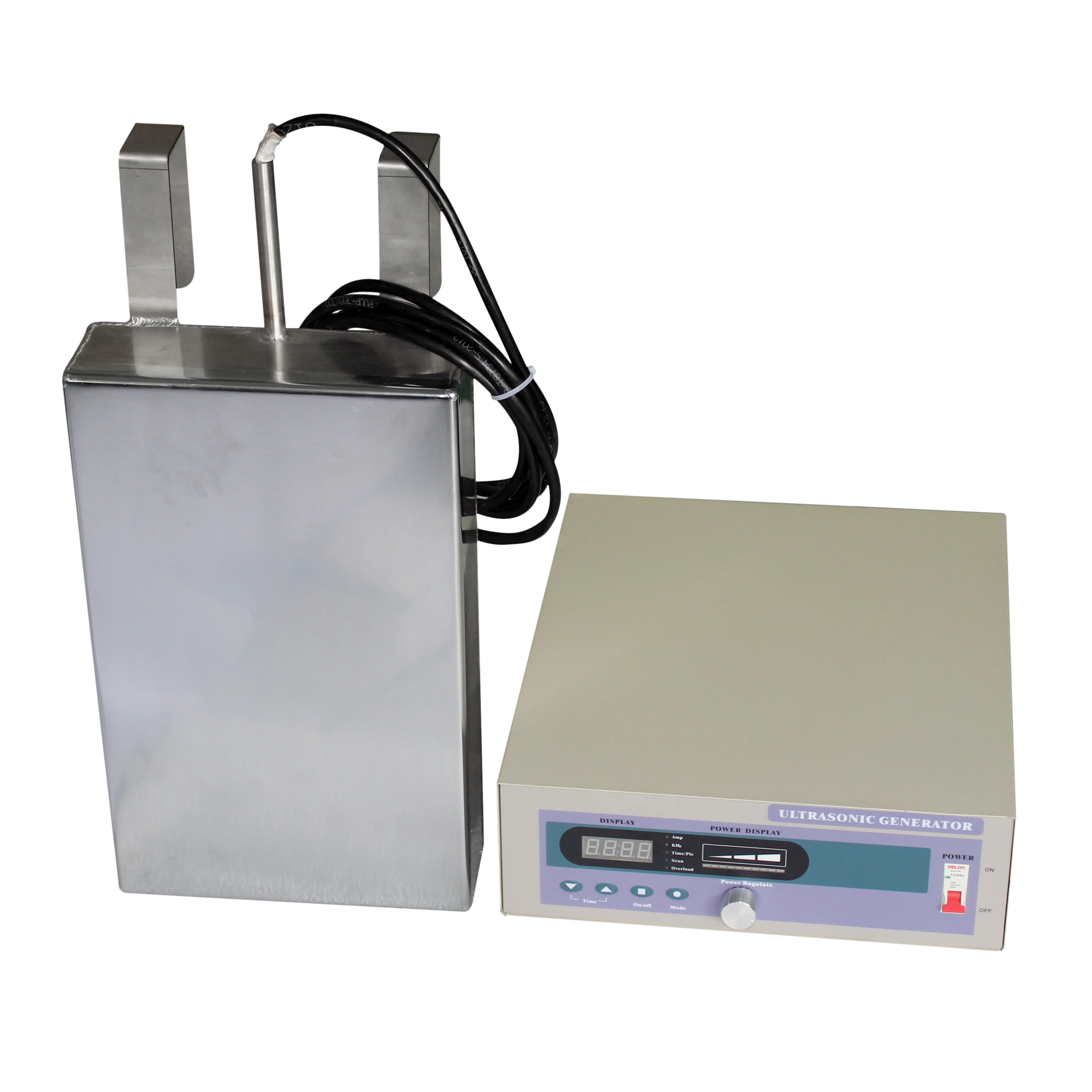

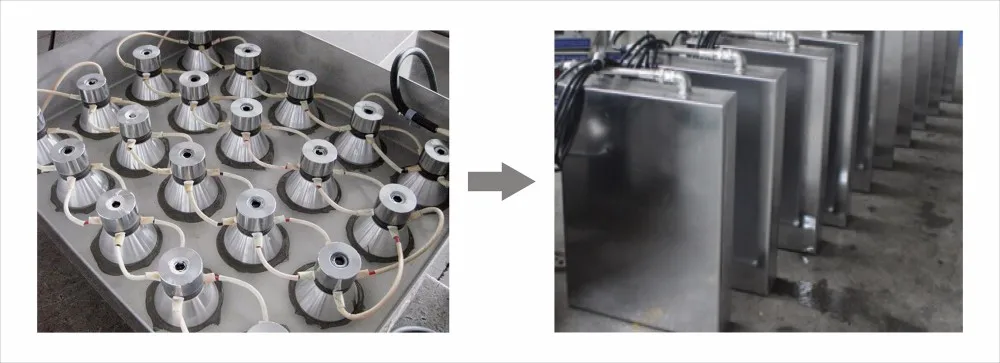

The immersible transducer box and generator are separate but work together to operate ultrasonic cleaning process, The Transducer box immersible be mounted in fluid tank.

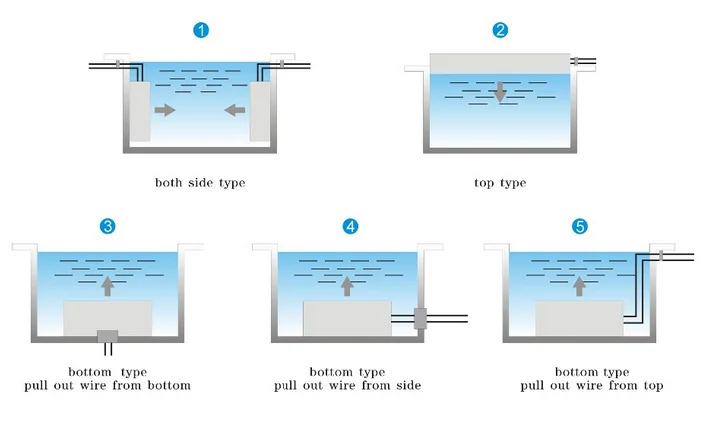

Immersible ultrasonic transducer unit can be installed in the tank by three ways: side, top and bottom.
Features
1.The ultrasonic cleaning device is composed of the immersible ultrasonic transducer and generator. If ultrasonic cleaning machine of the standard model cannot be applied to a specific working environment, you can also make immersible ultrasonic transducer pack according to customizing special specifications. The working positions can be installed to fluid tank top side, bottom side or both side to achieve different cleaning effects.
2.It is of an all stainless steel structure, acid- and alkali-resistant, beautiful and durable. Strong acid- and strong alkali-resistant titanium plate material is used to reinforce and tighten welding.
3.It is welded with thick 316L stainless steel, which has good sealing performance.
4. It uses Japanese Fuji chip oscillator, which has high ultrasonic power.
5.The ultrasonic generator and immersible transducer are connected with separated high frequency wires, which is convenient for repair and maintenance.
6 .It can work continuously for 24 hours, which is suitable for mass production.
