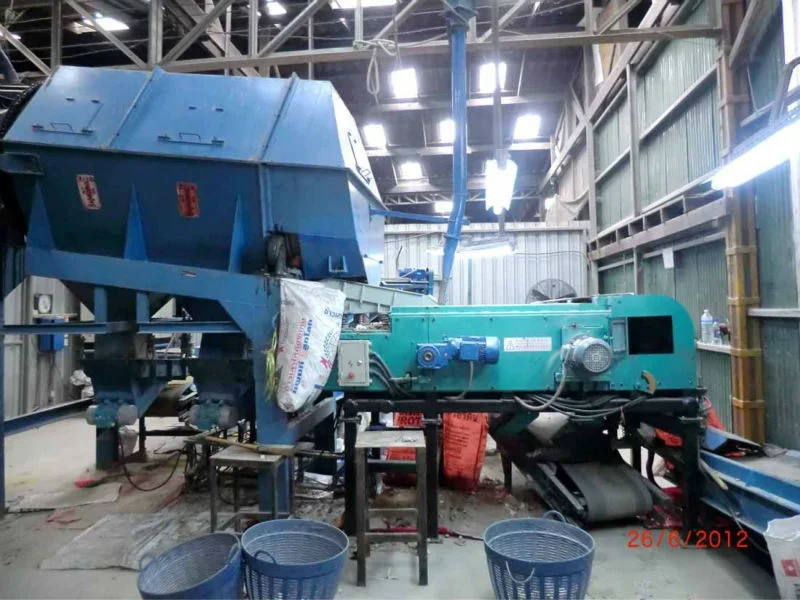

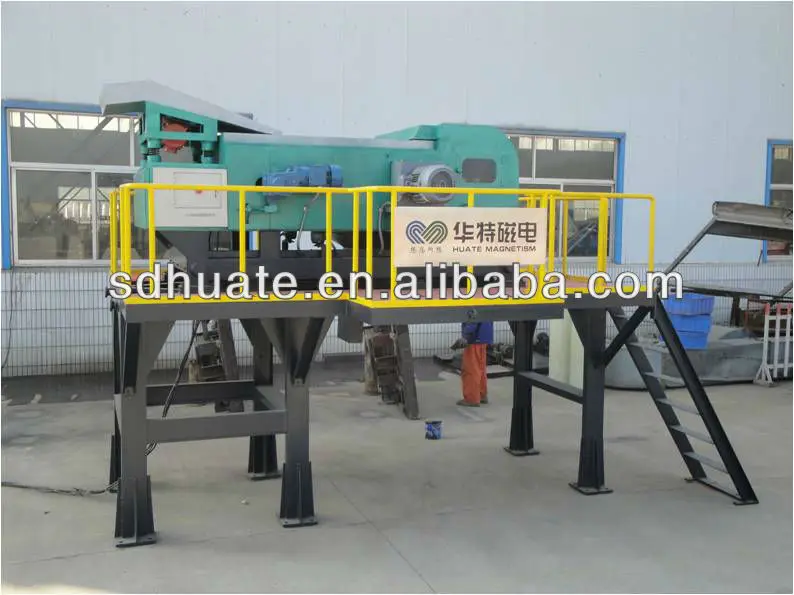

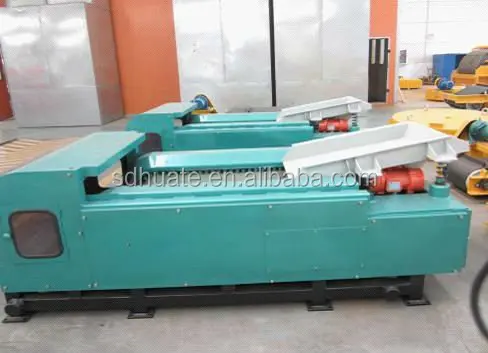

Сильный магнитный сепаратор тока для восстановления металла
- Category: Mineral Separator >>>
- Supplier: Shandong Huate Magnet Technology Co. Ltd.
Share on (60484593570):
Product Overview
Description
Product Description
Application:

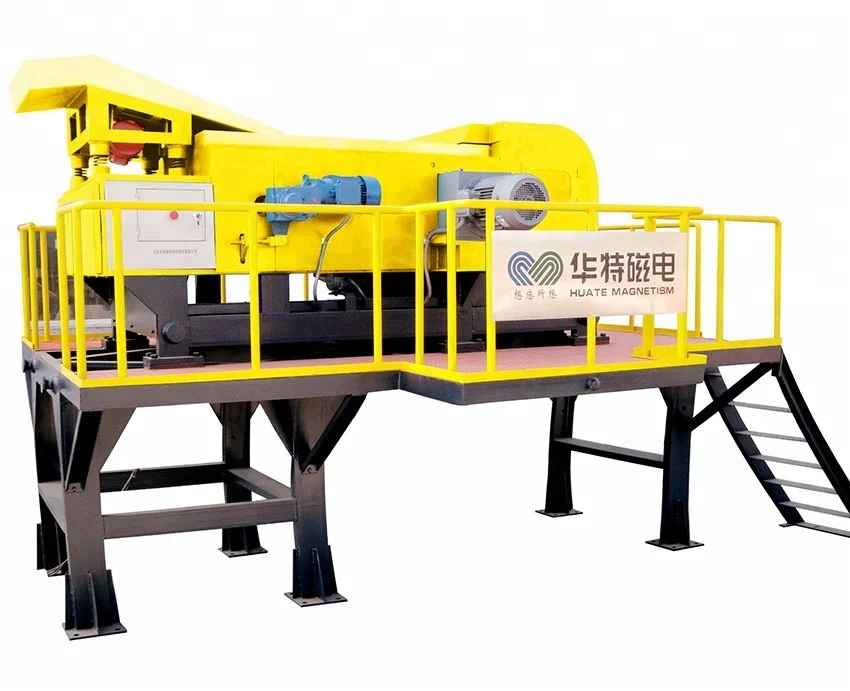

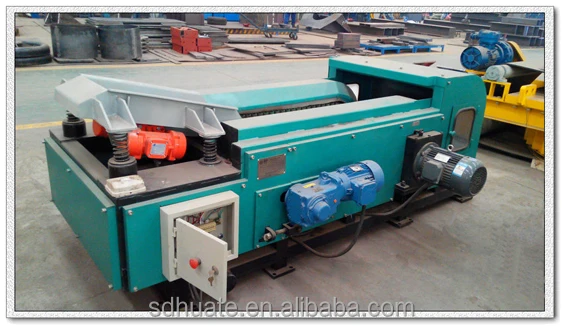

HTECS series strong magnetic field eddy current separator is a new product self-developed by our company. It is widely used for the recycling of non-ferrous metal (such as aluminum, copper etc.) in the waste recovery, sorting of waste recycling, sorting of electronic waste and other industries, with wide application range.
Technical Features
1. Simple structure, high separating efficiency and long service life.
2. High magnetic field strength, big action gradient and good separating effect.
3. The rotary speed of the magnetic drum is adjustable.
2. High magnetic field strength, big action gradient and good separating effect.
3. The rotary speed of the magnetic drum is adjustable.
Technical Specifications
Model No. | Belt width (mm) | Magnetic field intensity (GS) | Drum diameter (mm) | Drum speed (r/min) | Belt speed (m/s) | Capacity (m³/h) | Drum drive power (kW) | Belt drive power (kW) | ||||||||
HTECS-3 | 300 | ≥3000 | 320 | 50~2880 | 0~2 | 2~3 | 4 | 1.1 | ||||||||
HTECS-4 | 400 | 3~4 | 4 | 1.1 | ||||||||||||
HTECS-5 | 500 | 4~5 | 4 | 1.1 | ||||||||||||
HTECS-6 | 600 | 5~6 | 4 | 1.1 | ||||||||||||
HTECS-6.5 | 650 | 5~7 | 4 | 1.1 | ||||||||||||
HTECS-7 | 700 | 6~8 | 5.5 | 1.1 | ||||||||||||
HTECS-7.5 | 750 | 7~9 | 5.5 | 1.1 | ||||||||||||
HTECS-8 | 800 | 8~10 | 7.5 | 1.1 | ||||||||||||
HTECS-10 | 1000 | 9~11 | 7.5 | 1.5 | ||||||||||||
HTECS-12 | 1200 | 10~12 | 11 | 2.2 | ||||||||||||
HTECS-14 | 1400 | 12~14 | 11 | 2.2 | ||||||||||||
HTECS-15 | 1500 | 13~15 | 11 | 2.2 | ||||||||||||
HTECS-20 | 2000 | 17~20 | 15 | 3 | ||||||||||||
Feed size: 5~120 mm Separation frequency: 0~60Hz | ||||||||||||||||

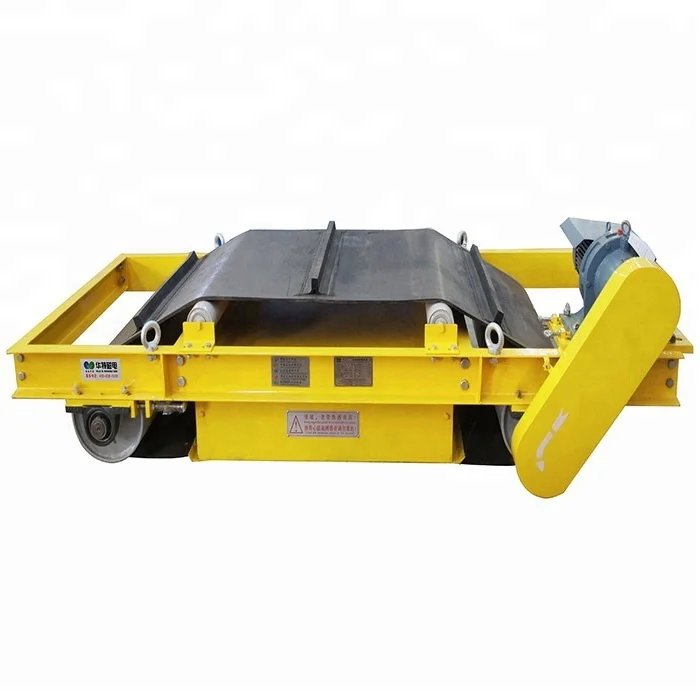

Related Products

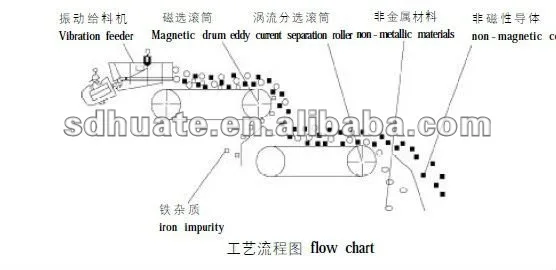

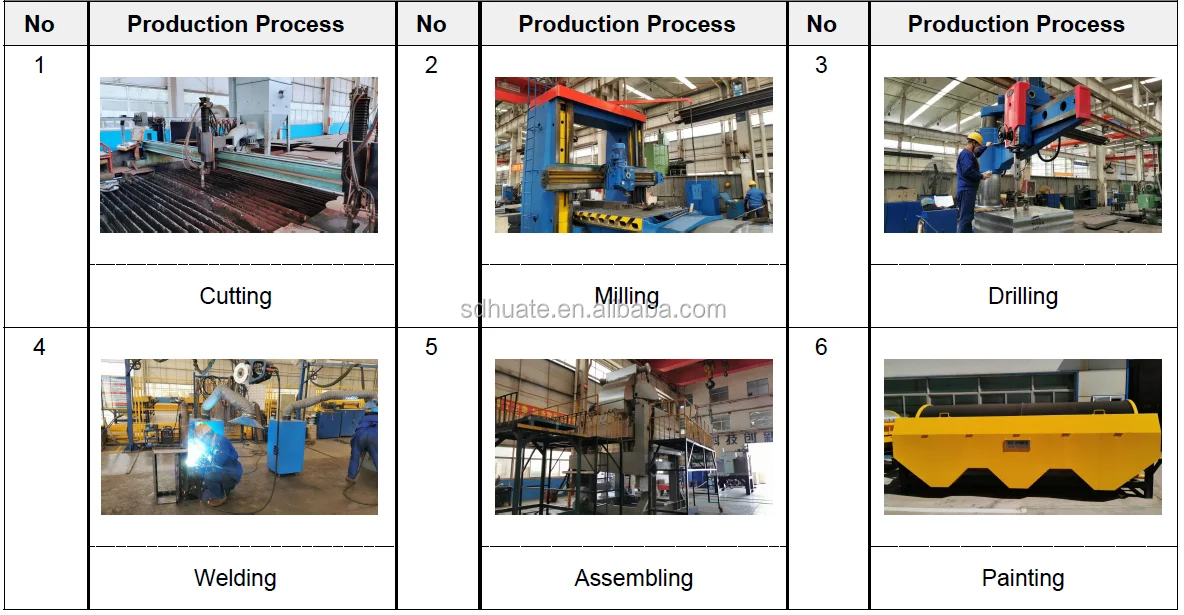

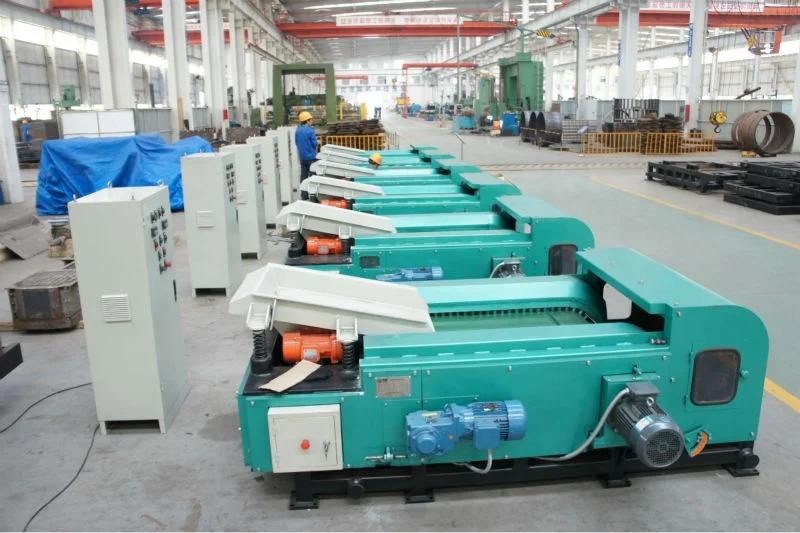

Production Flow
Company Profile
HuaTe, engaged in R & D, manufacturing and technical services of electric-magnetic separation equipment for nearly 30 years, providing customers with packaged solutions. The company specializes in the design, manufacture and supply of superconducting magnetic separator, high gradient magnetic separator, drum magnetic separator, iron separator, mineral processing line, magnetic stirrer, non-ferrous metal separation equipment, non-metallic mineral processing equipment, ocean & lake ecological equipment and so on more than 9 categories, 80 series and more than 700 models. Our service scope involves coal, mine, electricity, building material, metallurgy, port, environmental protection and so on more than 10 fields. With more than 15,000 customers, our equipment are exported to the USA, Germany, Japan, Italy, Norway, South Africa, Brazil, India, Pakistan and many other countries.

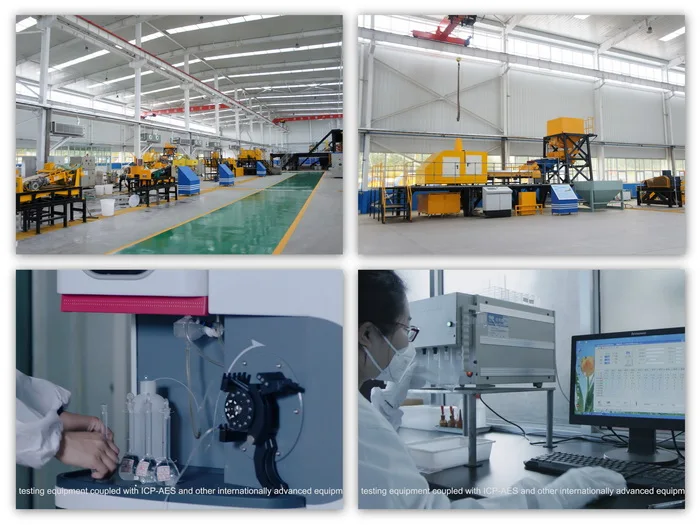

Laboratory Testwork
* Our laboratory center covers an area of 8,600 square meters. Through scientific research and testwork of sensor based technology with artificial intelligence, superconducting magnetic separation technology, electromagnetic and permanent magnetic separation and recycling application technology, the laboratory is committed to providing scientific guidance and application demonstration, and training of key talents for the development of the global mineral processing and sorting industry.
* The laboratory center is equipped with material testing area, crushing and grinding area, superconducting magnetic separation area, sensor based sorting area, dry magnetic separation test area, wet magnetic separation test area, flotation and gravity separation area, semi-industrial continuous separation test complete line and powder complete processing test line etc, with complete processing equipment, testing and analysis instruments, and product test conditions.
* The laboratory center is equipped with material testing area, crushing and grinding area, superconducting magnetic separation area, sensor based sorting area, dry magnetic separation test area, wet magnetic separation test area, flotation and gravity separation area, semi-industrial continuous separation test complete line and powder complete processing test line etc, with complete processing equipment, testing and analysis instruments, and product test conditions.
After-Sales Service
“Create value for customers wholeheartedly” has always been HuaTe’s mission since its establishment. With our top tier installation team and professional after-sale service, we will always place both product quality and our customers at our ultimate priority. Where there are our products, there will be HuaTe’s service, and our brand has left a deep impression on our customers all over the world.
