plastic cover fan finger guard for 120mm fan (P120 2)

Product Overview

Description



plastic cover fan finger guard for 120mm fan (P120-2)



Model			Aperture  Diameter	Aperture Distance	Length & Width	Thickness
			(mm)	(mm)	(mm)	(mm)

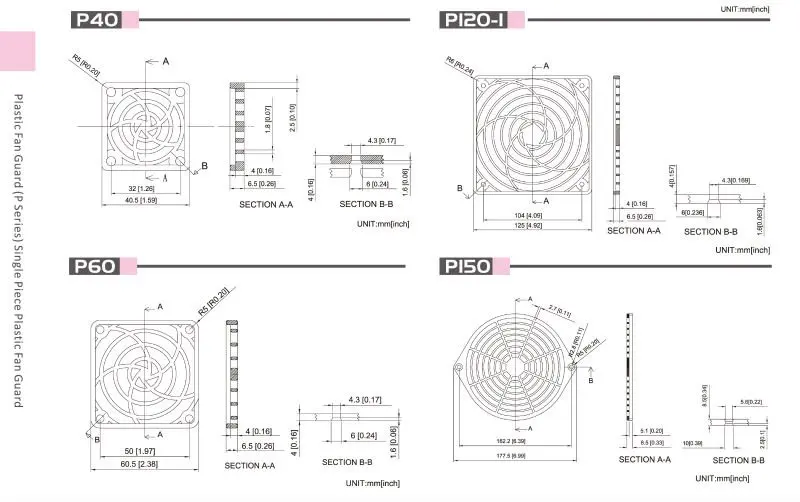

P40 (40x40mm)			4.3	32	40.5	6.5
P50 (50x50mm)			4.5	50	60.5	6.5
P60 (60x60mm)			4.3	50	60.5	6.5

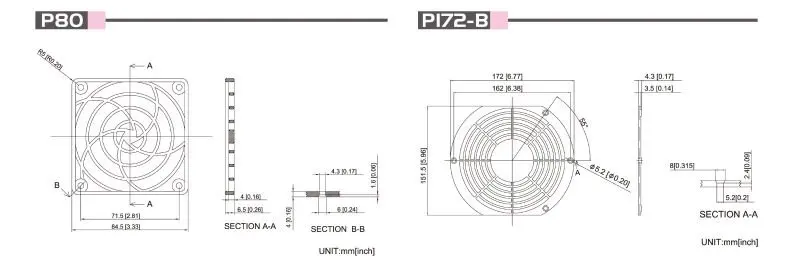

P80 (85x85mm)			4.3	71.5	84.5	6.5

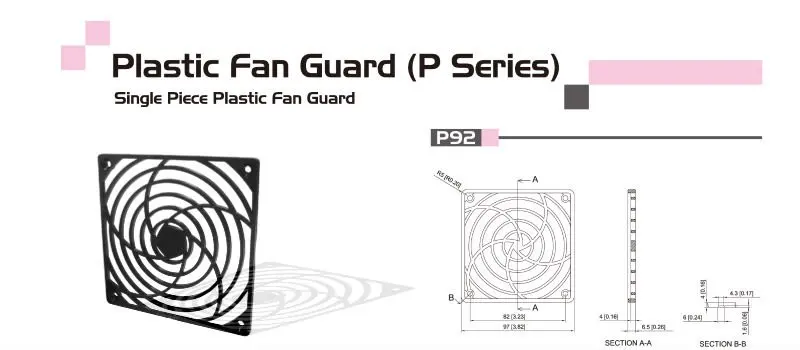

P92 (97x97mm)			4.3	82	97	6.5
P120 (125x125mm)			4.2	104	125	6.5
P150 (Ø154x177.5mm)			5.6	162	154	8.5
P172 (Ø175.5x155mm)			4.4	161.5	175.5	7.8















Company profile:



 Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.



We provide following products:



AC Axial Fans & Blower	DC Axial Fans & Blowers	AC Cross Flow Fans
DC Cross Flow Fans	AC Sirocco Blowers	AC Centrifugal Fans & Blowers
DC Centrifugal Fans & Blowers	EC Centrifugal Fans & Blowers	Air Curtain
EC Axial Fans	Fan Accessories	EC Stand Fan
Blade	Misting Fan





































Our factory:











 Our certificate:
