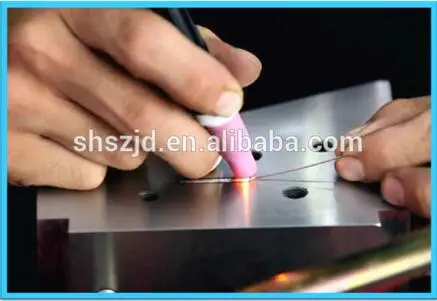

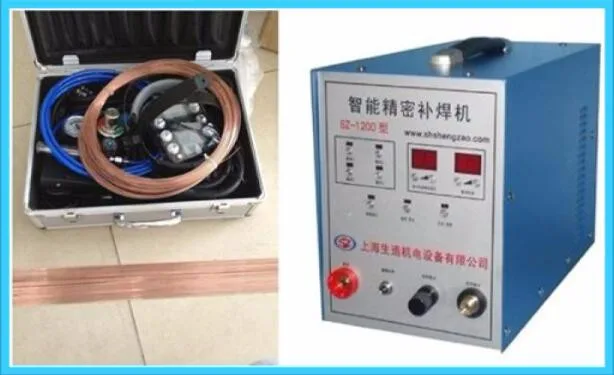

SZ 1200 stainless steel spot welding machine

1. Small heat affected zone while welding
2. No need preheating processing, no need annealing for the work pieces after welding
3. No deformation and edge after welding
4. No air hole and sand holes after welding
5. Precise and accurate: can weld very small and precise part, the finest wires used for welding can be 0.10mm-0.20mm

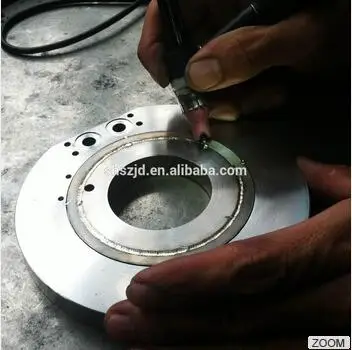

6. It is convenient and flexible for welding, site repair is also available
7. Widely used in repair all cracks, sand holes, collapse edges, corners, abrasion, etc.
8. It is also available welding the toughing mouth of cold dies and tools. Thus exempt from the preheating, heat preservation process of ordinary arc welder

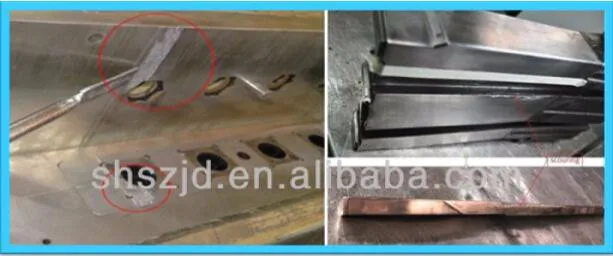

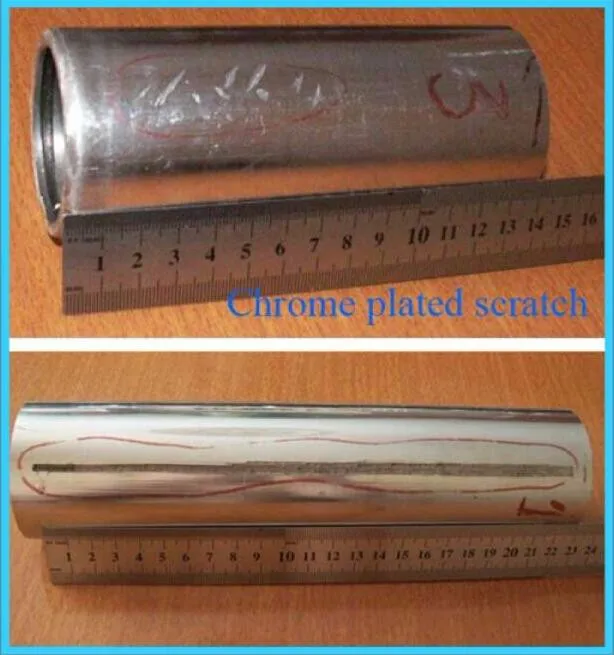

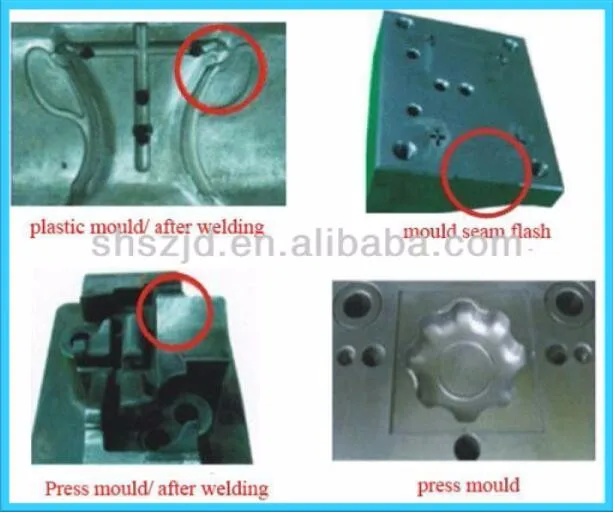

6.It can weld / repair all kinds of mould scratch, wear out, crack, abrasion, hole, etc:

How to choose suitable cold welding machine?

1. Casting iron parts, nonferrous metal parts welding/ repairing, choose ESD (electrical spark deposition) cold welding machine; (our machine model XKS-01, XKS-02, SZ-3000, SZ-08).

2. Casting steel parts, precise work pieces welding/ repairing, choose precise cold welding machine/ intimate laser welding machine. (Our machine model SZ-1200, SZ-1100).

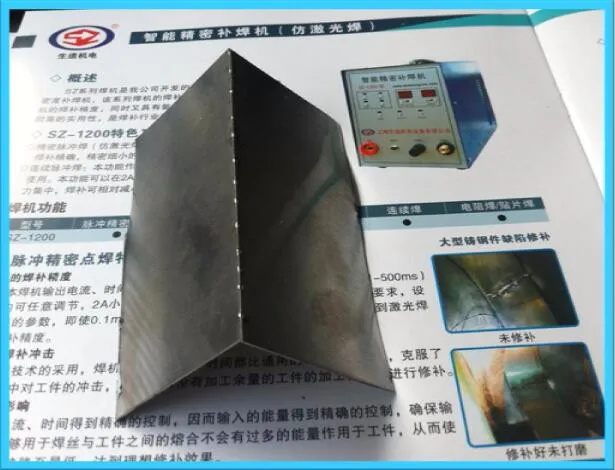

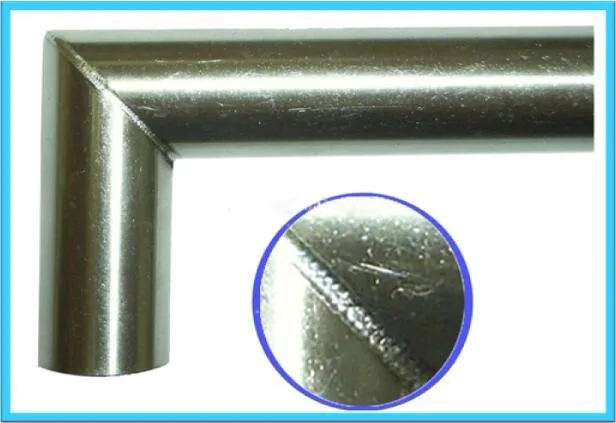

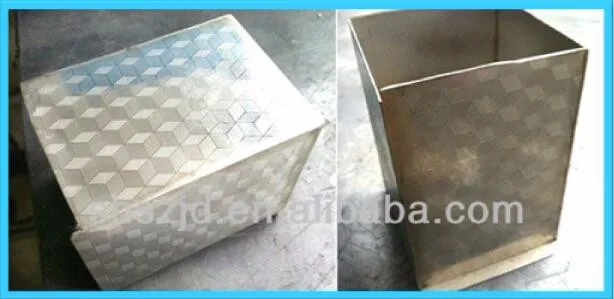

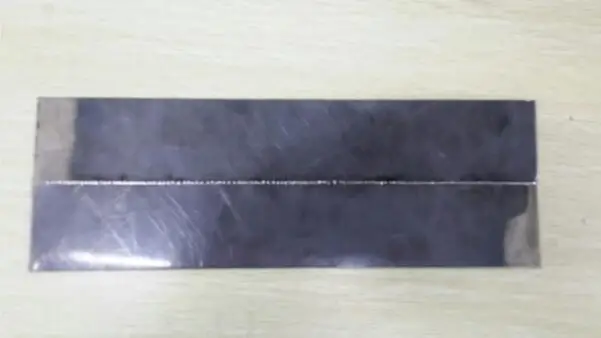

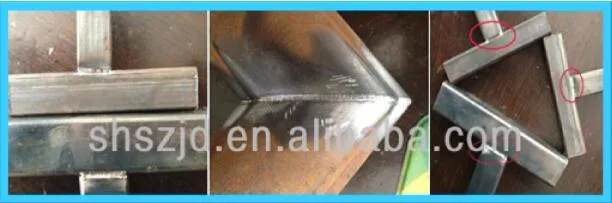

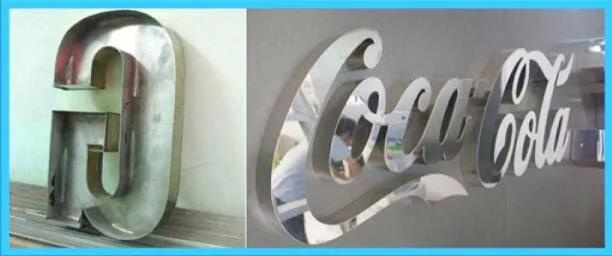

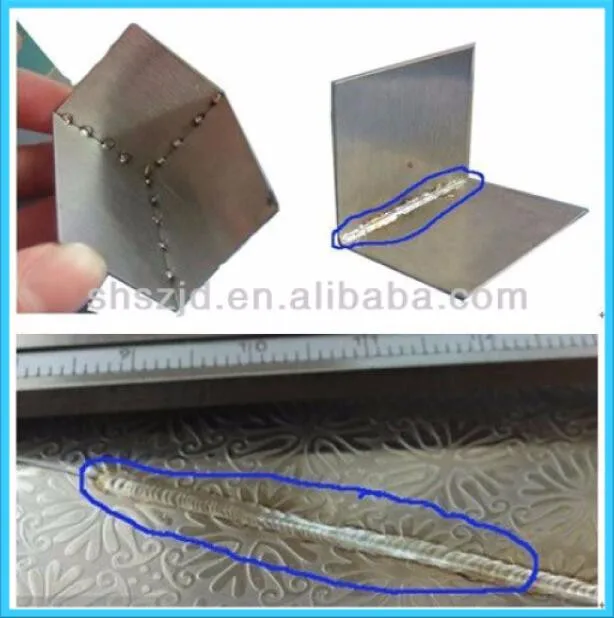

3. Soldering / welding together: only for stainless steel, steel, and aluminum sheets, choose precise cold welding machine/ intimate laser welding machine. (Our machine model SZ-1200, SZ-1100).

4. Weld mould flat surface wear out, oversize/dimension out of tolerance, choose model SZ-1200 or TXKS07-3.

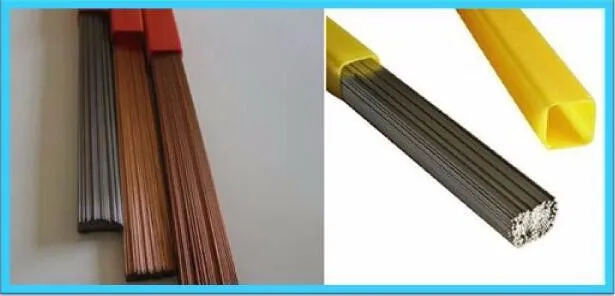

COMMON WELDING WIRE/ ELECTRODE USED IN COLD WELDING MACHINE:

750E: Nickel alloy cold cast iron wire, mainly used for repairing nodular cast iron, grey cast iron and ordinary cast iron work pieces.

Copper alloy:  suitable for copper products repair, and aluminum mold, aluminum wheels and all kinds of aluminum products repair.

700T: Nickel cast steel welding wire is low temperature resistance cast steel welding wire/electrode, mainly used for welding /soldering the engine and higher casting steel component parts.

SKD11: Weld cold working steel, stamping die, hard cutting tool and high hardness surface work pieces. This welding wire/electrode has high hardness, wear resistance and high toughness.

H13-8407: Zinc, aluminum and other non-ferrous die casting metals, also can be used for hot forging or stamping mould, can weld hot punch rolling groove, cutting knife, etc.

C12: Weld repairs blanking die, cold forming dies, cold die, etc.

S50C: Weld steel mechanical parts of medium carbon steel welding, after welding hardness is not too high, there will be no stomata, can do milling.

SKD-61: Welding aluminum, zinc die-casting, aluminum and copper heat hot die, forging die, copper aluminum die-casting mould, etc.

MLK-SCM-29: Suitable for welding nickel chromium iron alloy steel, and other nickel alloy steel.

MLK-CU-63:Suitable for welding electrolysis, copper alloy, steel, bronze, cast iron, general copper parts, etc.
