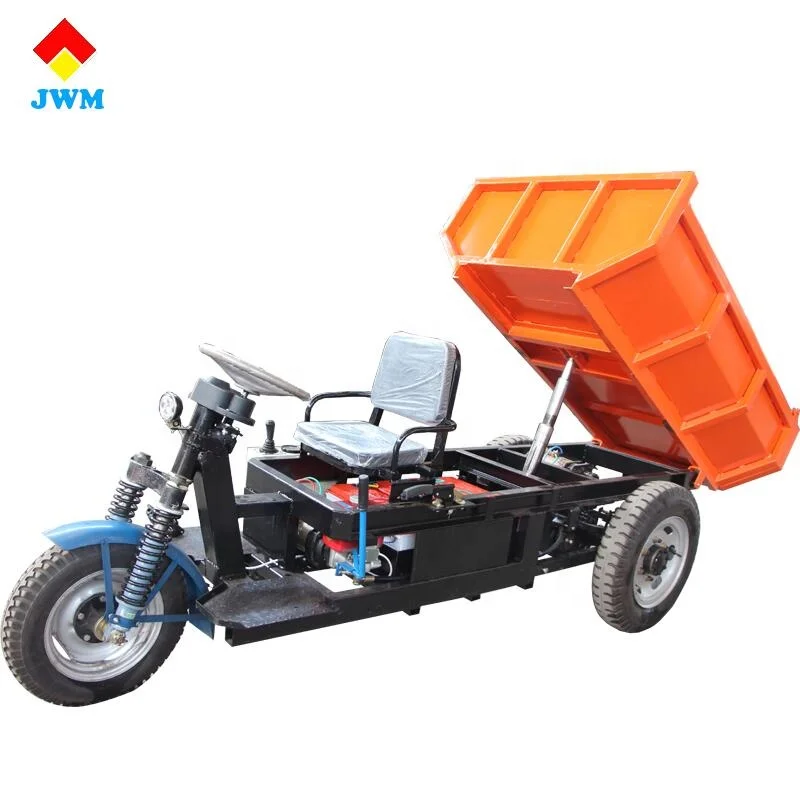

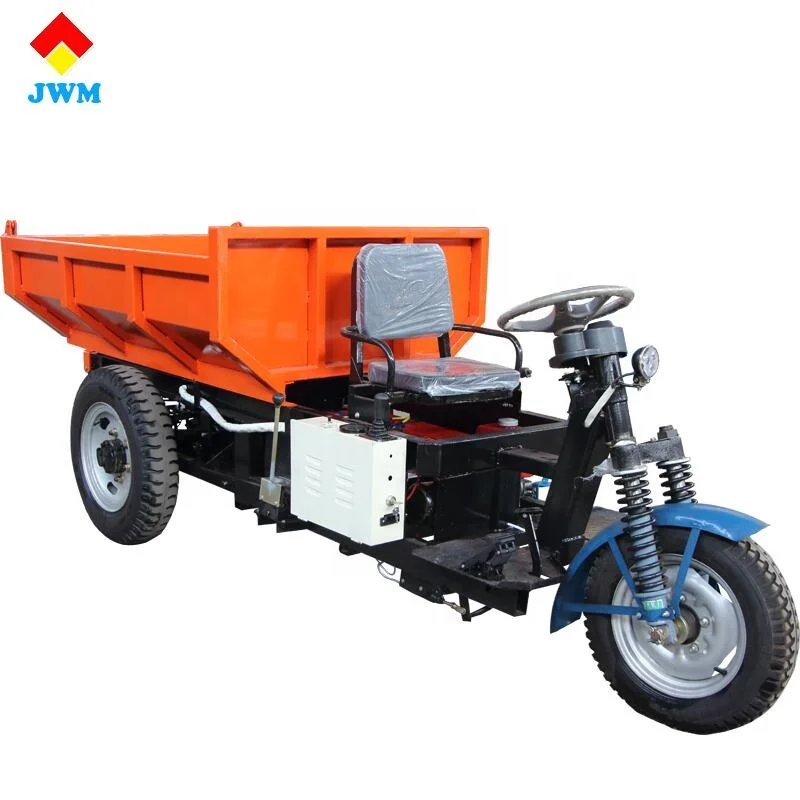

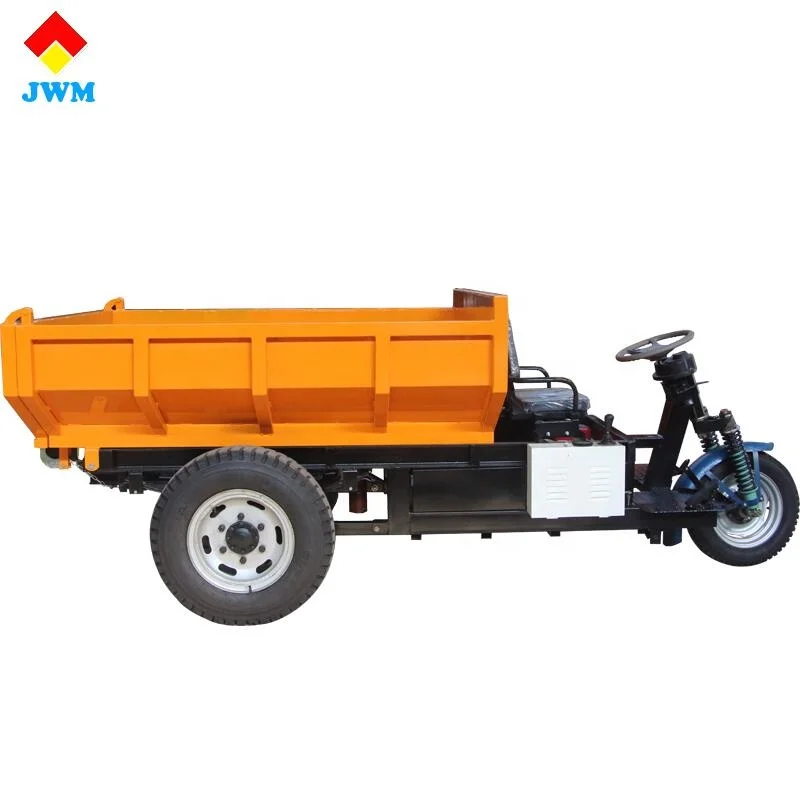

new underground mine battery mini dumper for heavy loading
- Category: Other Mining Machines >>>
- Supplier: Gongyi Xiaoyi Jinwang Machinery Factory
Share on (60486706779):
Product Overview
Description
Product Description
Underground mine battery locomotive is our main product, using electric as power source in mining, brickyard, sanitation and cleaning. The company has many years of scientific research and experience of production. We always focus on high efficiency, easy operation , first-class quality and reasonable price.
Up to present, our products are sold in Canada, Mexico, Peru, Kenya, Tanzania and so on Southeast Asian countries. And our high quality products and thoughtful after-sale service have won their praise.Welcome new and old customers buy our products.
MAIN TECHNICAL PARAMETERS OF UNDERGROUND MINE BATTERY LOCOMOTIVE | ||||||
Type | ZY155 | ZY165 | ZY180 | |||
Loading capacity | 1000kg | 1500kg | 2000kg | |||
Net weight | 520kg | 850kg | 1000kg | |||
Lifting Motor Power | 1000W | 1000W | 1000W | |||
Drive Motor Power | 1000W | 1500W | 2000W | |||
Battery model | 140Ah | 160Ah | 185Ah | |||
Voltage | 48V | 60V | 72V | |||
Overall sizes | 2600×900×1200mm | 3200×1100×1200mm | 3600×1200×1400mm | |||
Dimension of Body | 1400×900×400mm | 1700×1100×500mm | 1800×1200×500mm | |||
Tire type(F/R) | 400-12/450-14 | 450-14/500-14 | 450-14/600-16 | |||
Workbench Height | 600mm | 700mm | 720mm | |||
Rotating Speed | 3500r/min | |||||
Thickness of body | 3-5mm | |||||
Operating Speed | 15-20Km/h | |||||
Maximum Gradeability | 25 degrees | |||||
Charging hours | First with 12 hours, then normal with 8 hours | |||||
Working hours | 10 to 12 hours with a full charge | |||||
Dimension of tricycle body | ||
Length | 1800mm | |
Width | 1200mm | |
Height | 500mm | |
Main Features
1).No pollution, high performance, low loss and energy saving.
2).Easy to operate and maintain without technical training.
3).Heavy load,wide applying.
4).It is the ideal transport in mining,flourmill,brickyard,etc.
Detailed Images

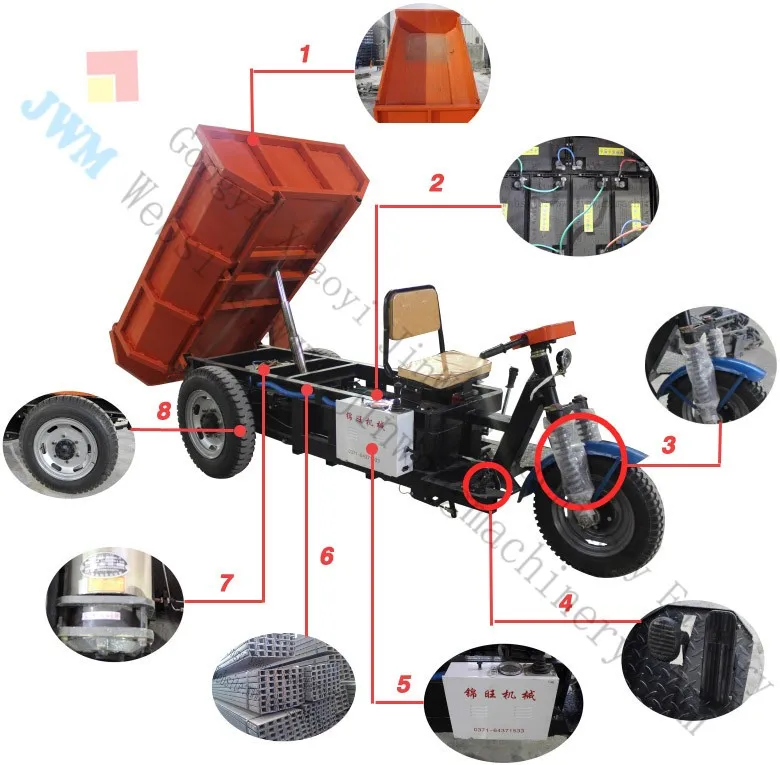

1 ----Body of tricycle 2 ----Bettery 3 ----Shock absorption system 4 ----Braking system
5 ----Coulometer 6 ----No.10 national standard channel 7 ----Motor
8 ----Tire(model of front tire:450-14 model of rear tire:600-15)

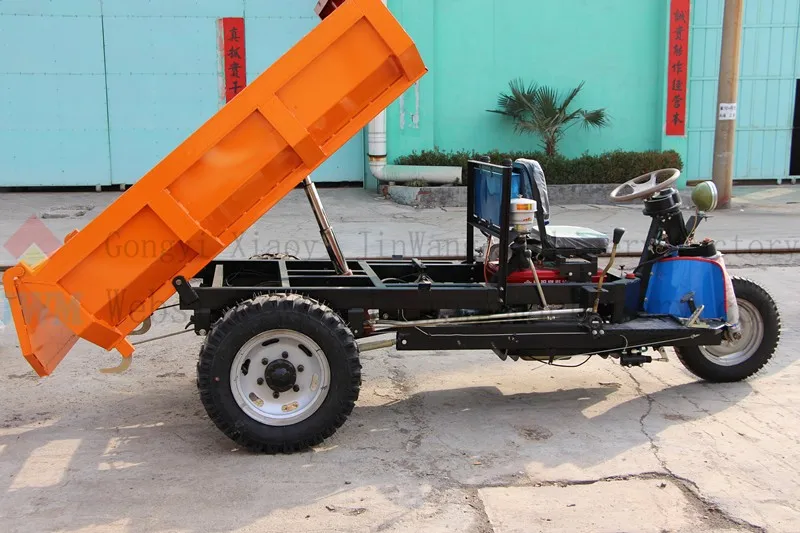

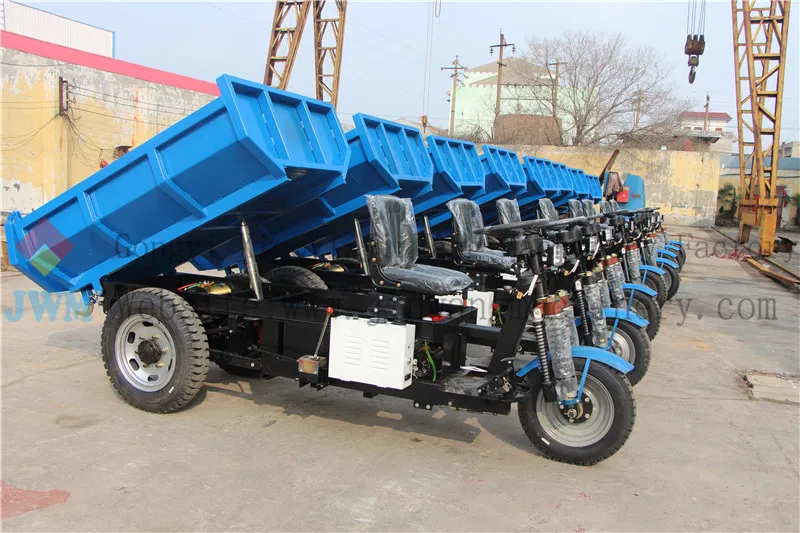

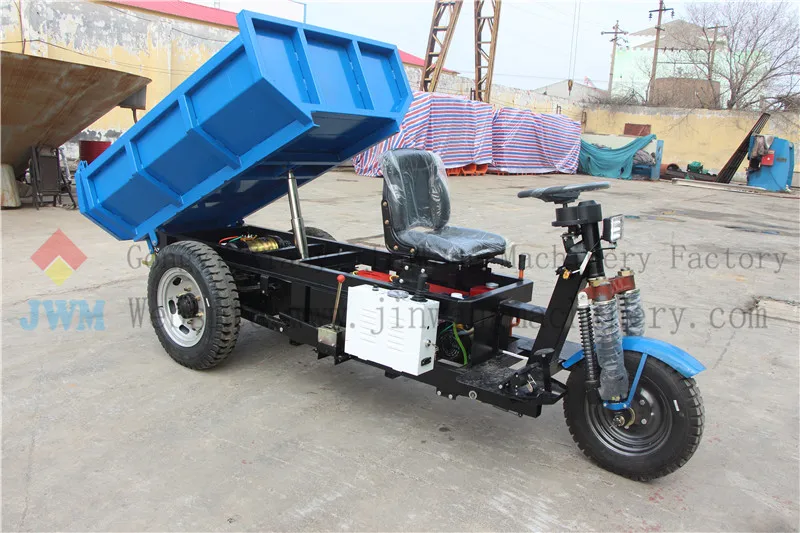

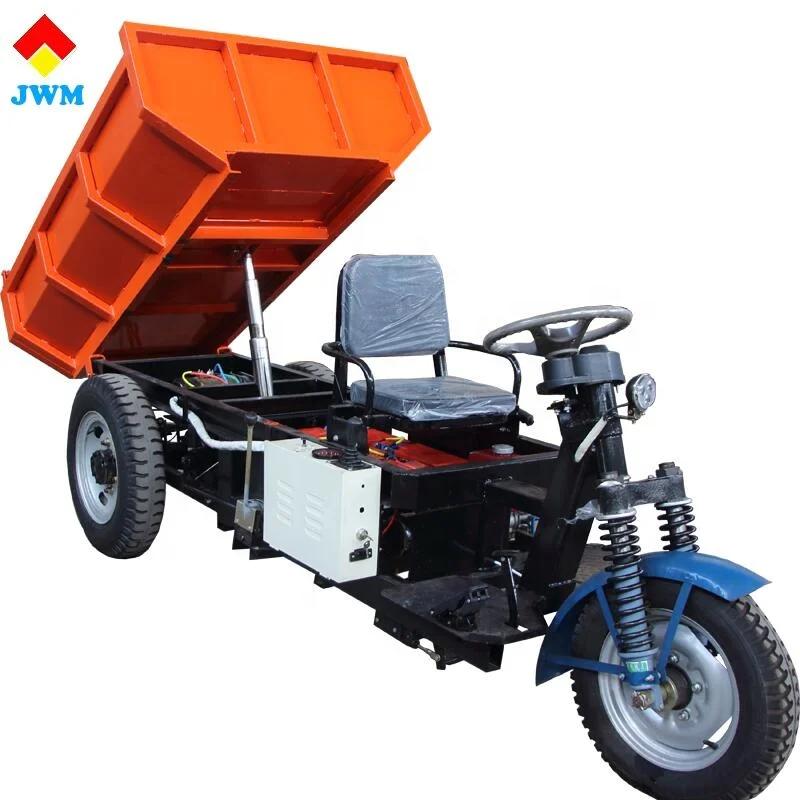

Hydraulic lift system
the hydraulic lift system can achieve the freedom of dumping cargo, so that it can save time, manpower and material resources for improving work efficiency.

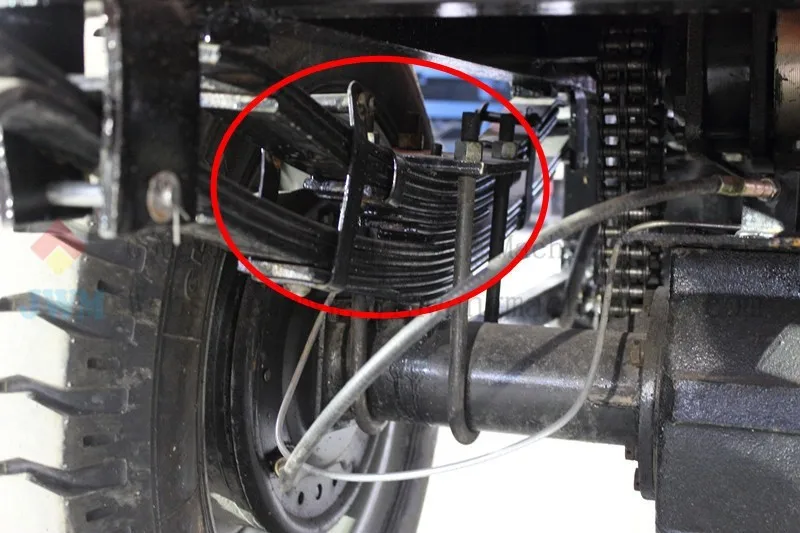

Steel spring plate:
①Because all of them have the steel spring plate, compared with same level of the electric dump truck, ours' maximum load can reach 2 tons.
②They are widely used not only in mine, refractory, flour mill, brick factory, furnace charge factory, flour mill, but also in the farm, garden, forest and so on.

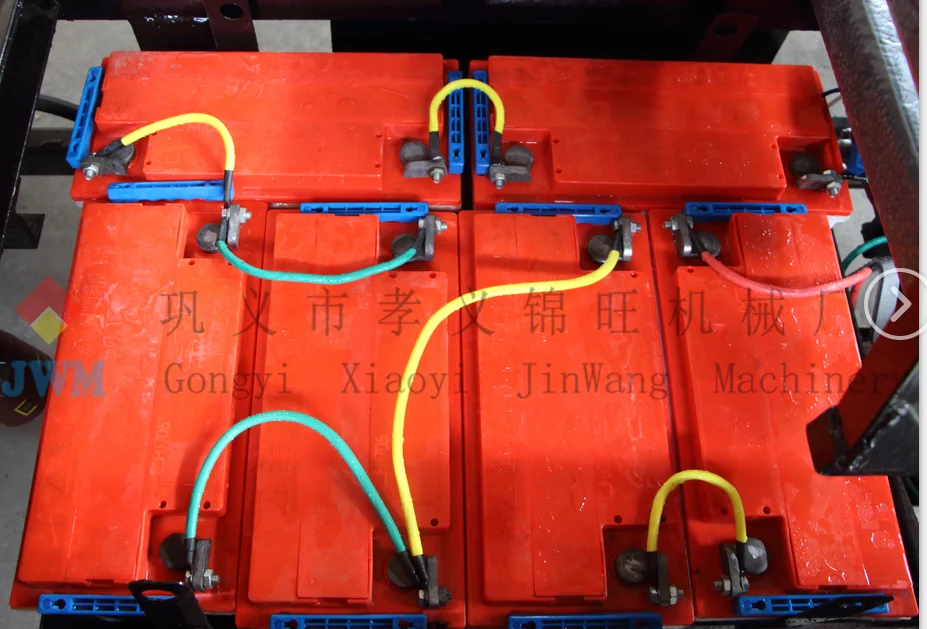

Battery:
They use electric as power source, and an electric charge can achieve sustained discharge 10-12 hours. Effectively reduce the cost.

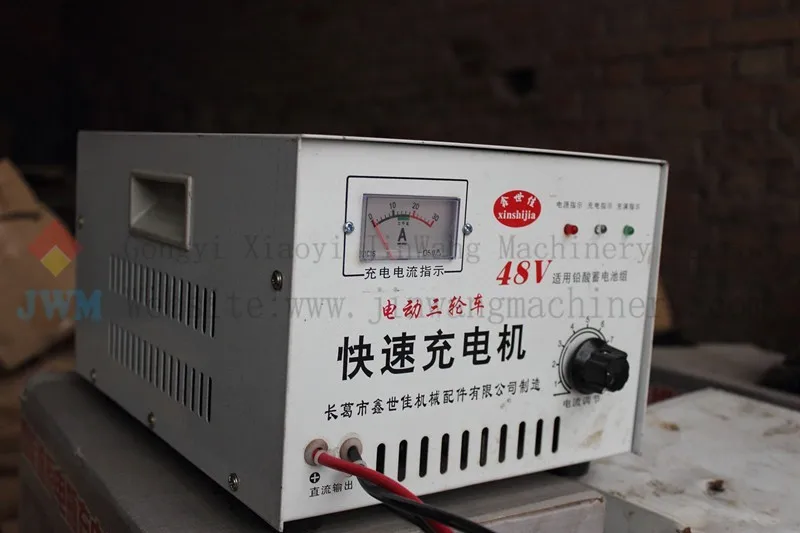

Charger:
You can use the household power 115-volt or 220-volt to charge directly for the vehicle. Charger jack is standard US socket.

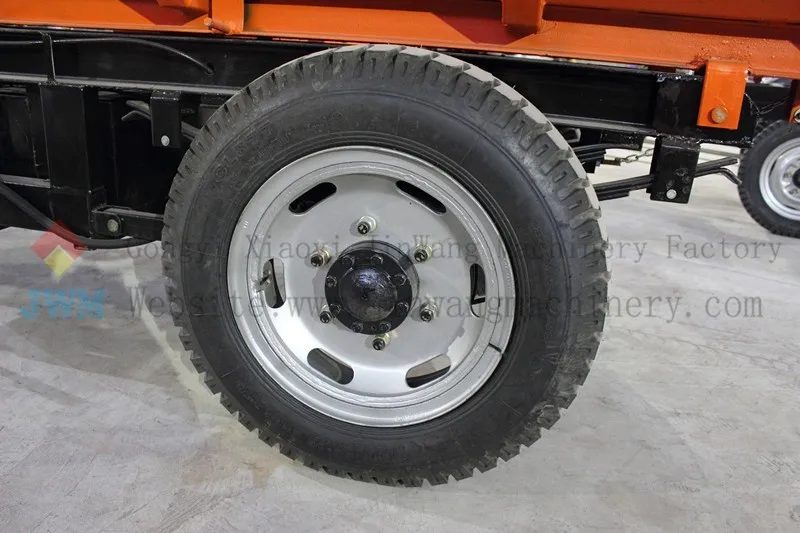

Tire:
As to tire, our factory adopts the high quality tire of chaoyang brand. It can support body, buffer external shocks, deformation under various load force and the function of the high and low temperature, ensure the security and stability of vehicle. And model of rear tire is 600-15 , model of front tire is 450-14.

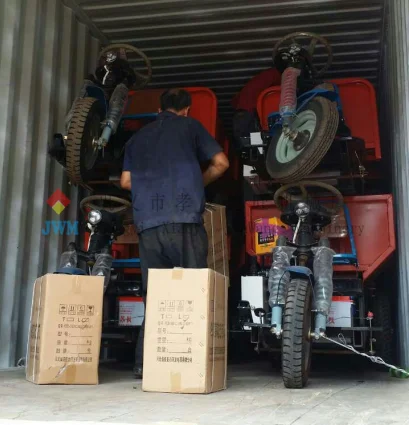

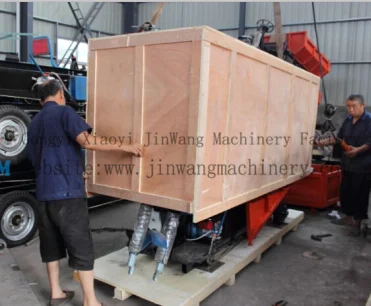

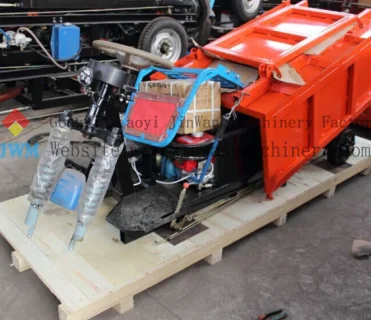

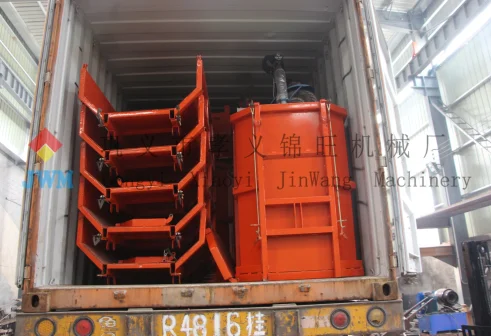

Packing & Delivery
Less than Container Load
Full Container Load
Load without knock down
Load with SKD ( Semi Knock Down )

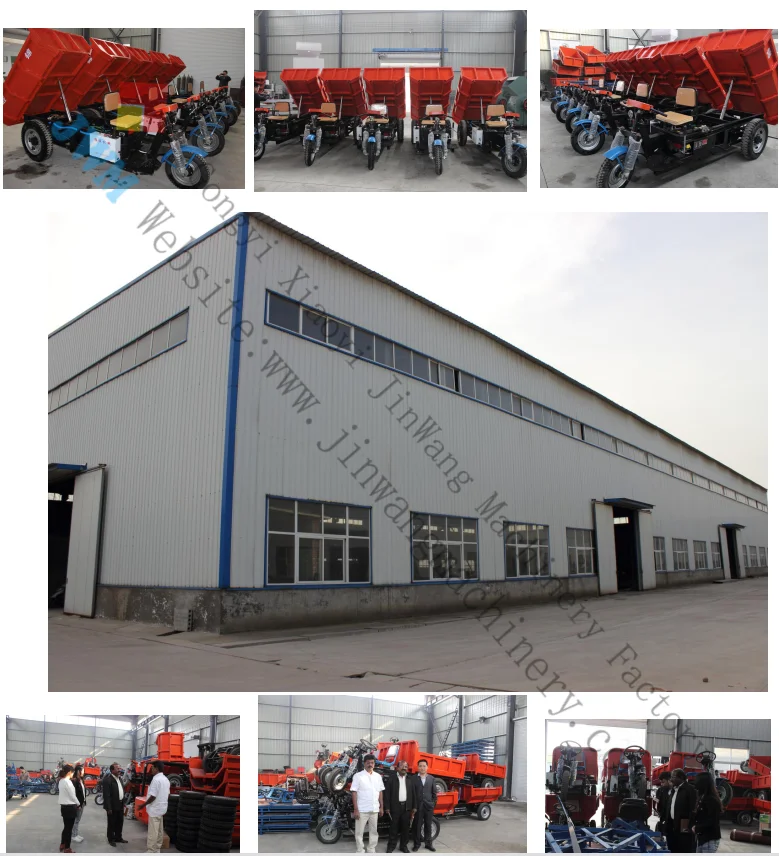

About Us
It is located in the zone of Gongyi city ,Henan province,China. Gongyi Xiaoyi Jinwang Machinery was established in 1996,and cover an area of 80,000 square meters. After 20 years’ development,our factory is very professional and specialized in the field of machinery.Our main products are building materials & construction equipment,food processing machinery and so on.We offer high quality products and best services.You can feel free to contact us anytime.
Our Service
Pre-sale service
We will introduce our products detailedly and according to customers' needs, providing them with the most suitable products. Besides, we also answer our customers' questions patiently.
During the sales service
We will ensure the quality of our products so that making customers 100% rest assured.
After-sale service
For our products, we will provide 12 months warranty to ensure you use the rest assured.(Not including in any damages caused by human factor, traffic accident and other accident.)
Related Products

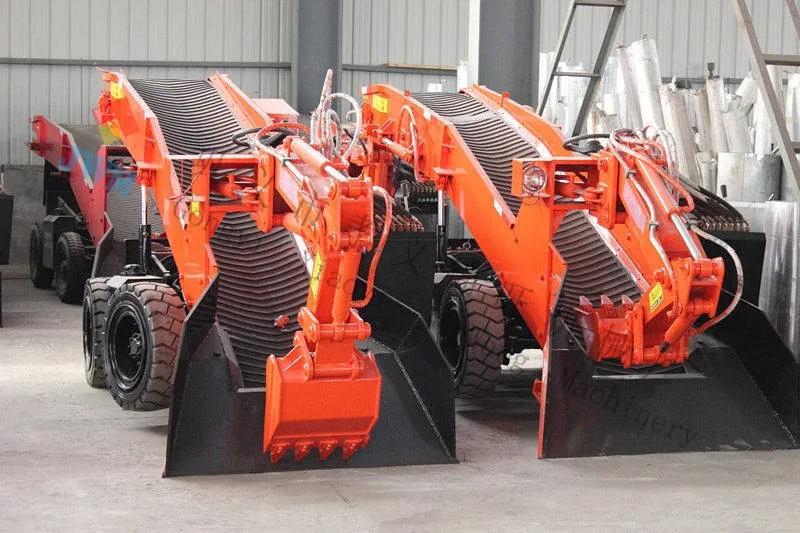

Mucking Loader
