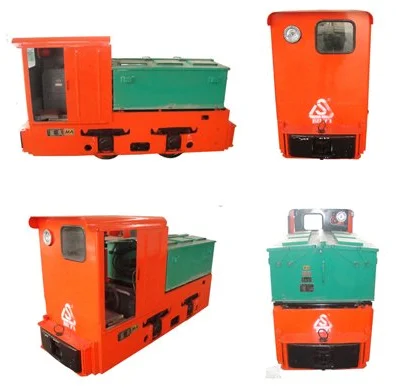

Name :5 T Explostion proof Battery Electric Locomotive. Underground Mining Locomotive
Application: On Narrow Rail Gauge
Service: Transportation in Mining,Tunneling And Related Construction
There are three kinds of locomotive according the brake mode Resistance speed regulating mode, IGBT chopper speed regulating mode, and AC converter speed regulating mode
There are two kinds of locomotive according to the power supplier trollery electric locomotive (1.5 tons to 80 tons )and battery electric locomotive(2.5 tons to 55 tons)
If explosive gas, then the explosion proof battery locomotive can be availale
600, 762 or 900mm(according to requirements)
Hourly System Traction
Hourly System Speed
Capacity of Traction Battery
330Ah or 385Ah ( 5 hours capacity)
Power of Electric Motor
2960mm or 2860mm
920, 1082 or 1220mm
Height of Traction
210 or 320mm
Min. Turning Radius
Speed Regulating Mode
Resistance or IGBT
Constructed in welded steel and suspended by leaf spring on grease bearing seats with tapered roller bearings.
In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.
Mechanical brake to the four wheels by brake shoes.
Pneumatic sanding system to the rails.

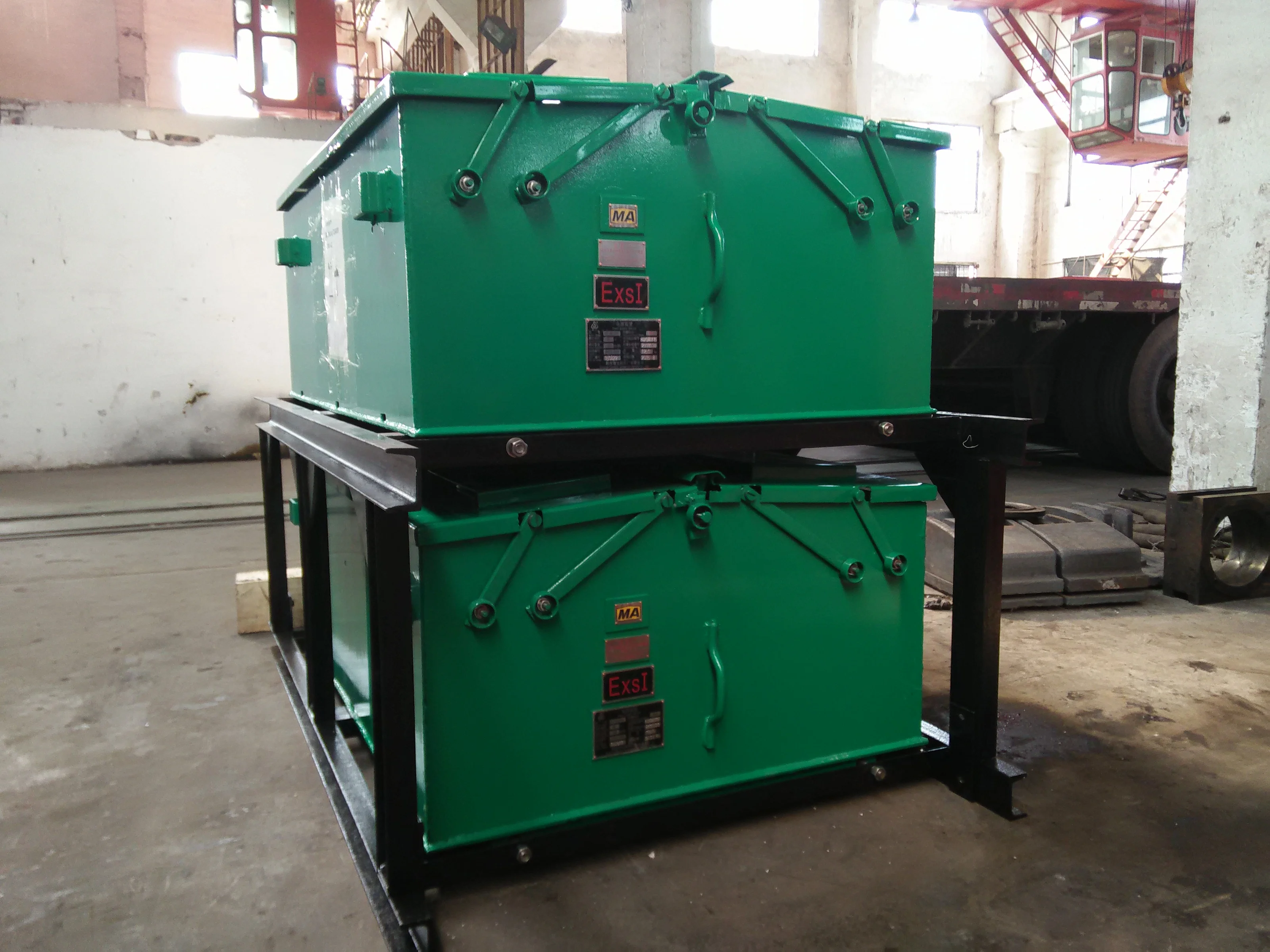

The battery housing is constructed in steel plating with an interior anti-acid covering. Each device has 45 pcs series storage lead acid batteries.
Buffers and motor suspension
The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions. Equally, the motor is suspended from the chassis by a springs brace.
