40ton heavy duty rotator tow truck 8x4 flatbed wrecker truck

Share on (60490989705):


Price:

Quantity:


Product Overview

Description






Product Description


.jpg








 40ton heavy duty rotator tow truck 8x4 flatbed wrecker truck





Specifications of flatbed wrecker truck:


 flatbed wrecker truck is also called heavy duty rotator wrecker truck, It is made of the chassis, hoisting equipment, lifting and towing equipment, hydraulic system, electric control system, truck body and the tool boxes.  It combine the hoisting, lifting, towing, etc functions, and the lifting arm can rotate 360 degree, is mainly used in pulling the broken truck, bus or trailer, etc on highway and city road, suburb way ,airport, etc.





Product Notes:


1Euro 2 or Euro 3 emission standard,


2 Factory direct sale
3 Classis manufatuer is CNHTC
4  Engine model  and  Engine brand :WD615.96C, CNHTC


Main Parameter of flatbed wrecker truck:


































































































Product Name



flatbed wrecker truck



Cab



 Single sleeper cab, two doors, rated passengers 2 or 3









Chassis



Brand



sino



Chassis model



ZZ1317N4668W



Drive type



8*4



Tire



12.00R20 with 1 spare tire



Tire No.



12+1(spare)



Braking System



air brake



Transmission



Manual , 10 forward and 2 reverse



Engine



Model



WD615.96C



Horse Power(kw/hp)



279kw/370hp



Fuel type



diesel



Displacement(ml)



9726ml



Emission standard



Euro 4/3/2









Dimension & weight



Overall dimension (L*W*H/mm)



10960x2500x3500mm



Axles No.



4



Curb Weight(kg)



24770



Max speed(km/h)



90



performance parameter



Type



 Wrecker with 360 °rotation hexagonal arm



Standard configuration



two 15 ton hydraulic winch with 30m long steel wire rope, Two section hexagonal arm( 360° continuous rotate), three section corbel, split compartments, bilateral linkage operation device, five pairs forks, one pair of fork cover, one set auxiliary brake pipe assembly, warming lamp, etc



Performance data



towing: 40ton,lifting: 25ton



Option



According to the customer request



Pictures of flatbed wrecker truck:

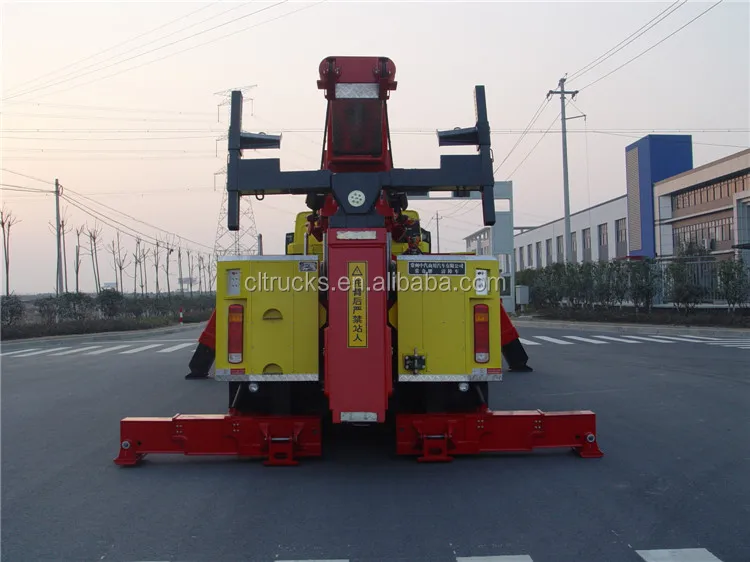

wrecker truck wrecker truck Sinotruk CLW5317TQZZ 8x4 30t(xjt)01


wrecker truck



Packaging & Shipping





1, Packaging: nude or waxing;


2. Shipping: in the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement;


shipping








Our Services





1. Factory direct supply: reliable quality and fast delivery;


2. Warrantyfrom the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;


3. Tracking service: lifelong


4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;


5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.


6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.


7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.








Company Information


CHENGLI SPECIAL AUTOMOBILE CO., LTD , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing many kinds of special trucks. Our leading productions contain more than 300 types of trucks such as water truck, sewage suction truck, garbage truck, road sweeper, fuel tanker, chemical liquid truck, concrete mixer truck, LPG tanker, dump truck, refrigerated truck, etc.We have registered trademark "CHENLIWEI" and the products code is CLW. We have solid technology, flawless inspection, advanced equipments, reliable quality and flexible modes of operation. What's more, we have roundly passed the certification of ASME, ISO 9001:2008, ISO 14001:2004, OHSAS 18001:2007 and the China 3C Certification (China Compulsory Certification), etc.





 CHENGLI SPECIAL AUTOMOBILE CO., LTD is the most important partner of DONGFENG, FAW, JAC, FOTON, SINOTRUK and other Automobile Company. It not only design, manufacture and test all kinds of special automobiles and fittings accurately as per the customer’s request ,but also provide all spare parts.





 CHENGLI SPECIAL AUTOMOBILE CO., LTD is located in SUIZHOU City, HUBEI province, China, the native place of YANDI SHENNONG, and the Capital of Special Truck. Welcome the friends from all over the world to SUIZHOU! To our factory, you will be received the most enthusiastic reception.


QQ20160622121821





Our Advantage:





our advantage_conew1.jpg





Certificate



Factory Show:


workshop display-6




 Customer visited:


customer visiting-8






FAQ





1. Are you manufacturer or trading company?


 We are direct manufacturer;


2. Min Order Quantity:


 One unit or one sets;


3. Handling Time:


 Within one day;


4. Payment Terms:


30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;


5. Specified delivery date from the Date of Order:


Depend on the detailed request and purchase order quantity.


6. Contact Information:





For any question or request, please contact with me freely according to the following information:
