rubber calender machine High accuracy two roll rubber calender machine , three roll rubber calender , four roll rubbercalendering

Product Overview

Description

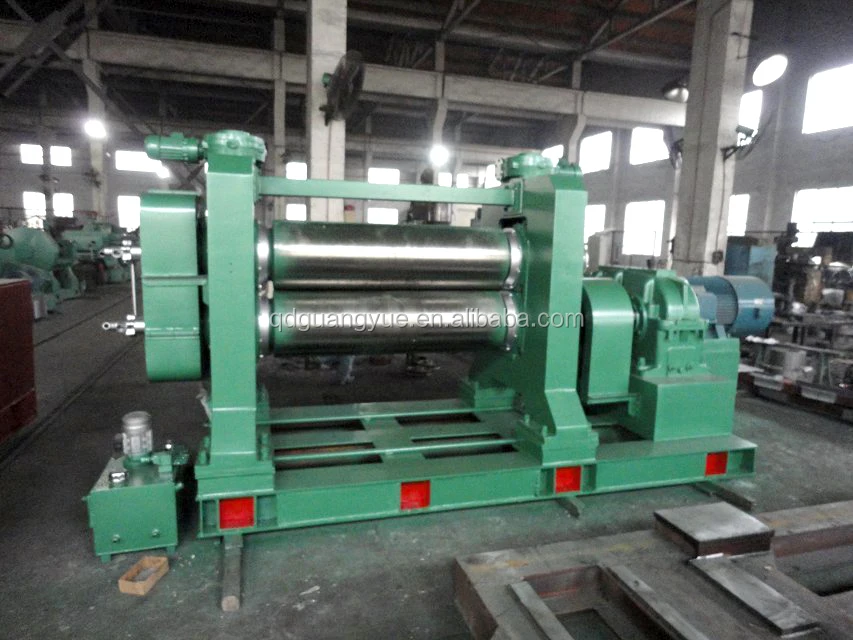

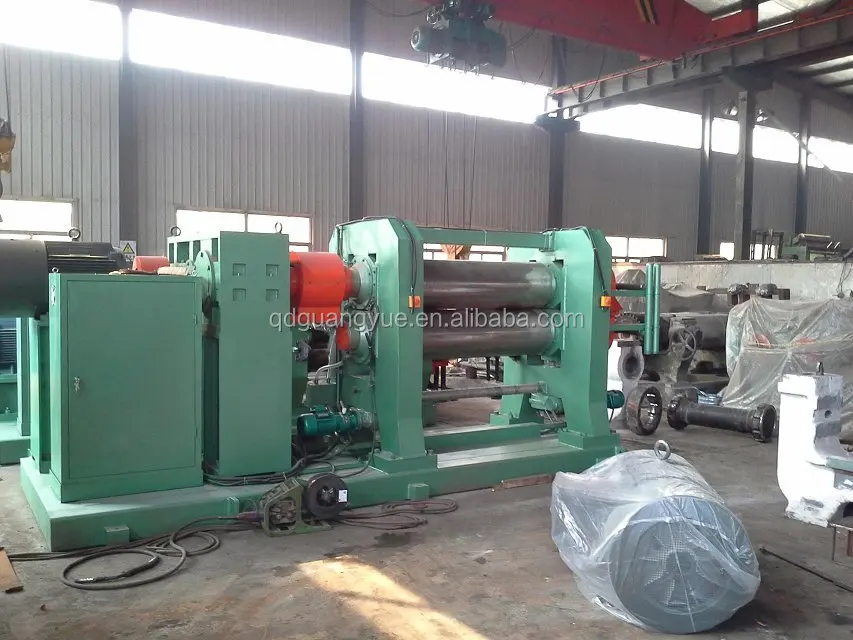

Two Roll Rubber Calender Machine



1. Application:

Rubberizing and fractioning of textile material, rubberizing of wirecord fabric, sheet, and counter plate(embossed) of rubber material, separation of fabric and film, as well as joint of multi-layer laminate film.



2. General design:

It mainly contains roller, rack, backplane, adjustment, device, transmission system, roller temperature control device, security device, lubricating device, etc.



3. Features:

       A -    The rolls are made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear. To heat up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.



     B-   The rolls are arranged in I forms. The upper rolls have roll cambers that can eliminate bending impact on rolls during working process. Thus, it is possible to make products with same thickness along axial direction



      C- The transmission system adopts a hard facing gear reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.



      D- The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment





4. Parameters of two-roll calender



	XY-2-230	XY-2-250	XY-2-300	XY-2-360	XY-2-400	XY-2-450
Roll diameter (mm)	230	250	300	360	400	450
Working length (mm)	635	720	800	1120	1200	1400
Friction ratio	1:1 1:1.17	1:1 1:1.17	1:1 1:1.25	1:1 1:1.33	1:1 1:1.38	1:1 1:1.32
Mid roller linear(m/min)	3-14.5	3-14	5-24	7-20	88-23	8-23
Bearings form	Rolling bearings	Rolling bearings	Rolling bearings	Rolling bearings	Rolling bearings	Rolling Bears
Mini thickness of products (mm)	0.2	0.2	0.2	0.2	0.2	0.2
Motor power(kw)	11	11	18.5	30	37	45









We, Qingdao Guangyue Rubber Machinery Manufacturing CO.,LTD. as one of the most important manufacturer of rubber machine in China. Our main products are  rubber calender, rubber mixer, rubber crusher, plate vulcanizer, rubber cutter, rubber extruder, rubber refiner and other kinds of rubber machineries. The products have been exported to over 30 countries, such as America, Canada, Australia, South Korea, Southeast Asia, Middle-east, etc .
Also we can make non-standard rubber machinery as customer’s requirements.

We are looking forward to receiving any of your inquiry, thanks!
