Система контроля давления в шинах для грузовиков, автобусов TPMS, жилых прицепов tpms 22, шины EK215T22

Product Overview

Description

Tire Pressure Management System for truck, bus TPMS, camper tpms 22 tires EK215T22





1. What are the advantages of TPMS ?



Full time, real time display tire pressure and temperature
100% wireless transmitting
Sensor transmit tire's pressure and temperature every 5 minutes
Capable of a truck and a trailer with 6 tires in total
Visible and audible alerts for high pressure / low pressure / high temperature / rapid drop in pressure
Fast leakage alert
High pressure/low pressure setting for each axle
Supports trailer-exchange with an optional trailer-exchange repeater



2. Features:

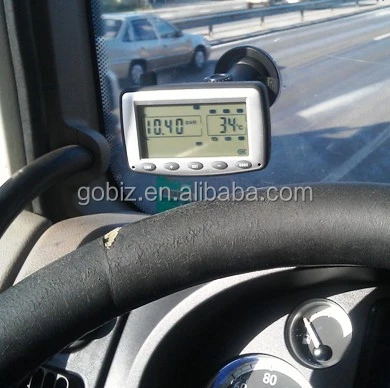

Monitor Features:



Reliable and easy to install.
Large LCD screen.
Built-in rechargeable lithium battery.
Vibration awakening.
Automatical backlight.
Configurable high/low pressure warnings.
Configurable high temperature warnings.
Visible and audible alerts.
Selectable pressure units(BAR, PSI).
Temperature unit selectable( ℃/ ℉ )
Monitors 6 Tires.
Individual pressure alert for each axle.
Selectable display for one or two trailers.
Long range between monitor and sensors.
Awake sensor to program ID code.

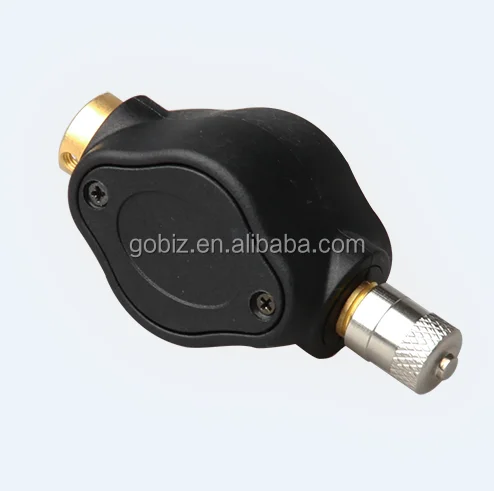

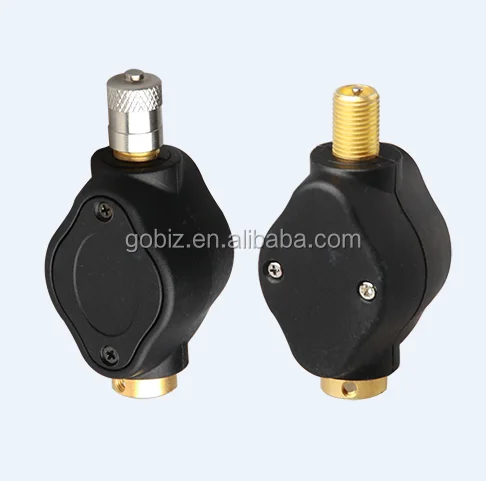

Sensor Features:

Reliable cap sensors, easy to install.

Aluminium valve.
Water resistance.
Battery replaceable.
Fast leakage alert.
Individually coded sensors.
Anti-theif design.



Pressure range: 0-188PSI
Pressuer accuracy: +/-1.5PSI
Transmission frequency: 433.92MHz
Battery life: 2 years, replaceable

Operation temperature: -40C~+80C

Weight: 28grams

Size: Diameter:24mm, height:29mm









3. Specifications:



Monitor specifications:



Operating voltage:	12 to 24V
Frequency	433.92MHz
Operating temperature	-40 to +80° C
Size	116(L) x68 (W) x 25(H) mm
Weight	138 g





External Sensor Specifications:



Pressure range:	0 to 13 bar, 0 to 188 psi
Pressure sensitivity:	± 0.1 bar or 1.5 psi
Temperature sensitivity:	± 3℃
Transmission power:	< 10dBm
Transmission frequency:	433.92MHz
Battery life:	2 years (Sensor battery replaceable)
Operating temperature:	-40 to +80° C
Weight:	28 grams
Size:	diameter:24 mm, height:29 mm
