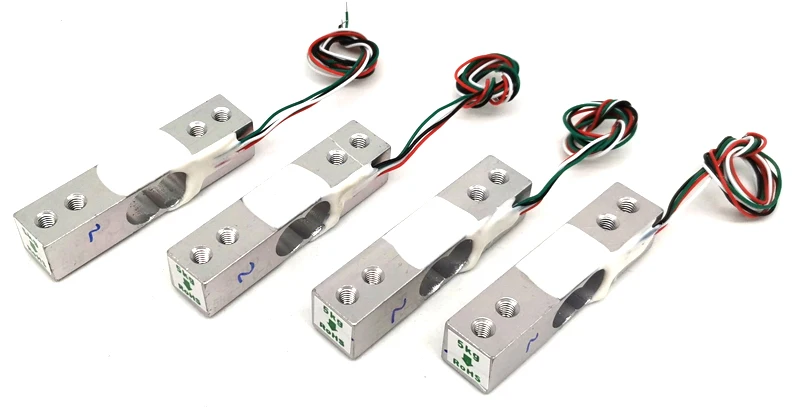

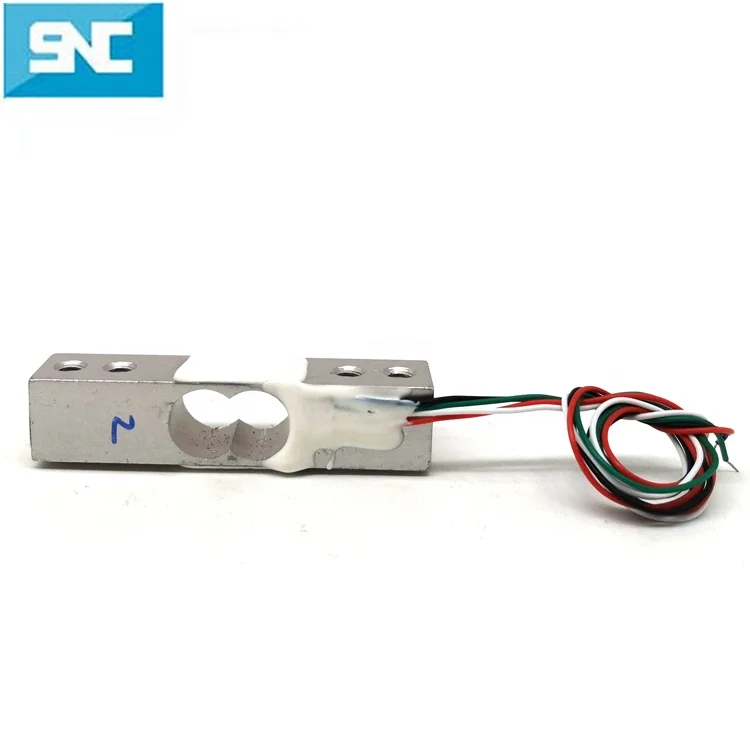

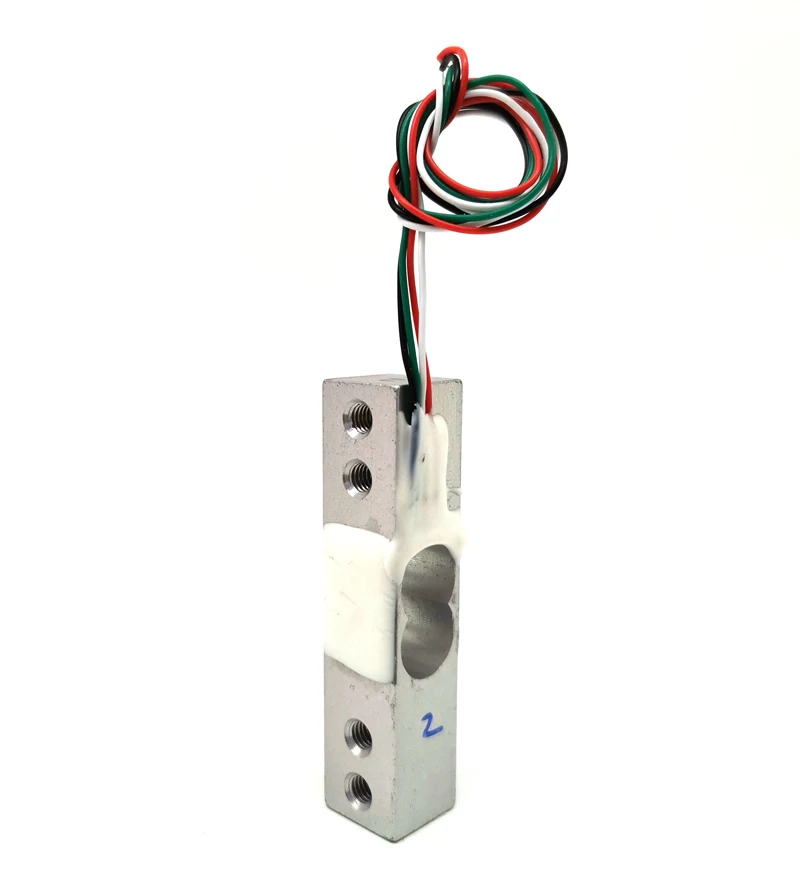

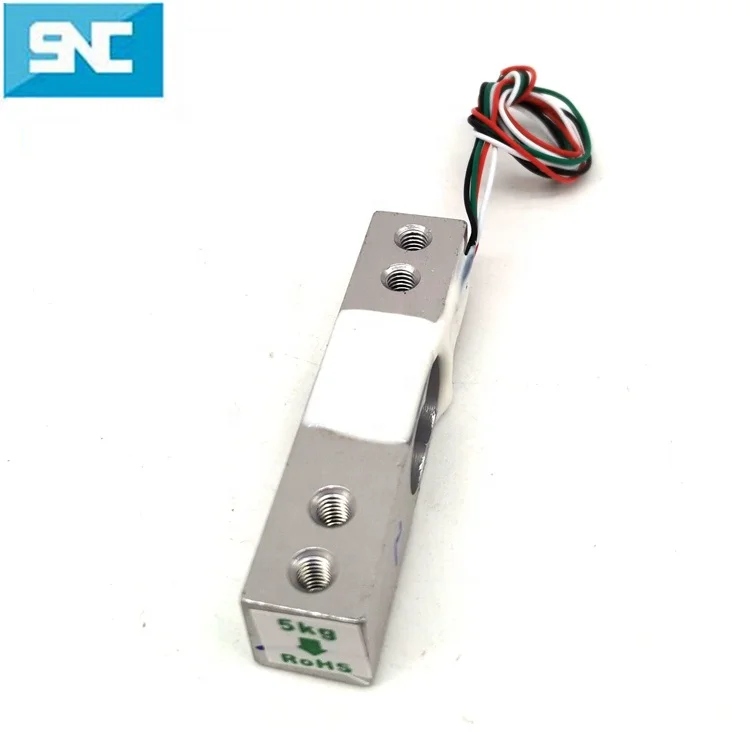

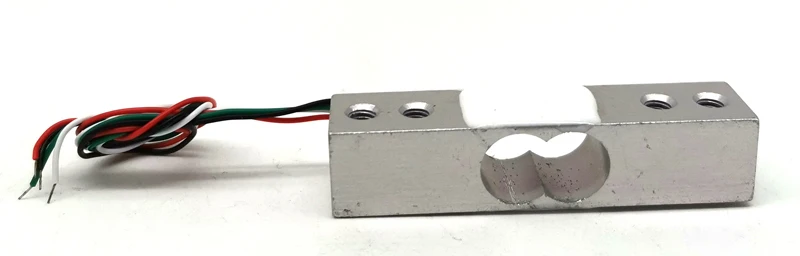

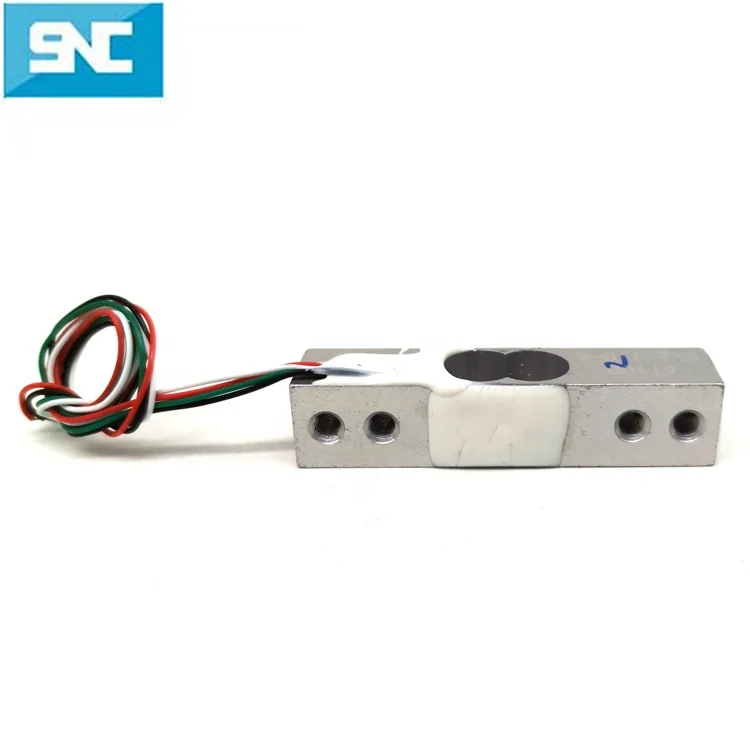

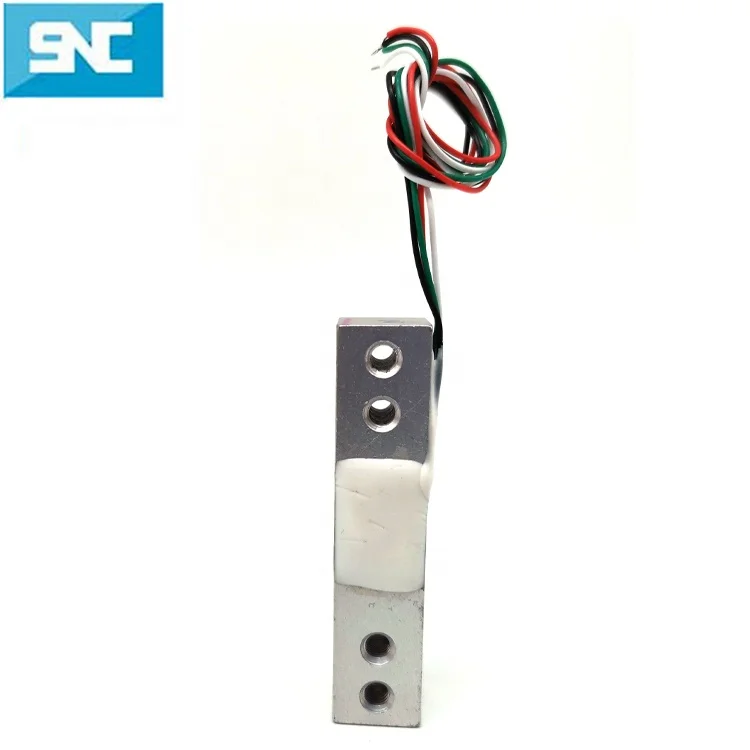

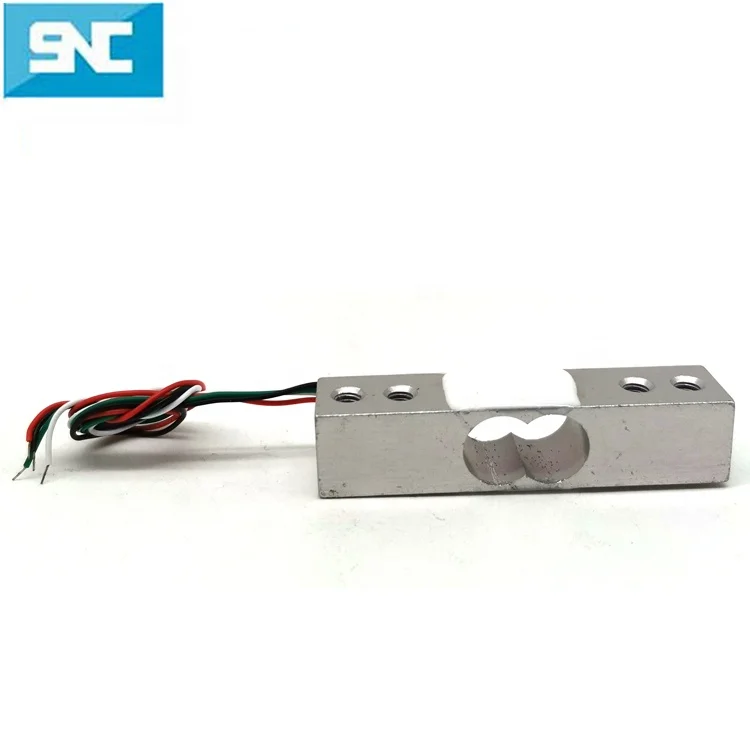

SC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kg

Share on (60494441798):


Price:$2.50

Quantity:


Product Overview

Description


SC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kg






Product Description

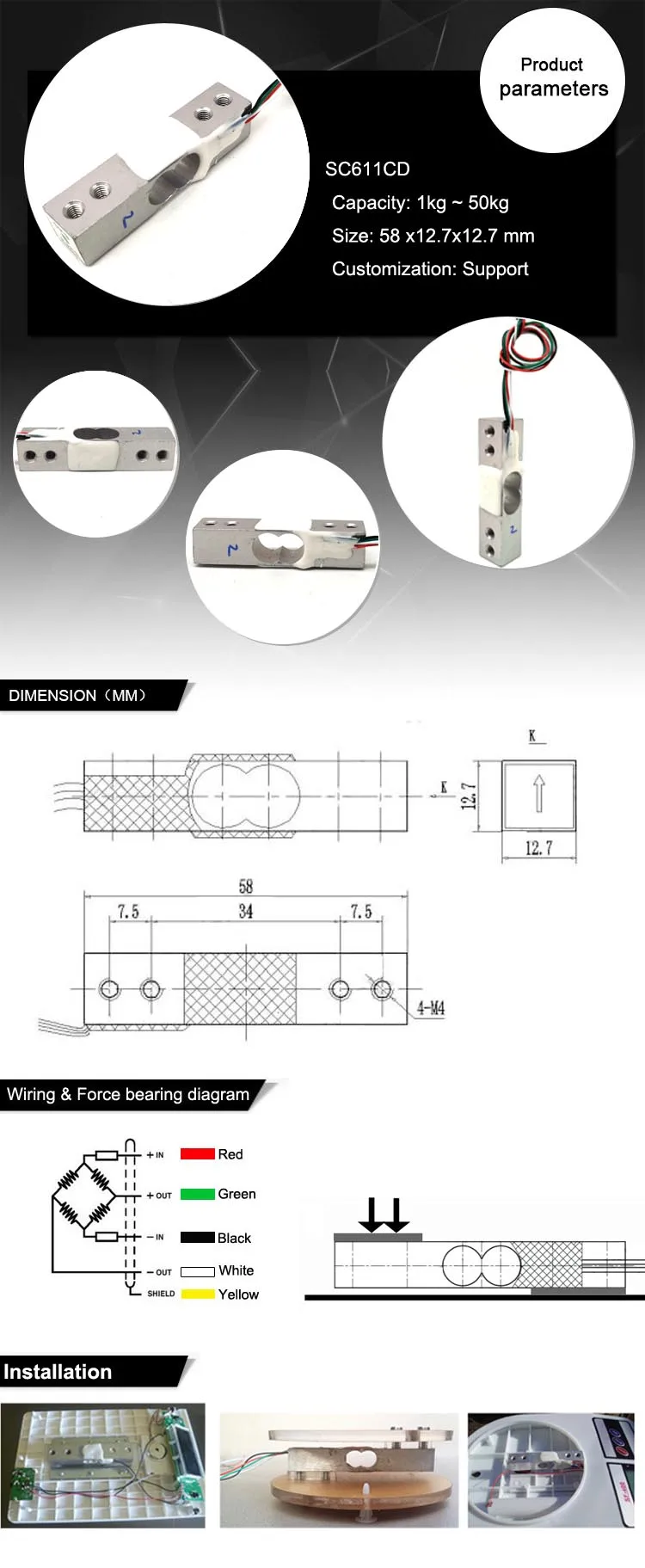

SC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kg





SC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kg





SC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kg








Parameters


































































































Capacity1kg-50 kg
Rated output1.0 ± 0.15 mV/V
Accuracy0.05 %F·S
Comprehensive error0.05 %F·S
Creep±0.05 %F·S/3min
Non-linearity±0.05 %F·S
hysteresis error±0.05 %F·S
Repeatability±0.05 %F·S
Zero output±0.1 mV/V
Temp. effect on sensitivity0.05%F·S/10ºC
Temp. effect on zero0.05%F·S/10ºC
Input resistance1000 ± 10 Ω
Output resistance1050 ±100 Ω
Insulation resistance≥ 2000 MΩ
Excitation voltage3 ~10 VDC
Ultimate overload150%F·S
Load cell materialAluminum alloy
Four corner error±0.1%F·S
Operating temp.-10-+40ºC
Connecting cableΦ0.8x100mm
Unit weight20 g/unit
Package500 units / carton







 SC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kg



Load cell Accessorie


SC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kg




SC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kg



Related Products


SC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kg



























Packaging & Shipping


SC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kg





Company Information


Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.





Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.


SC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kgSC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kg





Why Choose Us


SC611CD low cost weight sensor miniature 2 kg load cell 2kg 5kg 50kg





FAQ


1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.





2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.





3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.





4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.





5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments


before shipping to our clients.





6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
