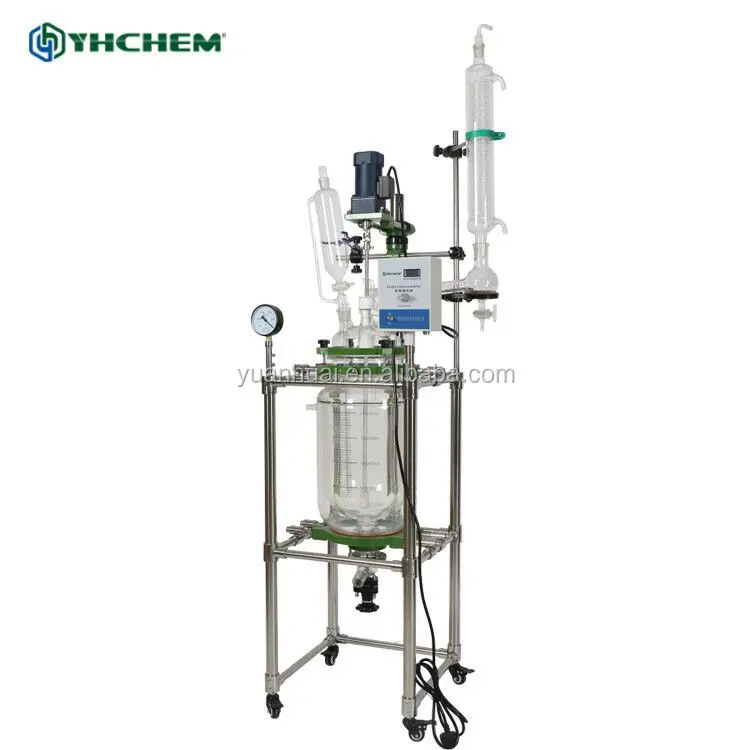

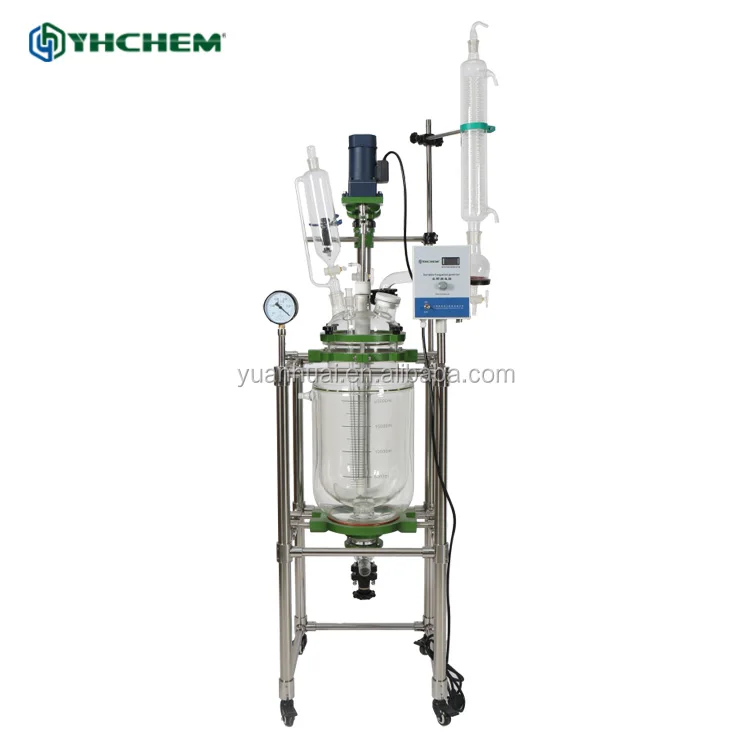

Chemical industrial fixed bed reactor with engineers overseas available
Main Features of fixed bed reactor
- High quality Borosilicate Glass 3.3 with excellent physical and chemical properties - Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity. - Frequency-conversion stirring system + PTFE seal & bearing system - Digital display and control - Easy-to-install modular design for exceptional ease and low cost of maintenance
Structure demonstration of fixed bed reactor
General Specification of fixed bed reactor
Model
JGR10L
JGR20L
JGR30L
JGR50L
JGR100L
JGR200L
Volume(L)
10L
20L
30L
50L
100L
200L
Neck No. On Lid
6
6
6
6
6
6
Maximum torque(N.cm)
250
250
250
250
400
550
Jacket Volume(L)
3
6
10
16
30
60
Stirring power(W)
120
120
120
120
200
750
Rotating speed(rpm)
0~680
Power supply
220V/ 50-60HZ (110V)

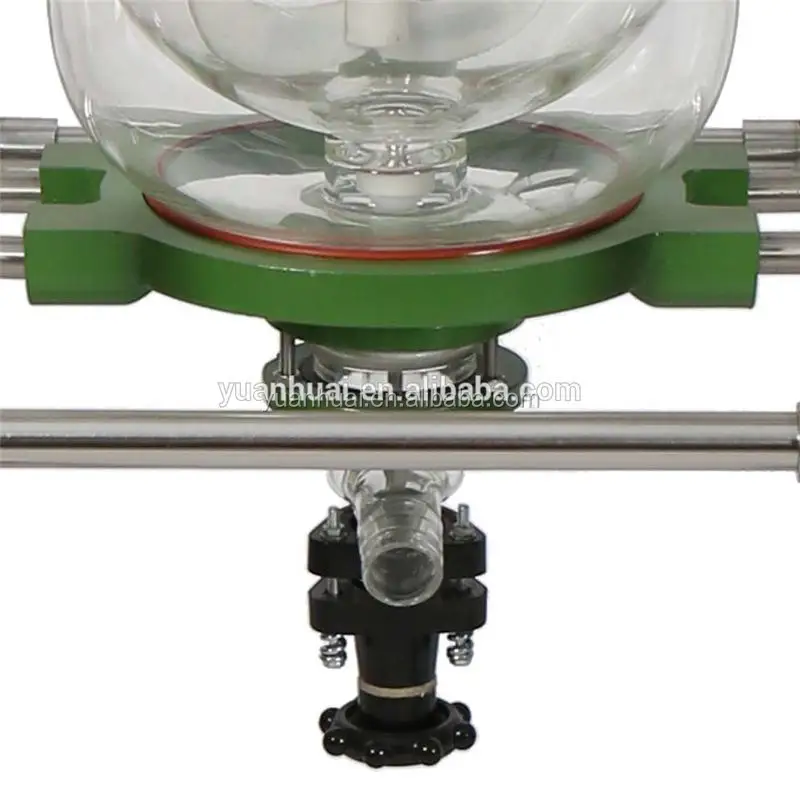

Discharge
PTFE Bottom Discharge Valve
Working Temp range
-60 to 200°C
Attention Here:
YHCHEM is a professional chemical and phramaceutical equipment manufacturer and we can produce customized fixed bed reactor as per clients' required specifications. YHCHEM is also dedicated to provide the best product solution for clients' lab or pilot scale experiment.
Detailed Images
Machine Parts
Name:Speed Controller
Brand: YHCHEM
Original:China (Mainland)
* Achieve accurate control of stirring speed
* We're professional manufacturer of bioreactor prices
Machine Parts

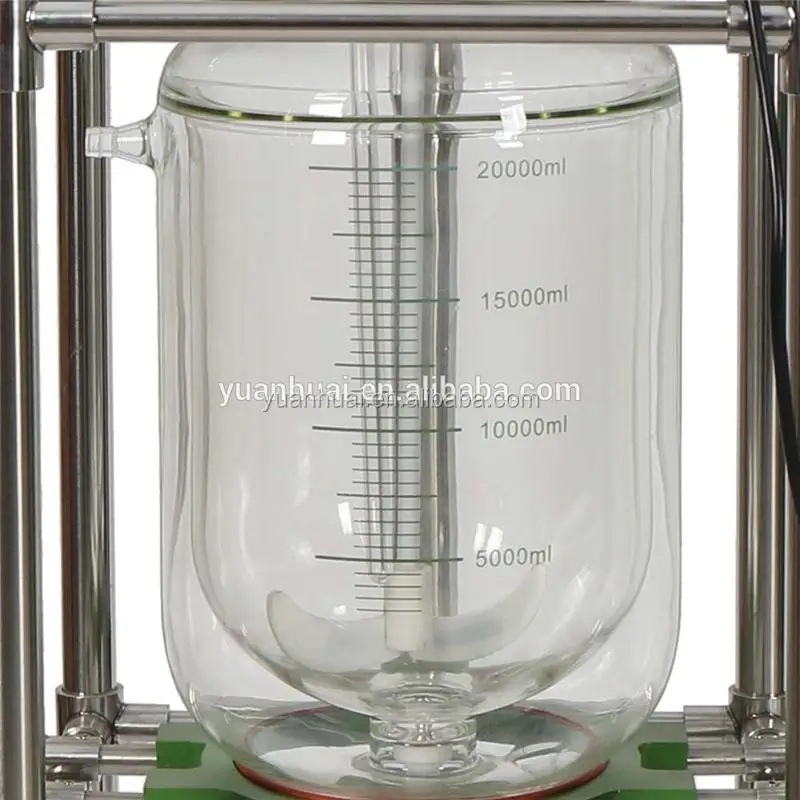

Name:Double layer jacketed kettle Brand:YHCHEM Original:China (Mainland) * Made high-borosilicate glass 3.3, with good physical and chemical performance * Clear and transparent design allows the operator to see lively reaction process. * We also have single layer and triple layer reactors

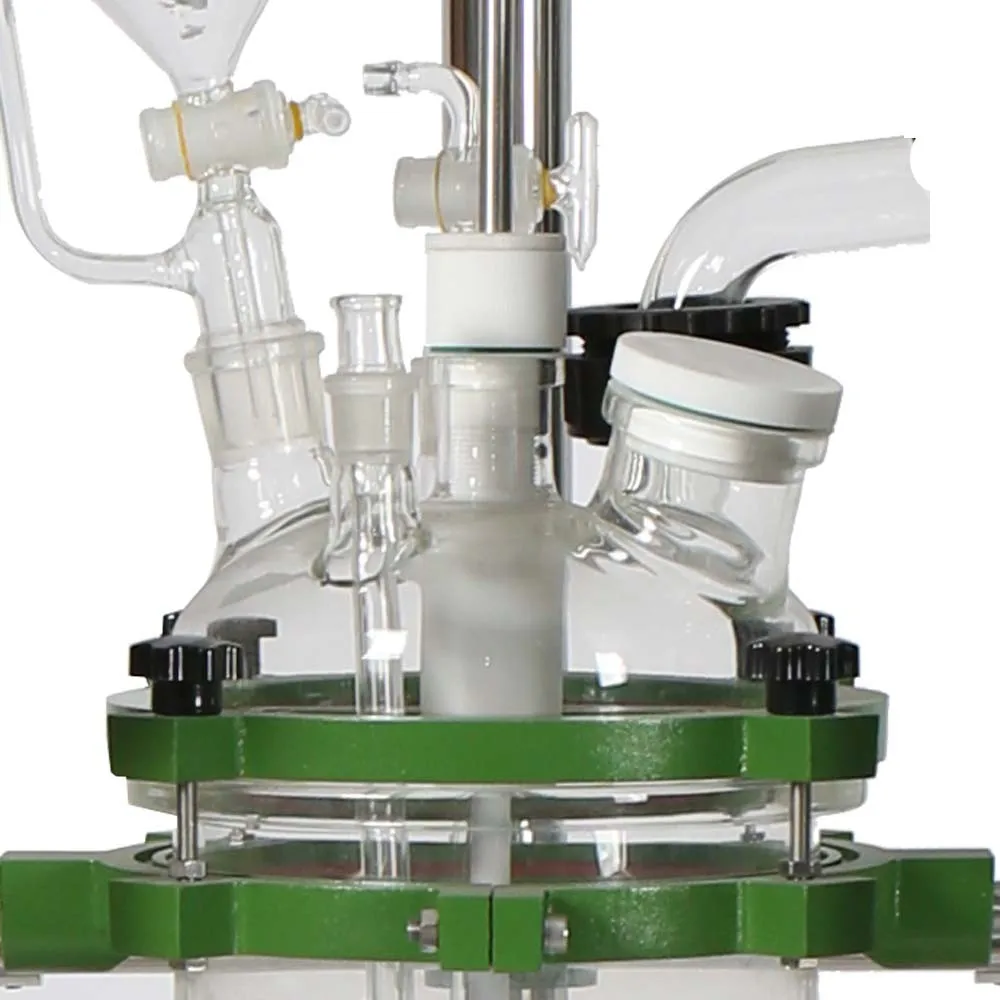

Machine Parts
Name:Reactor lid Brand:YHCHEM Original:China (Mainland) * 5-neck lid with additional powder addition port * Perfect match between lid and reaction flask with frosted surface for perfect sealing * Double rugged steel-reinforced anti-corrosive PTFE agitator with anchor to lead enough and even mixing
