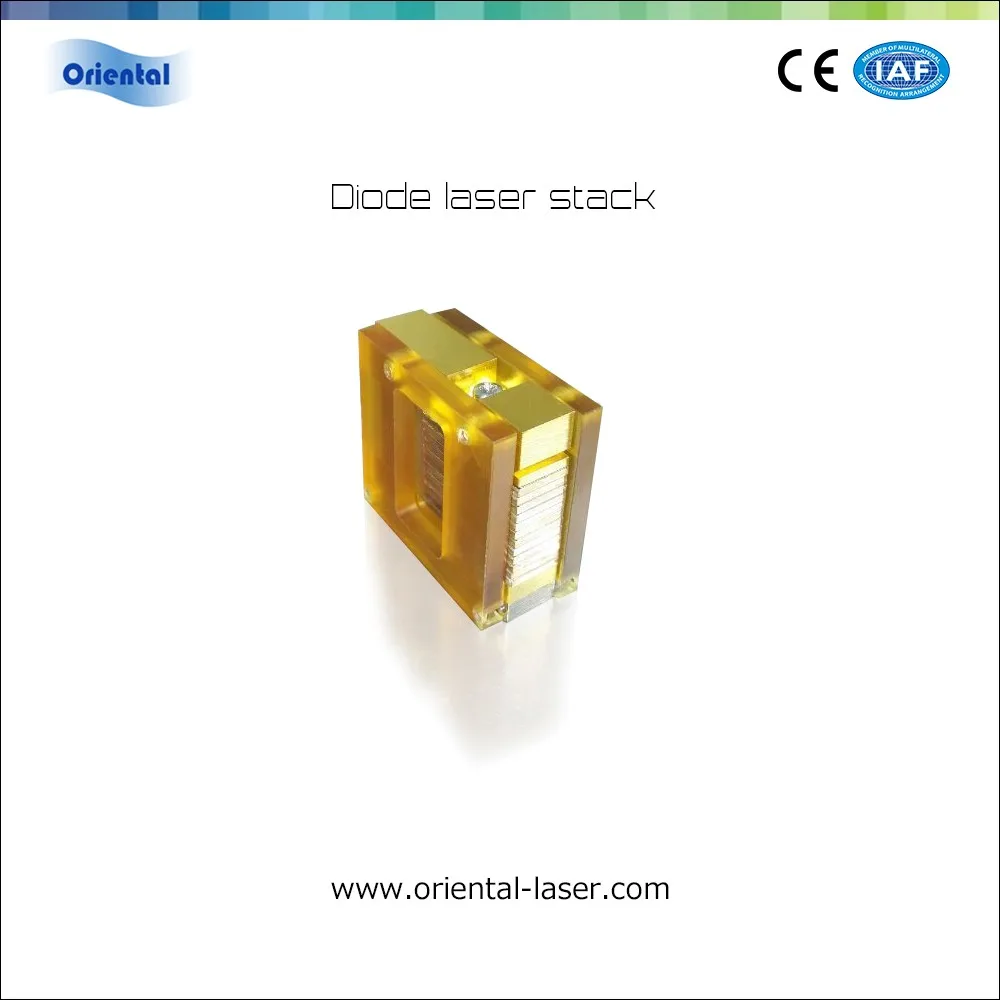

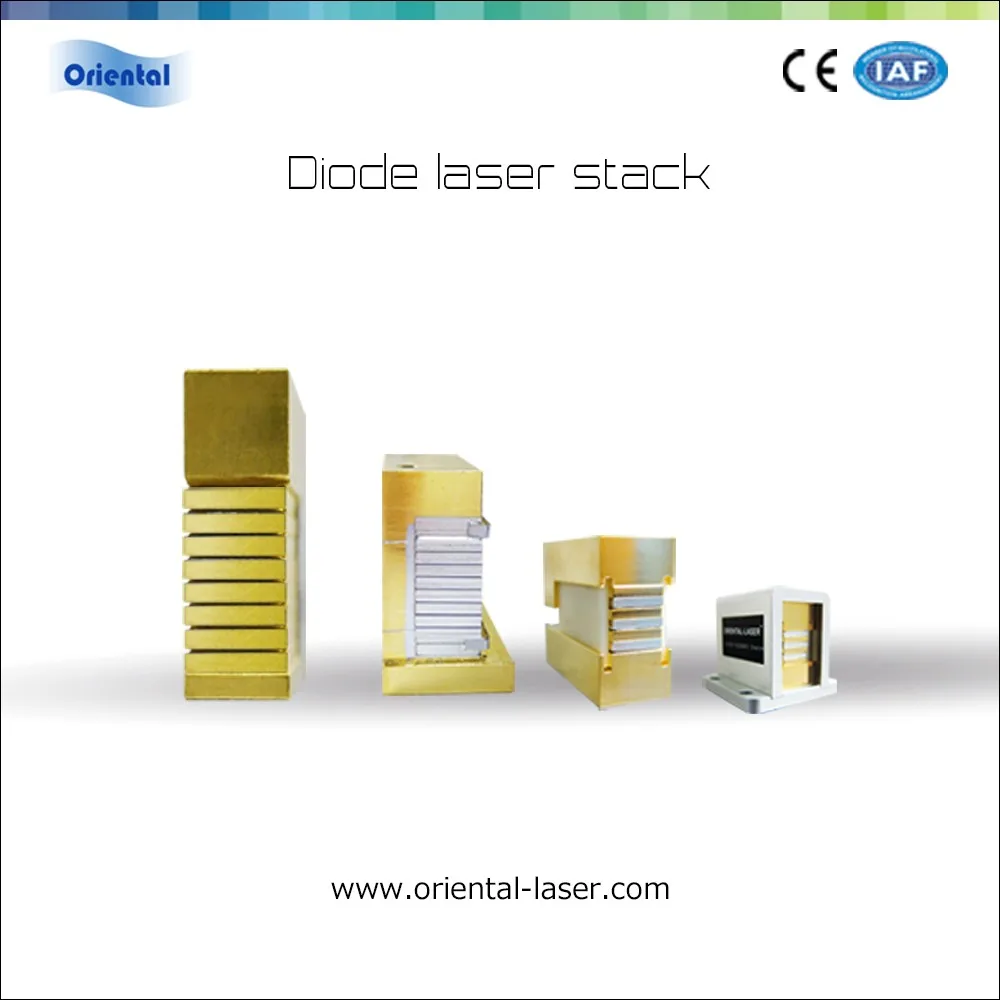

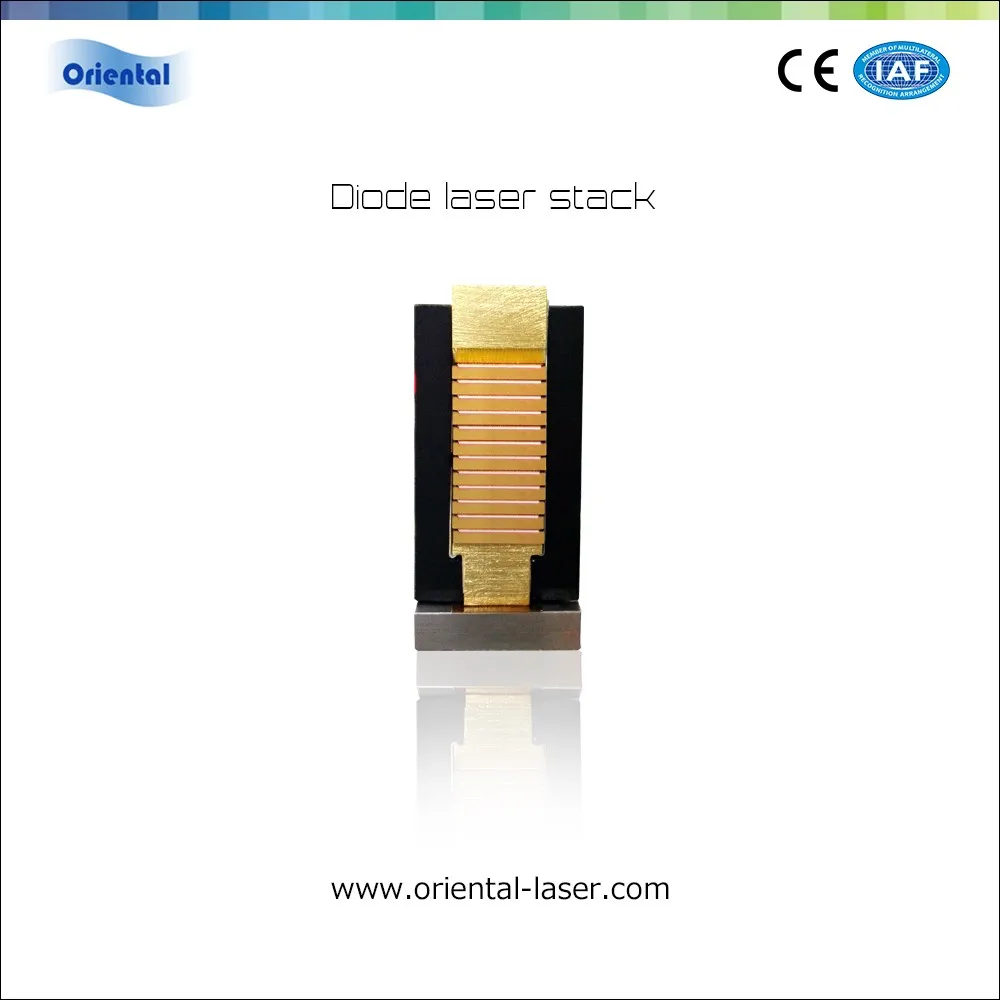

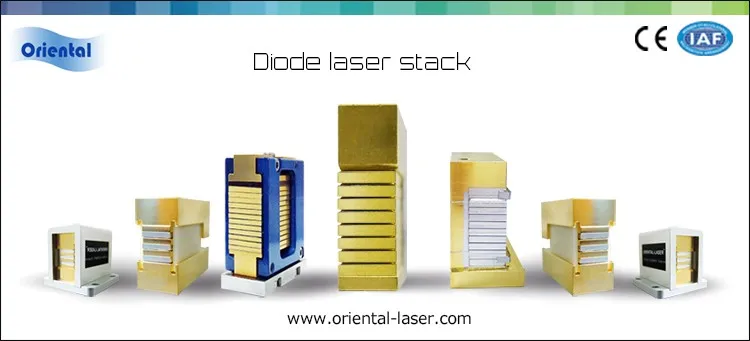

Bars microchannel diode,macro channel stack 600w/800w/1000w

Product Overview

Description

 CW&QCW Diode Laser Bar Stack, Diode Laser Product





Diode Laser Stack Quick Details



Diode laser bar from Germany
Laser power from 300W-1200W and More
Over 10000hours life time
No water quality required
Hard soldering and soft soldering optional

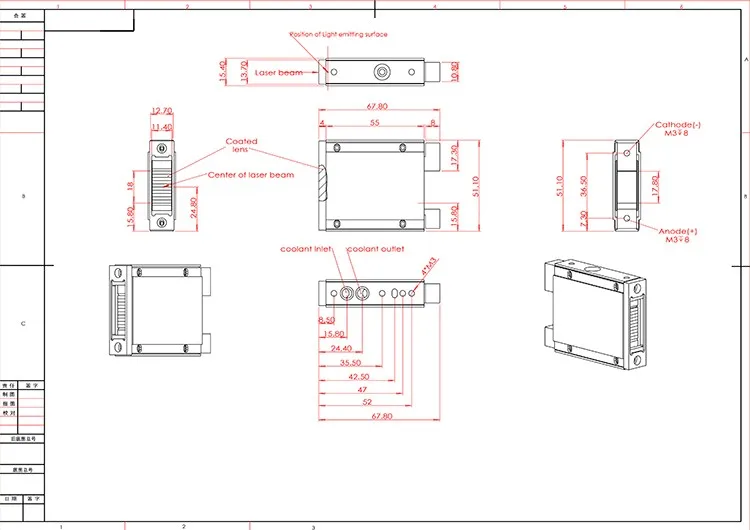

Customized installation size



Diode Laser Stack Product Outline



Laser diode stacks are good for both quality and price. The structure of  packaging is flexible and it has no special need for water. Oriental-laser have studied the laser diode stacks for 5 years. We deliberate on diode laser packaging and the design of laser stack. Finally we find the method to overcome macro channel laser diode stacks’ chip burning and we developed the high reliability laser diode stacks for hair removal.





Diode Laser Stack Technical Parameters

 1. Macro channel



Output Power	300W	500W	1000W and More
Wavelength	808nm(800-810nm)792nm ,940nm,980nm
Number of bars	1-20Pcs
Solder type	Hard solder or soft solder
Typical Pulse Width	10ms~200ms
Repetition Rate	0~10Hz
Max Duty Circle	20%
Operation Current	40A	40A	40A
Operation Voltage	<12V	<20V	<40V
Cooling Requirement	1. Flow Rate: >4.5L/min 2. Water quality: Industrial grade, anti-freeze possible, particle filter<100µm 3. Chiller water Temperature: 15°C-25°C.





Diode Laser Stack Working Principle





The process of diode laser’s working is the change from electric energy to light and heat energy.When the chip which is inside the macro channel is working, the cooling water flow inside the laser stack and bring the extra heat and make sure the chip going well.





There is micro water channel in a thin cooper heat sink whose thickness is only 1.5mm. Diode laser chips can be cooled by water immediately. Micro channel water cooled technology highly increase the optical output power and power density of laser diode stack.





Diode Laser Stack Technology Advantage





1. Oriental-laser focus on diode laser packaging technology for more than 10 years especially in aesthetic applications. We research and design the professional technology for macro channel hard solder packaging and overcome the shortage which is easily to burn.



2. Germany chip for diode laser has a long life and super power.



3. Unique precision plating technology and shape



4. The power and wavelength of diode laser is customize which can satisfy customer’s needs.



5. The size of diode laser is customize which is assorted to installing structure.



6. Repair other brands of macro or micro channel diode laser.
