CE mark Magnetic Resonance Imaging MRI

Product Overview

Description









Excellent price performance ratio

Comprehensive application suite and powerful software included in standard configuration

Patient friendly appearance

Full open C-shaped magnet

Minimal sitting requirements

Less than 56 m²

Low operating Costs

Permanent magnet – no helium

Higher revenues

Attracted by more patients and referring physicians

Excellent Return On Investment

Decreased costs-optimized profitability

Efficient and Professional service team

24 hours service on-line

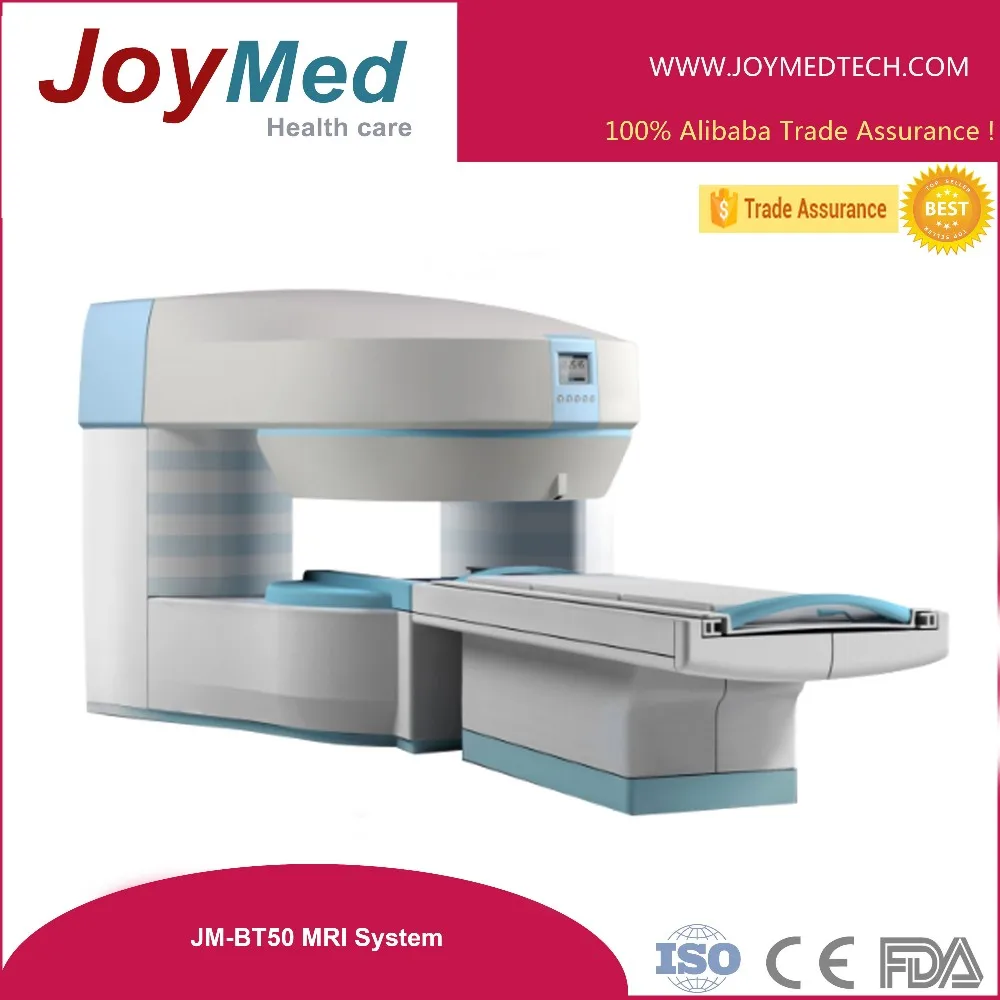

Specifications of BTI-050 System

1.0 Magnet:

Operating Field Strength: 0.50 Tesla 5000 Gauss

Magnet Type: Open design permanent, eddy current free, self-constant temperature

Magnetic material: Permanent Nd-Fe-B magnet

Dimension :2000x2200x2100mm

Net Weight :27,000KG

Homogeneity: (400mm DSV) ≤ 2.5ppm (Vrms)

Shimming: Passive shimming or active shimming

Patient aperture: 400mm

2.0 Gradient System:

Gradient strength: max. 25mT/m (Gx/Gy/Gz)

Slew rate: 75mT/M/ms (Gx/Gy/Gz)

Gradient linearity: <5%(400mm×400mm×380mm)

3.0 RF System:

Central frequency: DC~400MHz

Spectrometer: Digital (Four channels)

Transmitting coil: Flat planar coil

Receiving coil phase array coil(Neck,head,large body,small body,knee,wrist,shoulder)
