Hot-dip galvanized frame material auto car wash machine
Occupy small area, cheap price, easy operation, flexible function, high degree automation, beautiful appearance, energy conservation and environment protection, long service life, low cost of car washing, low cost of repair, good antirust performance, and good reliability
Main Function:
Automatic sense spray, automatic spray car wash liquid, automatic chassis washing, automatic spray brightening wax, system automatic detection. In addition, non contact computer car washer may select drying system, optional sewage purification system; it is environment protection and water saving.
Production Features:
1. Import advanced skill, adopt simple and elegant design, which is not only beautiful in appearance, but also advanced, safe and reliable in performance.
2. High pressure water cleaning, to ensure no scratch in paint surface
3. Main components are imported products, with low failure rate and long service life
4. Energy saving, low operating cost
Technical parameters:
model: SMC(E1)
Outside size (L*W*H):6000*3450*2625 mm
Max car standard (L*W*H):5500*2000*2000 mm
Washing speed: 15-20cars/hr
Water consumption: 120L per car
Total power consumption: 9KW
Track length: N/A
Working power: 380V, 50Hz, three phases

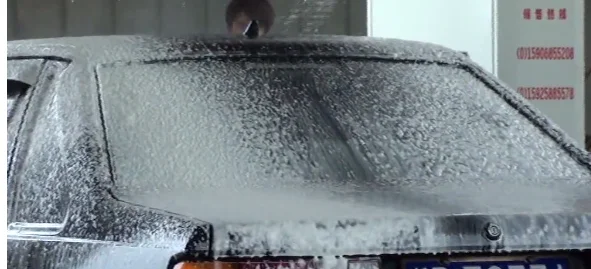

Powerful decontamination foam:
Washing car with foam , foam has strong decontamination, rust, glazing, protection features, can quickly and completely remove the body surface of dust, dirt, asphalt, paint and other dirt stubborn stains, and can eliminate body oxidation, effectively avoid dirt Once again deposited, the paint surface will be restored to a bright, smooth and clean appearance.
FAQ
1.What is fast time of delivery ?
If customer require same as China standard three phase industry voltage 380V/50Hz, we can provide fast delivery within10~15 days, if different with China standard, the delivery will around 30 days.
2.How to make installation and after sale service ?
We provide installation video for customers reference,the oversea installation service is available if you need .
3.Warranty:
We offer 18 months extended warranty for complete machine, all spare parts included.
Within 18 months:if any parts break down, we will compensate new parts at free charge,not including courier expense. Normally we will ask customers keep some spare parts in stock for machine maintenance, and the compensation spare parts will be sent together with next shipment or through a cheaper way but not by DHL.
More than 18 months:We provide online technical guidance and introduction to find broken part,and we will give you a favorable price,but need you bear shipping cost.
4.Preparation before installation:
3 phase industry power supply, 25kw.
Water supply, with a water tank. ( 2000 liters )
Air compressor with air volume more than 0.67m³/min, could provide stable air pressure more than 0.8Mpa.Floor cement thickness need to be more than 20cm, if not enough then need to make six concrete columns for mounting support frames, floor horizontal error less than 3cm.
5.Harmonization system code of the car wash system:
HS code: 8424899990
6.Payment and transportation:
Method:FOB/CIF
Port:Shipped from Shanghai and Ningbo.
Price:Between $500 and $1500 depending on your destination port.
Maintenance
1. There is uneven foam spray on the car washing machine. It is maybe that the foam system fails. Check the key points: The air pressure of the car washing machine is too small or too large. You can try to adjust the air pressure adjusting device.
2. There may be an abnormality in the ratio of the car wash liquid, and the ratio of the car wash liquid can be adjusted.
3. If the foam pipe leaks or leaks, check that the pipe is secure and loose.
4. The shower head of the car washer stops rotating, check and clear the nozzle for clogging, and replace the damaged rotating device; the angle of the nozzle can be adjusted properly.
5, abnormal sound of the pump, there may be inhaled air, immediately check the tank for water, clean the filter to prevent clogging
6. If the pump's high-pressure water pressure is too low, adjust the valve's pressure, the tightness of the belt, and check if the valve needs to be replaced.
7. If the wheel of the car washing machine slips, check whether there is stuck, whether the bearing is in good condition, or if the chain is too tight or too loose, the vibration of the car washing machine will occur.
