Hot Sale C Z Purlin Channel Roll Forming Machine
- Category: Steel Frame & Purlin Machines >>>
- Supplier: Cangzhou Forward Roll Forming Machinery Manufacturing Co. Ltd.
Share on (60500971927):
Product Overview
Description
Product Description

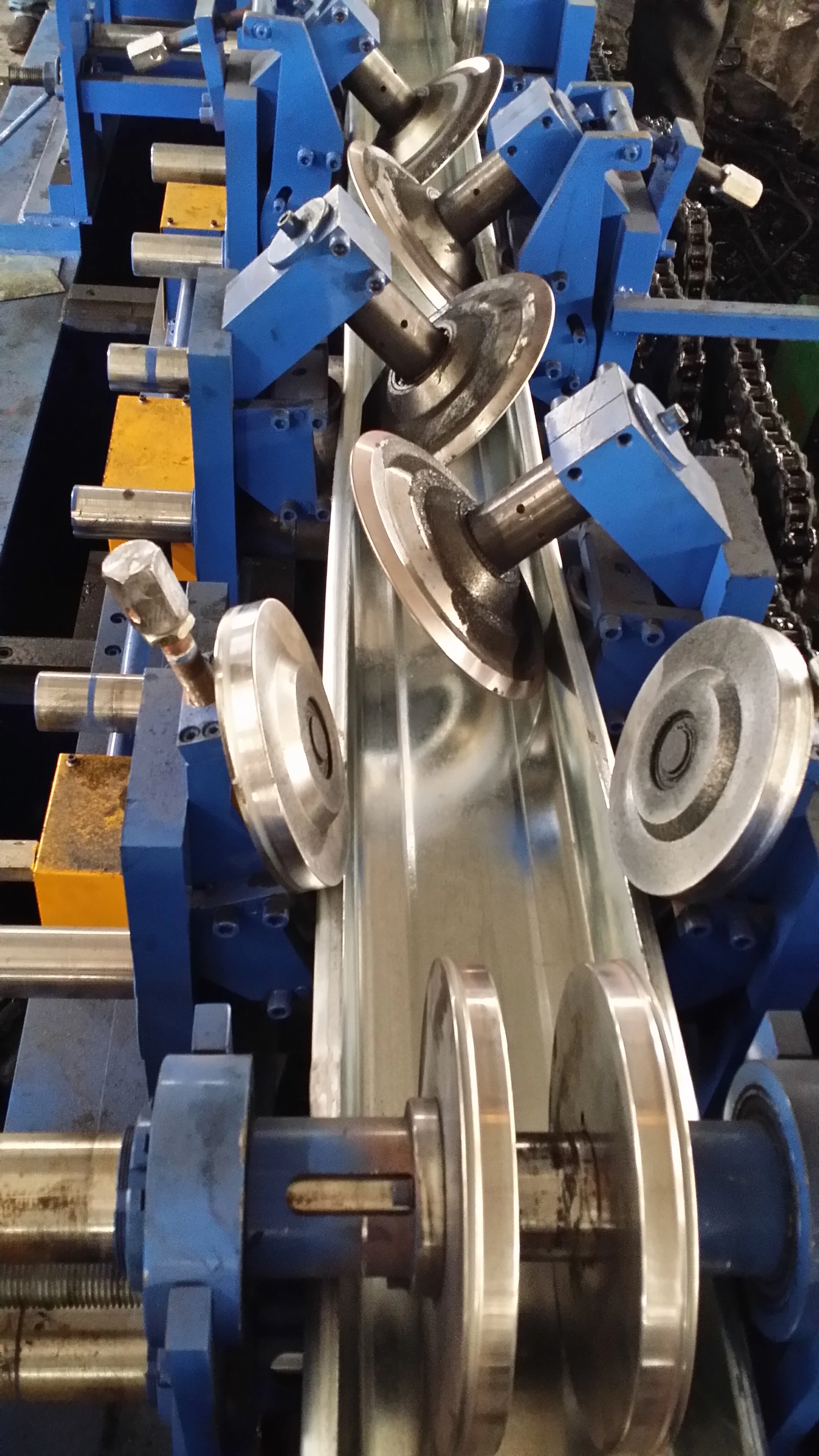

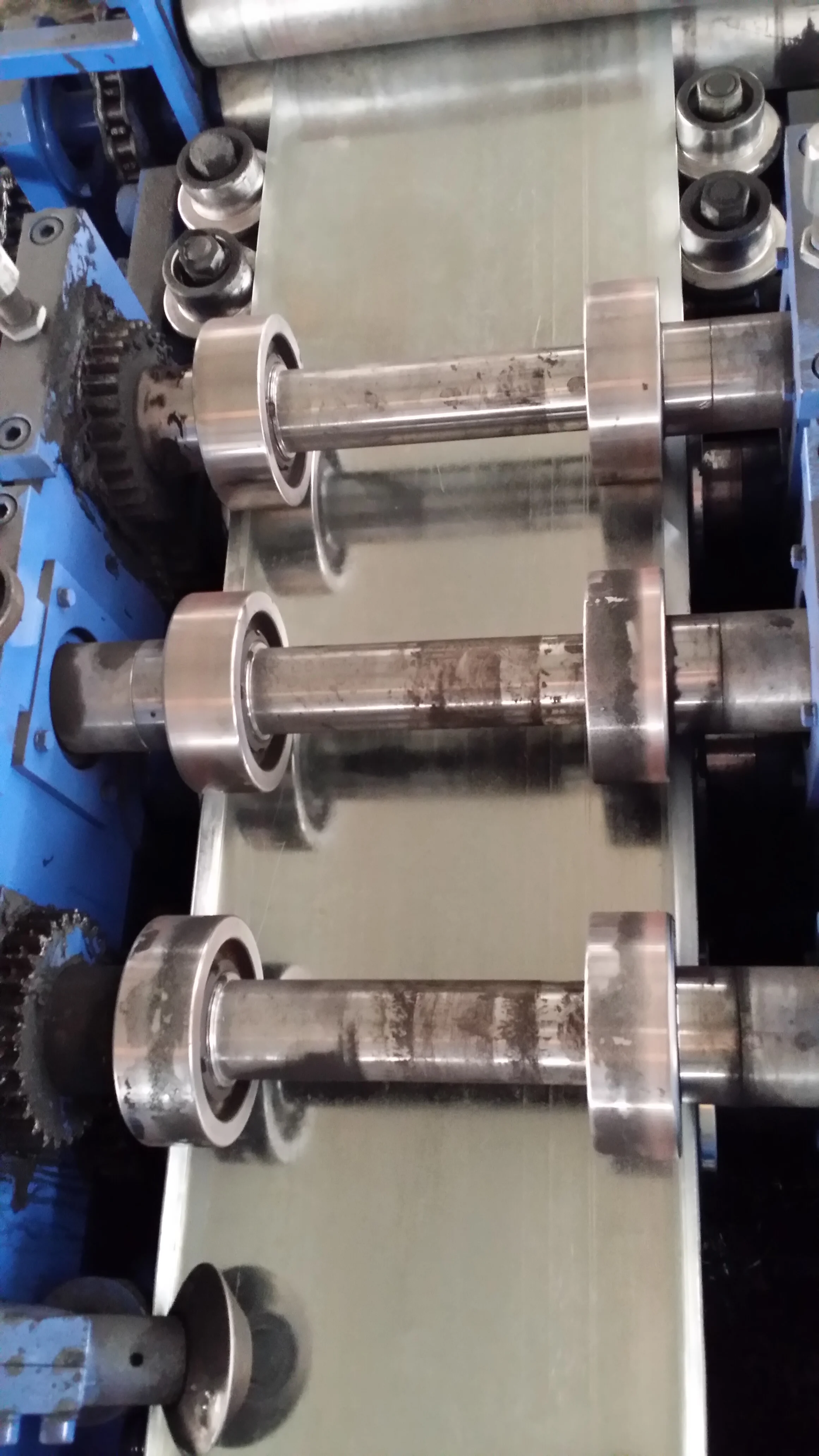

Hot Sale C/Z Purlin Channel Roll Forming Machine
C-type steel machine strengthens its firmness with an arch type, stabilizes its operation
with gearbox drive, and improves product quality by adopting molding shearing to avoid

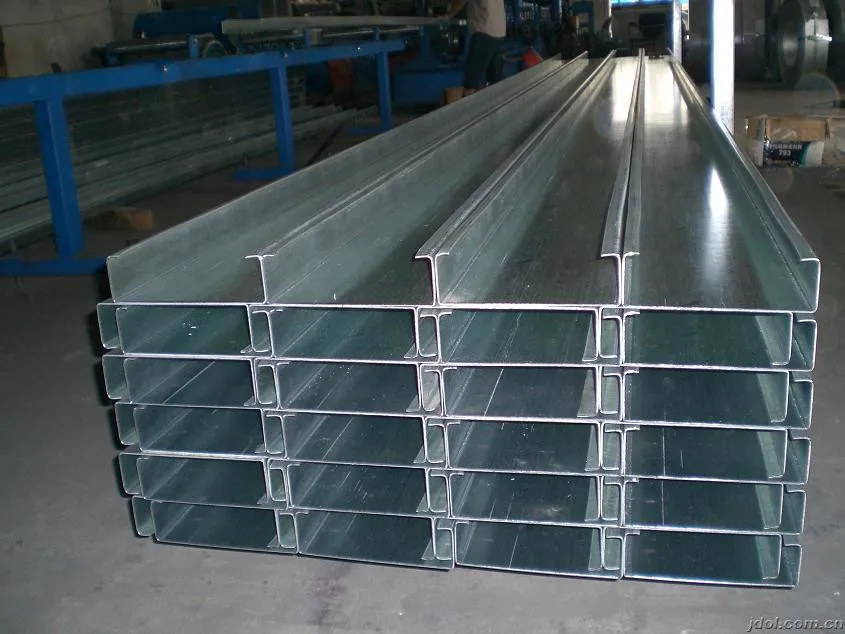

port deformations.Products are widely applied in purline set-up of steel-structure houses.
1 | Suitable material | Color steel sheet , galvanized steel sheet |
| 2 | Main motor power | 22 KW with Cycloidal reducer |
| 3 | Hydraulic station power | 22 KW |
| 4 | Hydraulic oil | 46# |
| 6 | Thickness | 1mm~3mm |
| 7 | Diameter | Φ80mm |
| 8 | Electric tension | 380V 3phase 50HZ |
| 9 | Material of roller | GCr15 |
| 10 | Rolling galvanization thickness | 0.05mm |
| 11 | Processing speed | 10-15m/min |
| 12 | Processing precision within | 10m+/-1.00mm |
| 13 | Material of cutting blade | Cr12 quenched |

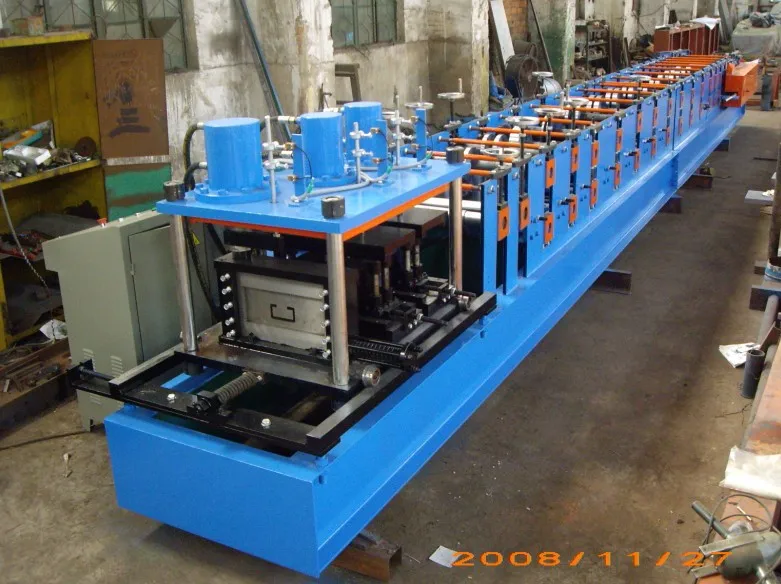

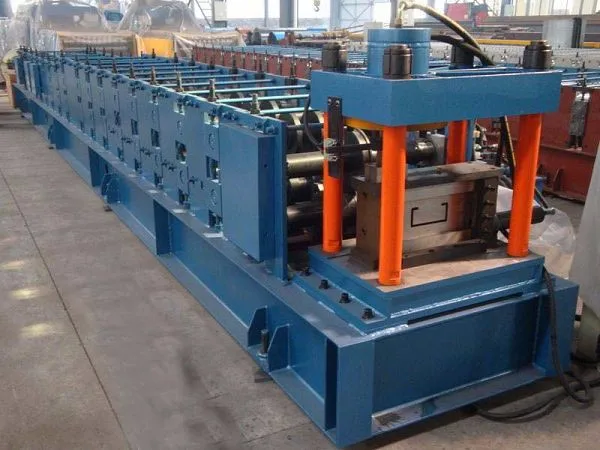

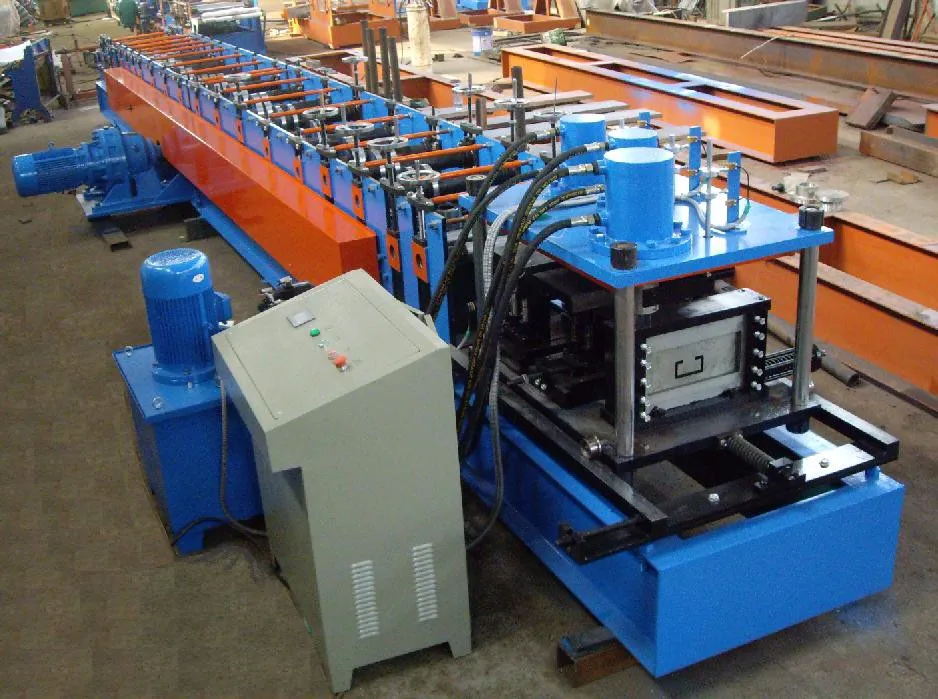

Product Overviews

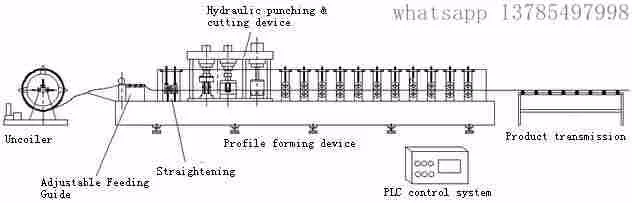

work flow
Manual Decoiler--->Guiding --->Roll Forming-->Pressing--->Cutting--->Exit Rack

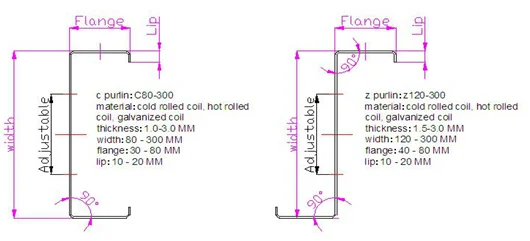

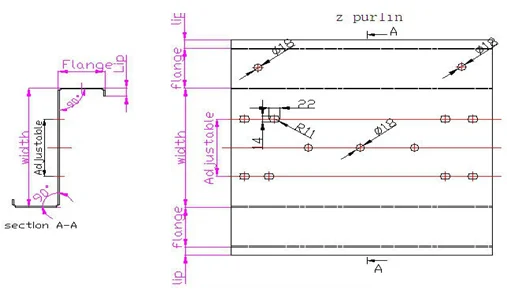

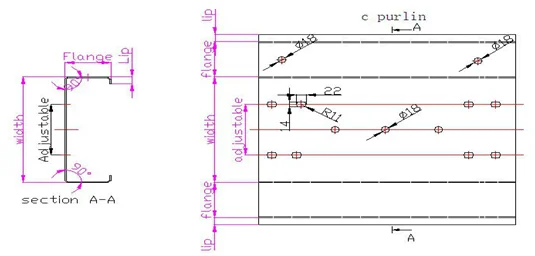

Z&C SIZE
COMPANY
We can make and design all kinds of roll forming machine according to customer’s request .Our machine has passed CE, ISO
