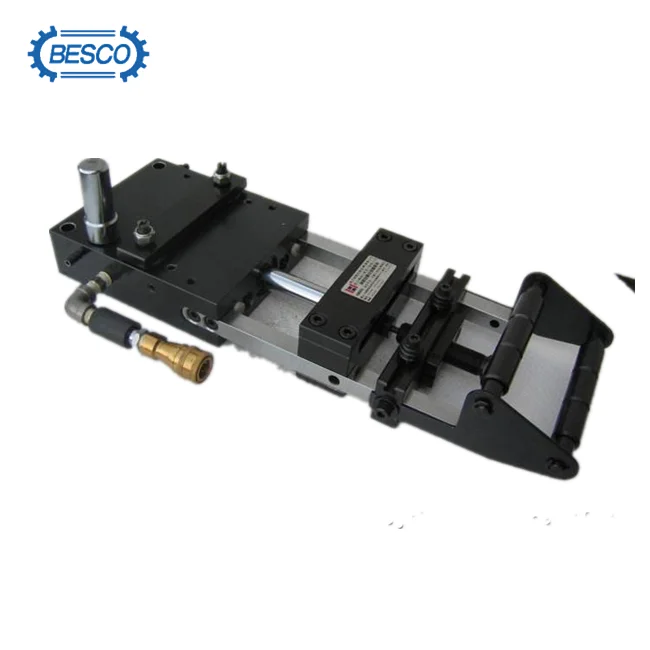

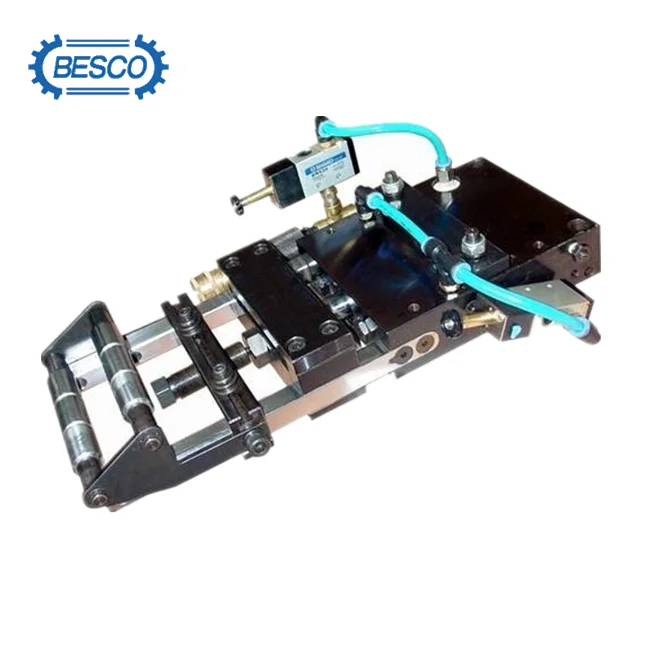

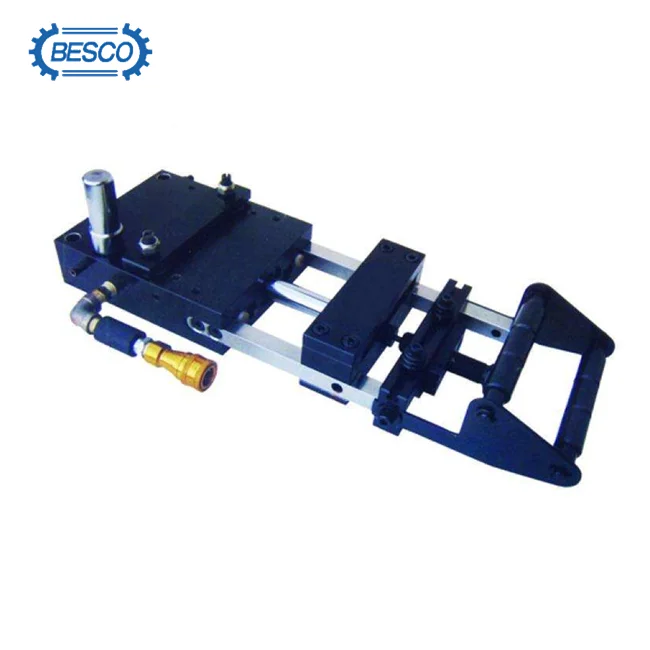

Besco High eEfficiency Automatic Air Feeder Machine
- Category: Metal Straightening Machinery >>>
- Supplier: Dongying Besco Machine Tool Limited
Share on (60502109519):
Product Overview
Description
Product Overview

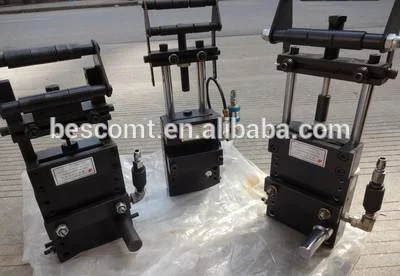

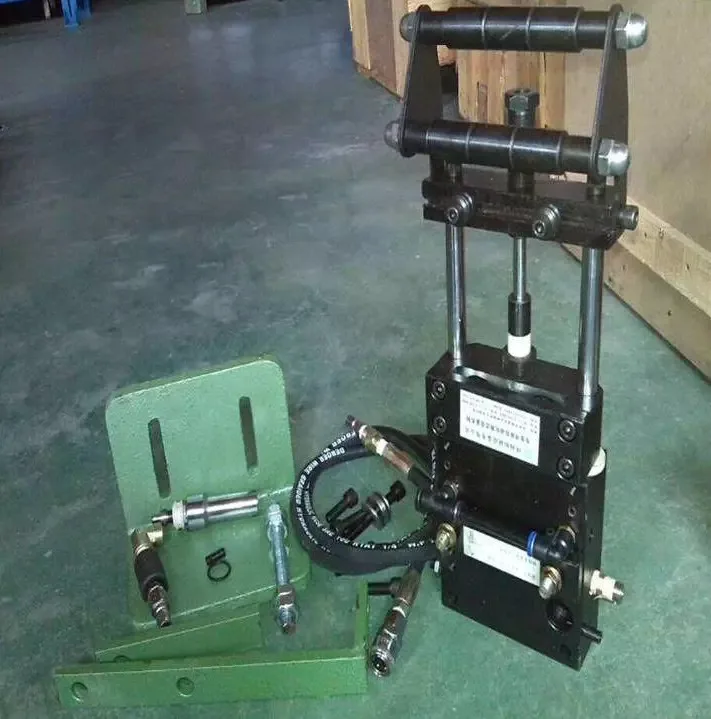

Air Feeder
Machine main features:
1. High efficiency, low friction valve, increase speed efficiency
2. All the seals are imported from Japan
3. The novel floating rod adopts a two-position three-way valve structure, the problem of easy air leakage in the position of floating rod is completely solved.
4. Low failure rate,adopts 45 degree steel by CNC finishing, so it is not easy to have problems.
5. Minimal floor area, simple structure and easy to installation.
6. The operation process is stable and the feeding accuracy is high.
7. Compact overall structure,with high precision and fast speed;all machines will go through strict test before shipping.
8. Any size and length can be customized.
1. High efficiency, low friction valve, increase speed efficiency
2. All the seals are imported from Japan
3. The novel floating rod adopts a two-position three-way valve structure, the problem of easy air leakage in the position of floating rod is completely solved.
4. Low failure rate,adopts 45 degree steel by CNC finishing, so it is not easy to have problems.
5. Minimal floor area, simple structure and easy to installation.
6. The operation process is stable and the feeding accuracy is high.
7. Compact overall structure,with high precision and fast speed;all machines will go through strict test before shipping.
8. Any size and length can be customized.
AF air feeder parameter:
Molde | AF-1CS | AF-2CS | AF-3CS | AF-4CS | AF-5CS | AF-6CS | AF-7CS | AF-8CS | AF-9CS |
width max(mm) | 50 | 70 | 80 | 100 | 150 | 200 | 250 | 300 | 350 |
length max(mm) | 50 | 76 | 80 | 125 | 150 | 200 | 250 | 300 | 350 |
thickness(mm) | 0.5 | 0.8 | 1.2 | 1.5 | 2 | 2 | 2.5 | 2.5 | 3 |
air press(kg/cm) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
speed max(c/mm) | 200 | 200 | 180 | 130 | 100 | 80 | 55 | 50 | 40 |
fixed stock CL.force | 10 | 30 | 45 | 60 | 86 | 86 | 120 | 120 | 123 |
movable stock CL.force | 30 | 30 | 68 | 85 | 155 | 178 | 200 | 217 | 220 |
pulling CL.force | 14 | 16.5 | 19.5 | 25.5 | 41 | 41 | 67 | 74 | 77 |
air consup(l/mm) | 26.5 | 32 | 42 | 53 | 105 | 105 | 132 | 130 | 152 |
weight(include tool)(kg) | 8.8 | 9.6 | 12.8 | 19.6 | 38.5 | 52.4 | 80 | 95 | 156 |

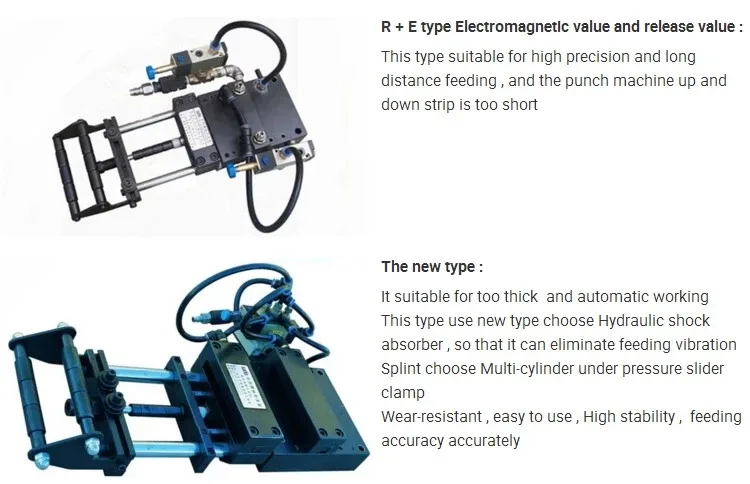

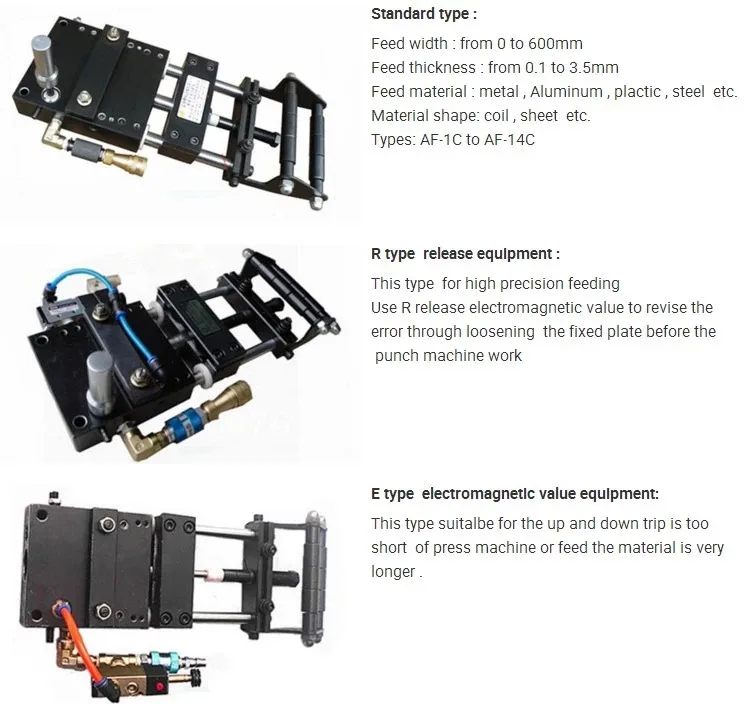

Type describe

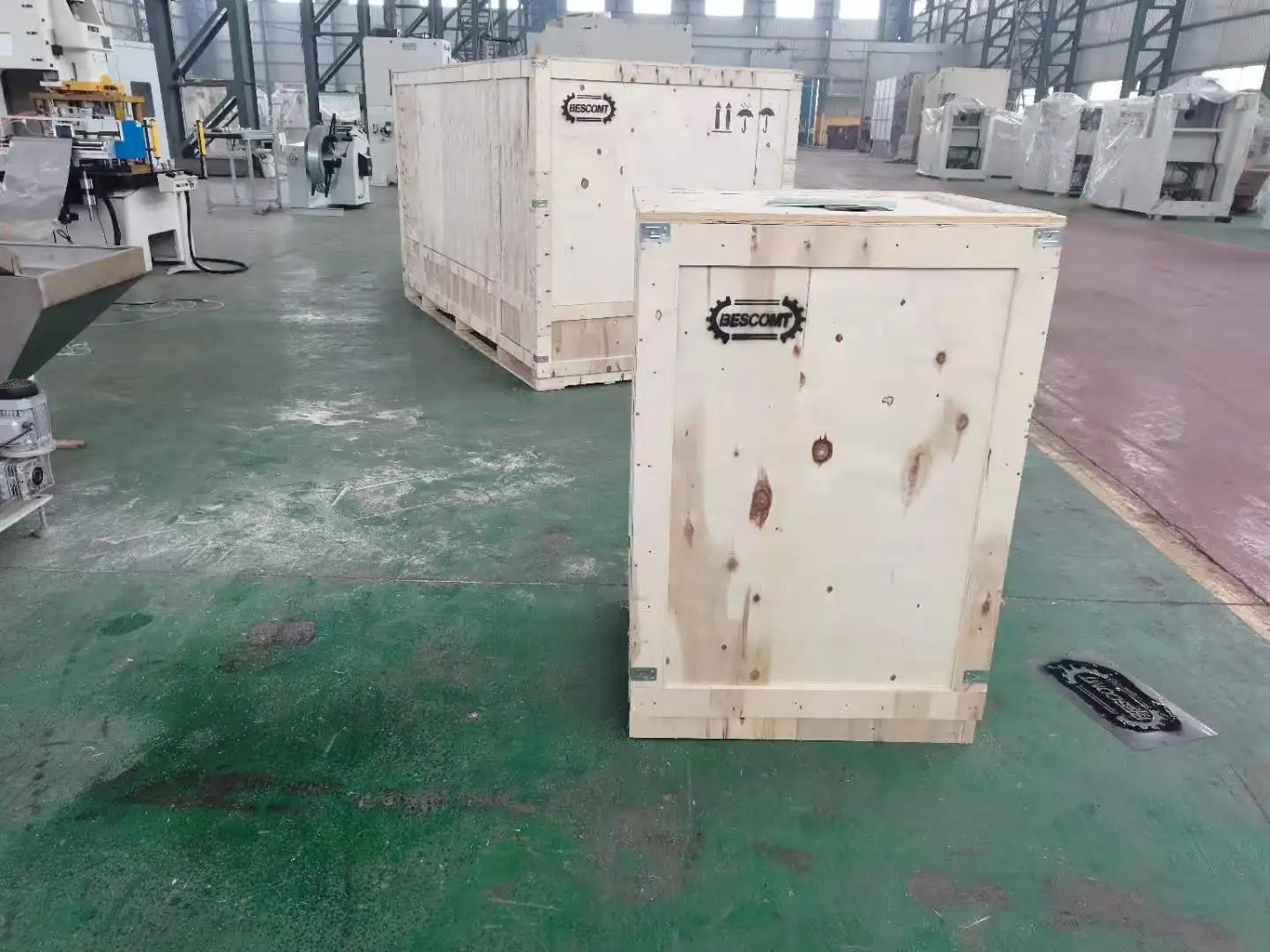

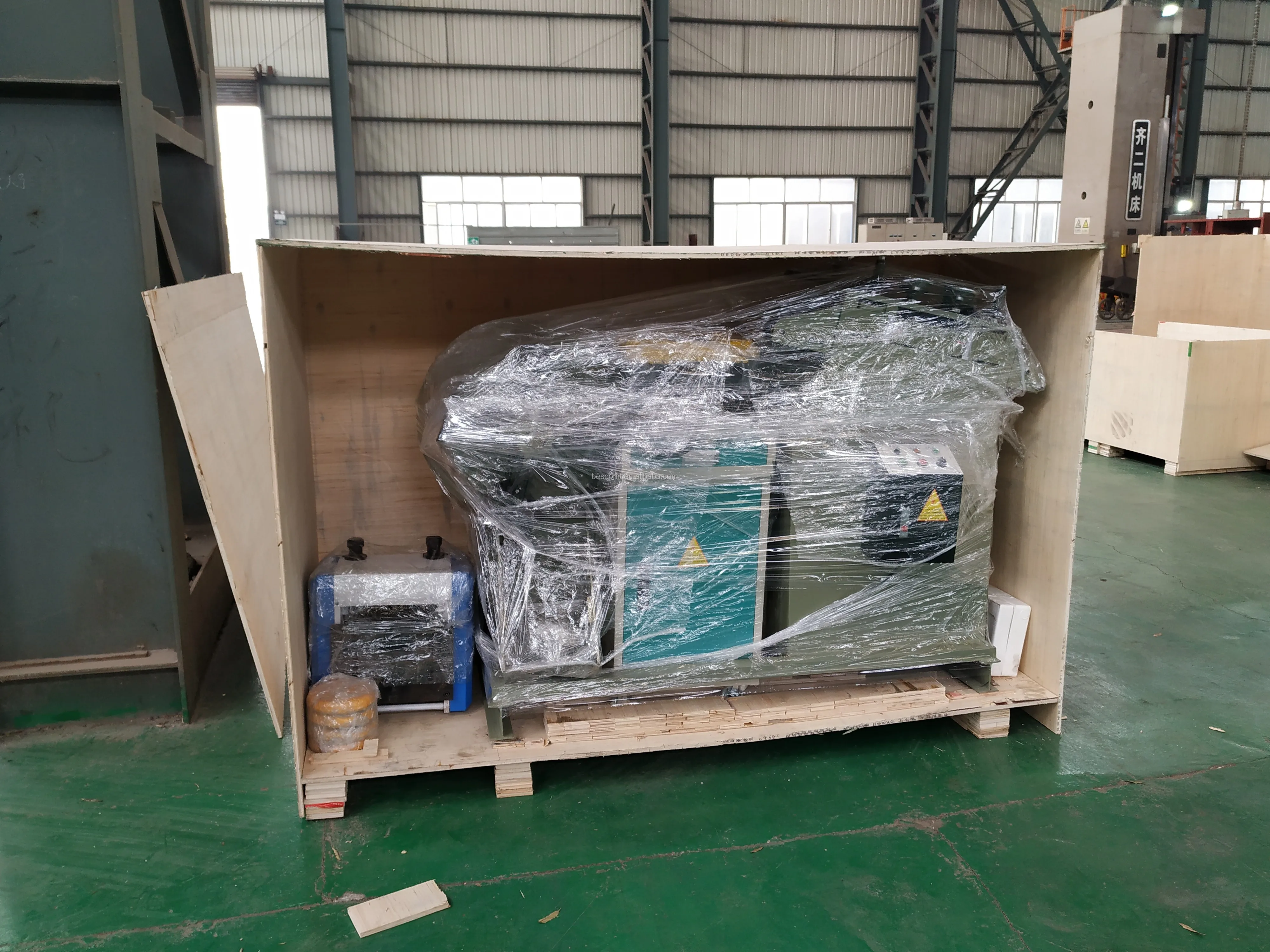

Packing&Delivery
Our Certifications
Our customer
Our Company
FAQ
Question1: what is about the payment?
Answer:Payment:30% T/T as advance, 70% T/T before delivery.
Question2: what is about the delivery time?
Answer:The machine is ready to ship.
Answer:Payment:30% T/T as advance, 70% T/T before delivery.
Question2: what is about the delivery time?
Answer:The machine is ready to ship.
Question3: because of COVID-19, I could not go to China , how can I visit your factory?
Answer: Click this website link , you would see our VR factory and office .
