YX19 75 134 Roller Shutter Door Roll Forming Machine
- Category: Other Construction Material Making Machinery >>>
- Supplier: Xiamen BMS Group
Share on (60505587997):
Product Overview
Description
YX19-75-134 Roller Shutter Door Roll Forming Machine
Product Description
Roller Shutter Door Roll Forming Machine
1. Details of Roller Shutter Door Roll Forming Machine
| Materia |
| Material Thickness(&):0.6-1.0mm/0.8-1.2mm |
| Applicable material:Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils,yield strength 245Mpa or 550Mpa |
| Machine Components |
| 1)Manual Decoiler: one set |
| Max. feeding width: 500mm, coil ID range 470mm±30mm |
| Capacity: Max. 3Ton |

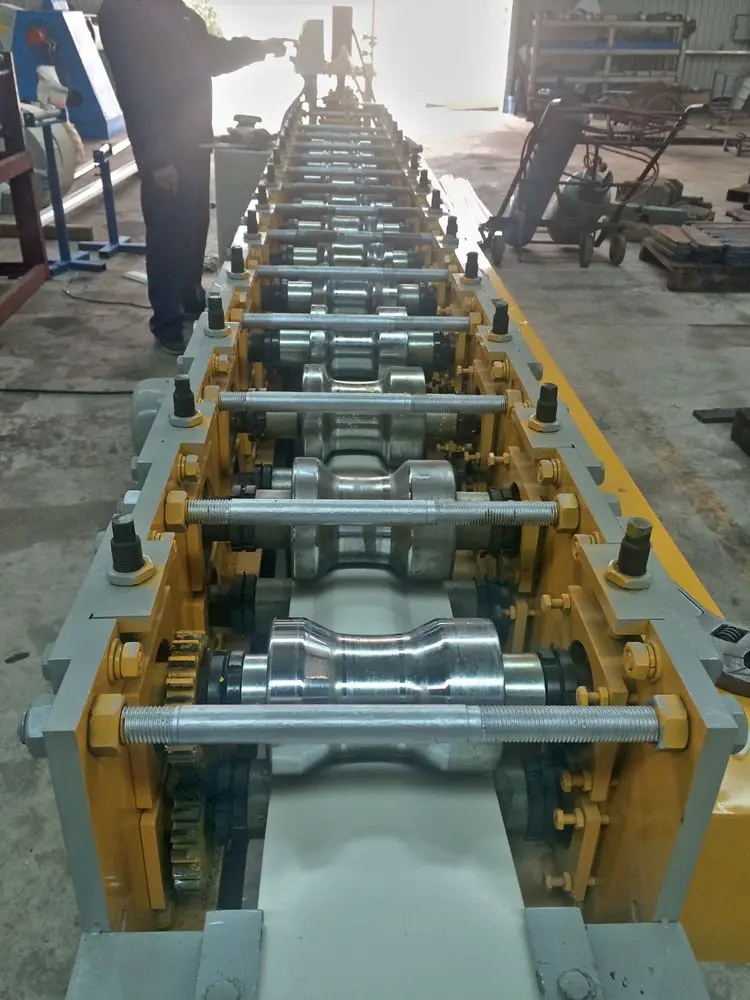

| 2) Cold Rolling Mills: |
Rollers manufactured from bearing steel GCr15,precision machined,hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) ; |
Motor Driving,Gear chain transmission, 16 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling) |
| Main Motor=5.5KW , Frequency speed control |
| Forming speed approx.15-18m/min |
| 3)Hydraulic Cutting device |
| hydraulic motor: 2.2KW, Hydraulic pressure range: 0-16Mpa |
| Cutting tool material: Cr12, Heat treatment |
| 4)PLC Control System(Touch screen brand:Taiwan WEINVIEW,Inverter brand:Finland VOCAN/Denmark Danfoss ,Encoder brand: Japan Koyo) |
| Combined with: PLC, Inverter, Touch Screen, Encoder, etc |
| Cut-to-length tolerance≤±1mm |
| Control Voltage 24V |
| 5) Exit Rack Un-powered, two units |
2. Machine Features of Roller Shutter Door Roll Forming Machine
1.Assembly process meets export standards, body frame and sideboard are spray-painted, other parts are finished through baking/chroming/galvanizing/blackening respectively, then unified assembly. After surface treatment, not only extend lifetime, but also improve overall appearance.
2.Manufactured from 45# steel, CNC lathes, Heat Treatment, hard Chrome Coated, surface with mirror treatment (more wearable and rust-free)
3.Rolling shafts are with precision machined. Solid core, 42mm, the material thickness increased to 1.2mm
4.Hydraulic cutting device, make the cutting smooth and neat.
5.Easy operation, low maintenance cost
3. Detailed Images of Roller Shutter Door Roll Forming Machine
Machine Parts
Name: rollers
Brand: BMS
Original: China
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.With black treatment or Hard-Chrome Coating for options.
Machine Parts
Name: PLC control system
Brand: SIEMENS/SCHNEIDER ELECTRIC
Original: Germany/France
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Encoder: KOYO/Omron (Japan brand)
4. Certifications
Our Service of Shutter Roll Forming Machine
Pre-Sales Service
* Inquiry and consulting support.
* Profile drawing and roll forming solution.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging & Shipping
(1) Main body of Roller Shutter Door Roll Forming Machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container with steel rope and lock catch suitable for long-distance transportation, spare parts are covered by plastic film.
(2) With even lifting point in the machine for easy container loading and uploading.
Conpany information
Conpany Show

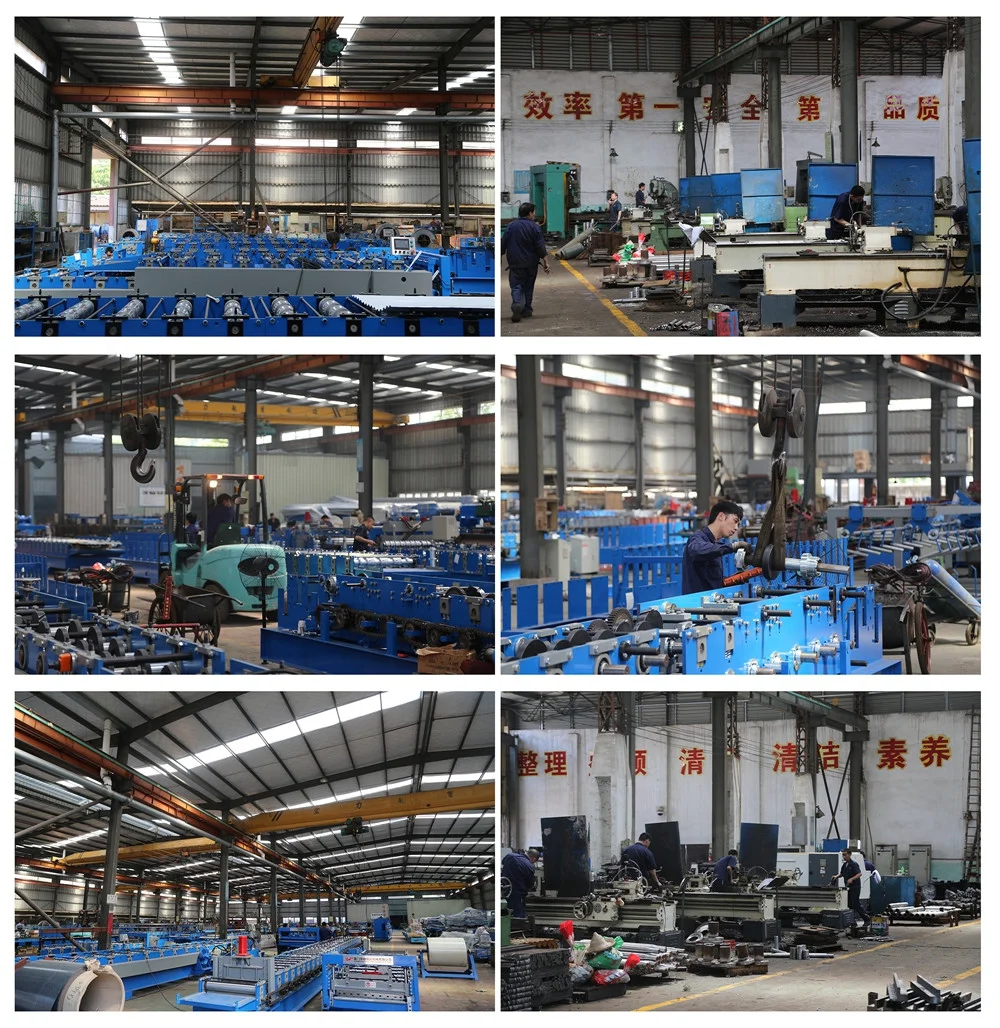

Factory Show
BMS Machine (formerly named as HF BRAND FORMING MACHINERY CO.,LTD) was established in 1996,which covers an area of MORE THAN 20000 SQUARE METERS. With 20 YEARS PROFESSIONAL EXPERIENCE, we have been the TOP 3 manufacturer and exporter of cold roll forming machines in China. We are an ISO9001 approved company, and have European CE certification (issued by SGS). We have the honor to serve some of the famous companies in the world such as TATA STEEL,BLUESCOPESTEEL, BRADBURY MACHINERY,etc.

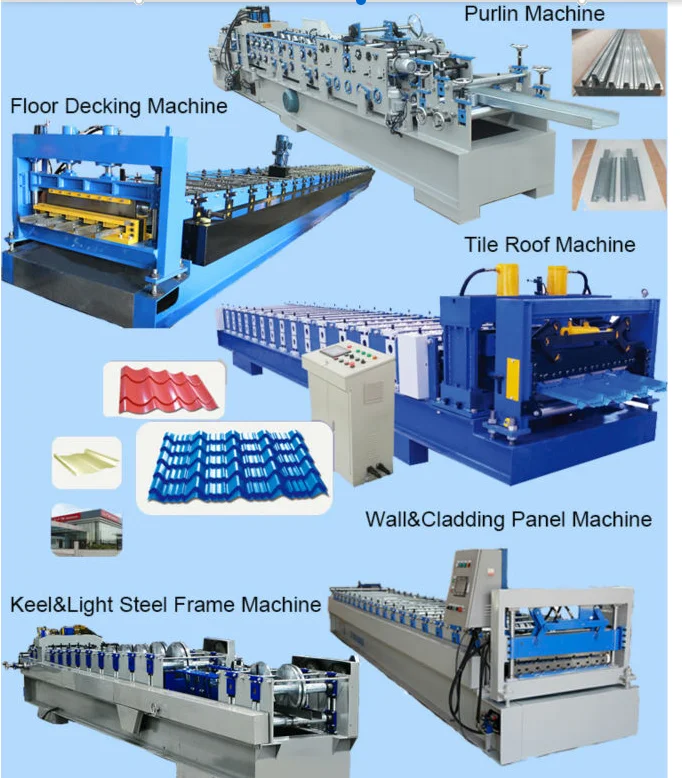

We manufacture wide range products of metal sheet cold roll forming machines as follows: 1) for Metal Building Industry/PEB (Pre-Engineering Building): HAYES style quick change CZ purlin machine(including automatic and quick-change type C purlin machine and Z purlin machine), light gauge steel framing machine(LGSF, Howick and SCOTTSDALE style), roof panel forming machine, corrugated panel roll forming machine, curving machine, glazed tile roll forming machine, floor decking machine, ridge cap roll forming machine, cladding facade system forming machine, cut-to-length slitting line etc., as well as some hydraulic shearing machine, hydraulic folding machine for gutter and flashing, etc.
