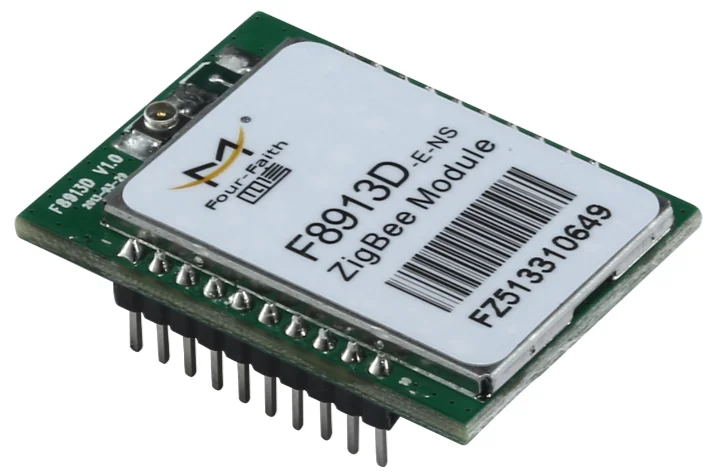

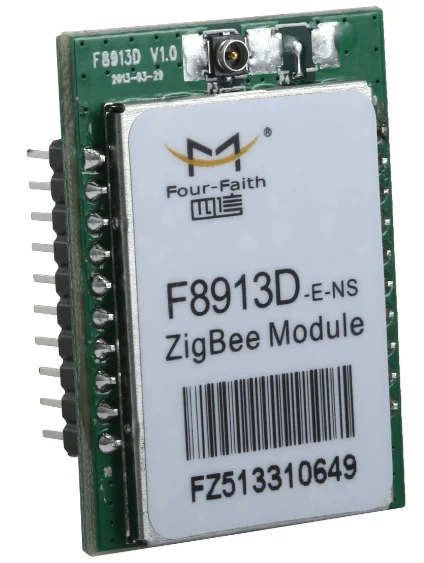

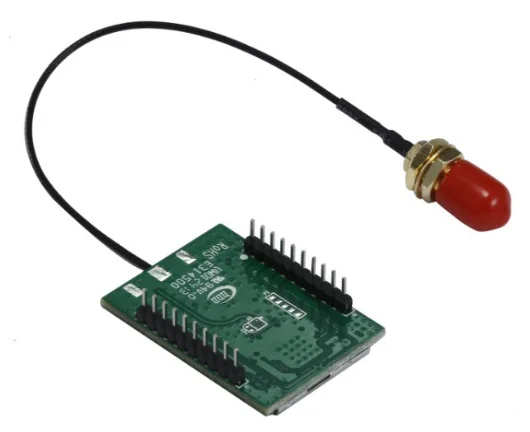

F8913 Wireless Low Cost Price of Zigbee Module
Product Description
 | •ZigBee Module Support UART • ZigBee Module Low power consumption design, support multi-sleep and trigger modes to reduce the power dissipation farthest • ZigBee Module Supply 5 I/O channels,compatible 3 analog inputs and 2 pulse input counters • ZigBee Module Support auto recovery mechanism, including online detect, auto redial when offline to make it always online • ZigBee Module Support ZigBee wireless data transmission • ZigBee Module Support Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh network |
Product Specification for F8913 Wireless Low Cost Price of Zigbee Module
| Item | Content |
| Indoor/Urban Range | 30m 90m(With PA) |
| Outdoor/RF Line-of-Sight Range | 500m 2000m(With PA) |
| Transmit Power | 2.82 mw (+4.5dBm) 100 mw (+20dBm) (With PA) |
| Receiver Sensitivity | -97dBm -103dBm (With PA) |
| Recommended Power | DC 3.3V/0.1A |
| Power Range | DC 2.0~3.6V |
| Operating Temperature | -40~+85ºC (-104~+185 ºF) |
| Dimensions | 37.5 x 22.1 x 2.8 mm |
| Weight | 3.5 g |
Detailed Images for F8913 Wireless Low Cost Price of Zigbee Module
2KM Communication Distance Point to point communication of ZigBee module is up to 2KM, support multi-level relay route, is helpful for creating large networking of long distance. |  |
 | Modules Can be Remotely Configured, Batch Management, Greatly Reducing the Intensity of Work. Remote, batch configuration parameters of communication module, upgrade, etc., more efficient for large project management.
|
Large Network Capacity Network capacity up to 65,000 nodes, hardened steel consumption monitoring, agricultural irrigation and other large projects application. |  |
 |
Compatible with a Variety of Industrial Applications Protocols Support for smart home, digital oilfield industry and other rich application protocols. |
Strong Project Adaptable, Flexible in Use Integrated transparent transfer, API, AT mode, working mode of ZigBee module can be configured according to the project needs.
Support analog and digital data automatic acquisition and reported, no need for secondary development, shorten the project development cycle. |  |
