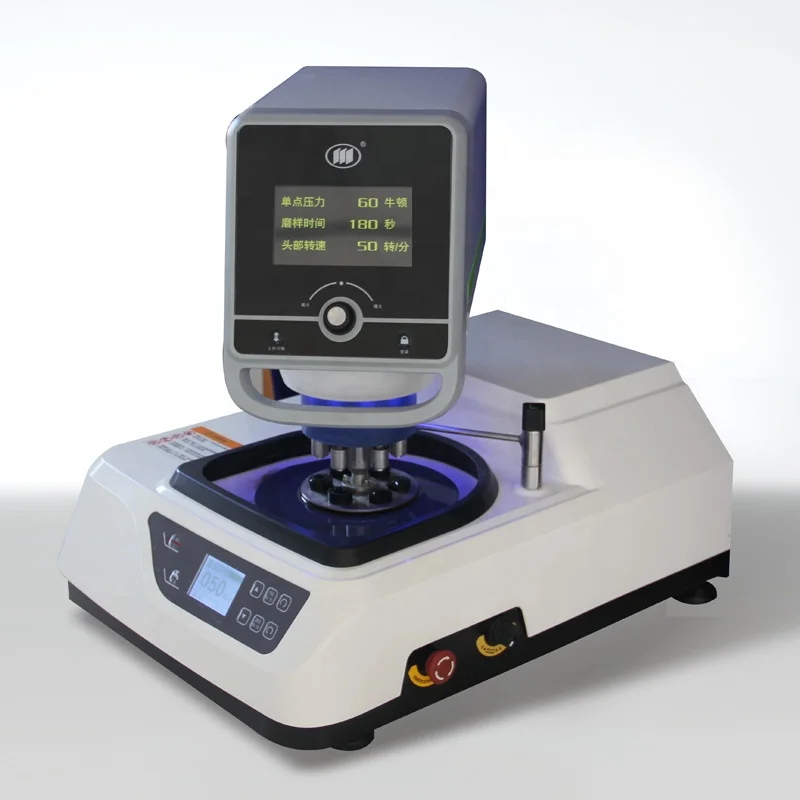

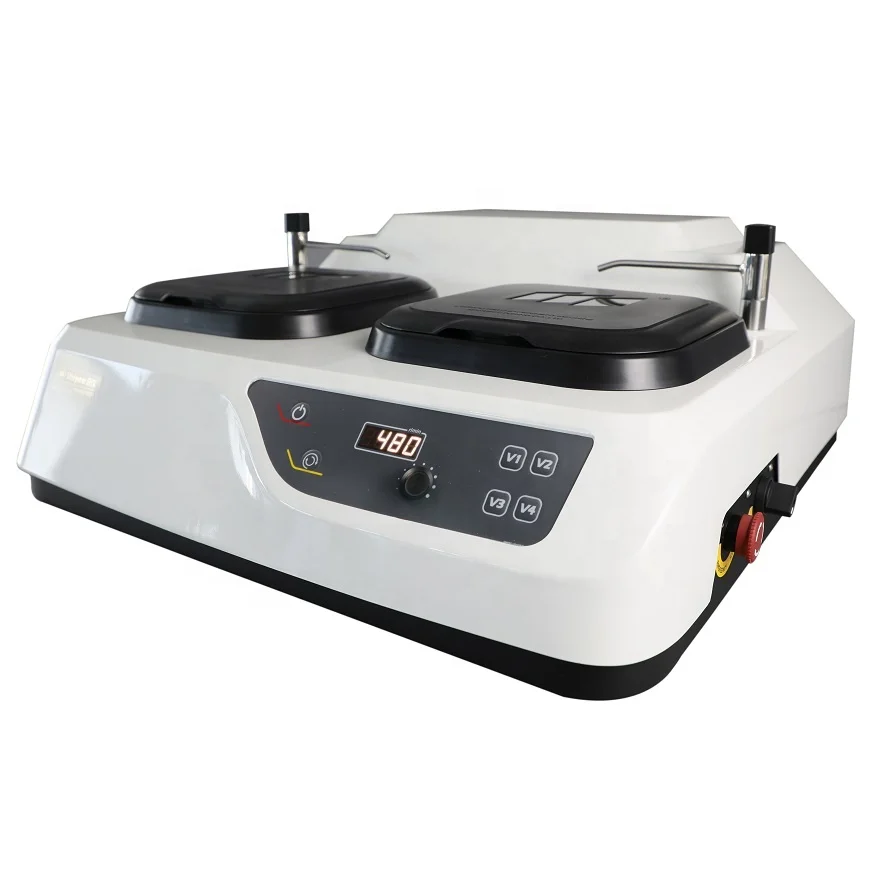

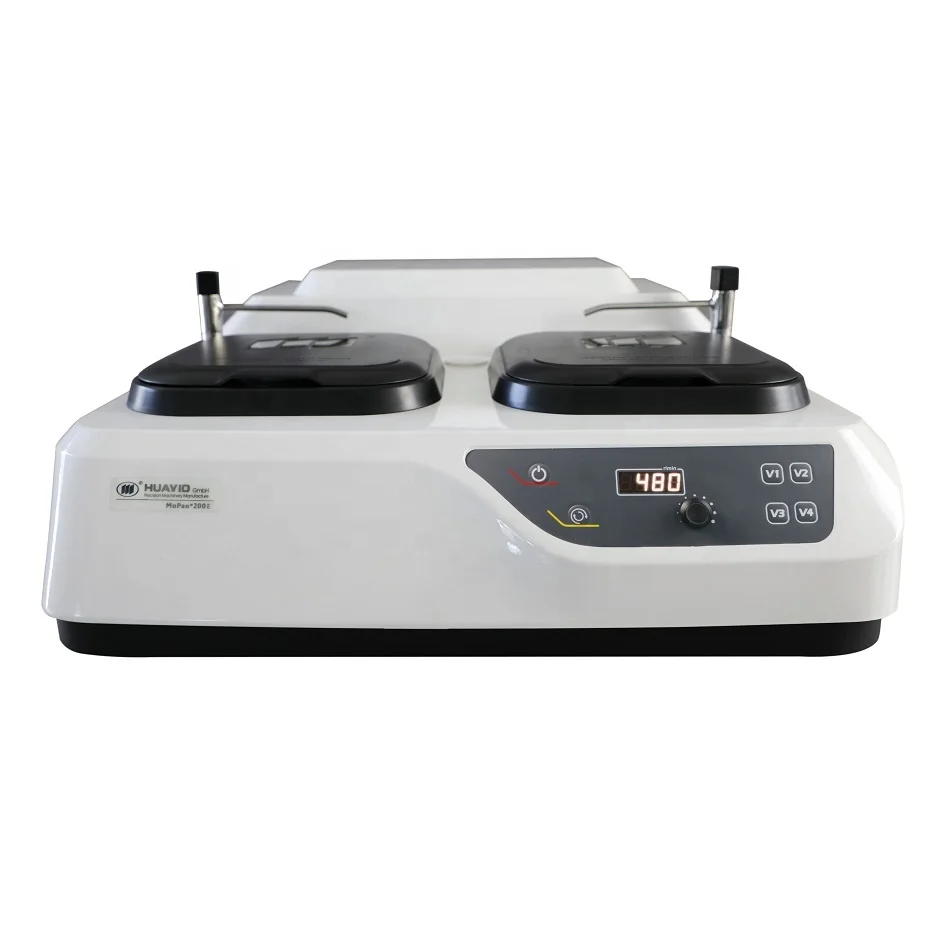

WEIYI Brand automatic grinding/polishing machine MOPAO2

Mopao 2 model automatic grinding/polishing machine adopt international advanced manufacturing technology in accordance with international standards.
Thies series adopts the advanced microprocessor control system,which makes grinding disc and grinding head speed stepless adjustable, sample preparation pressure, time setting. Operation can only change grinding disc and sandpaper fabric, showing more wide applicability.
The machine has the following features such as optional grinding disc rotation, quick-change grinding disc,vertical preparation fixture, pneumatic single point loading.
This machine has cooling device and abrasive scouring nozzle,equipped with beautiful and practical ABS shell, stainless steel standard parts, and it is never rust.
This series is applicable to rough grinding, fine grinding, coarse polishing and polishing process as well as it is an ideal equipment for enterprises, scientific research institutions and colleges laboratory.

Grinding disc quantity\t 1
Grinding disc diameter\t∅250mm or ∅300mm
Grinding disc speed\t50-1000PRM&150/300PRM
Grinding disc rotation\tColckwise or anticlockwise
Grinding  head speed\t5-100rpm
Loading range\t5-60N
Sample preparation time\t0-9999S
Sample diameter\t∅30mm(22mm or 45mm)
Lighting\tLED
Gas source pressure\t0.6-0.8Mpa
Input voltage\t220V/50HZ
Input power\t1KW
Dimension\t790mm*566mm*677mm
Net weight\t93kg
